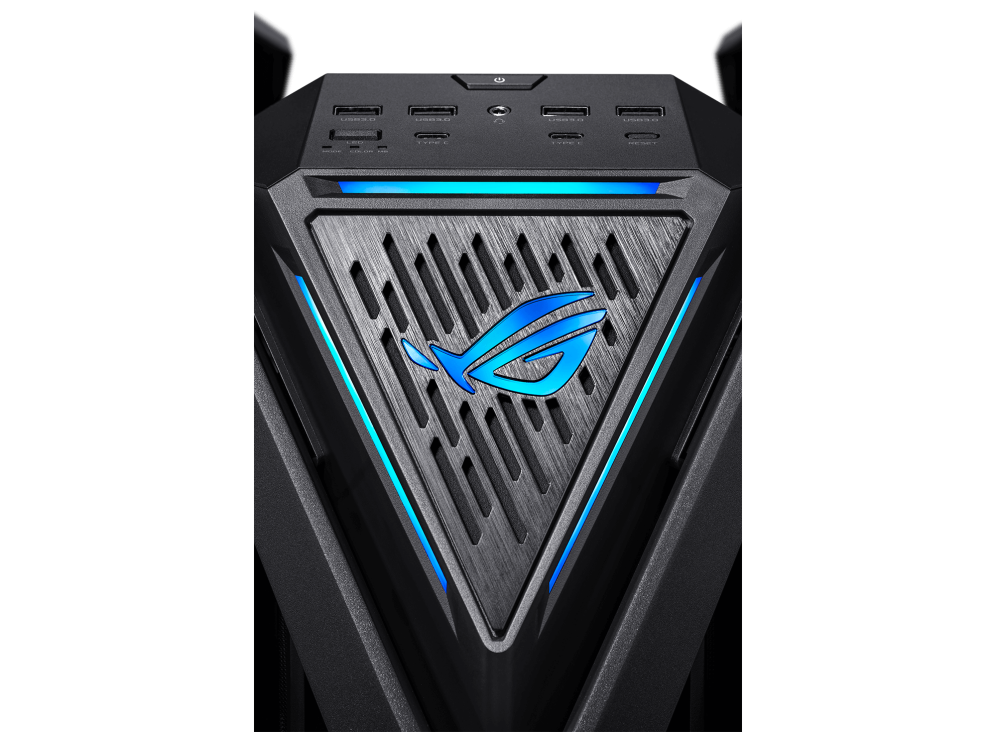

Model ROG Hyperion GR701
Motherboard Support EATX (12"x10.9")
ATX
Micro-ATX
Mini-ITX
Drive Bays 5 x 2.5" Bay
2 x 2.5"/3.5" Combo Bay
Expansion Slots 9
3 (additional vertical)
Front I/O Port 1 x headphone / Microphone
4 x USB 3.2Gen1
1 x USB 3.2 Gen2 Type C
LED Control Button
Reset Button
1 x USB 4.0 Type C or 1 x USB 3.2 Gen 2x2 Type C
this spec might vary by region
Tempered Glass Left Side
Right Side
Radiator Support (Front) 120 mm
140 mm
240 mm
280 mm
360 mm
420 mm
Radiator Support (Top) 120 mm
140 mm
240 mm
280 mm
360 mm
420 mm
Radiator Support (Rear) 120 mm
140 mm
Cooling Support (Front) 3 x 120 mm
3 x 140 mm
Cooling Support (Top) 3 x 120 mm
3 x 140 mm
Cooling Support (Rear) 1 x 120 mm
1 x 140 mm
Pre-installed Fans (Front) 3 x 140 mm
PWM
Pre-installed Fans (Rear) 1 x 140 mm
PWM
Maximum CPU Cooler Height 190 mm
Maximum GPU Length 460 mm
Maximum PSU Length 240 mm
Removable Dust Filters Front
Top
Bottom
Maximum Cable Management Space 34 mm
Dimensions 268x639x659 mm

*Note: The actual colors may be different from the color displayed here. Features, Price and Specifications are subject to change without notice.
