Save 47%

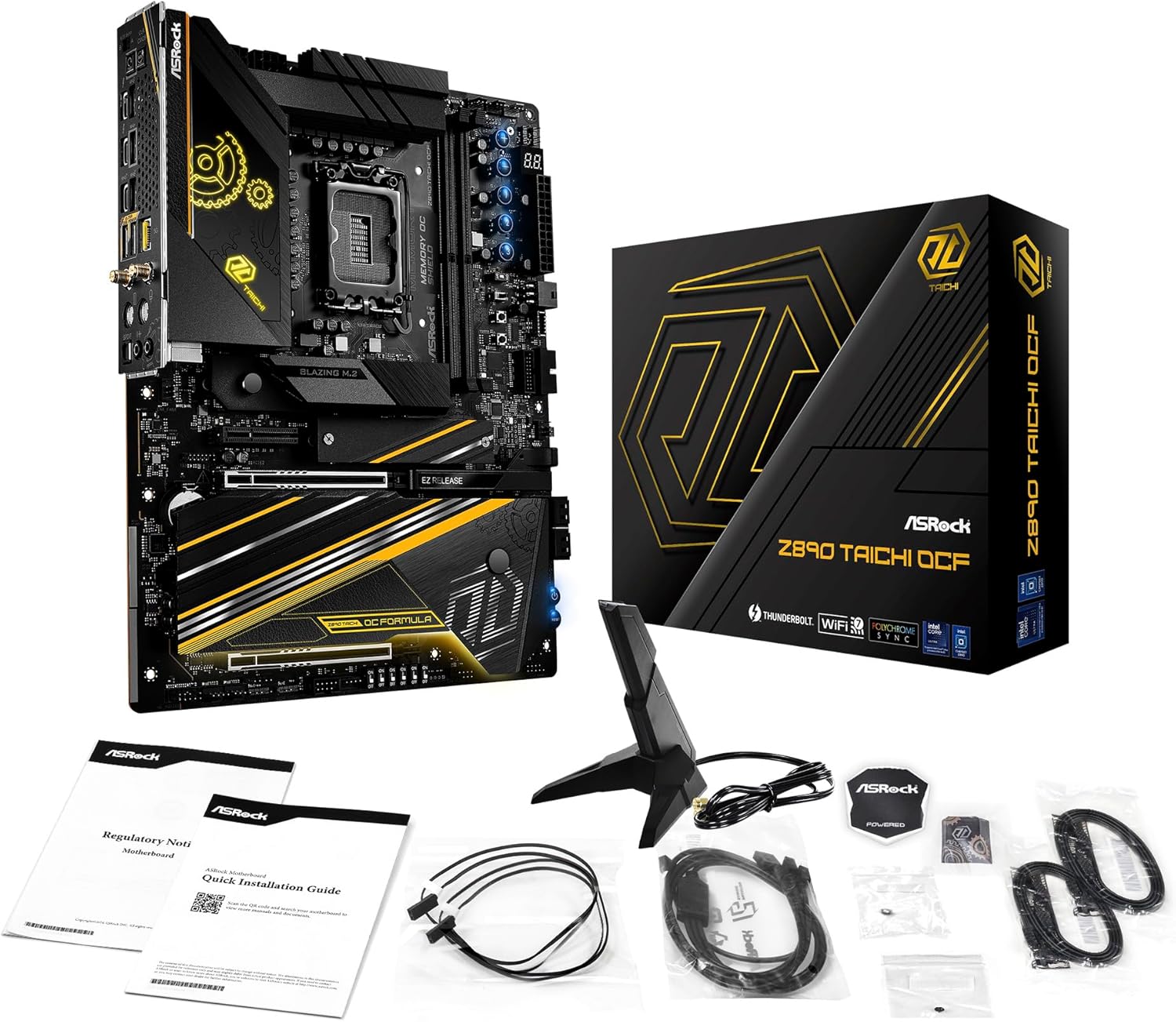

ASROCK Z890 TAICHI OCF INTEL CORE ULTRA LGA1851 DDR5 M-ATX MOTHERBOARD
Sale priceRs. 51,793.00Regular price
Rs. 98,499.00
Out of stock
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
About this item
- Supports Intel Core Ultra Processors (Series 2) (LGA1851)
- 22+1+2+1+1 Power Phase, 110A SPS for VCore
- 2 x DDR5 DIMMs
Supports Dual Channel, up to 12735+ (OC)* - 2 PCIe 5.0 x16, 1 PCIe 4.0 x4
- Graphics Output Options: Dual Thunderbolt 4/USB4 Type-C
- Realtek ALC4082 7.1 CH HD Audio Codec, Nahimic Audio
- 4 SATA3
1 Blazing M.2 (PCIe Gen5 x4)
3 Hyper M.2 (PCIe Gen4 x4)
2 Hyper M.2 (PCIe Gen4 x4 & SATA3) - Dual Thunderbolt 4/USB4 Type-C (Rear)
2 USB 3.2 Gen2x2 Type-C (1 Rear, 1 Front)
4 USB 3.2 Gen2 Type-A (Rear)
5 USB 3.2 Gen1 (1 Rear, 4 Front)
3 USB 2.0 (Front) - 5G LAN
- 802.11be Wi-Fi 7 + Bluetooth
- Supports BIOS Flashback, Memory OC Shield, 20K Caps with 1000uF Capacitance
- Professional Overclocking Toolkit
Product information
|
CPU
|
- Supports Intel Core Ultra Processors (Series 2) (LGA1851RL-ILM) - Supports Intel Hybrid Technology - Supports Intel Turbo Boost Max 3.0 Technology - Supports Intel Thermal Velocity Boost (TVB) - Supports Intel Adaptive Boost Technology (ABT) - Integrated NPU for dedicated AI acceleration - Supports ASRock Hyper BCLK Engine |
|
Chipset
|
- Intel Z890 |
| Memory |
- Dual Channel DDR5 Memory Technology - 2 x DDR5 DIMM Slots - Supports DDR5 non-ECC, un-buffered memory up to 12735MHz+(OC)* - Supports Clocked Unbuffered DIMM (CUDIMM) - Max. capacity of system memory: 128GB - Supports Intel Extreme Memory Profile (XMP) 3.0x |
|
BIOS
|
- 2 x 256Mb AMI UEFI Legal BIOS with GUI support |
|
Graphics
|
- Intel Xe LPG Graphics Architecture - 2 x Intel Thunderbolt 4/USB4, support HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz |
|
Audio
|
- 7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec) - Nahimic Audio |
| LAN |
- 5 Gigabit LAN 10/100/1000/2500/5000 Mb/s - Realtek RTL8126 |
|
Wireless LAN
|
- 802.11be 2x2 Wi-Fi 7 Module - Supports IEEE 802.11a/b/g/n/ac/ax/axe/be - Supports 2.4GHz/5GHz/6GHz frequency band* - Supports 320MHz channel bandwidth with 6GHz frequency band* - 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.4 - Supports MU-MIMO |
| Slots |
CPU: - 1 x PCIe 5.0 x16 Slot (PCIE2), supports x16 mode* - 1 x PCIe 5.0 x16 Slot (PCIE3), supports x8 mode* Chipset: - 1 x PCIe 4.0 x4 Slot (PCIE1), supports x4 mode* - 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module - Supports AMD CrossFire™ - 15μ Gold Contact in VGA PCIe Slots (PCIE2 and PCIE3) |
|
Storage
|
CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes* - 1 x Hyper M.2 Socket (M2_5, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes* - 1 x Hyper M.2 Socket (M2_6, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* ASMedia ASM1061: - 4 x SATA3 6.0 Gb/s Connectors |
|
RAID
|
CPU: - 2 x Thunderbolt 4/USB4 Type-C (Rear) Chipset: - 2 x USB 3.2 Gen2x2 Type-C (1 Rear, 1 Front) - 4 x USB 3.2 Gen2 Type-A (Rear) - 5 x USB 3.2 Gen1 (1 Rear, 4 Front) - 3 x USB 2.0 (Front) |
| Connector |
- 2 x Thermistor Cable Headers - 1 x Power LED and Speaker Header - 4 x Addressable LED Headers* - 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)** - 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)** - 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)** - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) - 1 x 6 pin Graphics 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector (15μ Gold Audio Connector) - 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) - 1 x Heater Header - 1 x ElmorLabs OCP Header - 1 x Dr. Debug with LED - 1 x Power Button with LED - 1 x Reset Button with LED - 1 x Retry Button - 1 x Safe Boot Button - V-Probe™: 11-set of onboard voltage measurement points laid - Rapid OC Buttons: +/- buttons to adjust OC frequency - 6 x OC Switches - 1 x Slow Mode Switch - 1 x LN2 Mode Switch - 1 x NickShih's OC Profile 1 Button with LED - 1 x NickShih's OC Profile 2 Button with LED - 1 x NickShih's OC Profile 3 Button with LED |
| Rear Panel I/O |
- 2 x Antenna Ports - 1 x PS/2 Keyboard Port - 1 x PS/2 Mouse Port - 1 x Optical SPDIF Out Port - 2 x Thunderbolt™ 4/USB4 Type-C Ports (40 Gb/s)* - 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) - 4 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)** - 1 x USB 3.2 Gen1 Port - 1 x RJ-45 LAN Port - 1 x Clear CMOS Button - 1 x BIOS Flashback Button - 1 x BIOS Selection Switch - 1 x Line Out Jack (Gold Audio Jack) - 1 x Microphone Input Jack (Gold Audio Jack) |
|
Form Factor
|
- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - 10 Layer PCB - 2oz Copper PCB |
|
OS
|
- Microsoft Windows 11 64-bit |
