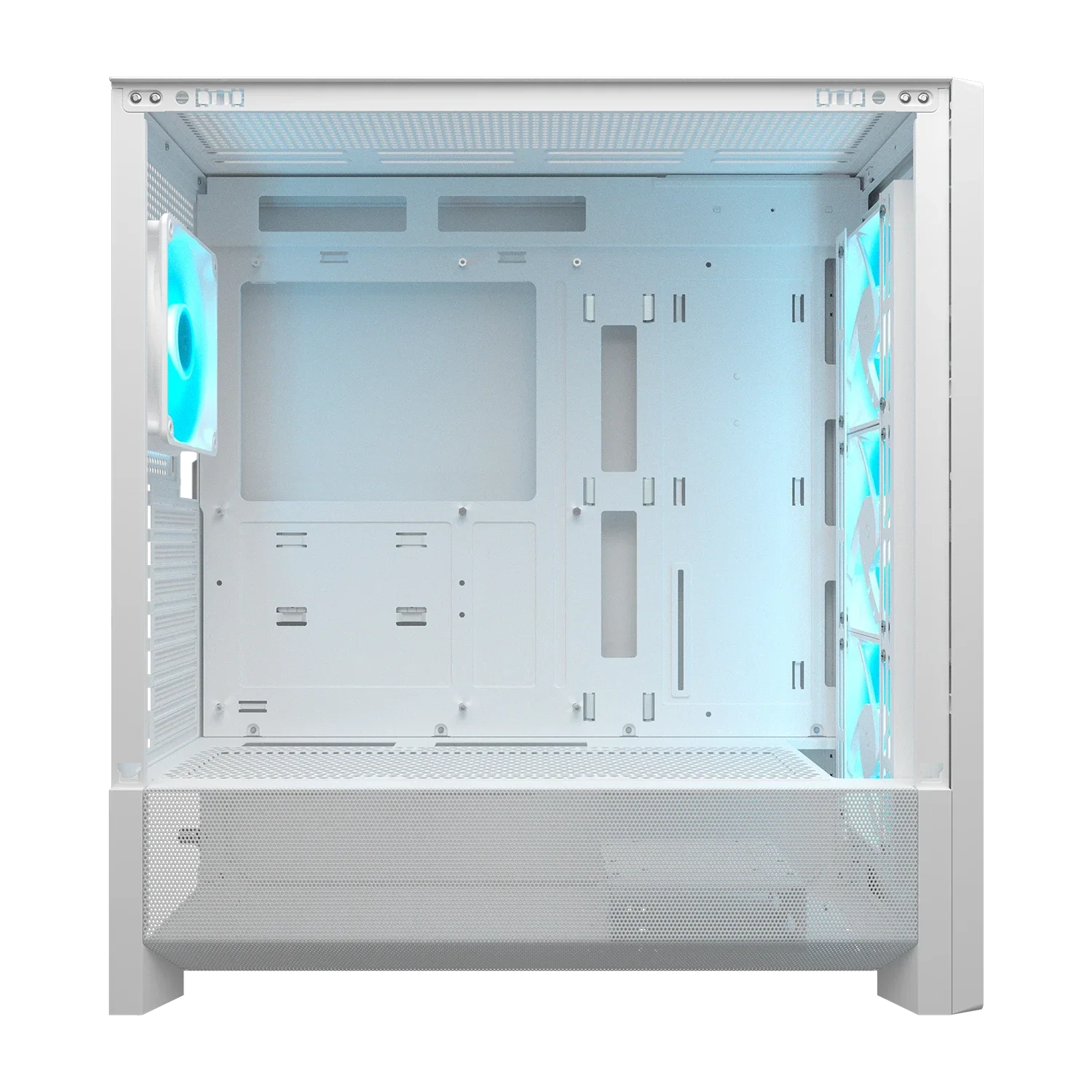

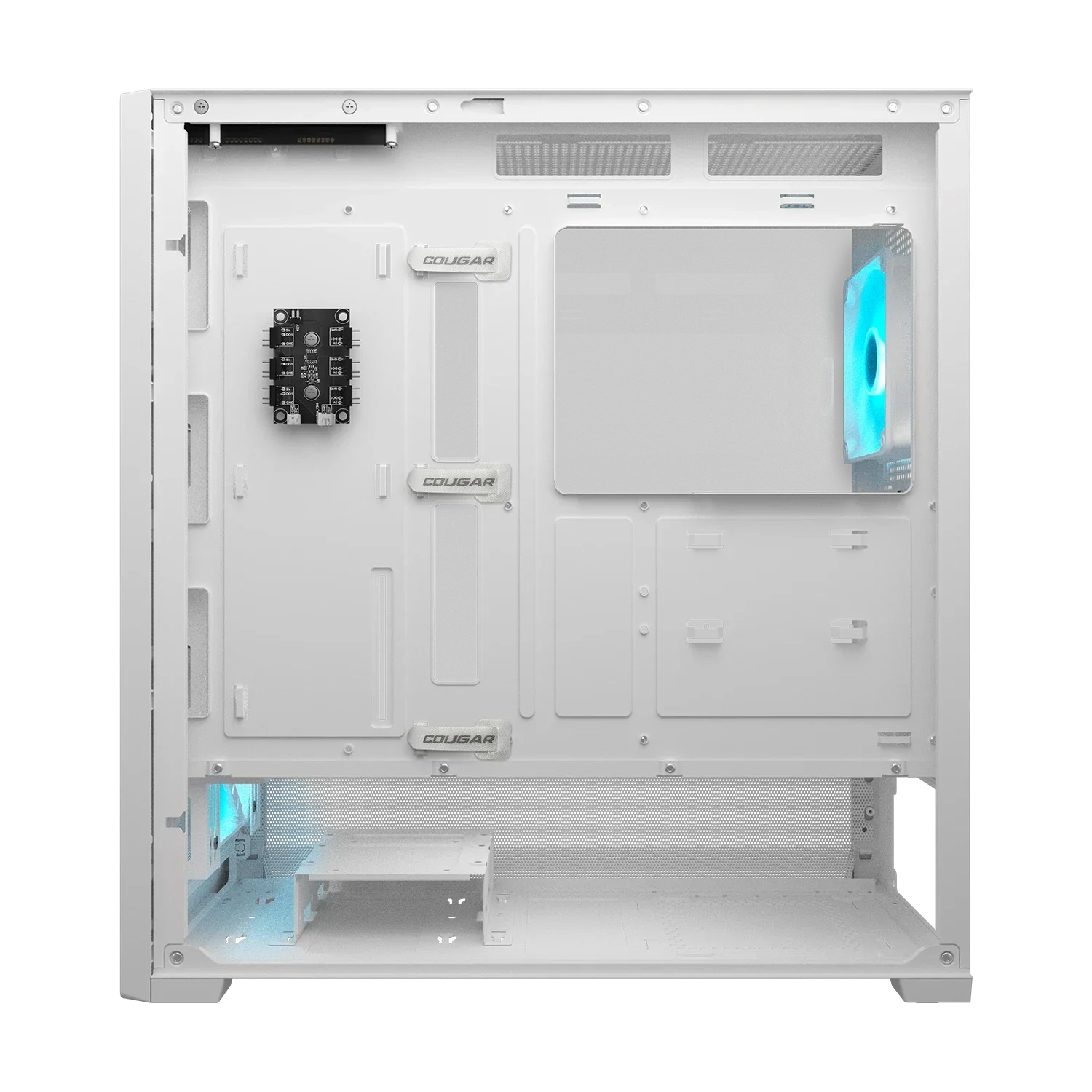

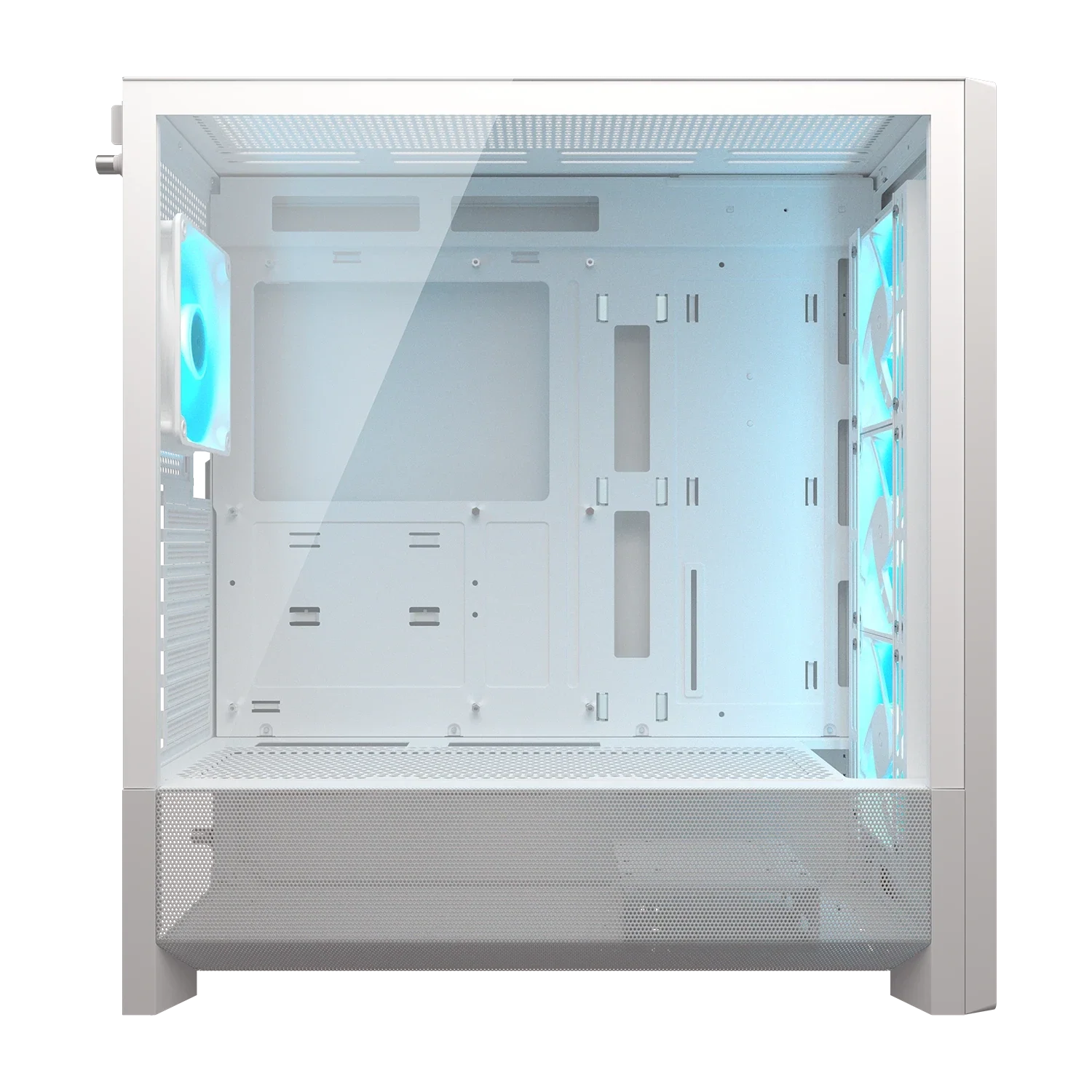

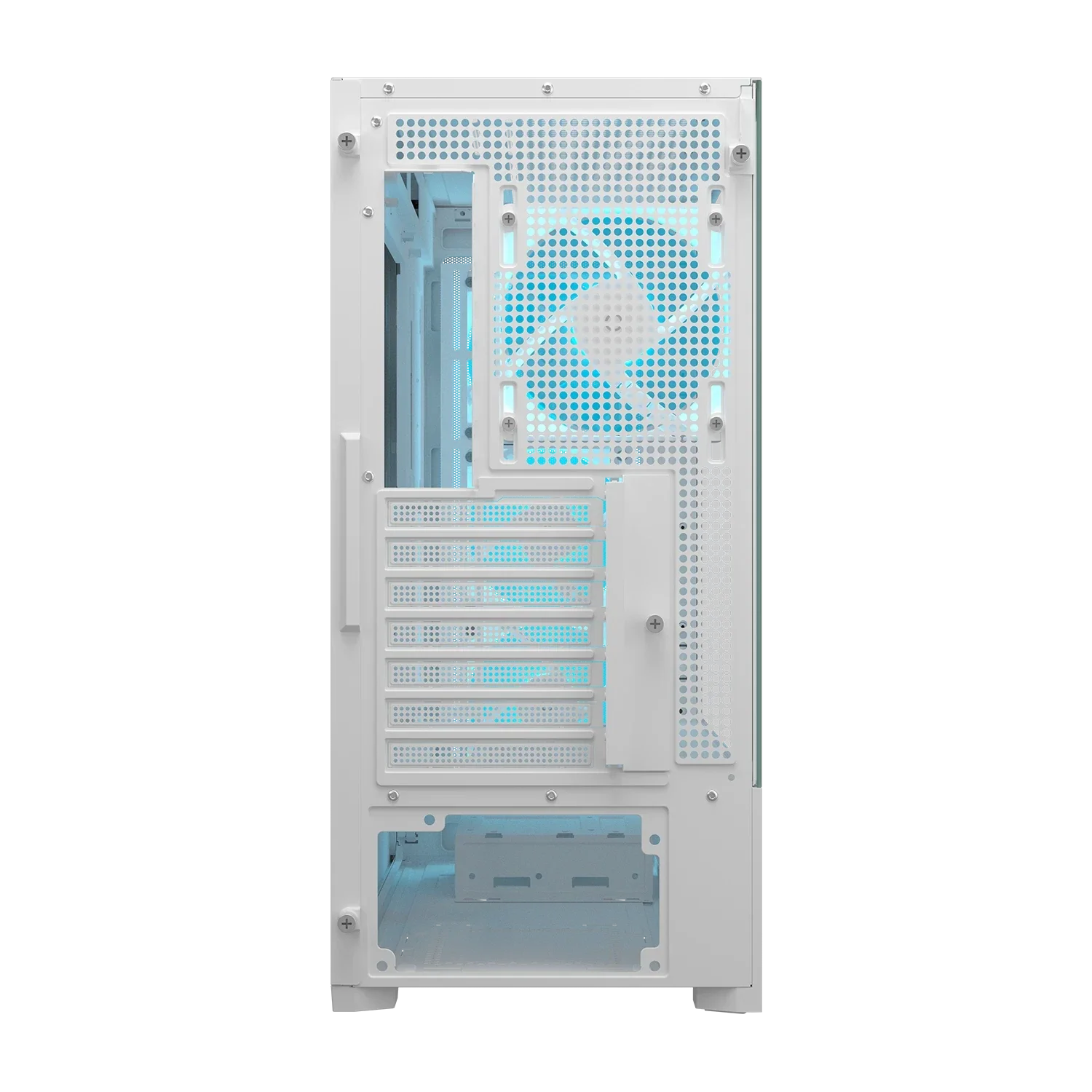

Experience superior airflow and gaming readiness with the Cougar MX230 RGB White Cabinet. Designed for performance, this airflow-first PC case combines high-volume, intake-enhanced cooling potential, including a triple-fan porous PSU shroud and angled mesh base slopes, with quality-of-life features for easy upkeep. It's a cool, simple, and game-ready solution for your build.
Key Features at a Glance
- All-metal front mesh panel doubles as a dust filter for easy maintenance.
- Preinstalled with 3 x 120mm ARGB front fans and 1 x 120mm ARGB rear fan.
- Porous PSU shroud accommodates 3 x 120mm fans for true vertical intake.
- Supports 360mm AIO cooling and a maximum fan capacity of 10.
- Equipped with USB 3.2 Gen 2 2×1 Type-C (10Gbps) and two USB 3.0 Type-A ports.
- Compatible with Mini ITX, Micro ATX, ATX, and E-ATX motherboards.
Efficient Airflow Design
The MX230 RGB prioritizes cooling with features like a right-offset PSU cabin that maximizes airflow space and perforated base slopes to increase intake surface area. This thoughtful design ensures optimal thermal performance for your components.
Smart Front Panel Maintenance
The all-metal front panel features a rugged, snap-fit mechanism for a secure connection. Its integrated ultra-fine mesh filter allows for tool-less, single-step maintenance, making cleaning simple and efficient without compromising filtration.
Broad Component Compatibility
Build your dream system with confidence. The Cougar MX230 RGB White Cabinet accommodates up to 400mm GPUs and houses 2 x 3.5” HDDs or 1+1 2.5” SSDs (converted from 3.5” drive bays), offering flexibility for powerful setups.
Technical Specifications
| Product Name | MX230 RGB (White) | ||
|---|---|---|---|
| Case Form Factor | Mid Tower | ||
| Motherboard Type | Mini ITX / Micro ATX / ATX / E-ATX | ||
| Dimensions (WxHxD) | 220 x 475 x 445 (mm) 8.7 x 18.7 x 17.5 (in) |
||
| I/O Panel | USB 3.2 Gen 2x1 Type-C x 1, USB 3.0 Type-A x 2, 4 Pole Headset Audio Jack x 1, RGB Button | ||
| 3.5" Drive Bay | 2 | ||
| 2.5" Drive Bay | 1+1(converted from 3.5" drive bays) | ||
| Expansion Slots | 7 | ||
| Cooling Fan Support | Front | 120mm x 3 / 140mm x 2 | |
| Top | 120mm x 3 / 140mm x 2 | ||
| PSU shroud | 120mm x 3 | ||
| Rear | 120mm x 1 | ||
| Pre-installed Fans | Front | 120mm ARGB fan x 3 | |
| Rear | 120mm ARGB fan x 1 | ||
| Speed | 1000 ± 10% RPM | ||
| Connector | 5V 3 Pin (ARGB) / 3 Pin (Fan) | ||
| Maximun Number of Fans | 10 | ||
| Water Cooling Support | Top | 360mm / 240mm / 120mm | |
| Rear | 120mm | ||
| RGB Hub Sync with M/B | Yes | ||
| Max. Graphics Card Length | 400 (mm) / 15.7 (in) | ||
| Max. CPU Cooler Height | 170(mm) /6.7 (in) | ||
| Max. PSU Length | 200 (mm) / 7.9 (in) | ||
Frequently Asked Questions
Q: What types of motherboards are compatible with the MX230 RGB?
A: The Cougar MX230 RGB White Cabinet is compatible with Mini ITX, Micro ATX, ATX, and E-ATX motherboards.
Q: How many fans come preinstalled in this cabinet?
A: It comes with 3 x 120mm ARGB front fans and 1 x 120mm ARGB rear fan preinstalled.
Q: What connectivity options are available on the front panel?
A: The front panel is equipped with 1 x USB 3.2 Gen 2 2×1 Type-C (10Gbps) port and 2 x USB 3.0 Type-A ports.
