Cougar MX230 RGB Black Cabinet

{"description_html": "

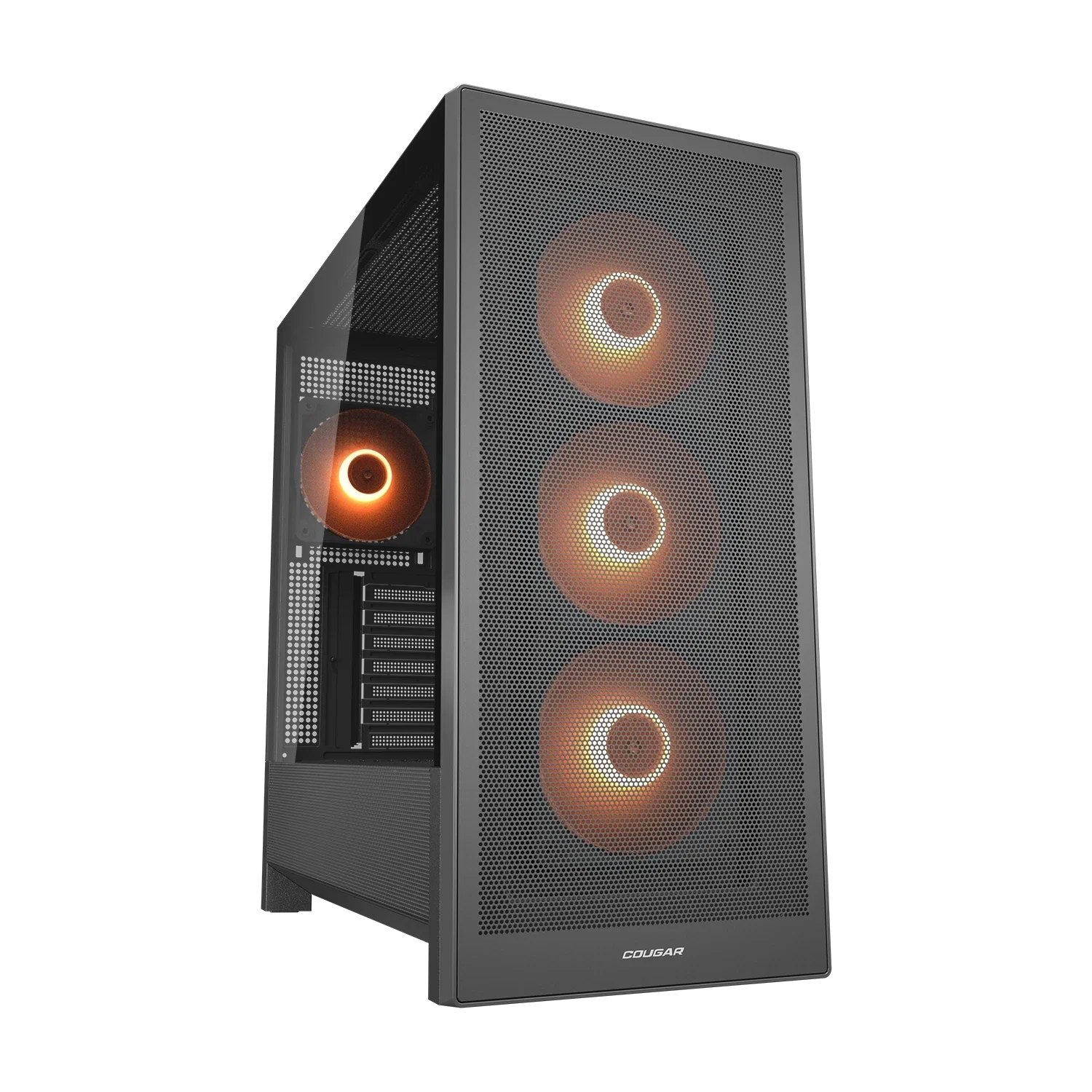

The Cougar MX230 RGB Black Cabinet is an airflow-first PC case engineered for high performance, combining robust cooling potential with quality-of-life features for easy upkeep. Designed to breathe and built to play, this cabinet ensures optimal thermal management for your gaming setup.

Key Features at a Glance

• All-metal front mesh panel with integrated dust filter for easy maintenance.
• Preinstalled with 3 x 120mm ARGB front fans and 1 x 120mm ARGB rear fan.
• Supports 360mm AIO liquid cooling up top and a maximum fan capacity of 10.
• Equipped with 1 x USB 3.2 Gen 2 Type-C (10Gbps) and 2 x USB 3.0 Type-A ports.
• Compatible with Mini ITX, Micro ATX, ATX, and E-ATX motherboards.
• Accommodates GPUs up to 400mm in length.

Optimized Airflow Design

The Cougar MX230 RGB Black Cabinet is engineered with an airflow-first design to ensure optimal cooling for your components. A porous PSU shroud supports three 120mm fans, creating a true vertical intake path, while the right-offset PSU cabin maximizes internal airflow space. Perforated base slopes further increase the intake surface area, keeping your system cool under pressure.

Effortless Maintenance

Maintenance is made simple with the MX230 RGB's all-metal front panel, featuring a rugged, snap-fit mechanism. The ultra-fine mesh filter is integrated directly into the panel, allowing for tool-less, single-step access and cleaning without compromising filtration effectiveness.

Advanced Cooling and Connectivity

Ready for advanced setups, this cabinet supports 360mm AIO cooling at the top and offers a maximum fan capacity of 10 for comprehensive thermal management. Connectivity is robust, featuring one USB 3.2 Gen 2 Type-C (10Gbps) port and two USB 3.0 Type-A ports for high-speed data transfer and peripheral access. It also houses 2 x 3.5” HDDs or 1+1 2.5” SSDs (converted from 3.5” drive bays).

Technical Specifications

Product Name		MX230 RGB
Case Form Factor		Mid Tower
Motherboard Type		Mini ITX / Micro ATX / ATX / E-ATX
Dimensions (WxHxD)		220 x 475 x 445 (mm) 8.7 x 18.7 x 17.5 (in)
I/O Panel		USB 3.2 Gen 2x1 Type-C x 1, USB 3.0 Type-A x 2, 4 Pole Headset Audio Jack x 1, RGB Button
3.5" Drive Bay		2
2.5" Drive Bay		1+1(converted from 3.5" drive bays)
Expansion Slots		7
Cooling Fan Support	Front	120mm x 3 / 140mm x 2
	Top	120mm x 3 / 140mm x 2
	PSU shroud	120mm x 3
	Rear	120mm x 1
Pre-installed Fans	Front	120mm ARGB fan x 3
	Rear	120mm ARGB fan x 1
	Speed	1000 ± 10% RPM
	Connector	5V 3 Pin (ARGB) / 3 Pin (Fan)
Maximun Number of Fans		10
Water Cooling Support	Top	360mm / 240mm / 120mm
	Rear	120mm
RGB Hub Sync with M/B		Yes
Max. Graphics Card Length		400 (mm) / 15.7 (in)
Max. CPU Cooler Height		170(mm) /6.7 (in)
Max. PSU Length		200 (mm) / 7.9 (in)

Frequently Asked Questions

Q: What cooling solutions does the MX230 RGB support?

A: The MX230 RGB supports 360mm AIO liquid cooling at the top and has a maximum fan capacity of 10, with 3 x 120mm ARGB front fans and 1 x 120mm ARGB rear fan preinstalled.

Q: What motherboard form factors are compatible with this cabinet?

A: This cabinet is compatible with Mini ITX, Micro ATX, ATX, and E-ATX motherboards.

Q: Is the front panel designed for easy cleaning and maintenance?

A: Yes, the all-metal front panel has an integrated ultra-fine mesh filter and a rugged snap-fit mechanism, enabling tool-less, single-step access for maintenance and cleaning.
