Features of COOLER MASTER ARGB Controller
The COOLER MASTER Addressable RGB LED Controller is a compact size Addressable RGB LED controller that allows you to easily customize your ARGB devices...
- Compact and Convenient
- Countless Colors and Effects
- Compatible with both ARGB and RGB Devices
- Thermal Detection Function
ADDRESSABLE RGB LED CONTROLLER
Convenient and compact design-With built-in magnets, it can be attached to any metallic surface.
COMPATIBLE WITH MOTHERBOARD CONTROL OF LIGHTING
With header Connection to Motherboard as well as compatible with motherboard software to control lighting

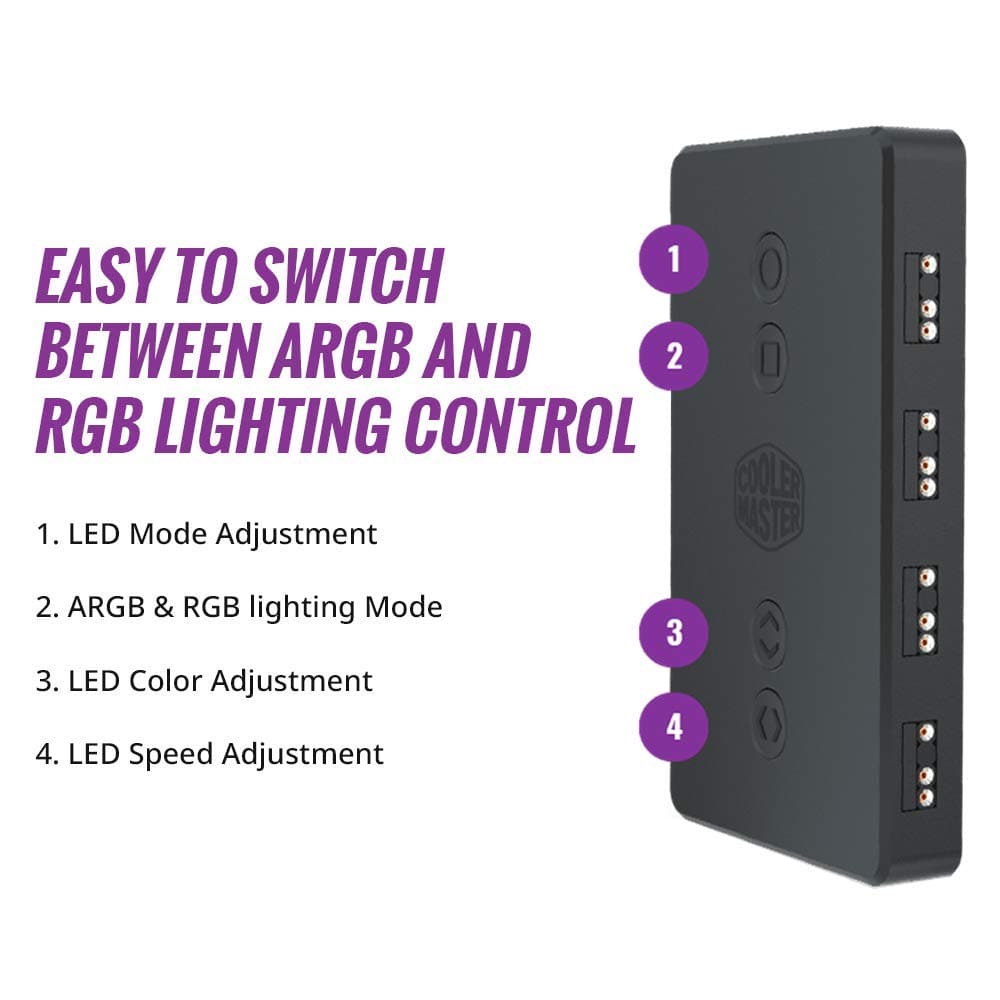

EASY TO SWITCH BETWEEN ARGB AND RGB LIGHTING CONTROL
LED Mode Adjustment
ARGB & RGB lighting Mode
LED Color Adjustment
LED Speed Adjustment
THERMAL DETECTION FUNCTION
With Thermal Detection Cable, temperature can be monitored and displayed through color lighting effects
RESET BUTTON
Reset Button on your Case can also control the lighting
Thermal Detection Function
With Thermal Detection Cable, temperature can be monitored and displayed through color lighting effects
Reset Button
Reset Button on your Case can also control the lighting
Function of Each Connection
To connect Motherboard 4-Pin RGB header. Lighting can be controlled by Motherboard.
To connect USB of Motherboard, to update firmware of controller for more lighting effect.
To connect Motherboard 3-Pin ARGB header. Lighting can be controlled by Motherboard.
To connect 3-Pin ARGB fan.
Signal tracing header.
Case Reset header.
Motherboard Reset header.
Thermal Detection header.
Specifications of COOLER MASTER ARGB Controller
| PRODUCT NUMBER | MFP-ACBN-NNUNN-R1 |
| DIMENSIONS (L X W X H) | 88 X 53 X 15MM / 3.5 X 2.1 X 0.6" |
| LED CONNECTOR | ADDRESSABLE RGB 4 PORTS, RGB 1 PORT |
| INTERFACE | MICRO USB 2.0 |
| POWER CONNECTOR | SATA |
| SOFTWARE | YES |
| ACCESSORY | 1X FAN SIGNAL WIRE, 1X CASE RESTARTING WIRE, 1X MOTHERBOARD RESTART WIRE, 1X RGB 4-PIN CONNECTOR, 1X RGB 4-PIN MOTHERBOARD CONNECTOR, 1X USB HEADER CONNECTOR, 1X USB ADAPTER, 1X ADDRESSABLE RGB 3-PIN MOTHERBOARD CONNECTOR, 1X THERMAL DETECTION SENSOR WIRE, 4X ADDRESSABLE RGB 3 PIN CONNECTOR |
| WARRANTY | 2 YEARS |
| SERIES | RGB ACCESSORIES |
| COOLER TYPE | RGB ACCESSORIES |
