Save 2%

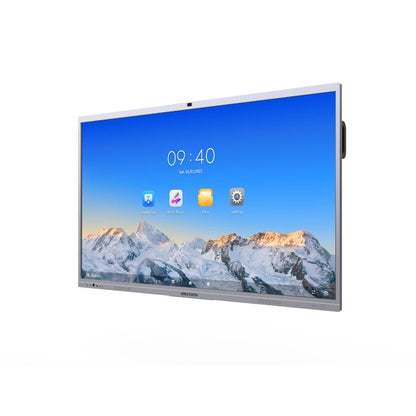

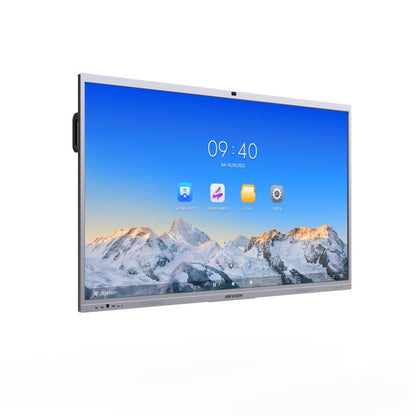

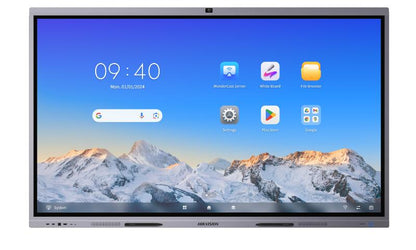

HIKVISION 86-INCH 4K INTERACTIVE DISPLAY DS-D5C86RB/B
Sale priceRs. 194,530.00Regular price
Rs. 198,650.00
Out of stock
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Features
- UHD 4K display with resolution of 3840 × 2160.
- Anti-glare and anti-blocking design to ensure smooth interaction.
- Dual systems of Android and Windows（Optional with OPS） saving cost and easy to use, video conference software are recommonded to run under Windows system.
- Quick response, at most 50-points touch control and smooth writing experience.
- Built-in network switch chip saves a network switch.
- All-in-one design with tempered glass and intelligent temperature control, making it environmental-friendly and safety-guaranteed, support blue light protection.
- EDLA Certified
Specifications
| Category | Specification |
|---|---|
| Product Model | DS-D5C86RB/B |
| Screen Size | 86 inch |
| Panel Type | VA |
| Resolution | 3840 × 2160 @ 60 Hz (4K UHD) |
| Pixel Pitch | 0.1645 mm (H) × 0.4935 mm (V) |
| Brightness | 400 cd/m² (Typ.) |
| Color Depth | 10-bit |
| Display Colors | 1.07 Billion |
| Response Time | 5 ms |
| Contrast Ratio | 5000:1 (Static) / 30,000:1 (Dynamic) |
| Color Gamut | 72% NTSC (CIE1931) |
| Refresh Rate | 60 Hz |
| Viewing Angle | 178° (H) / 178° (V) |
| Surface Glass | 9H Hardness, Anti-Glare, 25% Haze, Zero Lamination |
| Display Area | 1895.04 mm × 1065.96 mm |
| Working Duration | 7 × 16 Hours |
| Lifespan | 50,000 Hours |
| Touch Screen | Infrared, Up to 50-point Multi-touch |
| Touch Response Time | ≤ 2 ms |
| Minimum Touch Object Size | ≥ 1.5 mm |
| Built-in System | Android 13.0 |
| Processor | Quad-core Cortex-A76 × 4 (2.4 GHz) + Quad-core Cortex-A55 × 4 (1.8 GHz) |
| Memory | 8 GB RAM |
| Storage | 128 GB |
| GPU | Mali-G610 MC4 |
| Camera | 48MP Photo, 8MP Video, 4K Max, 93.4° Field of View |
| Microphone | 8-Mic Array, 12m Voice Pickup |
| Speakers | 2 × 20W + 1 × 25W Built-in |
| Bluetooth | BLE 5.1 |
| NFC | Supported (Android Screen Mirroring) |
| Light Sensor | Yes |
| Image Tech | 3D Noise Reduction, Face Detection, Auto WB, De-fogging, Shadow Correction |
| Audio Tech | Echo Cancellation, Noise Reduction, AGC, Beamforming |
| Video/Audio Inputs | HDMI 2.0 ×3, VGA ×1, DP 1.2 ×1, Audio In ×1 |
| Video/Audio Outputs | HDMI Out (2.0) ×1, Audio Out ×1, SPDIF Out ×1 |
| Control Ports | TOUCH-USB 3.0 ×3, RS232 ×1 |
| Network | LAN ×2 (1000 Mbps), Wi-Fi 6 (2.4G/5G, 2×2 MIMO) |
| Data Ports | USB 3.0 ×4, USB 2.0 ×1, Type-C ×2 (15W and 65W Charging) |
| Power Supply | 100–240V AC, 50/60 Hz |
| Average Power Consumption | < 205W |
| Standby Consumption | ≤ 0.5W |
| Working Temperature | 0 °C to 40 °C |
| Working Humidity | 10%–90% RH |
| VESA Mount | 800 mm × 600 mm (M8-25mm Screws) |
| Product Dimensions | 1960.44 mm × 1173.74 mm × 82.5 mm |
| Package Dimensions | 2147 mm × 1335 mm × 213 mm |
| Net Weight | 65.13 kg |
| Gross Weight | 82.6 kg |
| Accessories | Wall Mount Bracket, Hook, Touch Pen, 3M USB Cable, 3.5M HDMI Cable, Power Cable, Bluetooth Remote, User Manual |
