GIGABYTE GA-B550 GAMING X V2 AMD AM4 MOTHERBOARD
GIGABYTE GA-B550 GAMING X V2 AMD AM4 MOTHERBOARD
Regular price
Rs. 12,476.00
Sale price
Rs. 12,476.00
Regular price
Rs. 16,150.00
Unit price
per
Out of stock
Couldn't load pickup availability
Description
Shipping Information
Reviews
Specifications
| Category | Details |
|---|---|
| CPU |
AMD Socket AM4, support for: - AMD Ryzen 5000 Series / Ryzen 5000 G-Series / Ryzen 4000 G-Series / Ryzen 3000 Series / Ryzen 3000 G-Series Processors (Refer to "CPU Support List" for more details.) |
| Chipset | AMD B550 |
| Memory |
- 4 × DDR4 DIMM sockets, up to 128GB - Supports DDR4 4733(O.C.) down to 2133 MHz - Dual channel architecture - Supports ECC/Non-ECC unbuffered DIMMs* - Supports XMP (Refer to "Memory Support List" for more details.) |
| Onboard Graphics |
Integrated Graphics Processor: - 1 × DVI-D, max 1920×1200@60Hz - 1 × HDMI, max 4096×2160@60Hz (HDMI 2.1, HDCP 2.3, HDR) - Max shared memory: 16GB |
| Audio |
- Realtek Audio CODEC - HD Audio, 2/4/5.1/7.1-channel* |
| LAN | Realtek GbE LAN (10/100/1000 Mbps) |
| Expansion Slots |
- 1 × PCIe x16 (CPU): PCIe 4.0/3.0 depending on processor - 1 × PCIe x16 (Chipset): PCIe 3.0 x2 - 3 × PCIe x1 (Chipset): PCIe 3.0 x1 |
| Storage Interface |
- 1 × M.2 (CPU) PCIe 4.0/3.0 x4/x2 + SATA - 1 × M.2 (Chipset) PCIe 3.0 x4/x2 + SATA - 4 × SATA 6Gb/s (RAID 0/1/10) |
| USB |
CPU: - 1 × USB 3.2 Gen2 Type-A (rear) - 3 × USB 3.2 Gen1 (rear) Chipset: - 1 × USB Type-C (USB 3.2 Gen1, internal) - 2 × USB 3.2 Gen1 (internal) - 6 × USB 2.0/1.1 (2 rear, 4 internal) |
| Internal I/O Connectors |
- 24-pin ATX power - 8-pin CPU power - CPU fan, water pump fan, 3× system fan headers - 2 × Addressable LED headers - 2 × RGB LED headers - 2 × M.2 slots - 4 × SATA 6Gb/s - Front panel, audio, Type-C USB, USB 3.2 Gen1, USB 2.0 headers - TPM header - Clear CMOS jumper |

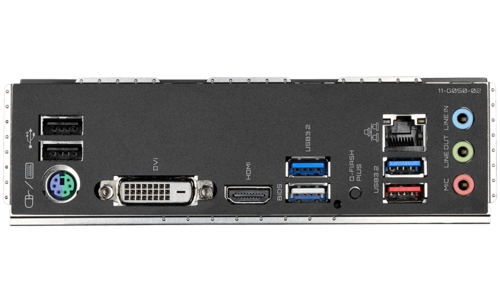

| Back Panel |
- 2 × USB 2.0 - PS/2 keyboard/mouse - DVI-D - HDMI - 3 × USB 3.2 Gen1 - 1 × USB 3.2 Gen2 Type-A (red) - RJ-45 LAN - 3 × audio jacks - Q-Flash Plus button |
| I/O Controller | iTE I/O Controller Chip |
| H/W Monitoring | Voltage, temperature, fan speed, water cooling flow detection, warnings, speed control* |
| BIOS |
- 256 Mbit AMI UEFI BIOS - PnP 1.0a, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0 |
| Unique Features |
APP Center, @BIOS, EasyTune, Fast Boot, ON/OFF Charge, RGB Fusion, Smart Backup, System Info Viewer, Q-Flash, Q-Flash Plus, Xpress Install |
| Bundled Software | Norton Internet Security (OEM), LAN management software |
| Operating System |
- Windows 11 64-bit - Windows 10 64-bit |
| Form Factor | ATX (30.5 cm × 24.4 cm) |
