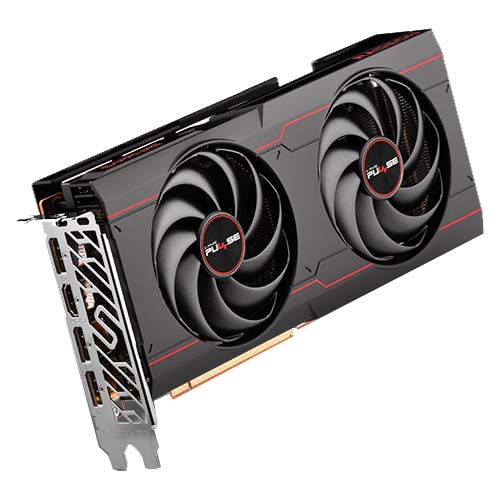

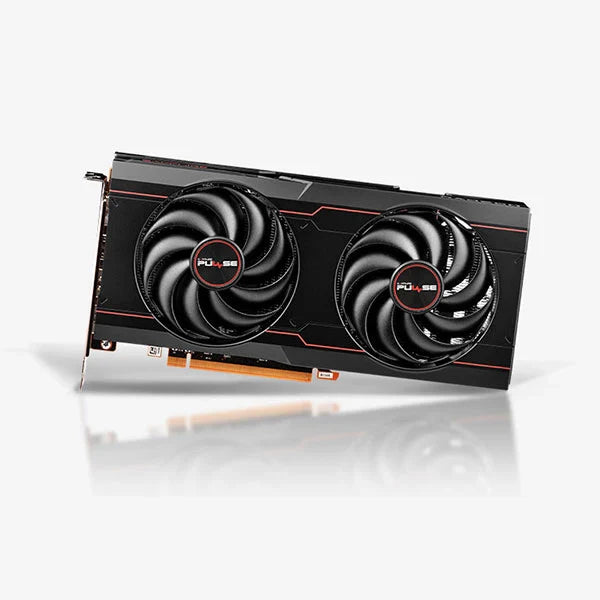

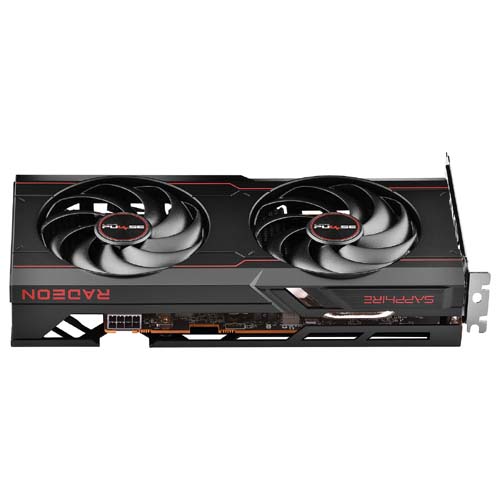

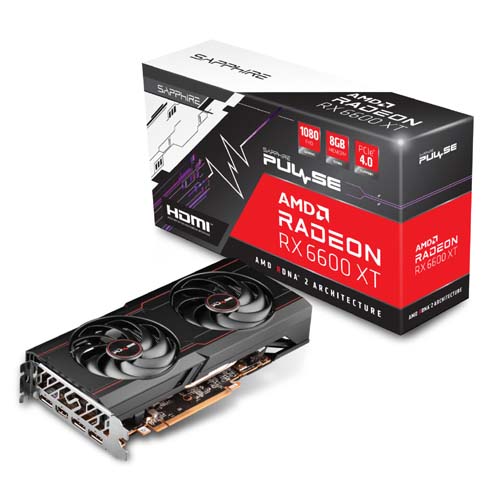

Features of SAPPHIRE Pulse Radeon RX 6600 XT OC 8GB AMD Graphic Card

The SAPPHIRE Pulse Radeon RX 6600 XT OC 8GB AMD Graphic Card runs on the powerful Dual-X Cooling Technology coupled with Intelligent Fan Control to keep temperatures low and fan noise low. The refined PCB design delivers stable, reliable, and steady performance, which efficiently lowers PCB temperature and component signal noise.

Introducing AMD Radeon™ RX 6600 XT graphics cards, featuring the breakthrough AMD RDNA™ 2 architecture. Engineered to deliver an incredible 1080p gaming experience, the AMD Radeon™ RX 6600 XT powers the next generation of gaming with vivid visuals and elevated experiences.

Powerhouse Performance

AMD Radeon™ RX 6600 XT graphics cards deliver serious 1080p gaming and ultra-high frame rates. Get up to 32 high-performance compute units, groundbreaking AMD Infinity Cache, and up to 8GB of dedicated GDDR6 memory. Experience the next gen of gaming performance with AMD Smart Access Memory technology1 when you pair an AMD Radeon™ RX 6600 XT graphics card with an AMD Ryzen™ 5000 Series desktop processor.

Vivid Visuals

With immersive gaming technologies and support for DirectX® 12 Ultimate. AMD Radeon RX 6600 XT graphics cards draw you into the action. Experience gaming with realistic lighting, shadows, and reflections along with rich detail, thanks to DirectX Raytracing (DXR), variable rate shading (VRS), and AMD FidelityFX features, optimized for AMD RONA 2 architecture.

AMD Smart Access Memory Technology All AMD Performance. Built to Game.

Combine an AMD Ryzen 5000 Series processor or a select AMD Ryzen 3000 Series processor with an AMD Radeon RX 6600 XT graphics card to boost your system's performance, thanks to AMD Smart Access Memory technology1. AMD Smart Access Memory enables AMD Ryzen processors to hamess the full potential of the graphics card memory. Enjoy increased performance with all-AMD in your system for the ultimate gaming advantage.

One Gaming DNA for PCs and Consoles

AMD RDNA" 2 architecture is the foundation of next-generation gaming PCs and consoles. It is the bedrock of the revolution in PC gaming graphics and cloud gaming. AMD RONA" 2 elevates and unifies visual effects and gameplay across multi-gaming platforms, like no other graphics architecture before.

Technical Details

Brand : Sapphire
Model : PULSE-RX6600XT-8GB
Stream Processors : 2048
Infinity Cache ; 32MB
Ray Accelerators : 32
Memory Size/Bus : 8GB GDDR6
Memory Clock : 16 Gbps Effective
Displays : Maximum 4 Displays
Interface : PCI-Express 4.0
Cooling : Dual Fans
Power Consumption : 170W (Board Power)
BIOS Support : UEFI
Game Index : 1080P

GPU

AMD Radeon™ RX 6600 XT Graphics Card
7nm GPU
AMD RDNA™ 2 Architecture

Engine Clock

Boost Clock: Up to 2593 MHz
Game Clock: Up to 2382 MHz

Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.

Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.

Resolution

HDMI™: 7680×4320
DisplayPort1.4: 7680×4320

Output

1x HDMI
3x DisplayPort

Sapphire Features

Premium Digital Power Design
Fuse Protection
Dual-X Cooling Technology
Intelligent Fan Control
Precision Fan Control
Metal Backplate
Two-Ball Bearing Fans
TriXX Supported
TriXX Boost

AMD Features

AMD RDNA™ 2 Gaming Architecture
DirectX® 12 Ultimate
Hardware Raytracing
Smart Access Memory
Infinity Cache
7nm GPU
PCI® Express 4.0 Support
AMD FreeSync™ Technology
DisplayPort™ 1.4 with DSC
HDMI™
Video Streaming up to 8K
Radeon™ VR Ready Premium
AMD FidelityFX
Radeon™ Image Sharpening
Radeon™ Anti-Lag
Radeon™ Software
Game Driver Optimizations

Form Factor

2.2 slot, ATX
Dimension: 240(L)X 119.85(W)X 44.75(H)mm

OS

Linux®, Windows® 7*, Windows® 10, and Windows 8.1. 64-bit operating system required
*Does not support all features including but not limited to Hardware Raytracing

System Requirement

Minimum 500 Watt Power Supply
1 x 8-pin Power Connector.
PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
Minimum 8GB of system memory. 16GB recommended.

Specifications of SAPPHIRE Pulse Radeon RX 6600 XT OC 8GB AMD Graphic Card
