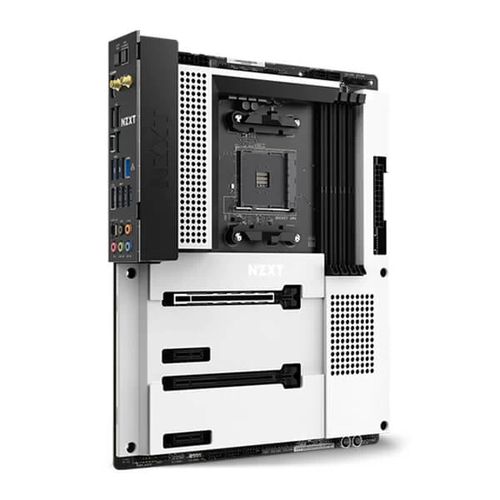

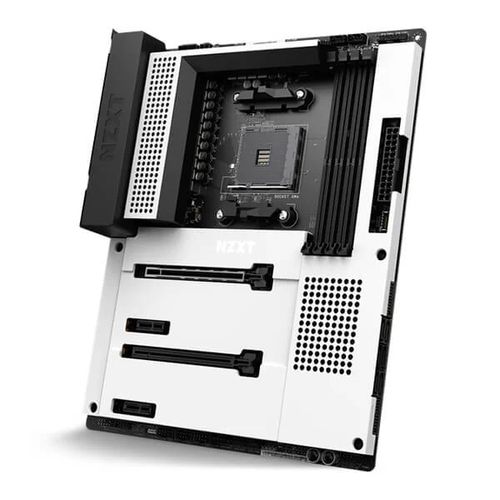

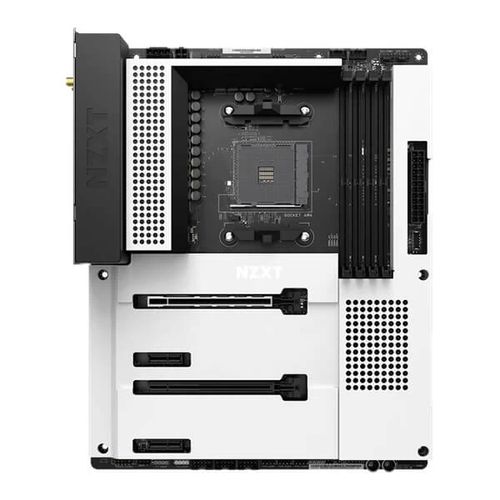

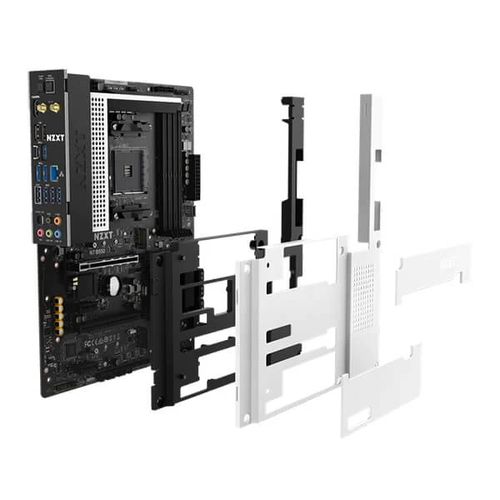

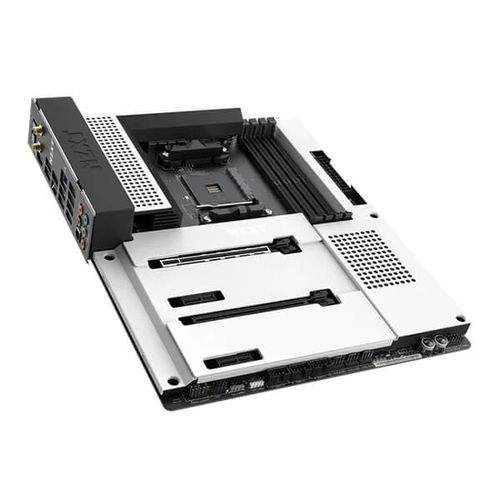

NZXT N7 B550 Wifi DDR4 AMD Motherboard (Matte White Cover)

Most searched : Processors MotherBoard Graphic Card CPU Cooler Mouse RAM SSD Gaming

Call Us On:

+91-99250 02827

Shop more for free shipping

NZXT N7 B550 Wifi DDR4 AMD Motherboard (Matte White Cover)

360˚

- 21%

Motherboard

NZXT N7 B550 Wifi DDR4 AMD Motherboard (Matte White Cover)

Rs. 26,999.00 Rs. 21,200.00

Availability : Out Of Stock

Brand : NZXT

SKU : nzxt-n7-b550-white

Tags : CATP_NZXT, CATQ_Motherboard, MOB10_ARGB, MOB11_7, MOB12_1, MOB13_Gen4, MOB14_Gen4, MOB15_White, MOB16_1, MOB17_6, MOB18_4, MOB19_1, MOB1_B550, MOB20_3, MOB21_1, MOB22_1, MOB23_75, MOB24_AMD Motherboard, MOB2_ATX, MOB3_AM4, MOB4_128, MOB5_4666, MOB6_4, MOB7_DDR4, MOB8_2, MOB9_0, NZXT

Safe Payment

Pay with the world’s most payment methods.

Confidence

Protection covers your purchase

Worldwide Delivery

Ship to over 200 countries & regions.

Hotline

+91-99250 02827

Description

Feature of NZXT N7 B550 Wifi DDR4 AMD Motherboard (Matte White Cover)

WiFi 6E connectivity
Digital RGB lighting control through NZXT CAM
Digital fan control for fan profiles within NZXT CAM for seven independent fan channels
Integrated rear I/O shield and efficient layout
Compatible with 3rd Gen AMD™ Ryzen™ processors (3000, 4000, and 5000 Series Processors)
Intel® Wi-Fi 6E wireless connectivity and Bluetooth V5.2
Two M.2 connectors for storage devices
Multi-GPU support with AMD CrossFireX™ Technology
Supports memory overclocking up to 4600+ MHz and XMP
8-channel high-definition audio

Specifications of NZXT N7 B550 WiFi DDR4

Product Model	N7-B55XT-W1
CPU & Socket	AMD Socket AM4 Ryzen™ Processors (3000, 4000, and 5000 Series Processors) - Supported AMD Ryzen™ 5 3400G and Ryzen™ 3200G - Not Supported
Chipset	AMD® B550
Memory	4 x DIMM, Max. 128GB, DDR44666+ MHz - OC Frequency (Vermeer CPUs) 4666+ MHz - OC Frequency (Matisse CPUs)4733+ MHz - OC Frequency (Renoir APUs) 3200/2933/2667/2400/2133 - Base Frequency ECC & non-ECC, un-buffered memory type Dual-channel memory architecture XMP Supported
Integrated Graphics	AMD Radeon™ Vega Series Graphics in Ryzen Series APU - HDMIHDMI™ with max. resolution of 4096x2160@60Hz Maximum shared memory of 16GB with 32GB installed Microsoft PlayReady® Supported
Multi-GPU Support	Supports AMD 2-Way CrossFireX™ Technology
Storage	1 x M.2 Type 2242/2260/2280 (x4 mode) - (Vermeer & Matisse - PCIe 4.0, Renoir - PCIe 3.0) 1 x M.2 Type 2242/2260/2280 (PCIe 3.0 x2 & SATA mode) 6 x SATA 6Gb/s - (M2_2 and SATA3_5_6 share lanes) RAID 0/1/5/10 Supported
LAN	Realtek® RTL8125BG 2.5G
Wireless	Intel® Dual-Band Wireless - AX210 Wi-Fi 6E 802.11 a/b/g/n/ac/ax Protocol 2.4 / 5 / 6GHz Frequency Bands Supports MU-MIMO
Bluetooth	Bluetooth V5.2
Audio	Realtek® ALC1220 Codec 8-Channel High Definition Audio, 32-bit / 192KHz DAC Nichicon Fine Gold Series Audio Capacitors

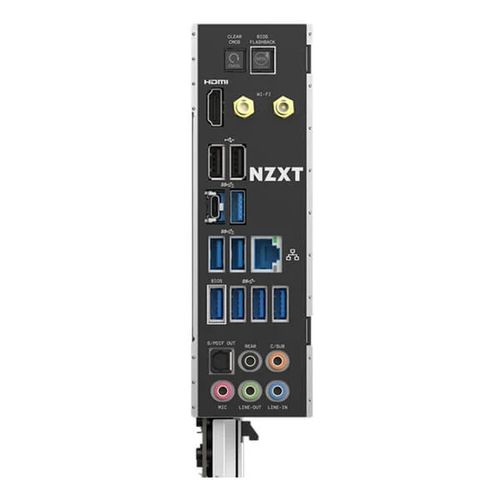

Rear I/O	1 x USB 3.2 Gen 2 Type-C 3 x USB 3.2 Gen 2 Type-A 4 x USB 3.2 Gen 1 ports 2 x USB 2.0 ports 1 x HDMI 2.1 2 x Wireless Antenna (2T2R) 1 x LAN (RJ45) Port 1 x 5.1-Channel Audio Jacks 1 x Optical S/PDIF 1 x BIOS Flashback Button 1 x Clear CMOS Button
Expansion Slots	1 x PCIe x16 (x16 mode) - (Vermeer & Matisse - PCIe 4.0, Renoir - PCIe 3.0) 1 x PCIe x16 (x4 mode) 2 x PCIe 3.0 x1
Internal I/O	1 x 24-pin EATX power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin CPU_FAN connector 1 x 4-pin AIO_PUMP connector (Up to 24W) 5 x 4-pin SYS_FAN connectors (Up to 24W)1 x CPU_FAN Connector (Up to 24W) 2 x NZXT RGB LED connectors 1 x 5V Addressable RGB connector 1 x 12V RGB connector1 x M.2 (M Key), Type 2242/2260/2280 - (PCIe 4.0/3.0 x4 mode), 1 (PCIe 3.0 x2 & SATA mode) 1 x M.2 (E Key) (For wireless cards) 6 x SATA 6Gbps Ports 1 x USB 3.2 Gen 2 Header (Type-C) 1 x USB 3.2 Gen 1 Header (Up to 2 ports) 3 x USB 2.0 Header (Up to 6 ports) 1 x Front Panel Audio 1 x Power Button 1 x Reset Button 4 x POST LEDs
Operating System	Microsoft® Windows® 10 (64-bit)
Form Factor	ATX
Warranty	3 Years
Note	***Features, Specifications, Price are subject to change without notice.
