Save 44%
MSI PRO H610M-S WIFI DDR4 MOTHERBOARD
Sale priceRs. 7,840.00Regular price
Rs. 14,000.00
Hurry, only 10 items left in stock!
MSI PRO H610M-S WIFI DDR4 MOTHERBOARD
Sale priceRs. 7,840.00Regular price
Rs. 14,000.00
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Specifications:
| Chipset | INTEL H610 |
|---|---|
| CPU | Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors |
| Socket | LGA 1700 |
| Memory | 2x DDR4, Maximum Memory Capacity 64GB |
| Memory Support | DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC |
| Memory Channel | Supports Dual-Channel mode |
| Memory Type | Supports non-ECC, un-buffered memory |
| Onboard Graphics | 1x HDMI (Support HDMI 1.4 with HDR, maximum resolution of 4K 30Hz) |
| Slot | 1x PCI-E x16 slot, 1x PCI-E x1 slot |
| PCI_E1 Gen | PCIe 4.0 supports up to x16 (From CPU) |
| PCI_E2 Gen | PCIe 3.0 supports up to x1 (From Chipset) |
| Audio | Realtek ALC897 Codec, 7.1-Channel High Definition Audio |
| Storage | 1x M.2 (supports up to PCIe 3.0 x4), 2x SATA 6G |
| USB | 4x USB 2.0 (Rear), 4x USB 2.0 (Front), 2x USB 5Gbps Type A (Rear), 2x USB 5Gbps Type A (Front) |
| LAN | Realtek RTL8111H Gigabit LAN |
| Internal IO | 1x Power Connector (ATX_PWR), 1x Power Connector (CPU_PWR), 1x CPU Fan, 1x System Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x Com Port (JCOM), 1x TPM pin header (Support TPM 2.0), 4x USB 2.0 ports |
| Wireless LAN & Bluetooth | Wi-Fi 6E, Bluetooth 5.3 (FIPS, FISMA) |
| LED Feature | 4x EZ Debug LED |

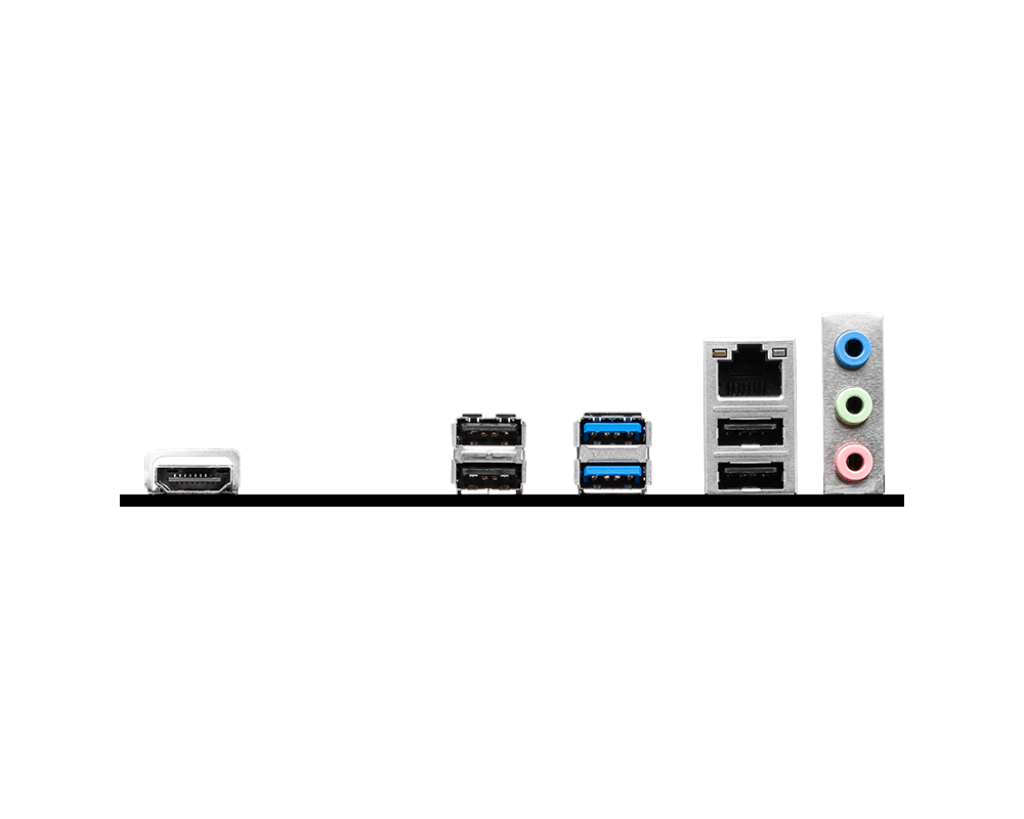

| Back Panel Ports | HDMI, USB 3.2 Gen 1 5Gbps (Type-A), USB 2.0, LAN port, Audio Connectors |
| Operating System | Support for Windows 11 64-bit, Windows 10 64-bit |
| PCB Info | mATX, 200mm x 236.16mm |
