MSI Pro H610M-B EX DDR4 Intel Motherboard

360˚

- 38%

Motherboard

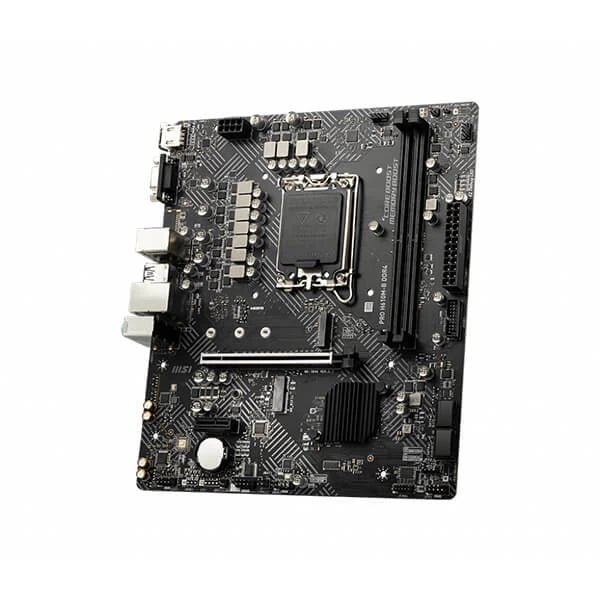

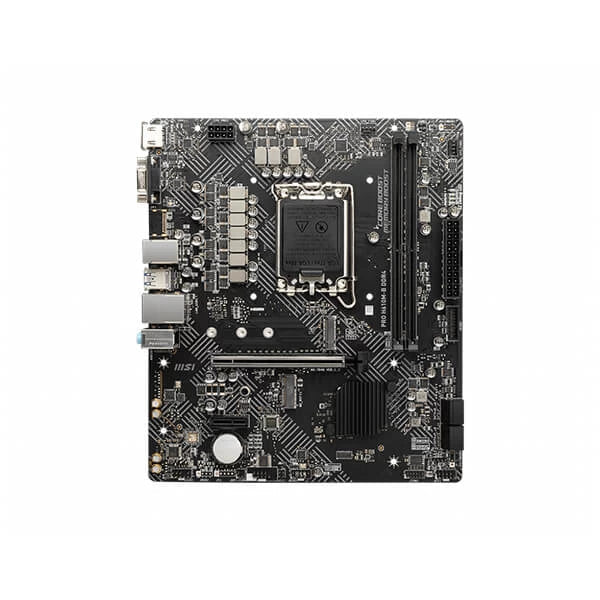

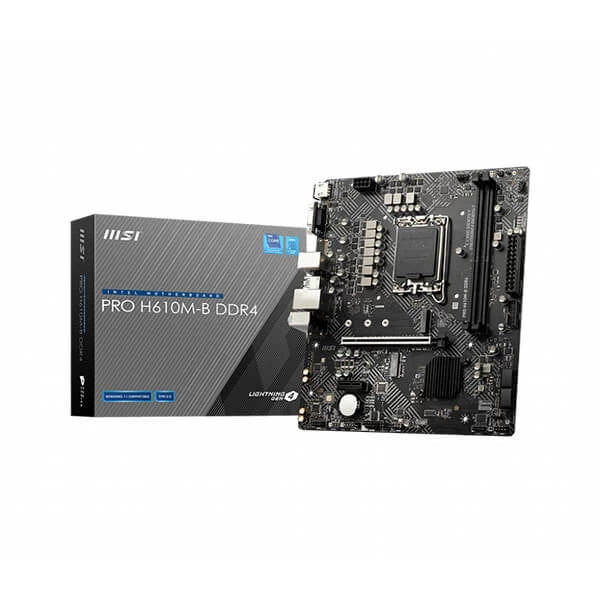

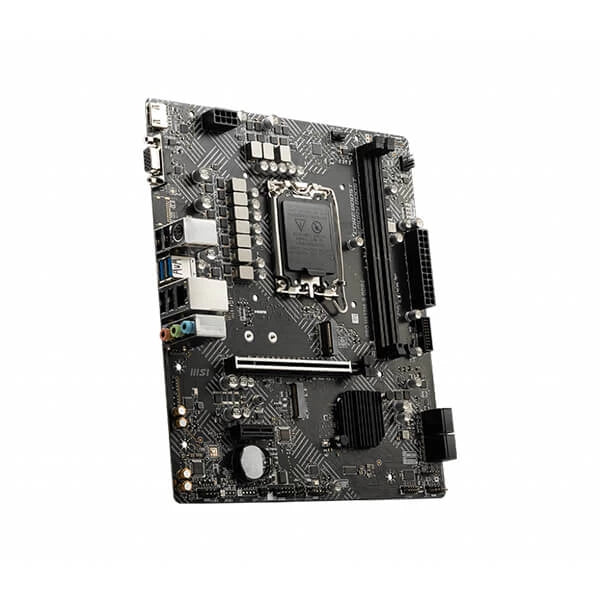

MSI Pro H610M-B EX DDR4 Intel Motherboard

Rs. 11,400.00 Rs. 6,985.00

Availability : Out Of Stock

Brand : MSI

SKU : msi-pro-h610m-b-ddr4

Tags : CATP_MSI, CATQ_Motherboard, MOB10_None, MOB12_1, MOB13_Gen4, MOB14_Gen3, MOB15_Black, MOB16_0, MOB17_4, MOB18_6, MOB19_0, MOB1_H610, MOB20_0, MOB21_0, MOB22_1, MOB23_55, MOB24_Intel Motherboard, MOB2_MATX, MOB3_LGA1700, MOB4_64, MOB5_3200, MOB6_2, MOB7_DDR4, MOB8_1, MOB9_0, MSI

Safe Payment

Pay with the world’s most payment methods.

Confidence

Protection covers your purchase

Worldwide Delivery

Ship to over 200 countries & regions.

Hotline

+91-99250 02827

Description

Feature of MSI Pro H610M-B EX DDR4 Intel Motherboard

Supports 12th Gen Intel^® Core™, Pentium^® Gold and Celeron^® processors for LGA 1700 socket
Supports DDR4 Memory, up to 3200(MAX) MHz
Core Boost : With premium layout and digital power design to support more cores and provide better performance
Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
Lightning Fast Experience: PCIe 4.0
Audio Boost: Reward your ears with studio grade sound quality
Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

Specifications of MSI Pro H610M-B EX DDR4 Intel Motherboard

Processor	Supports 12th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors Processor socket LGA1700
Chipset	Intel® H610 Chipset
Memory	2x DDR4 memory slots, support up to 64GB Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR) Supports Dual-Channel mode Supports non-ECC, un-buffered memory
Expansion Slot	1x PCIe x16 slot (From CPU) Supports up to PCIe 4.0 x16 1x PCIe x1 slot Supports PCIe 3.0 x1 1x M.2 slot with E-key for PCIe WiFi module only (M2_WIFI1)
Onboard Graphics	1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
SATA Ports	4x SATA 6Gb/s ports SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
M.2 SSD Slot	1x M.2 slot (Key M, from chipset) Supports up to PCIe 3.0 x4 Supports up to SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Supports Intel® Smart Response Technology for Intel Core™ processors SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot
Audio	Realtek® ALC892/ ALC897 Codec 7.1-Channel High Definition Audio
LAN	1x Intel® I219V 1Gbps LAN controller
Power Connectors	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector
USB	Intel® H610 Chipset 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector) 6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector)
Fan Connectors	1x 4-pin CPU fan connector 1x 4-pin system fan connector
System Connectors	1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x TPM module connector
Jumpers	1x Clear CMOS jumper
LED Features	4x EZ Debug LED

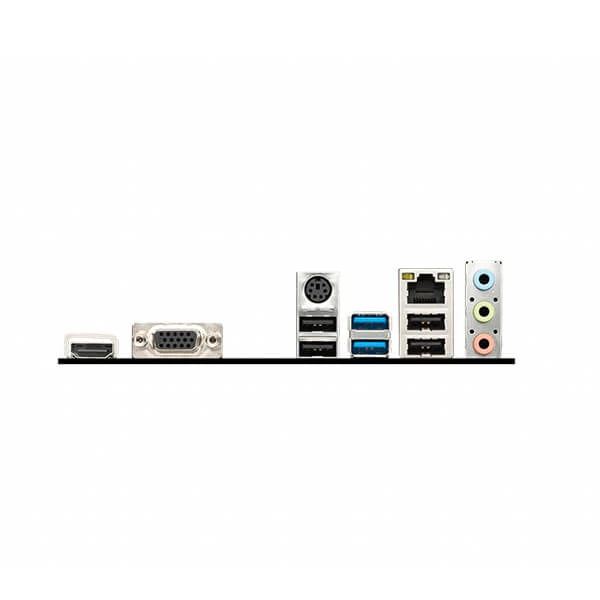

Back panel ports	HDMI VGA Keyboard/Mouse USB 3.2 Gen 1 5Gbps Type-A LAN port Audio connector USB 2.0
Dimensions	M-ATX Form Factor 9.3 in. x 8.0 in. (24.4 cm x 21.1 cm)
Warranty	3 Years
Note	*** Features, Price, Specifications are subject to change without notice.
