MSI MPG Z390 Gaming Pro Carbon DDR4 Intel Motherboard

360˚

- 31%

Motherboard

MSI MPG Z390 Gaming Pro Carbon DDR4 Intel Motherboard

Rs. 29,999.00 Rs. 20,473.00

Availability : Out Of Stock

Brand : MSI

SKU : MSI-MPG-Z390-GAMING-PRO-CARBON

Tags : CATP_MSI, CATQ_Motherboard, MOB10_None, MOB11_7, MOB12_1, MOB13_Gen3, MOB14_Gen3, MOB15_Black, MOB16_1, MOB17_6, MOB18_5, MOB19_0, MOB1_Z390, MOB20_2, MOB21_1, MOB22_1, MOB23_75, MOB24_Intel Motherboard, MOB2_ATX, MOB3_LGA1151, MOB4_128, MOB5_4400, MOB6_4, MOB7_DDR4, MOB8_2, MOB9_0, MSI

Safe Payment

Pay with the world’s most payment methods.

Confidence

Protection covers your purchase

Worldwide Delivery

Ship to over 200 countries & regions.

Hotline

+91-99250 02827

Description

Feature of MSI MPG Z390 Gaming Pro Carbon DDR4

Inspired by the curve and shape of supercars, offers colorful customization with MSI Mystic Light RGB, tuned for better performance by Core boost, DDR4 Boost, M.2 Shield Frozr, Intel Gaming LAN, Front USB 3.1 Gen2 connector

Supports 9^th / 8^th Gen Intel^® Core™ / Pentium^® Gold / Celeron^® processors for LGA 1151 socket
Supports DDR4 Memory, up to 4400(OC) MHz
MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip.
Lightning Fast Game experience: 2x TURBO M.2, Intel Optane Memory Ready. M.2 Shield Frozr, Turbo USB 3.1 GEN2
Set Core Power Free: Core Boost, 8 4 pin CPU power connector, Game Boost, DDR4 Boost with Steel Armor
AUDIO BOOST 4 with NAHIMIC 3: Reward your ears with studio grade sound quality for the most immersive gaming experience
Pre-installed I/O Shielding: Better EMI protection and more convenience for installation

Cooling

The MPG Z390 has one water pump connector and six fan headers with DC and PWM control, which enable you to adjust your fans' speeds as needed within BIOS or a third-party software. Moreover, it has an extended heatsink design to help dissipate heat and ensure stable performance.

User Friendly

XL Clip - Enlarged PCIe clips make it easier for users to swap out PCIe hardware
EZ Debug LED - Onboard LEDs for key components indicate the source of a problem

CPU

For stability and performance, this motherboard features Core Boost, a combination of layout design and optimization which allows for faster and undistorted current delivery to the CPU. It also supports one-second overclocking with the optional MSI Game Boost software. Additional enhancements and features include load-line calibration, overvoltage protection, digital power design, and double power connectors.

DDR4

The DDR4 RAM slots on this motherboard feature optimized traces and a fully isolated memory circuit for stable performance. It also supports a variety of RAM from different manufacturers, so be sure to check if yours is compatible. Moreover, you can easily toggle on XMP (Intel Extreme Memory Profile) with just a single click within BIOS.

Storage

Install PCIe Gen 3 x4 SSDs or even Intel Optane memory on this motherboard for fast storage solutions. With a compatible drive, you'll be able to transfer data at speeds of up to 32 Gb/s. Moreover, you can enable XBoost within MSI's optional software for enhanced SSD speeds. For larger capacity storage, this motherboard has six SATA III ports and supports RAID 0, 1, 5, and 10 with M.2 Genie. Please note that you should upgrade the drivers and BIOS to the latest version before using Intel Optane memory.

Internet Connectivity

Intel I219-V provides you with fast, optimized gaming-quality Gigabit LAN connectivity. Moreover, you can use the optional MSI GAMING LAN Manager to automatically classify and prioritize your gaming traffic.

Audio

MSI MPG Z390 Gaming Pro Carbon is built with MSI Audio Boost as well as multiple hardware and software features designed to provide you with a better listening experience.

Dedicated, EMI-shielded Hi-Fi audio processor
Isolated audio design with LED border ensures a better audio signal
Separated audio layers for clean left and right channels
De-pop protection prevents loud popping sounds when you plug or unplug or devices
Nahimic 3 surround sound for immersion
High-quality audio capacitors for a warmer sound
Connectors for 7.1-channel surround sound

MSI Mystic Light

Control and sync your compatible RGB products with MSI Mystic Light. This motherboard has two 4-pin RGB LED connector, one 3-pin RAINBOW LED connector, and a 3-pin CORSAIR LED connector. With over 16.8 million colors to choose from and a variety of lighting patterns, MSI Mystic Light can be easily configured to fit your build's aesthetics.

Specifications of MSI MPG Z390 Gaming Pro Carbon DDR4

PROCESSOR	Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket
CHIPSET	Intel® Z390 Chipset
MEMORY	4 x DDR4 memory slots, support up to 128GBSupports DDR4 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2666/ 2400/ 2133 MHz Dual-Channel mode Non-ECC, un-buffered memory Intel® Extreme Memory Profile (XMP)
SLOTS	3 x PCIe 3.0 x16 slots (support x16/x0/x4, x8/x8/x4 modes) 3 x PCIe 3.0 x1 slots
ONBOARD GRAPHICS	1 x HDMI™ port 1.4, supports a maximum resolution of 4096x2160@24Hz 1 x DisplayPort port 1.2, supports a maximum resolution of 4096X2304@60Hz *No Display support when using the Processor model with suffix “F”
MULTI-GPU	Supports 2-Way NVIDIA® SLI™ Technology Supports 3-Way AMD® CrossFire™ Technology
STORAGE	Intel® Z390 Chipset 6 x SATA 6Gb/s ports1 2 x M.2 slot (Key M)1Support up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices Intel® Optane™ Memory Ready2M.2 slots and SATA ports share the bandwidth. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
RAID	Intel® Z390 Chipset Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 for M.2 PCIe storage devices
USB	Intel® Z390 Chipset 5x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-C and 3 Type-A ports on the back panel, 1 Type-C internal connector) 4x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB connectors 6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)
AUDIO	Realtek® ALC1220P-VB2 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
LAN	1 x Intel® I219-V Gigabit LAN controller
INTERNAL CONNECTORS	24-pin ATX main power connector 8-pin ATX 12V power connector 4-pin ATX 12V power connector 6x SATA 6Gb/s connectors 1x USB 3.1 Gen2 Type-C port 2x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin Water Pump connector 5x 4-pin system fan connectors 1x Serial port connector 1x Front panel audio connector 2x System panel connectors Thunderbolt Add-on Card Connector Chassis Intrusion connector TPM module connector 2x 4-pin RGB LED connectors 1x 3-pin RAINBOW LED connector 1x 3-pin CORSAIR LED connector

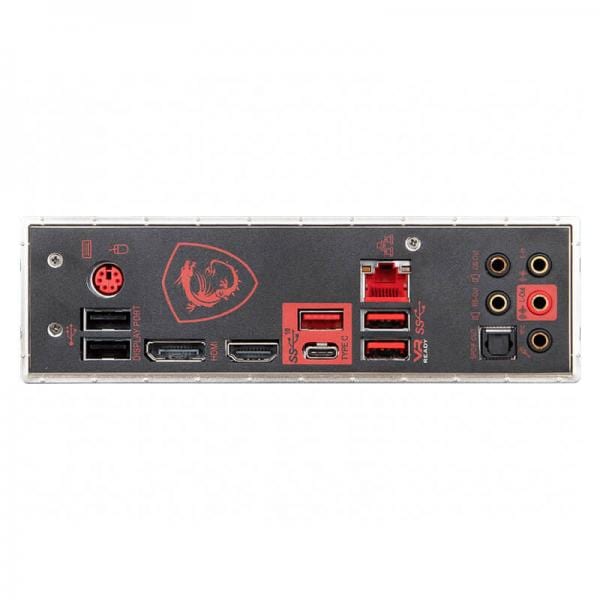

BACK PANEL PORTS	PS/2 Combo Port LAN HD Audio Connectors USB 2.0 DisplayPort HDMI USB 3.1 Gen2 Type-A C USB 3.1 Gen2 Type-A Optical S/PDIF out
DIMENSIONS	9.6 in. x 12 in. (24.3 cm x 30.4 cm) ATX Form Factor
MOUNTING	9 mounting holes
OPERATING SYSTEM	Support for Windows® 10 64-bit
Warranty	3 Years
Note	***Features, Price and Specifications are subject to change without notice.
