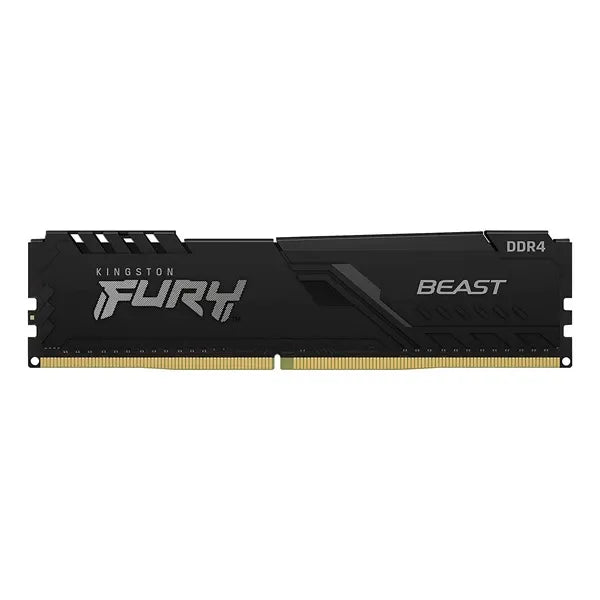

Features of KINGSTON Fury Beast 16GB ( 16GB x 1 ) 3200MHz DDR4 RAM ( Black ) ( CL16 )

Kingston Ram KF432C16BB/16 is a 2G x 64-bit (16GB) DDR4-3200 CL16 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 2G x 8-bit FBGA components per module. Each module kit supports Intel® Extreme Memory Profiles (Intel® XMP) 2.0. Each module has been tested to run at DDR4-3200 at a low latency timing of 16-20-20 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR4-2400 timing of 17-17-17 at 1.2V. Each 288-pin DIMM uses gold contact fingers.

• Power Supply: VDD = 1.2V Typical
• VDDQ = 1.2V Typical
• VPP = 2.5V Typical
• VDDSPD = 2.2V to 3.6V
• On-Die termination (ODT)
• 16 internal banks; 4 groups of 4 banks each
• Bi-Directional Differential Data Strobe
• 8 bit pre-fetch
• Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)
• Height 1.34” (34mm), w/heatsink

1. Cost-efficient, high-performance DDR4 upgrade
2. Speed of 3200MHz and kit capacity of 16gb ram
3. Intel XMP-ready and XMP Certified
4. Ready for AMD Ryzen
5. Low-profile heat spreader design
6. Plug N Play functionality at 2666MHz ddr4 ram

Specifications of KINGSTON Fury Beast 16GB ( 16GB x 1 ) 3200MHz DDR4 RAM ( Black ) ( CL16 )
