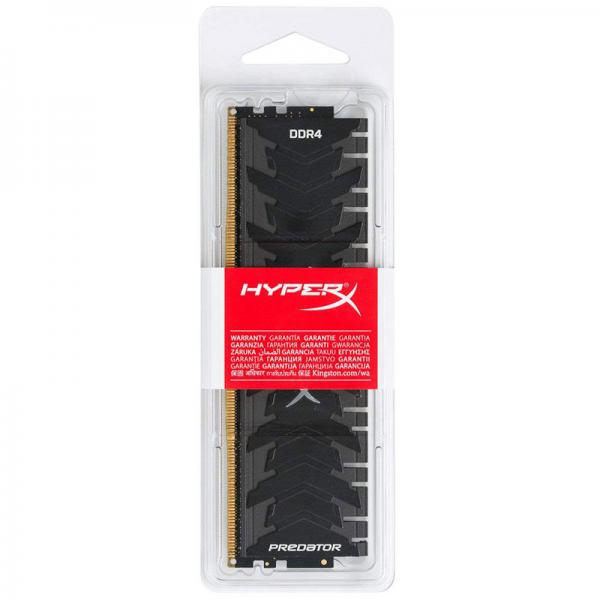

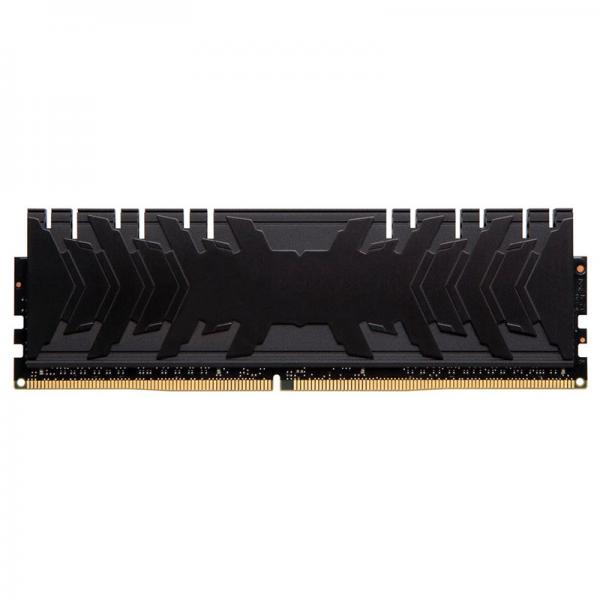

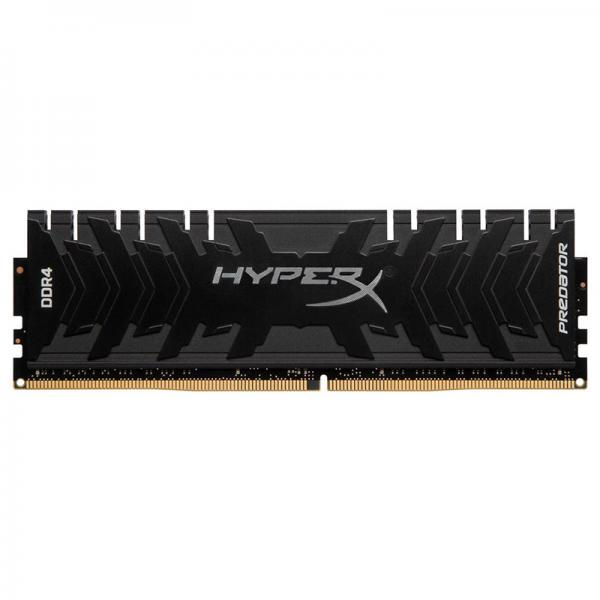

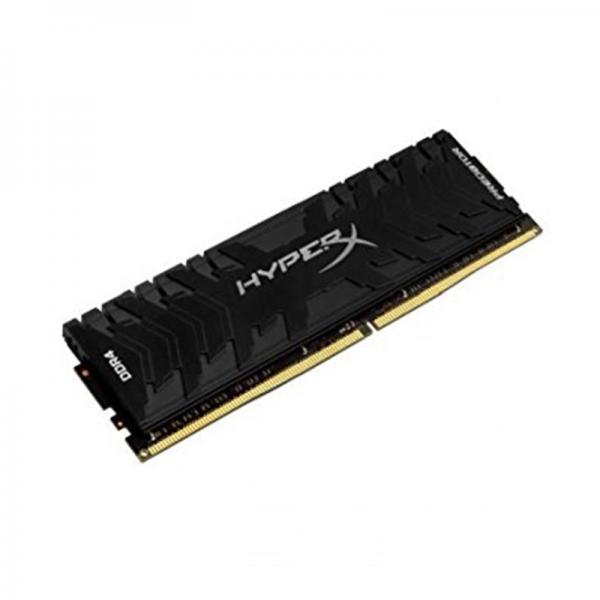

Features of HYPERX Predator 8GB ( 8GB x 1 ) 3000MHz DDR4 RAM ( CL15 )

HyperX HX430C15PB3/8 is an 1G x 64-bit (8GB) DDR4-3000 CL15 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 1G x 8-bit FBGA components per module. Each module kit supports Intel® Extreme Memory Profiles (Intel® XMP) 2.0. Each module has been tested to run at DDR4-3000 at a low latency timing of 15-17-17 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR4-2400 timing of 17-17-17 at 1.2V. Each 288-pin DIMM uses gold contact fingers

1. Power Supply: VDD = 1.2V Typical
2. VDDQ = 1.2V Typical
3. VPP - 2.5V Typical
4. VDDSPD = 2.25V to 3.6V
5. On-Die termination (ODT)
6. 16 internal banks; 4 groups of 4 banks each
7. Bi-Directional Differential Data Strobe
8. 8 bit pre-fetch
9. Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)
10. Height 1.661” (42.20mm)

Specifications of HYPERX Predator 8GB ( 8GB x 1 ) 3000MHz DDR4 RAM ( CL15 )
