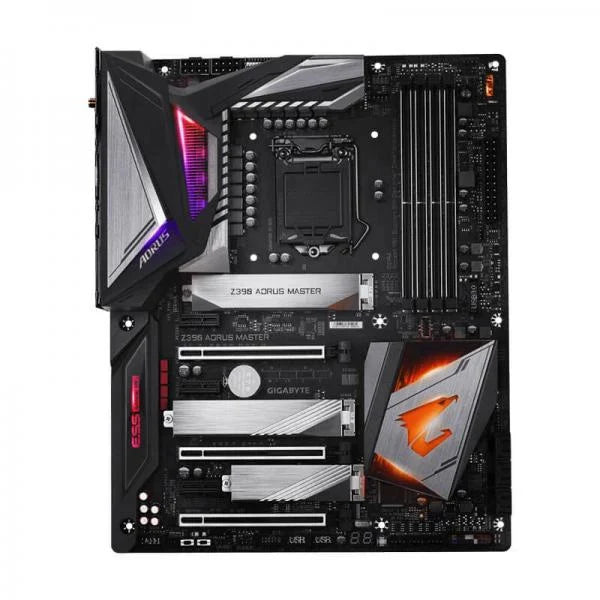

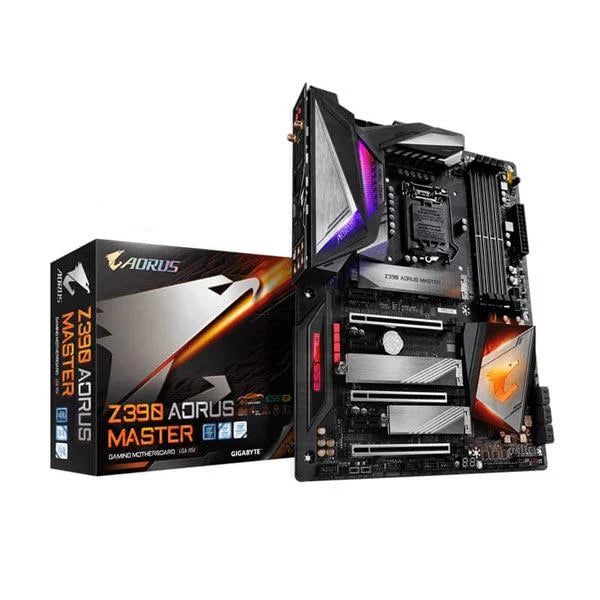

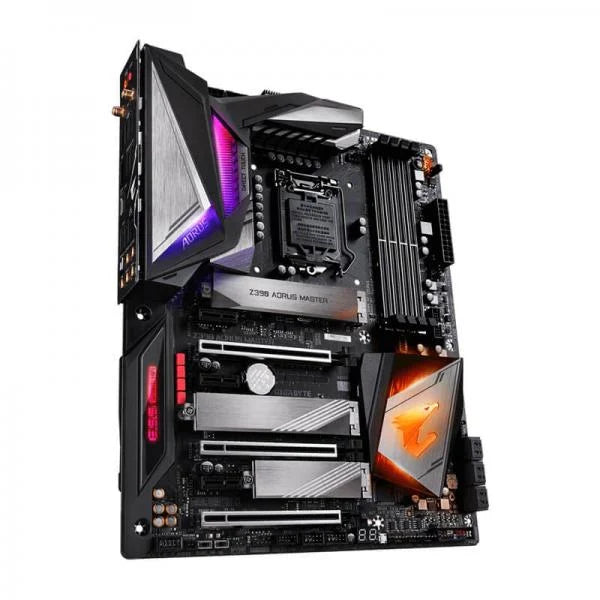

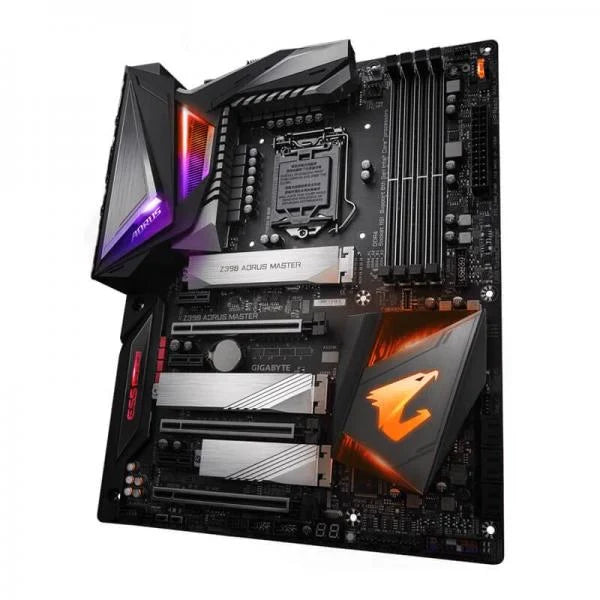

Feature of Gigabyte Z390 Aorus Master DDR4

• Supports 9th and 8th Gen Intel Core Processors
• Dual-Channel Non-ECC Unbuffered DDR4, 4x DIMMs
• Intel Optane Memory Ready
• 12-Phase IR Digital VRM Solution with PowIRstage
• Advanced Thermal Design with Fins-Array Heat Sink and Direct-Touch Heat Pipe
• Onboard Intel CNVi 802.11ac 2x2 Wave 2 Wi-Fi
• 125dB SNR AMP-UP Audio with ALC1220 & High-End ESS SABRE 9118 DAC with WIMA Audio Capacitors
• USB TurboCharger for Mobile-Device Fast-Charge Support
• Intel Gigabit LAN with cFosSpeed
• RGB FUSION with Multi-Zone Addressable LED Light-Show Design, Supports Addressable LED & RGB LED Strips
• Smart Fan 5 Features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
• Front USB 3.1 Gen 2 Type-C Header
• Triple Ultra-Fast NVMe PCIe Gen3 x4 M.2 with Triple Thermal Guard
• USB DAC-UP 2 with Adjustable Voltage
• CEC 2019 Ready, Save Power With a Simple Click

Design Concept

In the dark, starless night, the falcon strikes fear into the heart of its prey. Even with minimal visibility, the falcon pinpoints its prey and patiently anticipates the perfect moment to swoop in for the kill. The falcon with its laser sharp gaze dominates the darkness of night in the same manner that AORUS Core Lighting illuminates the vast AORUS ecosystem.

12-Phase Digital-Power Design

• 40A IR 3553 for Each vCore Phase
• High-Current-Capacity MOSFET
• Lower Temperature
• Server-Level Reliability

Z390 AORUS MASTER motherboard uses an all IR digital CPU power design which includes both digital PWM Controller and PowlRstage MOSFET, and is capable of providing at least 40A of power from each phase, for a total of 480A. These 100% digital controller and additional 8+8 Solid-pin CPU Power Connectors offer incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from the new 8-core 9th Gen Intel Core processors.

Advanced Thermal Design

Z390 AORUS MASTER reaches a perfect balance between style and performance by combining the media acclaimed Fins-Array heat sink, a heat pipe, and a thermal baseplate, to provide 30% lower MOSFET temperatures for enthusiasts, overclockers and professional gamers.

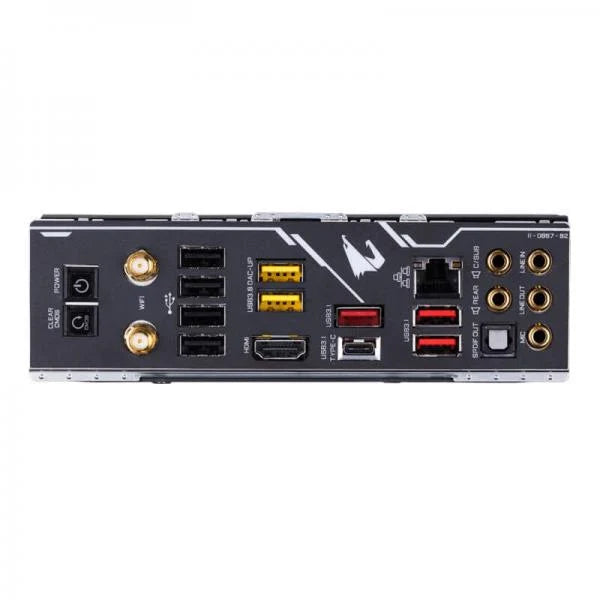

Baseplate + I/O Shield Armor

Durable Design and Easy Installation

• With an integrated base plate, GIGABYTE motherboards give users a strong foundation to build their gaming PCs.
• With an integrated I/O shield, building a GIGABYTE Ultra Durable PC is even easier.
• Integrated Power/Reset/Clear CMOS buttons on the I/O shield enable users easier debugging and operation.

Triple NVMe M.2 PCIe SSDs in RAID 0 Support

Extreme Performance with Gen3 x4 NVMe PCIe SSDs

Z390 AORUS motherboards offer the industry's best compatibility in terms of NVMe storage for users who demand high capacity and seek the best performance. AORUS' unique design can be configured in RAID for record speeds of up to 3,551MB/s (Sequential Read), making AORUS the obvious choice for the ultimate PC.

AORUS M.2 Thermal Guard

GIGABYTE Ultra-Efficient M.2 Thermal Guard

With durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks from high-speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.

USB DAC-UP 2

AORUS improves upon USB DAC-UP technologies with USB DAC-UP 2. USB DAC-UP 2 continues to provide clean, isolated and low-noise power while adding the ability to compensate for voltage drop. Virtual reality pioneers and gamers alike can rest assured that their expensive accessories and peripherals will not encounter connectivity or power deficiency issues with the AORUS USB DAC-UP 2. With Gaming Gear drawing large amounts of power and having firm specification requirements USB DAC-UP 2 is up for the challenge.

Smashes the GbE Barrier!

Integrated Intel 802.11ac Wave2 CNVi WIFI + Bluetooth 5

Intel Next-Gen Wireless solution supports 802.11ac Wave 2 function, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 1.73Gbps. Double the speed compared to the previous generation. Moreover, Bluetooth 5 provides 4x range over BT4.2 and with faster transmission.

Specifications of Gigabyte Z390 Aorus Master DDR4
