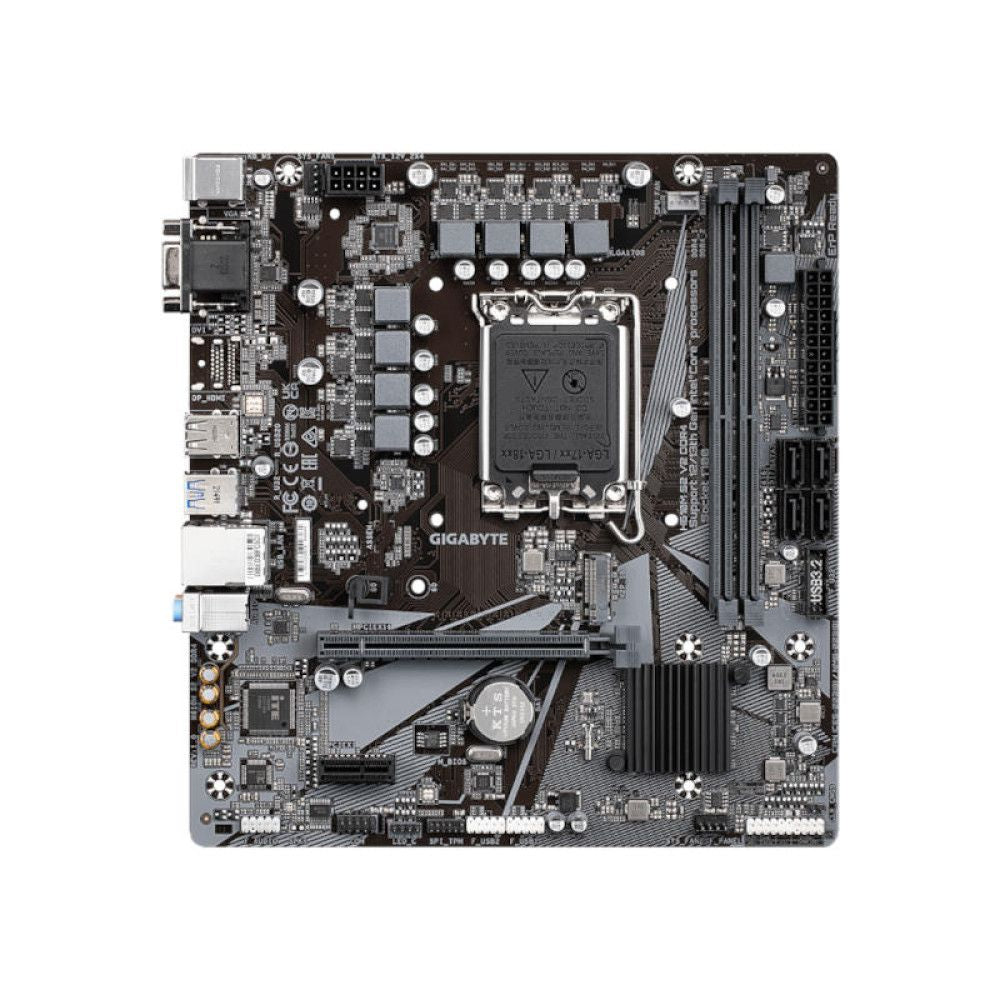

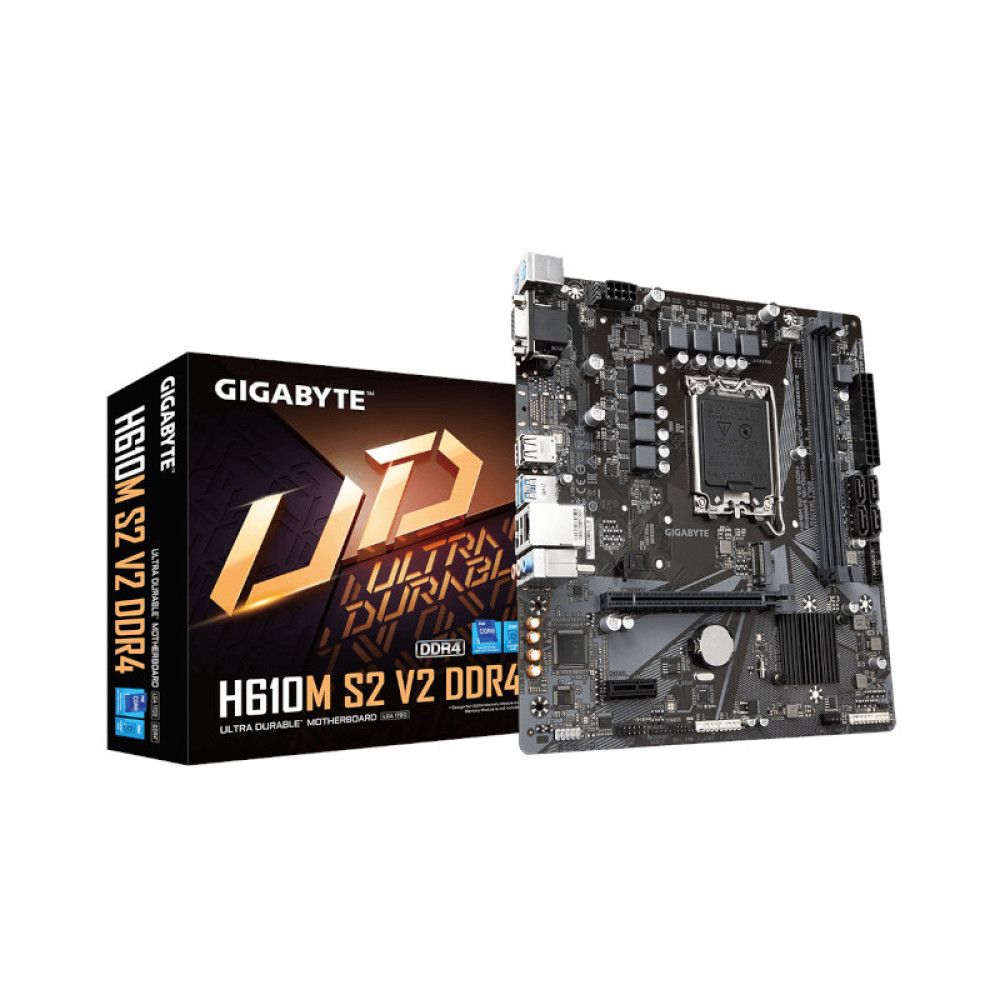

Features Of GIGABYTE H610M S2 V2 DDR4 intel Motherboard

Intel® H610 Motherboard with 6+1+1 Hybrid Phases Digital VRM Design, PCIe 4.0* Design, Gen3 x4 M.2, Realtek Gaming LAN, Anti-Sulfur Resistor, Smart Fan 6

• Supports 12th Gen Intel® Core™ Series Processors
• Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
• 6+1+1 Hybrid Digital VRM Design
• GIGABYTE Gaming LAN with Bandwidth Management
• NVMe PCIe 3.0 x4 M.2
• High-Quality Audio Capacitors and Audio Noise Guard
• Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
• GIGABYTE APP Center, Simple, and Easy Use
• Anti-Sulfur Resistors Design

6+1+1 Phases Hybrid Power Design

Cleaner and more efficient power delivery to the CPU with better thermal performance ensures stability under high CPU frequencies and heavy loading.

• 6+1+1 Phases Low RDS(on) MOSFETs
• Solid capacitors to improve transient response and minimize oscillation.
• 8-pin Solid Pin CPU Power Connector.

Single 32GB Support

The maximum memory capacity on the H610 motherboard is 64 GB. After Intel updated the memory reference code, a single slot can support up to 32GB. Therefore with populated 2 DIMM per channel on both channels, the total memory capacity is 64GB, which was only available on High-End Desktop (HEDT) platforms. For users who always run out of memory capacity, there is more bandwidth now for memory-intensive applications such as rendering and video editing.

SmartFan6

Smart Fan 6 contains several unique cooling features that ensure gaming PCs maintain their performance while staying cool and quiet. Multiple fan headers can support PWM/DC fans and pumps, and users can easily define each fan curve based on different temperature sensors across the board via the intuitive user interface.

• High Current Support
  Each fan headers support PWM and DC fan and Water cooling Pump, and up to 24W (12V x 2A) with Over-Current Protection
• Precision Control
  Up to 7 temperature/fan speed control points for the precise fan curve
• Dual Curve Mode
  Slope/Stair dual mode for different user scenarios
• Fan Stop
  The fan can stop completely below the user’s specified temperature point

Exclusive Realtek 8118 Gaming LAN
High-Speed Gigabit LAN with Automatic Bandwidth Allocation

Realtek 8118 LAN is a high-performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users with the most comprehensive features and the fastest and smoothest Internet experience.

Solid Pin Power Connectors

GIGABYTE H610M S2 V2 motherboards feature solid-plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading.

Solid Pin Power connector advantages

• Larger contact area for electricity
• More metal quantity to sustain higher power and generated heat
• Ultra durable and longer lifespan

START SULFURIZATION PROTECTION

Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. Equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.

BIOS

The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier-to-use functionalities, GIGABYTE has reinvented the BIOS to give users a better experience while setting up their new system.

APP CENTER

GIGABYTE APP CENTER is a useful portal of all GIGABYTE MB utilities and drivers, you can choose any utility you want to install from APP CENTER and keep updated with the latest utilities and drivers version.

EasyTune™

GIGABYTE’s EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when needed.

System Information Viewer

GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high, or record your system’s behavior; these are the possibilities of the System Information Viewer.

Specifications Of GIGABYTE H610M S2 V2 DDR4 intel Motherboard
