WINDFORCE
COOLING SYSTEM

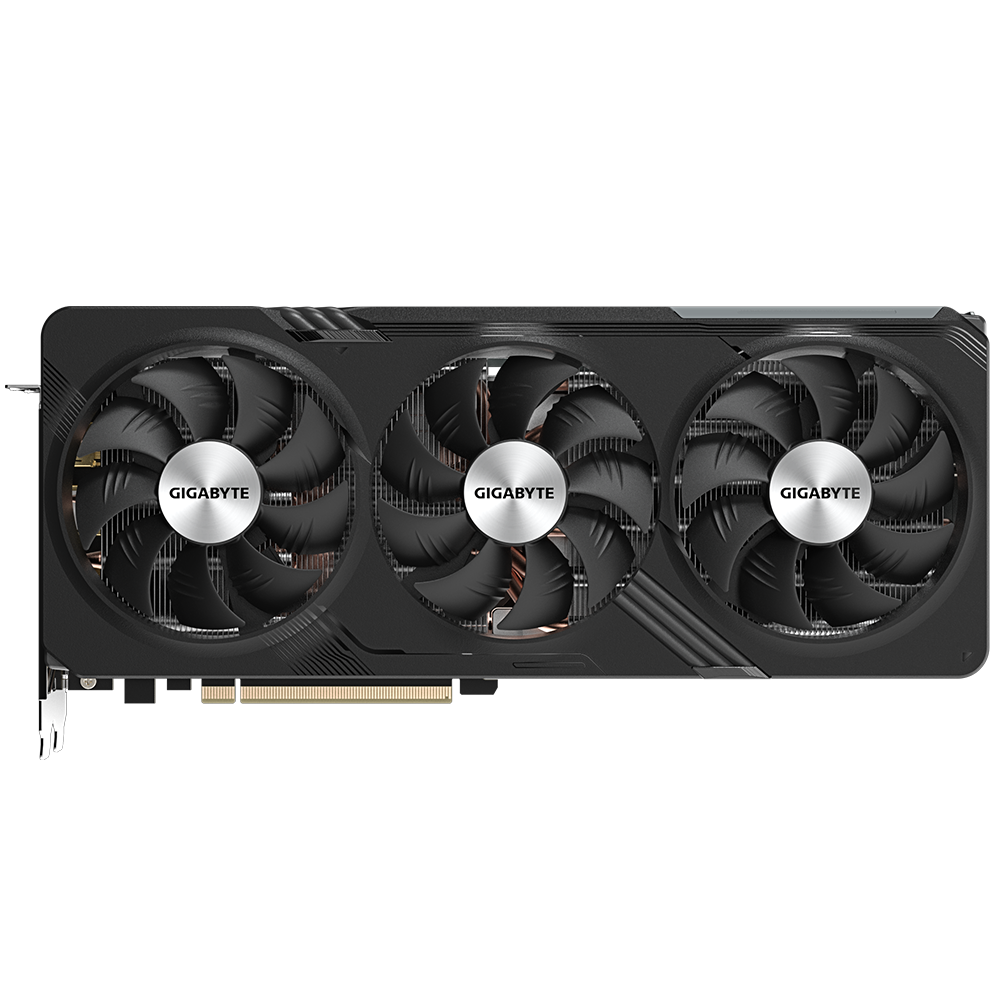

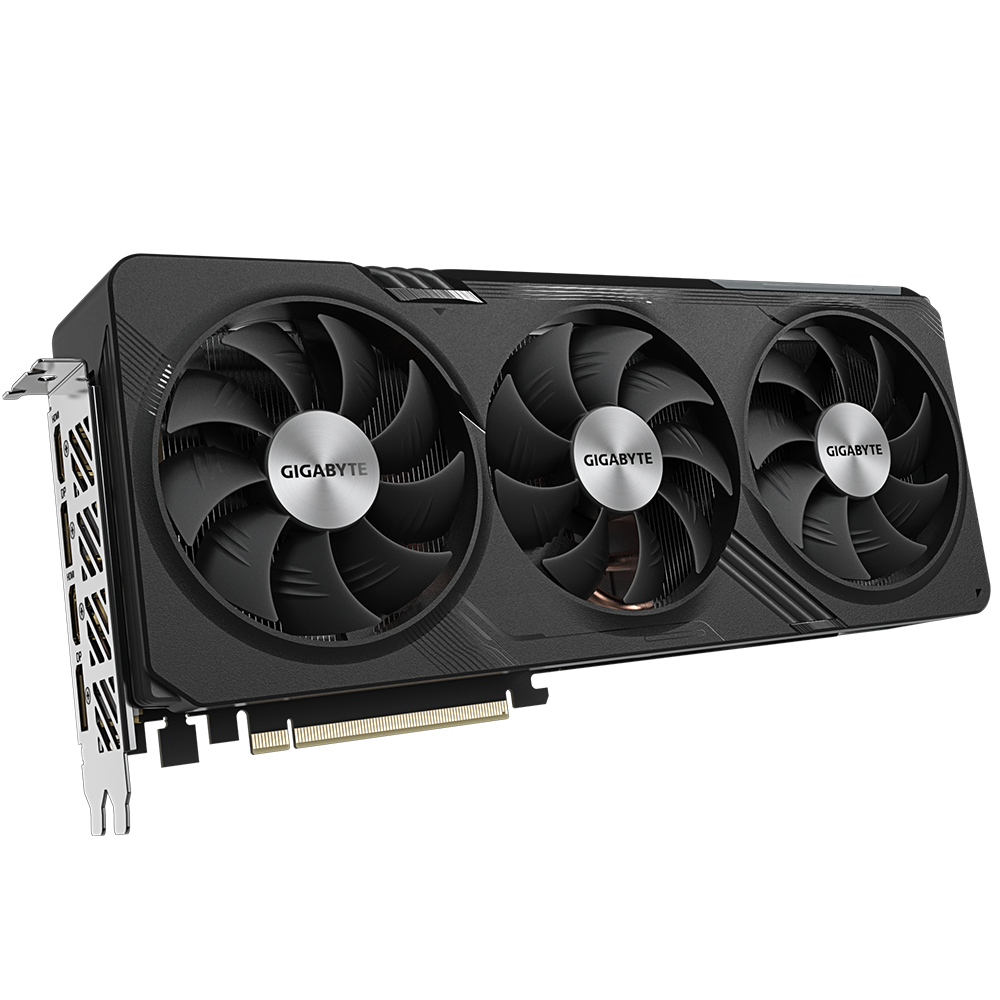

The WINDFORCE cooling system features three 90mm unique blade fans, alternate spinning, 7 composite copper heat pipes, a large copper plate directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
WINDFORCE
COOLING SYSTEM
The WINDFORCE cooling system features three 90mm unique blade fans, alternate spinning, 7 composite copper heat pipes, a large copper plate directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
LARGE COPPER PLATE & HEAT-PIPE
The large copper plate directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.
SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.
RGB FUSION
With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.
BUILT STRONG
ULTRA DURABLE
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
Power Through The Game
GIGABYTE offers the best power supply solutions for your graphics cards. You can choose either the AORUS series or the UD series to power your graphics card.
GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.

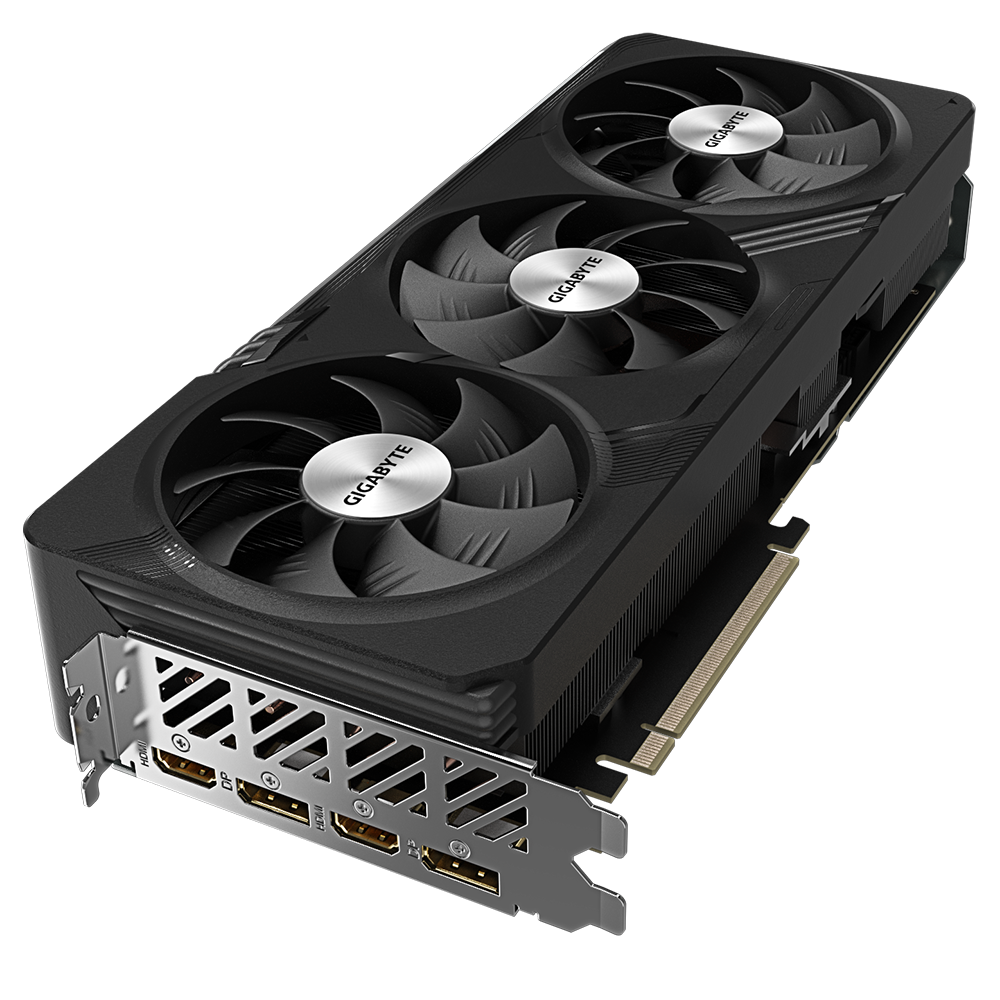

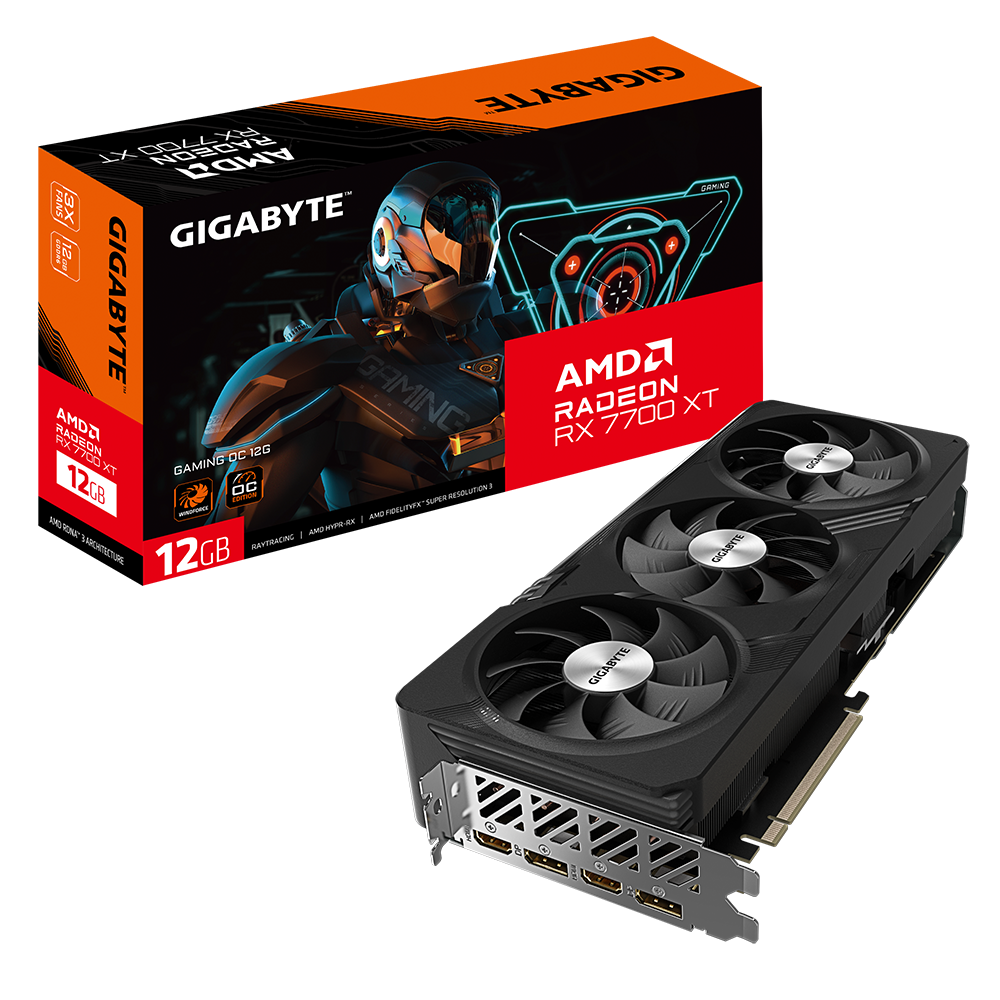

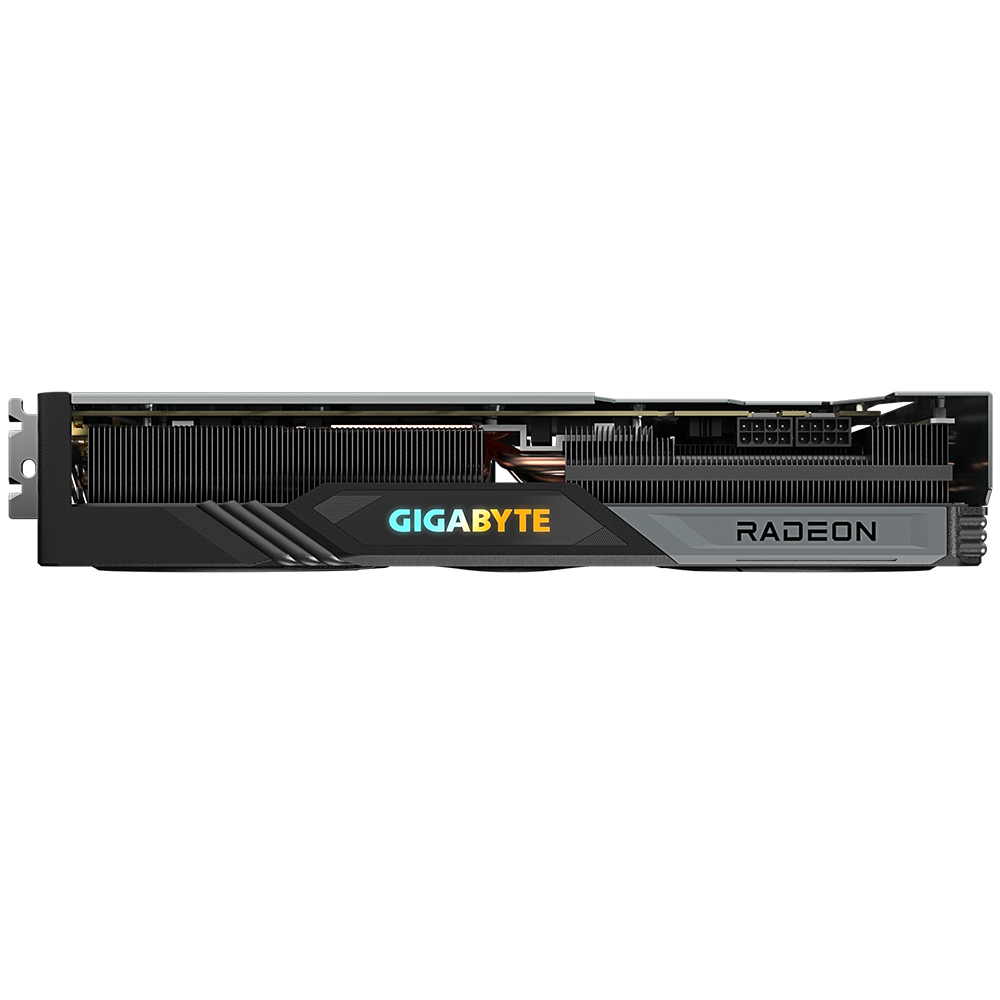

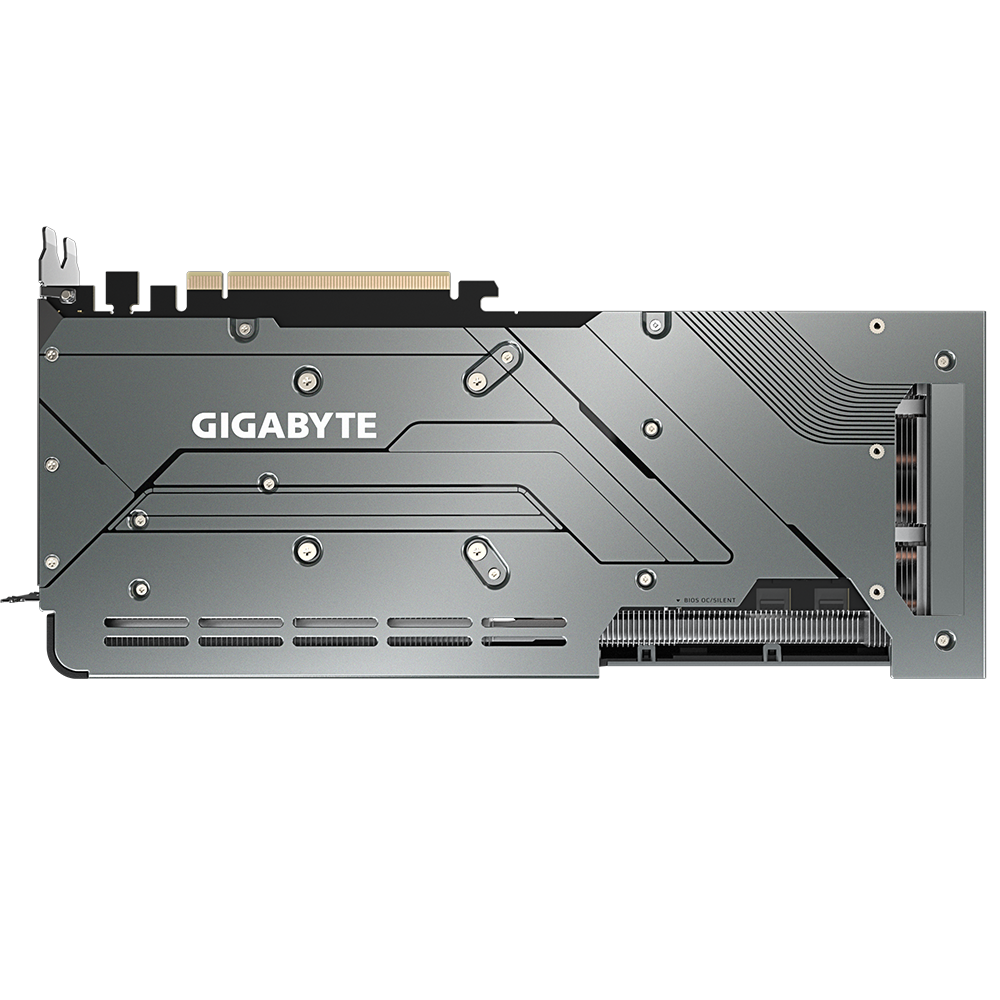

Specifications of GIGABYTE GeForce RTX 7700 XT Gaming OC 12GB AMD Graphic Card
| Graphics Processing | Radeon™ RX 7700 XT |
| Core Clock | Boost Clock* : up to 2599 MHz (Reference card: 2544 MHz) Game Clock* : up to 2276 MHz (Reference card: 2171 MHz) |
| CUDA® Cores | 3456 |
| Memory Clock | 18 Gbps |
| Memory Size | 12 GB |
| Memory Type | GDDR6 |
| Memory Bus | 192 bit |
| Card Bus | PCI-E 4.0 |
| Digital max resolution | 7680x4320 |
| Multi-view | 4 |
| Card size | L=302 W=130 H=56 mm |
| PCB Form | ATX |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| Recommended PSU | 700W |
| Power Connectors | 8-Pin*2 |

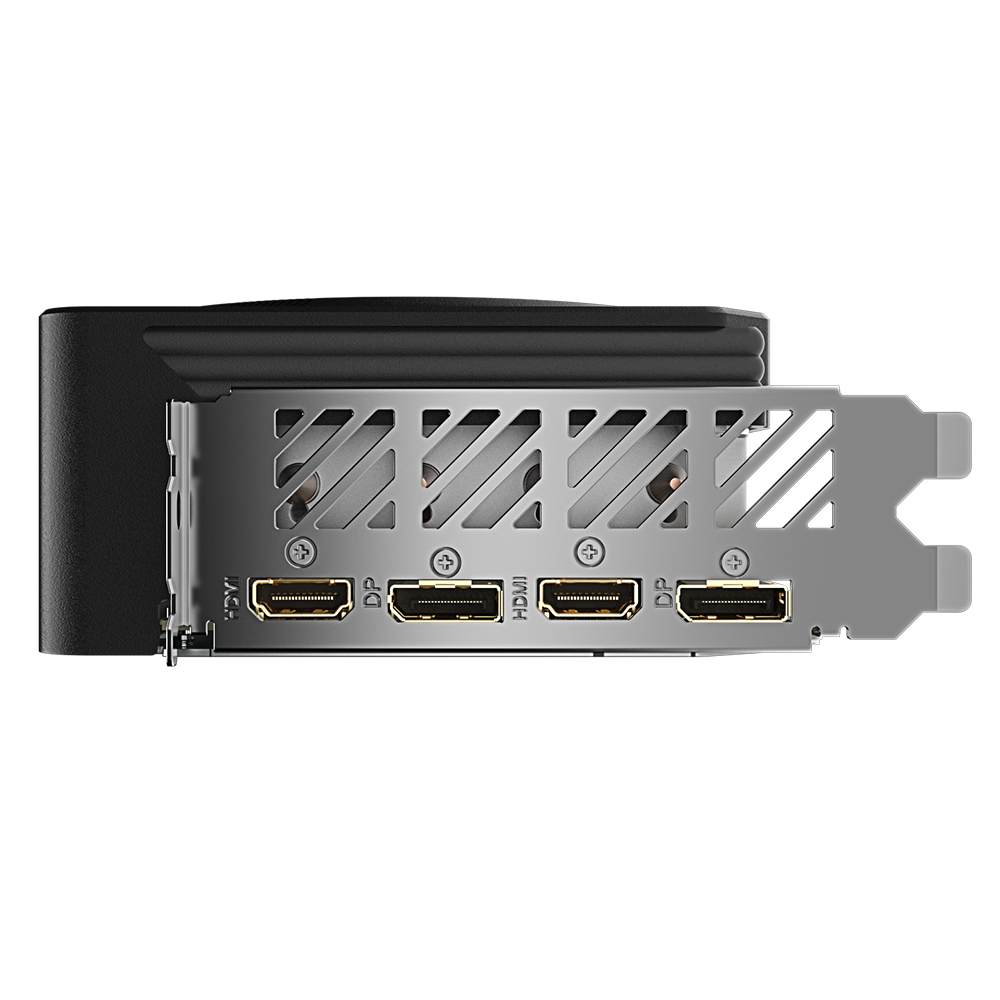

| Output | DisplayPort 2.1 *2 HDMI 2.1 *2 |
| Accessories | Quick guide |
| Warranty | 3 Years |
| Note* | Price, feature and specifications are subject to change without notice. |
