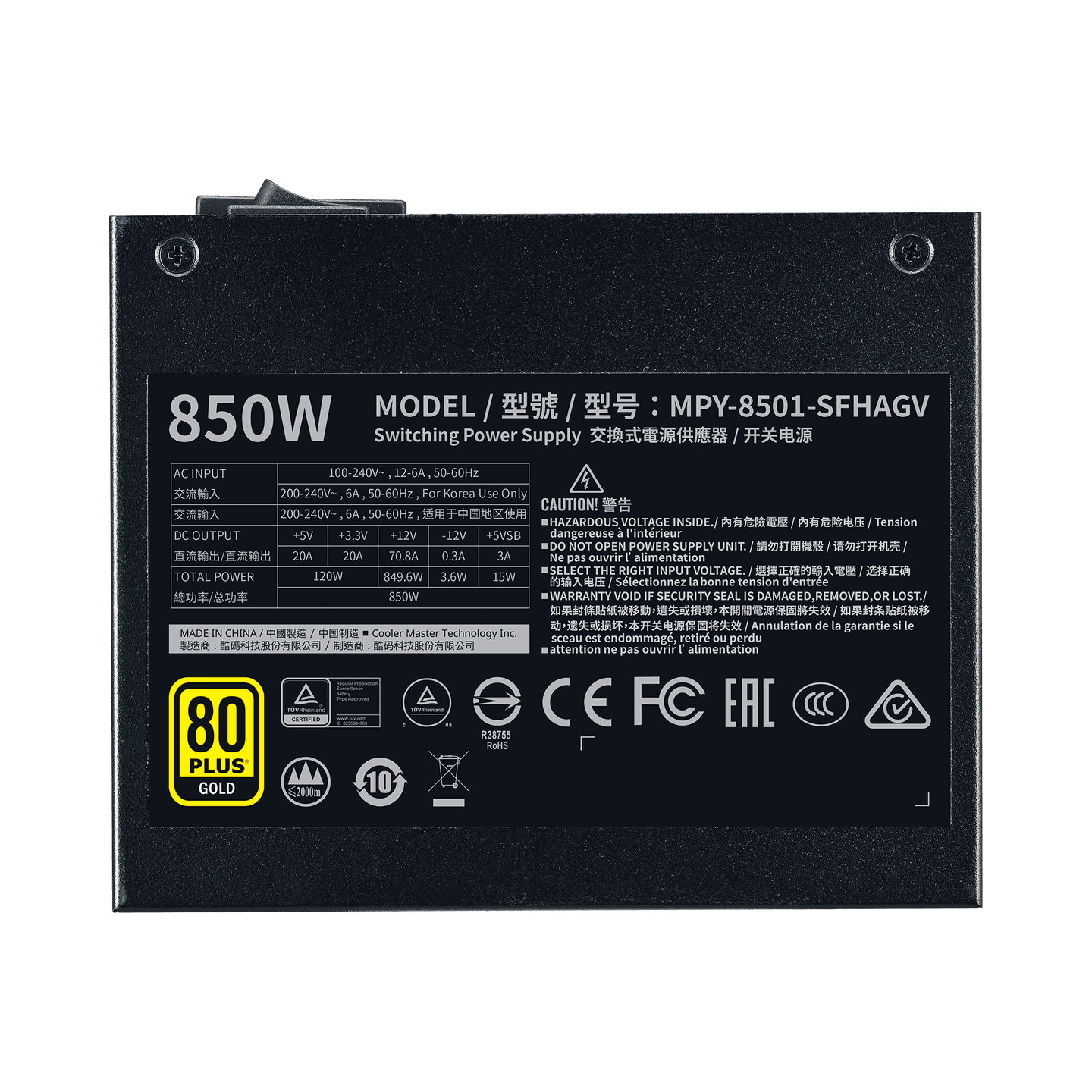

COOLER MASTER V850 SFX GOLD 80 PLUS GOLD SMPS
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
The COOLER MASTER V850 SFX GOLD 80 PLUS GOLD SMPS is a high-performance power supply unit meticulously engineered for compact, powerful systems. Delivering a robust 850 watts, this SFX form factor power supply is 80 PLUS Gold certified, ensuring exceptional energy efficiency and stable, reliable power for demanding components in smaller builds.
Key Features at a Glance
- Powerful 850W output for high-performance systems.
- Compact SFX form factor for smaller chassis compatibility.
- 80 PLUS Gold certification for superior energy efficiency.
- Reliable power delivery from Cooler Master.
Exceptional Energy Efficiency
With its 80 PLUS Gold certification, the V850 SFX GOLD ensures highly efficient power conversion, reducing energy waste and lowering operational costs. This efficiency also contributes to less heat generation, leading to a cooler and quieter system environment.
Compact SFX Design
Engineered in the SFX form factor, this power supply unit is specifically designed to fit into smaller cases, making it an ideal choice for mini-ITX and other compact PC builds without compromising on power. Its small footprint allows for more space within the chassis for other components or improved airflow.
Stable and Reliable Power
The Cooler Master V850 SFX GOLD delivers stable and consistent 850W power to your components. Its robust design is built to support high-end processors and graphics cards, providing the reliable foundation your system needs for consistent performance.
Technical Specifications
| Model | MPY-8501-SFHAGV |
|---|---|
| ATX Version | SFX 12V Ver. 3.42 |
| PFC | Active PFC |
| Input Voltage | 100-240V |
| Input Current | 12-6A |
| Input Frequency | 50-60Hz |
| Dimensions (L x W x H) | 100 x 125 x 63.5 mm |
| Fan Size | 92mm |
| Fan Bearing | FDB |
| Efficiency | 90% @ Typical Load |
| 80 PLUS Rating | 80 PLUS Gold |
| ETA Rating | Gold |
| LAMBDA Rating | Standard+ |
| ErP 2014 Lot 3 | Yes |
| Operating Temperature | 0-50°C |
| Power Good Signal | 100 - 500 ms |
| Hold Up Time | 16ms |
| MTBF | >100,000 Hours |
| Protections | OPP, OVP, OTP, OCP, SCP, UVP, Surge & Inrush Protection |
| Regulatory | TUV, cTUVus, CE, BSMI, FCC, CCC, EAC, RCM, KCC, CB, UKCA |
| ATX 24 Pin Connectors | 1 |
| EPS 4+4 Pin Connectors | 1 |
| EPS 8 Pin Connector | 1 |
| SATA Connectors | 8 |
| Peripheral 4 Pin Connectors | 4 |
| PCI-e 6+2 Pin Connectors | 4 |
| 80 Plus Efficiency | Gold |
| Series | V SFX Series |
| Modular | Fully Modular |
| Category | Above 750W |
| Form Factor | SFX |
| Watts | 850W |
Frequently Asked Questions
Q: What is the power output of the COOLER MASTER V850 SFX GOLD SMPS?
A: This power supply unit provides a robust 850 watts of power.
Q: What does "80 PLUS Gold" certification mean for this power supply?
A: 80 PLUS Gold certification indicates that the power supply operates with very high energy efficiency, typically 87-90% efficiency or higher at various loads, reducing energy waste and heat.
Q: Is this power supply suitable for compact PC builds?
A: Yes, the COOLER MASTER V850 SFX GOLD SMPS features an SFX form factor, specifically designed to fit into smaller cases for compact and mini-ITX PC systems.
