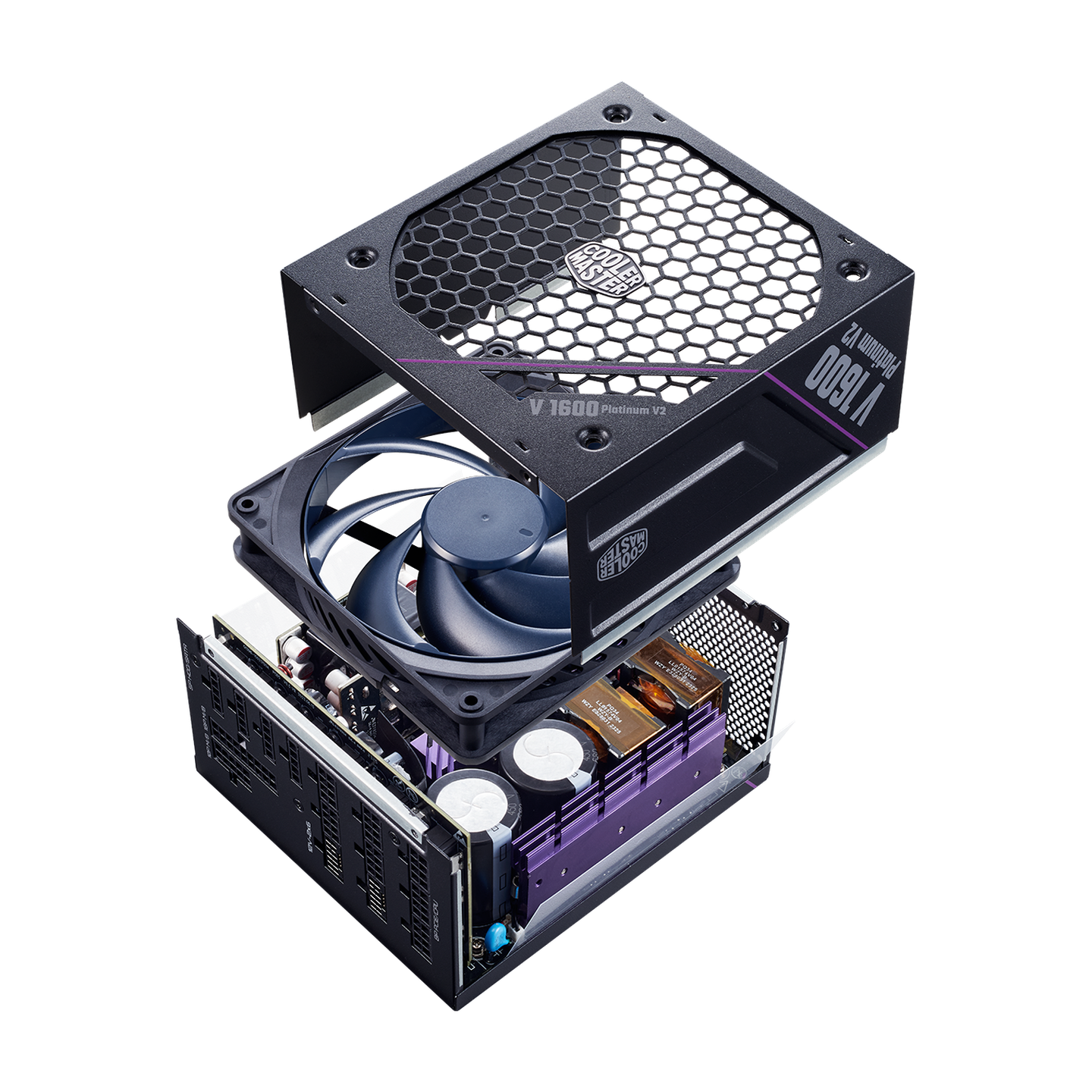

COOLER MASTER V PLATINUM 1600 WATT V2 ATX 3.1 FULLY MODULAR SMPS
COOLER MASTER V PLATINUM 1600 WATT V2 ATX 3.1 FULLY MODULAR SMPS
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
The COOLER MASTER V PLATINUM 1600 WATT V2 ATX 3.1 FULLY MODULAR SMPS delivers robust power for your high-performance system. This fully modular unit features an ATX 3.1 design, ensuring reliable and efficient operation for demanding builds.
Key Features at a Glance
- COOLER MASTER V PLATINUM series
- 1600 Watt power output
- ATX 3.1 standard compliance
- Fully modular design
- V2 version for enhanced reliability
Robust Power Delivery
Experience reliable performance with the 1600 Watt power output of this COOLER MASTER SMPS, designed to support demanding system configurations.
Modern ATX 3.1 Design
Built to the ATX 3.1 standard, this power supply ensures compatibility and efficient power delivery for current and future hardware requirements.
Flexible System Building
The fully modular design of the V PLATINUM SMPS allows for clean cable management and easier installation, optimizing airflow within your PC case.
Technical Specifications
| Model | MPZ-G002-AFAP |
|---|---|
| ATX Version | ATX 12V Ver. 3.1 |
| PFC | Active PFC |
| Input Voltage | 100-240V |
| Input Current | 16-8A |
| Input Frequency | 50-60Hz |
| Dimensions (L x W x H) | 160 x 150 x 86 mm |
| Fan Size | 135mm |
| Fan Bearing | LDB |
| Fan Speed | 2400±10% RPM |
| Efficiency | ? 92% @ Typical Load |
| 80 PLUS Rating | 80 PLUS Platinum |
| ErP 2014 Lot 3 | Yes |
| Operating Temperature | 0-50°C |
| Power Good Signal | 100 - 150 ms |
| Hold Up Time | ? 16ms |
| MTBF | >100,000 Hours |
| Protections | OPP, OVP, OTP, OCP, SCP, UVP, Surge & Inrush Protection |
| Regulatory | cTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (Based on region's requests) |
| ATX 24 Pin Connectors | 1 |
| EPS 4+4 Pin Connectors | 1 |
| EPS 8 Pin Connector | 1 |
| SATA Connectors | 16 |
| Peripheral 4 Pin Connectors | 4 |
| PCI-e 6+2 Pin Connectors | 5 |
| 12V-2x6 Connectors | 2 |
| Series | V Platinum Series |
| 80 Plus Efficiency | Platinum |
| Modular | Fully Modular |
| Category | Above 750W |
| Form Factor | ATX |
| Watts | 1600W |
Frequently Asked Questions
Q: What is the power output of this SMPS?
A: The COOLER MASTER V PLATINUM V2 SMPS provides a 1600 Watt power output.
Q: Is this power supply fully modular?
A: Yes, the COOLER MASTER V PLATINUM 1600 WATT V2 SMPS features a fully modular design for simplified cable management.
Q: What ATX standard does this SMPS support?
A: This COOLER MASTER SMPS is designed to the ATX 3.1 standard.
