- 10%
Motherboard

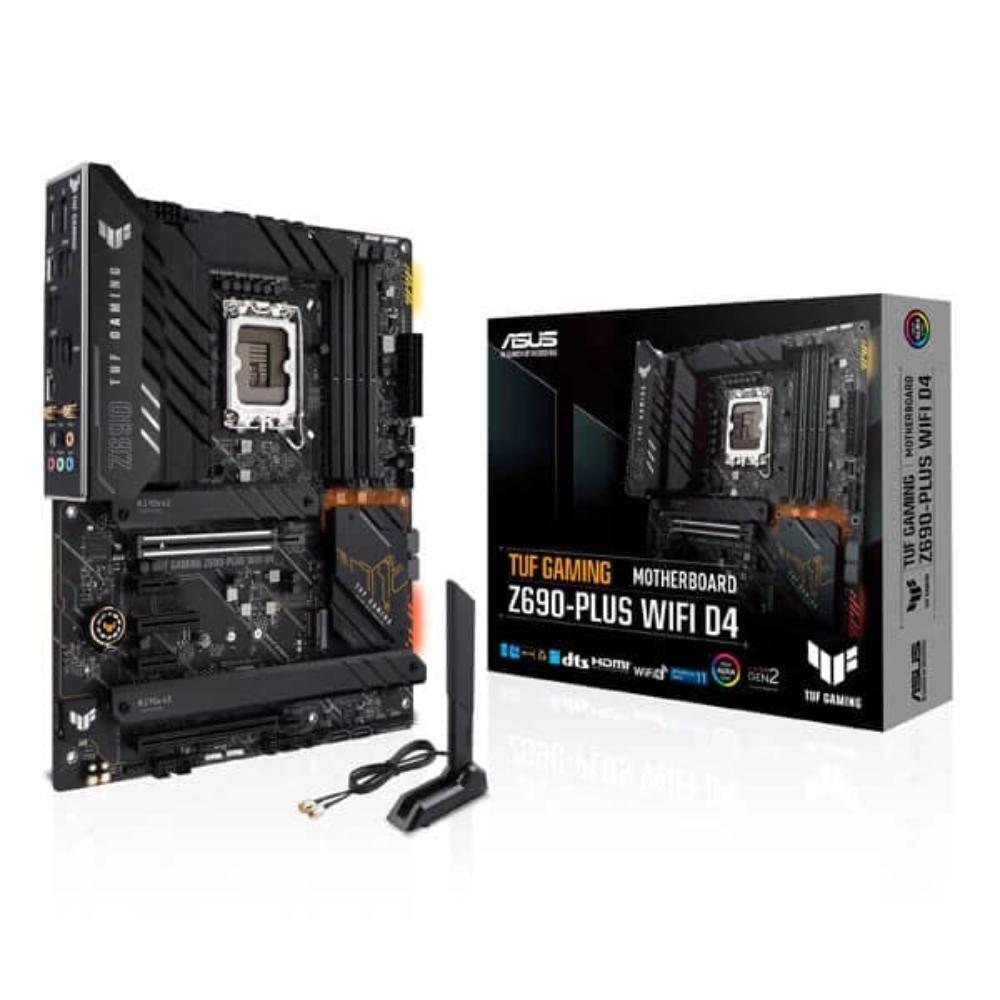

ASUS TUF Gaming Z690-Plus Wifi DDR4 Intel Motherboard
Rs. 30,000.00
Rs. 26,995.00
Out Of Stock
Brand : ASUS
asus-tuf-z690-plus-wifi-d4
Safe Payment
Pay with the world’s most payment methods.
Confidence
Protection covers your purchase
Worldwide Delivery
Ship to over 200 countries & regions.
Hotline
+91-99250 02827
Feature of ASUS TUF Gaming Z690-Plus WiFi DDR4
Intel® Z690 (LGA 1700) ATX gaming motherboard, 15 DrMOS power stages, PCIe® 5.0, DDR4 memory, four M.2 slots, WiFi 6 and Intel 2.5 Gb Ethernet, HDMI®, DisplayPort™, USB 3.2 Gen 2×2 Type-C®, front USB 3.2 Gen 2 Type C, SATA 6 Gbps, Thunderbolt™ 4 support and Aura Sync RGB lighting
- Intel® LGA 1700 socket: Ready for 12th Gen Intel Core™ processors

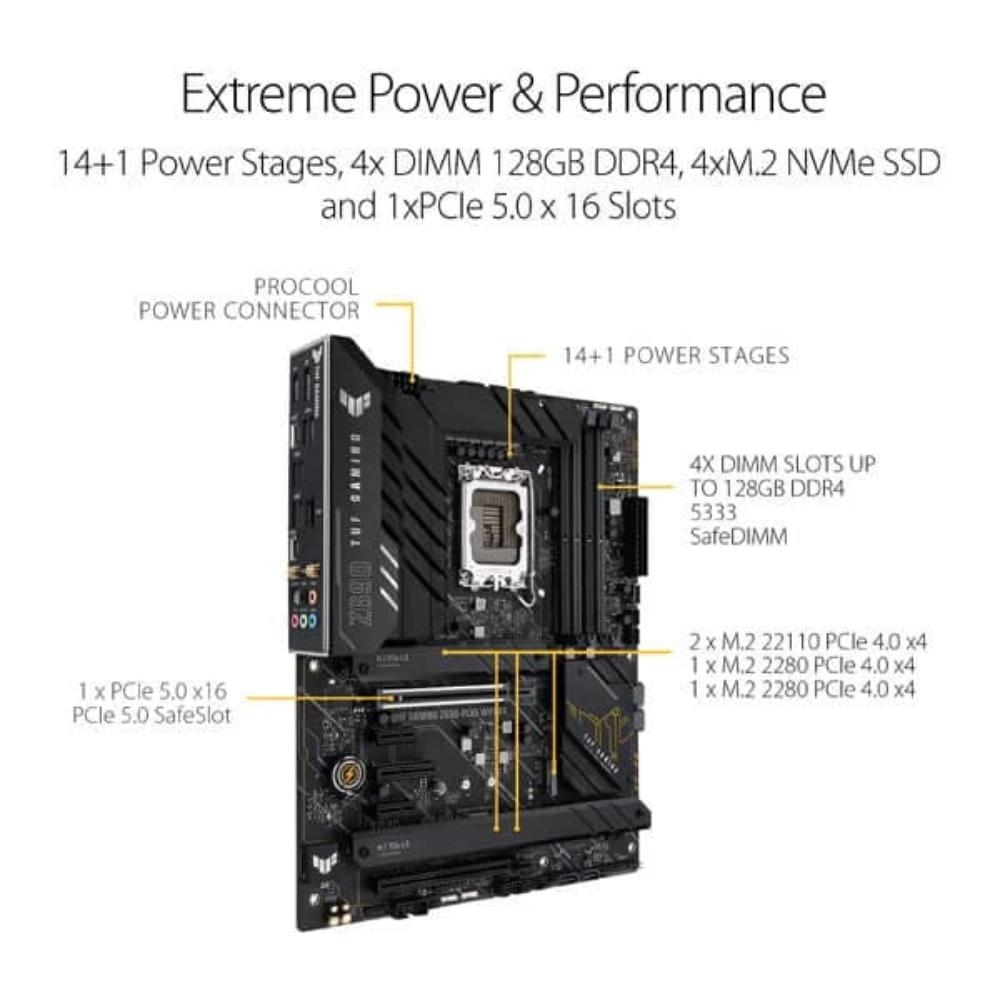

- Enhanced power solution: 14+1 DrMOS, six-layer PCB, ProCool sockets, alloy chokes and durable capacitors for stable power delivery

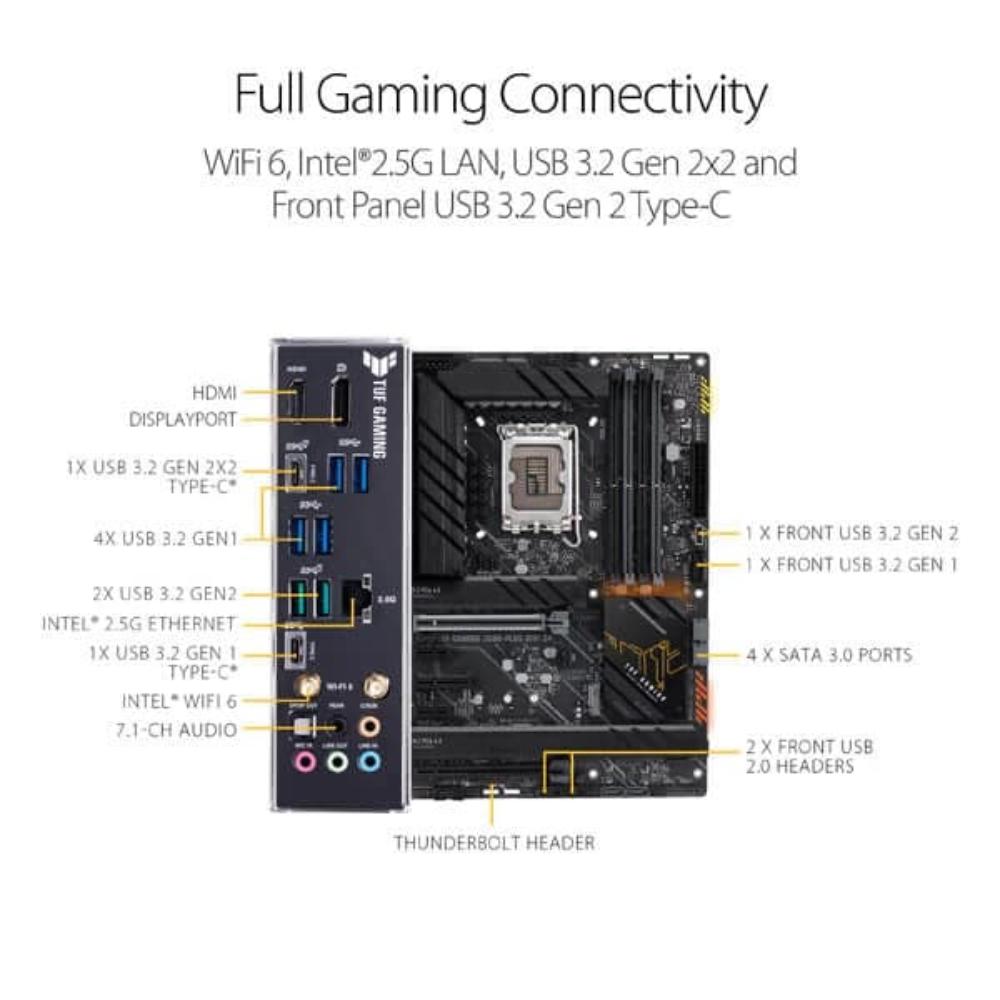

- Next-gen connectivity: PCIe® 5.0, USB 3.2 Gen2x2 Type-C®, front USB 3.2 Gen 2 Type-C, Thunderbolt™ 4 header support
- Made for online gaming: WiFi 6, Intel 2.5 Gb Ethernet and TUF LANGuard
- Two-way AI Noise-Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences

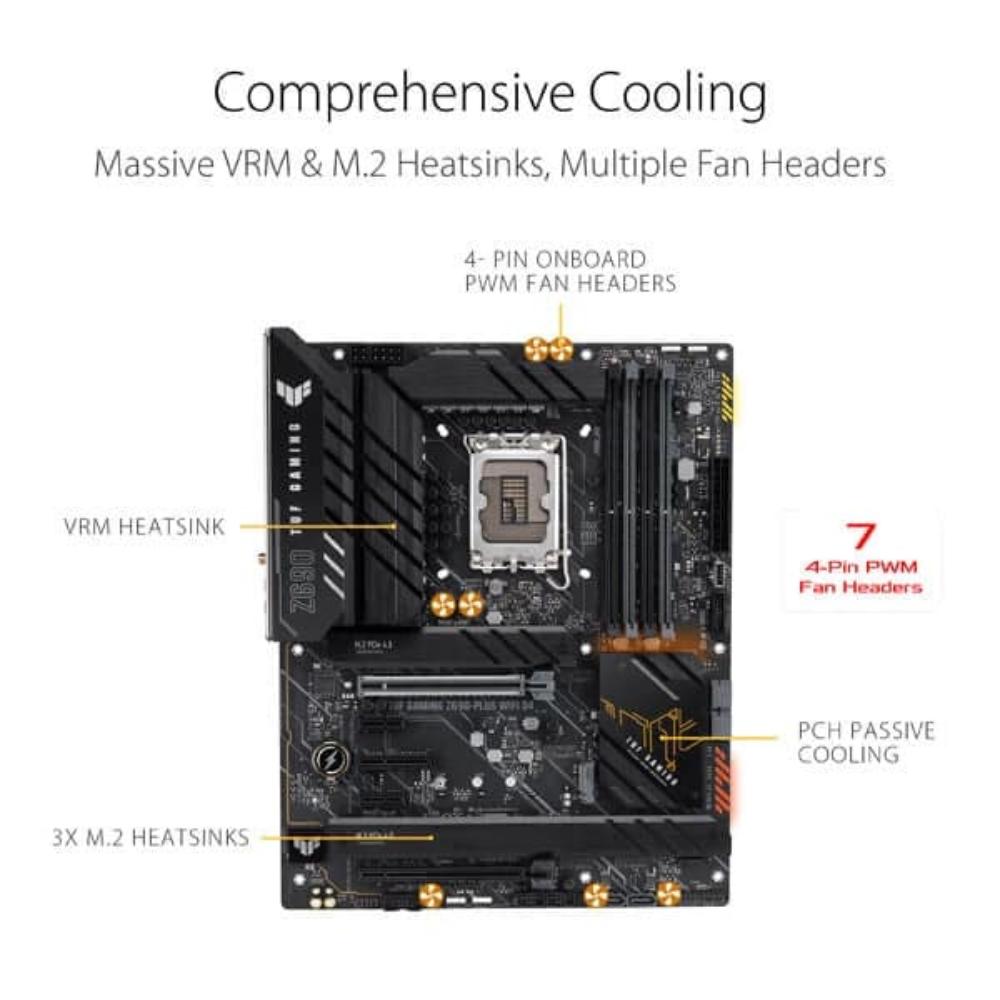

- Comprehensive cooling: Enlarged VRM heatsink, PCH fanless heatsink, M.2 heatsinks, hybrid fan headers and Fan Xpert 4 utility in Armoury Crate

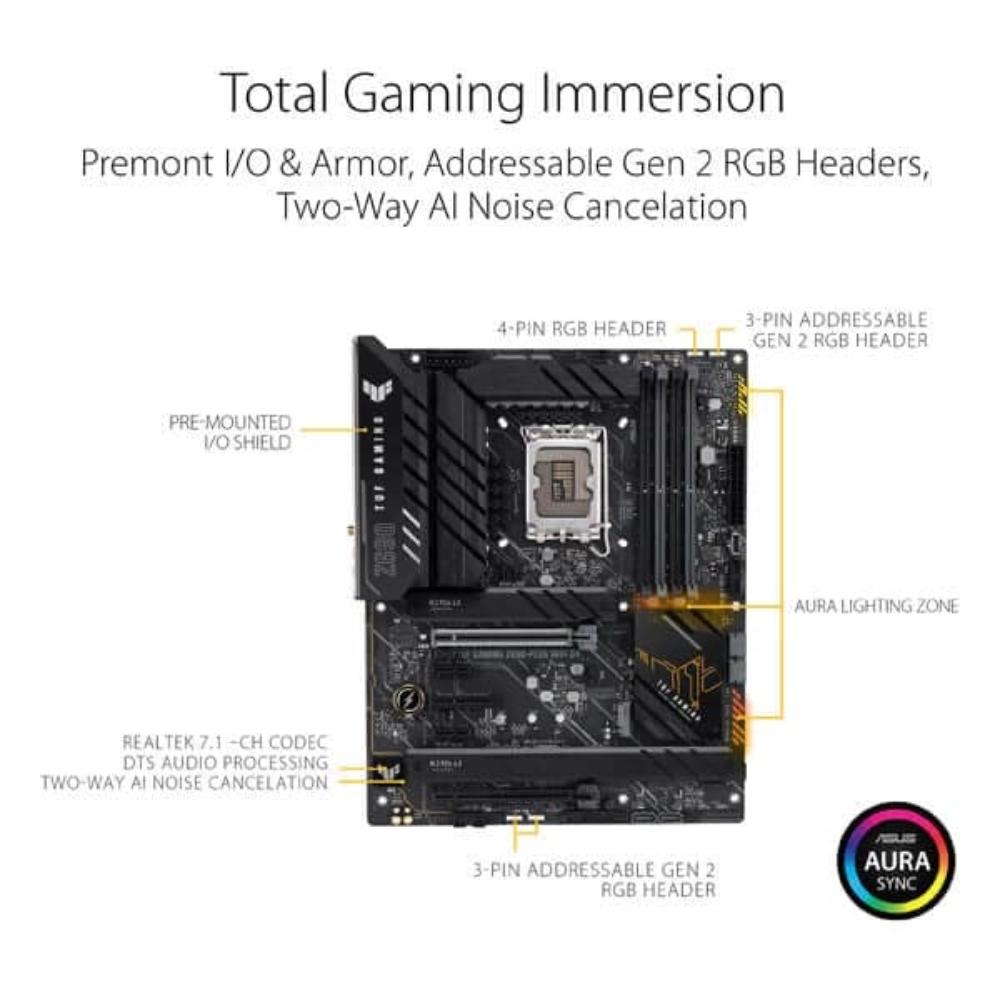

- Outshine RGB Aura Effect: Stylish edge and PCH lighting design, addressable RGB headers and RGB strip header support
Durable. Stable. Reliable.
ASUS TUF GAMING Z690-PLUS WIFI D4 takes all the essential elements of the latest Intel® processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard offers rock-solid and stable performance for marathon gaming. Aesthetically, TUF GAMING Z690-PLUS WIFI D4 sports the new TUF Gaming logo and incorporates simple geometric design elements to reflect the dependability and stability that defines the TUF Gaming series.
DrMOS
The onboard VRMs feature 14+1 DrMOS power stages that combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that 12th Gen Intel Core processors demand.The power stages are each rated to handle 80 amperes to provide stable performance for current and future Intel processors.
Six-Layer PCB Design
Multiple PCB layers optimize heat management for critical components, providing more headroom to push CPUs beyond stock speeds.
ProCool Connectors
Compared to traditional power inputs, ASUS ProCool connectors are built to tight specifications to ensure full contact with PSU power cables. The resulting lower impedance helps prevent hotspots and connector failure.
TUF Components
Certified military-grade TUF chokes deliver rock-solid power to the CPU, improving system stability.
Digi+ VRM
The integrated Digi+ voltage-regulator module (VRM) is one of the finest in the industry, optimized for ultra-smooth and ultra-clean power delivery to the CPU at all times.
Enlarged VRM heatsink
The extensive surface area of the massive heatsink covers the VRMs and chokes to improve heat dissipation.
Enlarged PCH heatsink
An expanded surface area for the chipset cooler maximizes performance and heat dissipation.
Three M.2 slots with heatsinks
Three out of four M.2 slots have dedicated heatsinks, keeping M.2 SSDs at optimal operating temperatures to ensure consistent performance and reliability
Comprehensive Fan Controls
TUF GAMING Z690 motherboards feature comprehensive fan controls that can be configured via the Fan Xpert 4 utility or the award-winning ASUS UEFI BIOS.
Four PCIe 4.0 M.2
The four PCIe 4.0 M.2 slots support up to two 22110 devices and also provide NVMe SSD RAID support for incredible performance potential. Create a RAID configuration with up to four PCIe 4.0 storage devices to enjoy the fastest data transfer speeds.
*Actual transmission speed will be lower than theoretical maximum speed.
* M.2_2 and M.2_4 support type 2280.
USB 3.2 Gen 2×2 Type-C
Extensive USB support ensures connections to a wide array of peripherals. TUF GAMING Z690-PLUS WIFI D4 includes a USB 3.2 Gen 2×2 Type-C® port on the rear I/O panel that delivers increased bandwidth and transmission speeds of up to 20 Gbps.
Specifications of ASUS TUF Gaming Z690-Plus WiFi DDR4
| CPU |
Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Z690 |
| Memory |
4 x DIMM, Max. 128GB, DDR4 5333(OC)/5133(OC)/5000(OC)/ 4800(OC)/4600(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/ 3866(OC)/3733(OC) /3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/ 2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II *Actual Memory frequency support depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| Graphics |
1 x DisplayPort** 1 x HDMI® port*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4 ***Supports 4K@60Hz as specified in HDMI 2.1. **** VGA resolution support depends on processors' or graphic cards' resolution. |
| Expansion Slots |
Intel® 12th Gen Processors* 1 x PCIe 5.0 x16 slot Intel® Z690 Chipset** 1 x PCIe 3.0 x16 slot (supports x4 mode) 1 x PCIe 3.0 x4 slot 2 x PCIe 3.0 x1 slots * Please check PCIe bifurcation table in support site. ** Supports Intel® Optane Memory H Series on PCH-attached PCIe slot |
| Storage |
Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports Intel® 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 - Intel® 12th Gen processors support PCIe 4.0 x4 mode Intel® Z690 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10. ** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots. |
| Ethernet |
1 x Intel® 2.5Gb Ethernet TUF LANGuard |
| Wireless & Bluetooth |
Intel® Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2 |
| USB |
Rear USB:Total 8 ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 5 x USB 3.2 Gen 1 ports (4 x Type-A + 1 x USB Type-C®) Front USB:Total 7 ports 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Audio |
Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Rear optical S/PDIF out port - Premium audio capacitors - Dedicated audio PCB layers - Audio Cover |
| Back Panel I/O Ports |
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 5 x USB 3.2 Gen 1 ports (4 x Type-A + 1 x USB Type-C®) 1 x DisplayPort 1 x HDMI® port 1 x Intel® 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port |
| Intrernal I/O Connectors |
Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt™ header |
| Special Features |
ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - Enhanced DRAM Overcurrent Protection - ESD Guards - TUF LANGuard - Overvoltage Protection - Safeslot - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeDIMM AURA Sync - AURA RGB header - Addressable Gen 2 headers. |
| Software Features |
ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync - Fan Xpert 4 - Two-Way AI Noise Cancelation AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM TUF GAMING CPU-Z DTS Audio Processing MyAsus Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| BIOS | 192 (128+64) Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories |

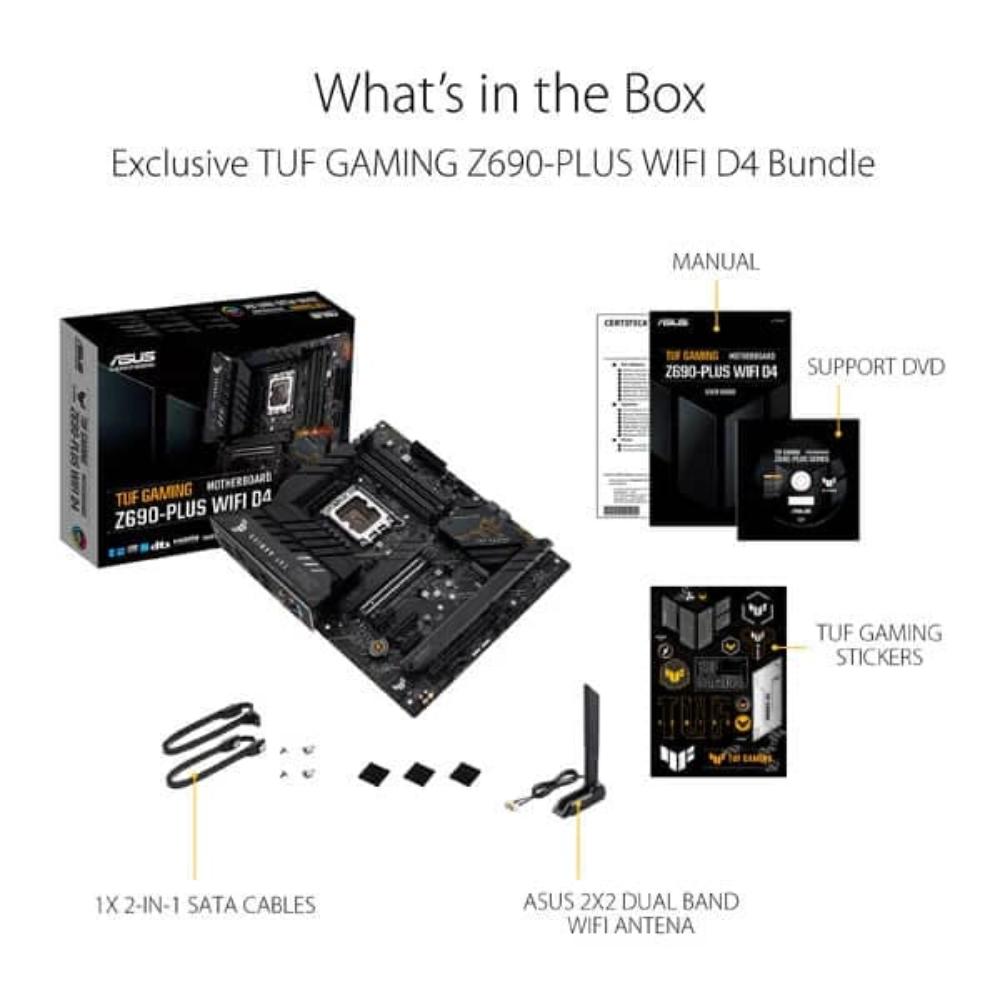

Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antenna 2 x M.2 Rubber Packages 1 x M.2 SSD screw package 1 x TUF GAMING sticker Installation Media 1 x Support DVD Documentation 1 x TUF Certification card 1 x User guide |
| Operating System | Windows® 11 64-bit, Windows® 10 64-bit |
| Form Factor |
ATX 30.5cm x 24.4cm |
| Warranty | 3 Years |
| Note |
***Features, Price and Specifications are subject to change without notice. |
