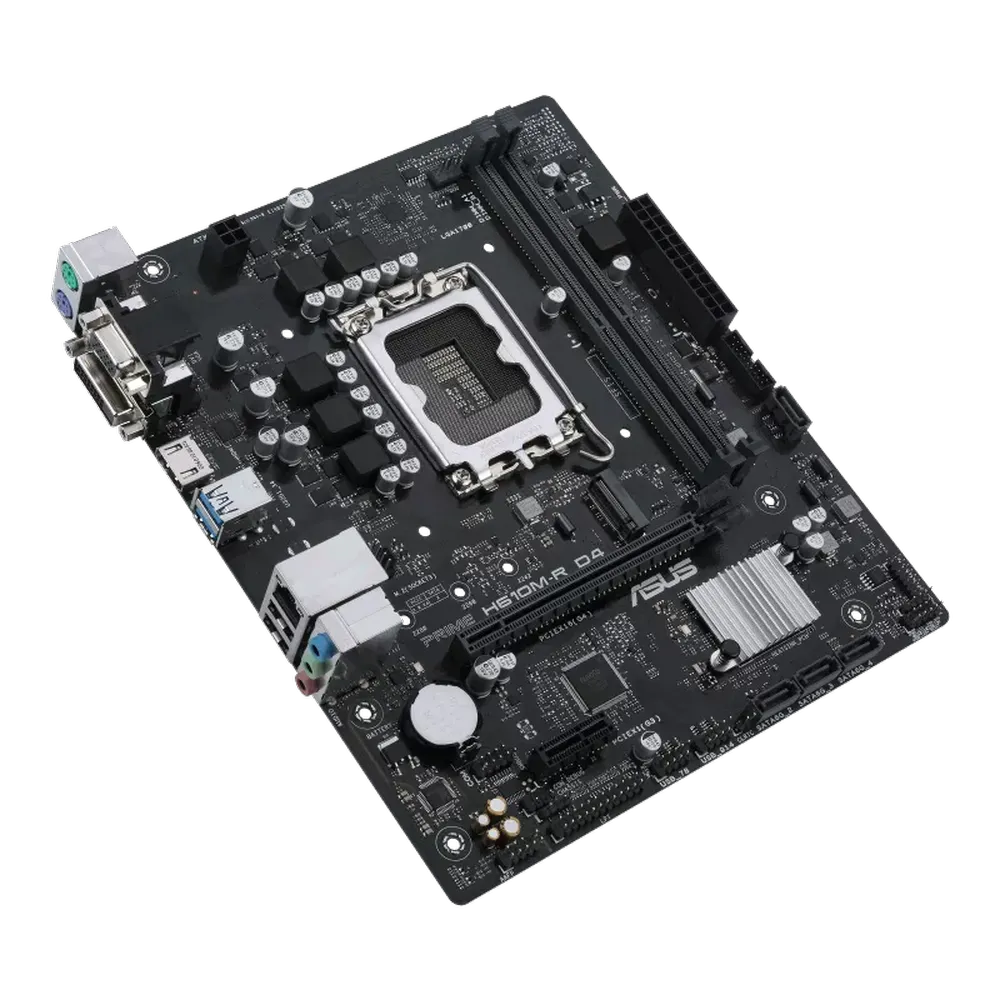

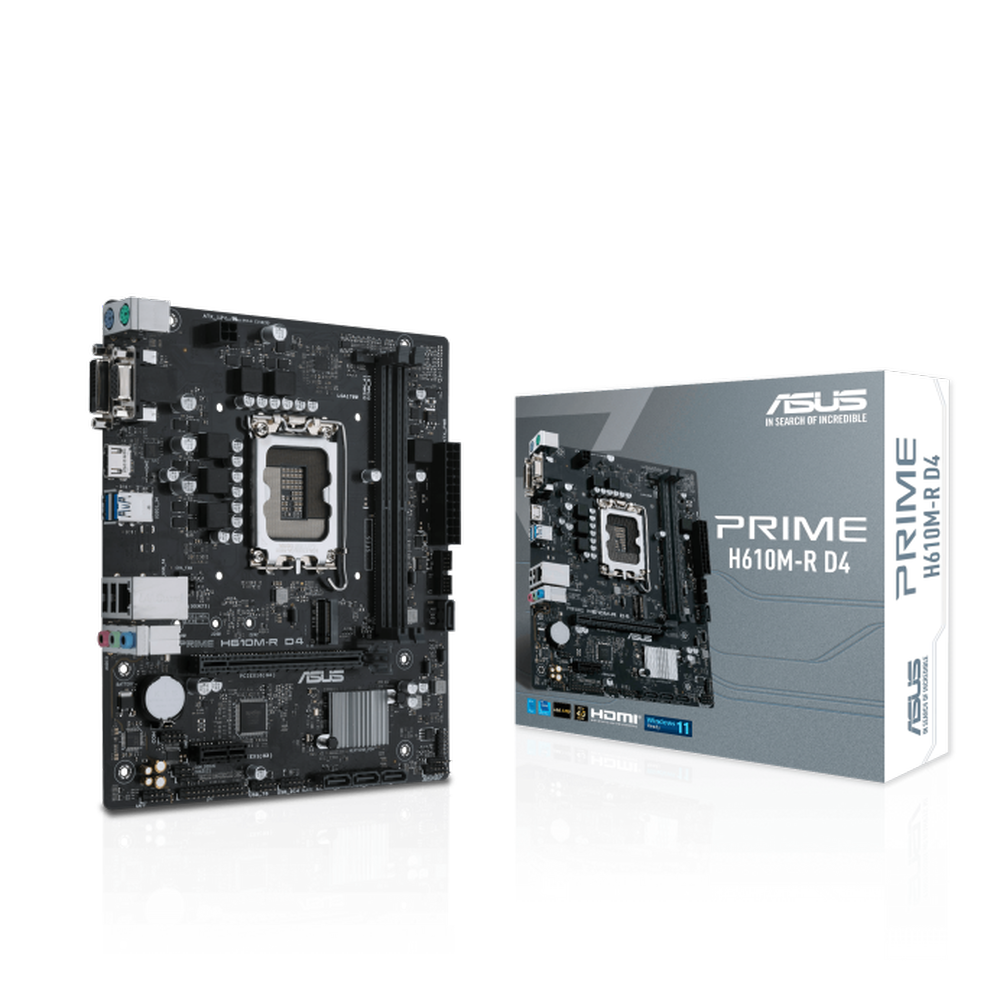

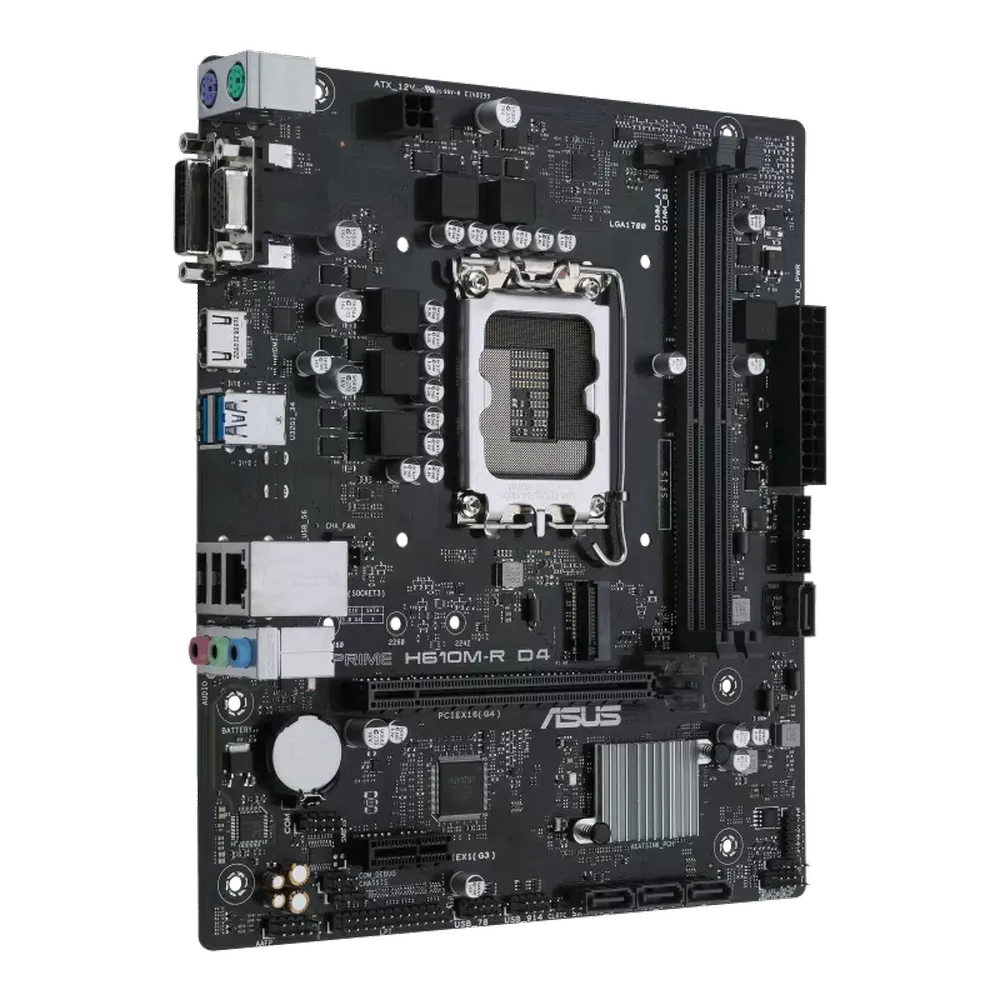

ASUS PRIME H610M-R D4 DDR4 series motherboards are expertly engineered to unleash the full potential of 13th & 12th Generation Intel® processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H610 provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.
ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express – server-grade IT management software.
Designed to assist IT staff in monitoring and controlling devices within their corporate networks, and facilitate inventory checking in multiple locations remotely=
Allows IT staff to schedule automatic updates of the latest BIOS, software and utilities to specific or all devices at off-peak times, enhancing system stability and IT operational flexibility
Securely manage endpoint configuration, portable storage access and PC software applications by enabling them to create grouping rules on individual devices
Intel® H610 (LGA 1700) micro-ATX motherboard with DDR4, PCIe 4.0, M.2 slot, Realtek 1 Gb Ethernet, HDMI™,D-Sub,DVI, USB 3.2 Gen 1 ports, SATA 6 Gbps, COM header, LPT header, TPM header
Intel® LGA 1700 socket: Ready for 14th, 13th & 12th Gen Intel® processors
Comprehensive cooling: PCH heatsink
Ultrafast connectivity: 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1 support
5X Protection III: Multiple hardware safeguards for all-round protection
ASUS Control Center Express: Real-time IT monitoring and management software for enhanced data protection
| Model | |
| Brand | ASUS |
| Model | H610M-R |
| Supported CPU | |
| CPU Socket Type | LGA1700 |
| CPU Type | 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
| Chipsets | |
| Chipset | Intel H610 |
| Memory | |
| Number of Memory Slots | 2 x DDR4 |
| Memory Standard | DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules |
| Maximum Memory Supported | 64GB |
| Channel Supported | Dual Channel |
| Expansion Slots | |
| PCI Express x16 | 1 x PCIe 4.0 x16 slot, 1 x PCIe 3.0 x1 slot |
| Storage Devices | |
|
Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel® H610 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) 4 x SATA 6Gb/s ports |
|
| Onboard Video | |
| Onboard Video Chipset | N/A |
| Onboard Audio | |
| Audio Channels | 7.1-Channel High Definition Audio |
| Audio Chipset | Audio Shielding |
| Onboard LAN | |
| LAN Chipset | 1 x Intel 2.5Gb Ethernet |
| Rear Panel Ports | |
| USB | 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) |
| Audio Ports | 3 x audio jacks |
| PS/2 | 1 x PS/2 Keyboard (purple) port ; 1 x PS/2 Mouse (green) port |
| Video Ports | 1 x D-Sub port, 1 x DVI-D port, 1 x HDMI port |
| HDMI | 1 x HDMI Port |
| Onboard USB | |
| Onboard USB | N/A |
| Onboard 1394 | |
| Onboard 1394 | N/A |
| Physical Spec | |
| Form Factor | Micro ATX Form Factor |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector |
| Dimensions | 8.9 inch x 7.6 inch (22.6 cm x 19.3 cm) |
