Motherboard
ASROCK H610M-HDV/M.2 DDR4 Intel Motherboard
Rs. 9,999.00
Rs. 6,720.00
Out Of Stock
Brand : ASROCK
Asrock-H610M
Safe Payment
Pay with the world’s most payment methods.
Confidence
Protection covers your purchase
Worldwide Delivery
Ship to over 200 countries & regions.
Hotline
+91-99250 02827
Feature of ASROCK H610M-HDV/M.2 DDR4 Intel Motherboard
- Supports 12th Gen Intel® Core™ Processors (LGA1700)
- 6 Phase Power Design
- Supports DDR4 3200MHz
- 1 PCIe 4.0 x16, 2 PCIe 3.0 x1
1 M.2 Key-E for WiFi - Graphics Output Options: HDMI, DisplayPort, D-Sub
- Realtek ALC887/897 7.1 CH HD Audio Codec
- 4 SATA3
1 Ultra M.2 (PCIe Gen3 x4 & SATA3) - 4 USB 3.2 Gen1 (2 Rear, 2 Front)
5 USB 2.0 (2 Rear, 3 Front) - Intel® Gigabit LAN
Ultra M.2 32Gb/s (PCIe Gen3 x4 & SATA3)
ASROCK H610M-HDV/M.2 DDR4 PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules.
Intel® Gigabit LAN
Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!
M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.
Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo.
*Supported only with processors with integrated graphics. Please check CPU support list from each motherboard webpage.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
Specifications of ASROCK H610M-HDV/M.2 DDR4 Intel Motherboard
| Unique Feature |
ASRock Super Alloy Premium Power Choke Sapphire Black PCB High Density Glass Fabric PCB ASRock Ultra M.2 (PCIe Gen3x4 & SATA3) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop |
| CPU |
Supports 12th Gen Intel Core Processors (LGA1700) Digi Power design 6 Power Phase design Supports Intel® Hybrid Technology Supports Intel® Turbo Boost Max 3.0 Technology |
| Memory |
Dual Channel DDR4 Memory Technology 2 x DDR4 DIMM Slots Supports DDR4 non-ECC, un-buffered memory up to 3200 Supports ECC UDIMM memory modules (operate in non-ECC mode) Max. capacity of system memory: 64GB Supports Intel® Extreme Memory Profile (XMP) 2.0 |
| BIOS |
- 128Mb AMI UEFI Legal BIOS with multilingual GUI support ACPI 6.0 Compliant wake up events SMBIOS 2.7 Support CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment |
| Graphics |
Intel® Xe Graphics Architecture (Gen 12) Three graphics output options: D-Sub, HDMI and DisplayPort 1.4 Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports |
| Audio |
7.1 CH HD Audio (Realtek ALC897/887 Audio Codec) Supports Surge Protection |
| LAN |
Gigabit LAN 10/100/1000 Mb/s - Giga PHY Intel® I219V Supports Wake-On-LAN Supports Lightning/ESD Protection Supports Energy Efficient Ethernet 802.3az Supports UEFI PXE |
| Slots |
CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode Chipset: - 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)* - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module |
| Storage |
Chipset: - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes 4 x SATA3 6.0 Gb/s Connectors |
| Connector |
1 x COM Port Header 1 x SPI TPM Header 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (4-pin) 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) |

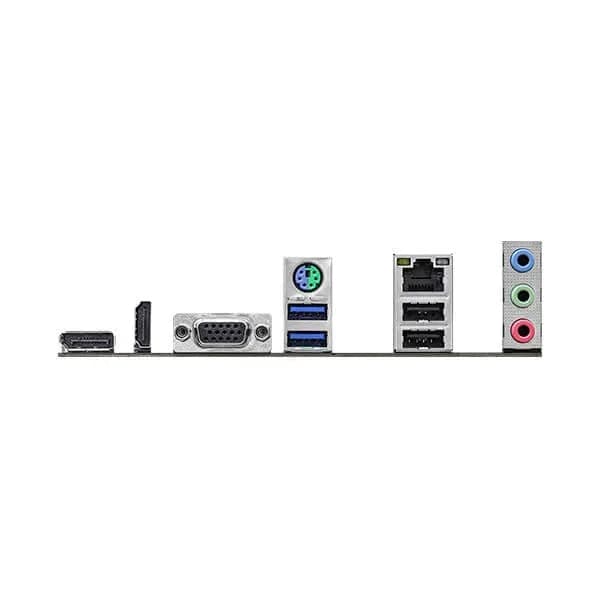

| Rear Panel I/O |
2 x Antenna Mounting Points 1 x PS/2 Mouse/Keyboard Port 1 x D-Sub Port 1 x HDMI Port 1 x DisplayPort 1.4 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) 2 x USB 2.0 Ports (Supports ESD Protection) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) HD Audio Jacks: Line in / Front Speaker / Microphone |
| Software and UEFI |
Software - ASRock Motherboard Utility (A-Tuning) ASRock XFast LAN UEFI - ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Instant Flash ASRock Internet Flash |
| Support CD |
Drivers Utilities AntiVirus Software (Trial Version) |
| Accessories |
Quick Installation Guide Support CD, I/O Shield 2 x SATA Data Cables 2 x Screws for M.2 Sockets |
| Hardware Monitor |
Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans CASE OPEN detection Voltage monitoring: CPU Vcore, +1.05 PCH, DRAM, VCCIN AUX, +1.05V PROC, +0.82V PCH, +12V, +5V, +3.3V |
| Form Factor |
Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm Solid Capacitor design |
| OS | Microsoft® Windows 10 64-bit / 11 64-bit |
| Certifications |
FCC, CE ErP/EuP ready (ErP/EuP ready power supply is required) |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
