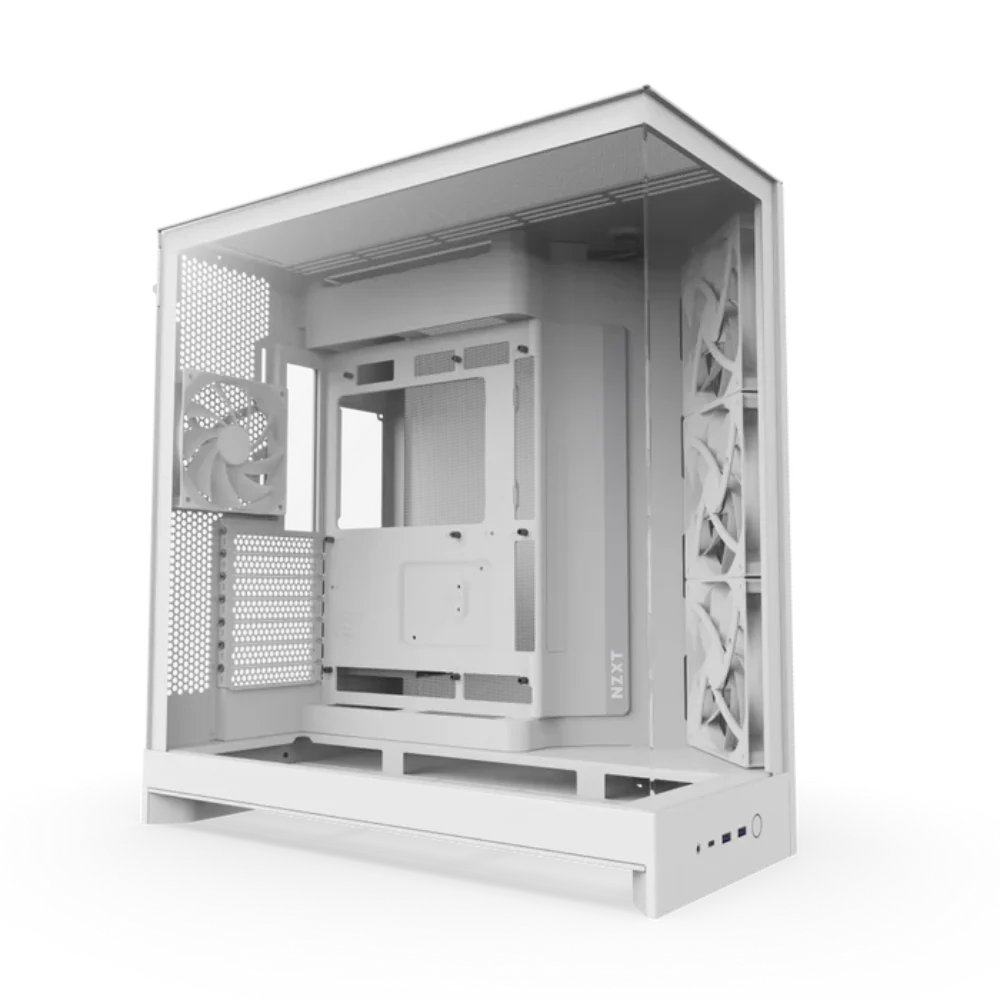

NZXT H9 Flow 2025 Edition EATX Mid Tower Cabinet (White)

NZXT H9 Flow 2025 Edition EATX Mid Tower Cabinet (White)

Rs. 17,399.10
Rs. 17,399.10 Rs. 15,000.00
Sold out

Out of stock

Inquire Now
Description
Shipping Information
Reviews

Features of NZXT H9 Flow 2025 Edition EATX Mid Tower Cabinet (White)



The H9 Flow is a spacious mid-tower ATX case built for high-performance builds, balancing airflow and aesthetics. Its dual-chamber design improves cooling and cable management, while perforated panels, angled fans, and ample fan and radiator support deliver optimal thermal performance.

  • Dual-Chamber Design: Separates main components from the PSU and drives for improved thermal performance and cable management.
  • Optimized Airflow: Perforated steel panels and angled front-right fans ensure efficient cooling for high-performance builds.
  • Pre-Installed Fans: Includes three F140Q (CV) fans in the front-right and one F120Q (CV) fan in the rear. CV = Case Version (3-pin DC)
  • Ten-Fan Capacity: Supports up to nine 140mm fans across the top, front-right, and bottom, plus one 120mm fan in the rear.
  • Panoramic View: Showcase every detail of your build with seamless, wraparound tempered glass paneling.
  • Large Radiators & GPUs: Fits up to a 420mm radiator on the top and front-right, with plenty of clearance for high-end graphics cards.
  • Easy Cable Management: Extra-wide channels, built-in Velcro straps, and tie-down points make cable routing effortless.
  • Back-Connect Ready: Compatible with rear-connecting motherboards like ASUS BTF and MSI Project Zero for a cable-free look.

Optimized Airflow

Angled front-right fans and an airflow-optimized layout keep temps low and performance steady.

Mesh Panels

Ultra-fine, high-airflow mesh panels maximize airflow while filtering dust.

Spacious Dual-Chamber

Separates heat-generating components for improved airflow and a cleaner build.

10-Fan Cooling

Fits up to nine 140 mm fans and one 120 mm rear fan.

Large Radiator Support

Holds up to 420 mm radiators on the top and front-right panels for versatile cooling.

Maximum Graphics

Handles GPUs up to 435 mm, giving plenty of space for top-tier graphics cards.

Back-Connect Ready

Compatible with ASUS BTF and MSI Project Zero motherboards for a cable-free look.

Easy Cable Management

Extra-wide channels, Velcro straps, and tie-down points make cable routing simple.



Specifications of NZXT H9 Flow 2025 Edition EATX Mid Tower Cabinet (White)



Product Code CM-H92FW-01
Height 506 mm (19.9 in)
Width 315 mm (12.4 in)
Depth 481 mm (18.9 in)
Volume 76.7 L
Weight 12.46 kg (27.47 lb)
General
Enclosure Type Mid-tower
Motherboard Compatibility E-ATX (Up to 277 mm), ATX, Micro-ATX, Mini-ITX
Rear-Connecting Motherboard Support (BTF, Project Zero) Yes (ATX, Micro-ATX)
Materials SGCC steel, clear tempered glass (white), tinted tempered glass (black)
Clearance
CPU Cooler Height 165 mm
GPU Length Up to 459 mm (with <56 mm thickness fans installed at the front-right)
Up to 410 mm (with 56 mm thick 420 mm AIO and fans installed at the front-right)
PSU Length 200 mm
Top Radiator & Fan Thickness Up to 80 mm (360 mm)
Up to 62 mm (420 mm)
Front I/O Ports
USB 3.2 Type-A 2
USB 3.2 Gen2x2 Type-C 1
Headset Jack 1
Expansion Slots
Standard 7
Vertical 0
Drive Bays
2.5″ 4+2
3.5″ 2
Fan Support
Front-Right 3 x 120 mm / 3 x 140 mm (3 x F140Q (CV) included)
Top 3 x 120 mm / 3 x 140 mm
Bottom 3 x 120 mm / 3 x 140 mm
Rear 1 x 120 mm (1 x F120Q (CV) included)
Radiator Support
Front-Right Up to 420 mm
Top Up to 420 mm
Bottom Up to 360 mm
Rear Up to 120 mm
Included Fan Specs – F140Q (CV)
Speed 1,350 ± 150 RPM
Airflow 100.25 CFM
Static Pressure 1.4 mmH2O
Noise 22.9 dBA
Fan Connector 3-pin
Included Fan Specs – F120Q (CV)
Speed 1,350 ± 150 RPM
Airflow 60.2 CFM
Static Pressure 1.05 mmH2O
Noise 24.1 dBA
Fan Connector 3-pin
Warranty
Warranty 2 years
