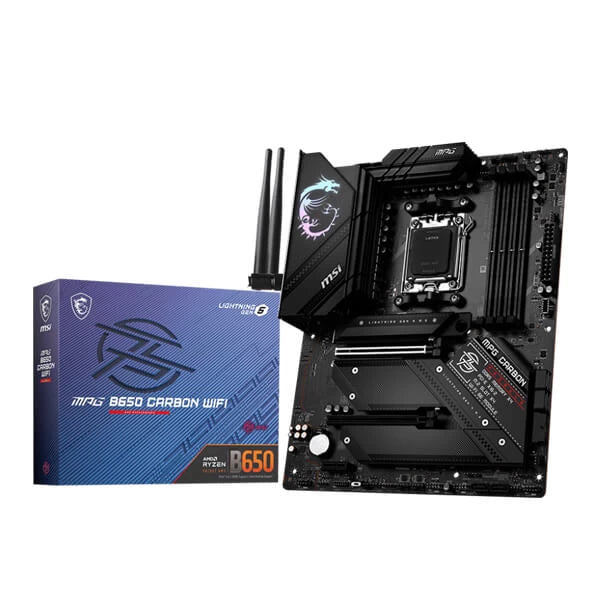

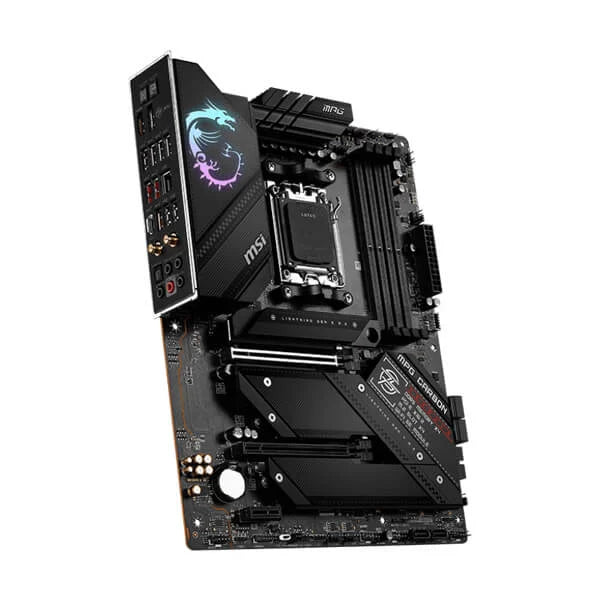

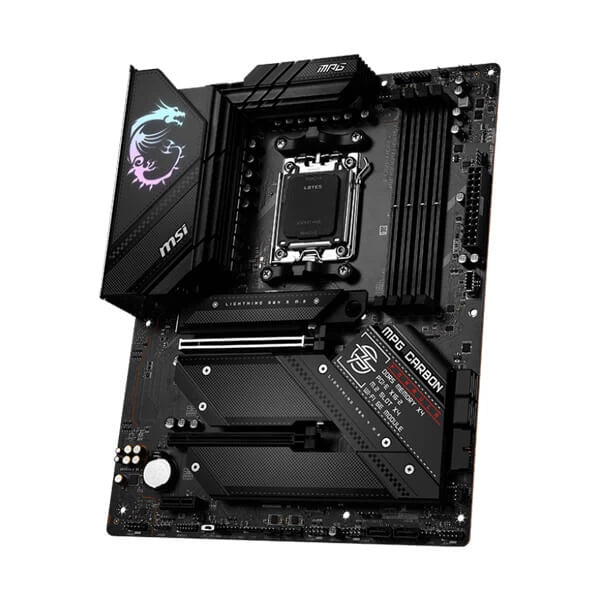

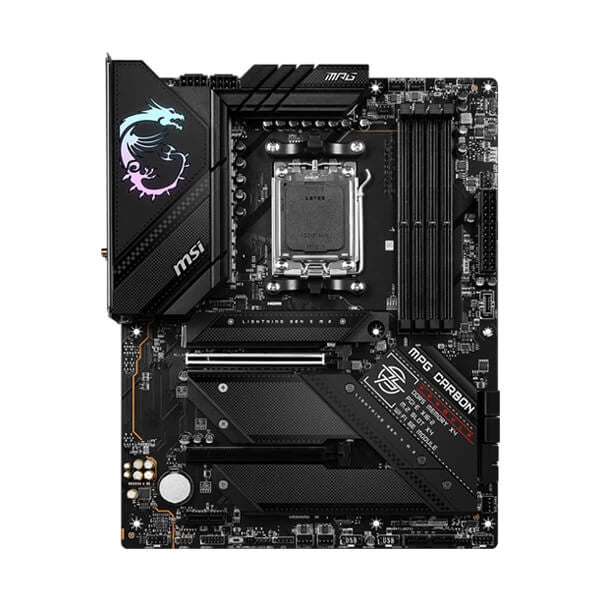

Features of MSI MPG B650 Carbon Wifi DDR5 AMD Motherboard

The MSI MPG B650 Carbon Wi-Fi DDR5 Motherboard supports 5th Gen AMD processors and AM5 CPU sockets, features up to 4 x DDR5 memory slots, PCI-E 4.0 and 3.0 compatible expansion slots, 4 x M.2 slots, 6 x SATA ports (6Gb/s), 10 x rear USB ports, 9 x front panel USB headers, Realtek 2.5Gb Ethernet, Wi-Fi 6, Bluetooth 5.2, Realtek 7.1 HD audio codec and an ATX motherboard form factor.

MPG B650 CARBON WIFI employs carbon black colour scheme and RGB lighting to show off different personality and identity. Besides being stylish, it is also powerful.

Core Boost

Premium layout not only support the multi-core CPU, also create the perfect conditions for your CPU overclocking.

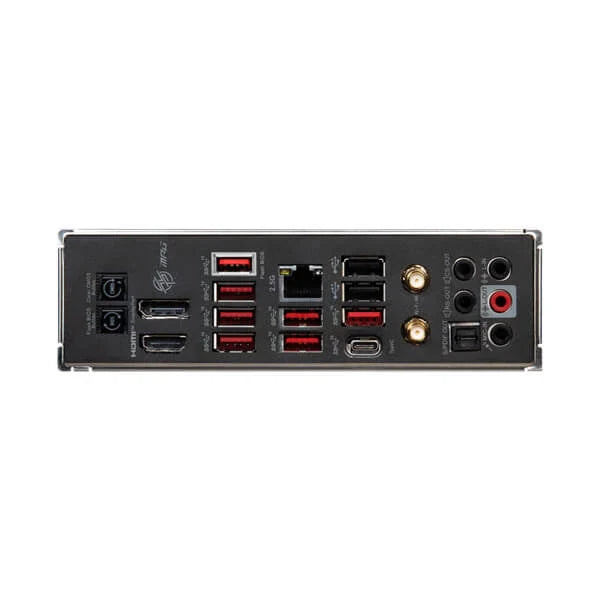

Pre-Installed I/O Shield

The patent-pending design protect your IO ports and makes your installation process easier and safer.

MSI motherboards circuitry ensure the case standoff keep out zones are pure and clean. Moreover, the protective paint is printed around each screw hole to prevent parts from being scratched or damaged to the motherboard.

Please ensure to remove the unnecessary mounting stand-off when installing the motherboard into the case.

Lightning Gen 4

MSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation.

Reinforced, Heavy Soldered Connections

MSI PCI Express Steel Armour slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armour shields the point of contact from electromagnetic interference.

Fast and Future-Ready Storage

MSI MPG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

• 1x Lightning Gen 5 M2 128 Gbps
• 3x Lightning Gen 4 M2 64 Gbps
• 6x 6 Gbps

Lightning USB 20G

Using USB 3.2 devices has never been faster! MPG B650 series motherboards offer a wide variety of options to connect and boost your USB devices, offering never before seen USB speeds up to 20Gb/s when connecting the Rear USB Type-C.

Extend Your RGB Experience with Ease

Add more colour if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.

2.5G LAN & Wi-Fi 6E

MSI's premium network solution provides incredible data transfer speed for demanding users.

• Wi-Fi 6E
• Bluetooth 5.2
• 2.5G LAN

Easy Overclocking Game On

Get into the game faster with AMD EXPO™ Technology

Ambient Link

Synchronize lighting theme with compatible lighting devices.

A-Rainbow V2

Supports 5V Addressable RGB devices. Compatible with ARGB Gen2 / Gen1 devices.

Gen2 device only supports 7 RGB theme

1. Supports AMD Ryzen™ 7000 Series Desktop Processors
2. MSI MPG B650 Carbon Wifi DDR5 Memory, up to 6600+(OC) MHz
3. Enhanced Power Design: 16+2+1 Duet Rail Power System, Dual 8-pin CPU power connectors, Core Boost, Memory Boost
4. Premium Thermal Solution: Extended Heatsink with Heat-Pipe, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
5. High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
6. DIY Friendly Design: Patented Screwless M.2 Shield Frozr, EZ M.2 Clips, Pre-installed I/O Shield, Steel Armor
7. 2.5G LAN and AMD Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
8. Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 5 x4 M.2, USB 3.2 Gen 2x2
9. MYSTIC LIGHT: 16.8 million colors / fancy lighting effects controlled in one click. MYSTIC LIGHT SYNC supports latest ARGB Gen2 strips, RGB strips and Ambient devices
10. AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience

Specifications of MSI MPG B650 Carbon Wifi DDR5 AMD Motherboard
