MSI MAG B660 Tomahawk Wifi DDR4 Intel Motherboard

360˚

- 5%

Motherboard

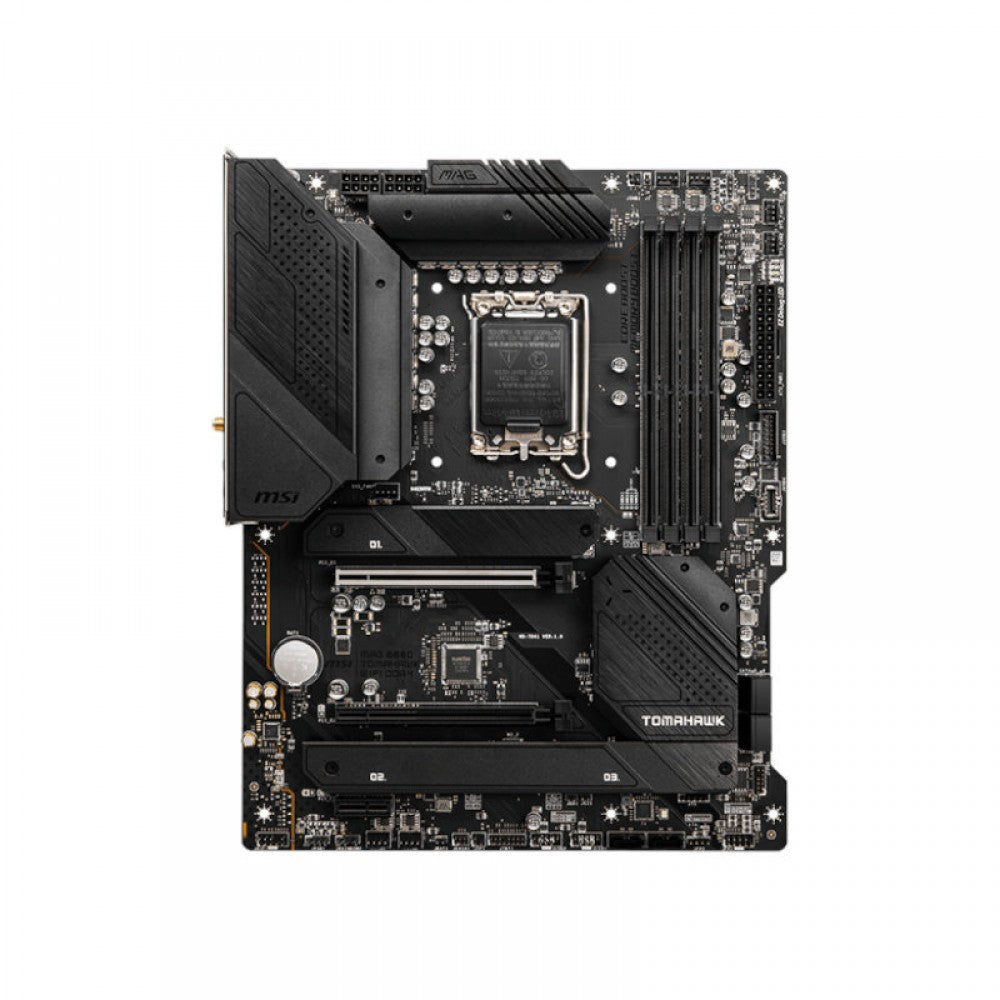

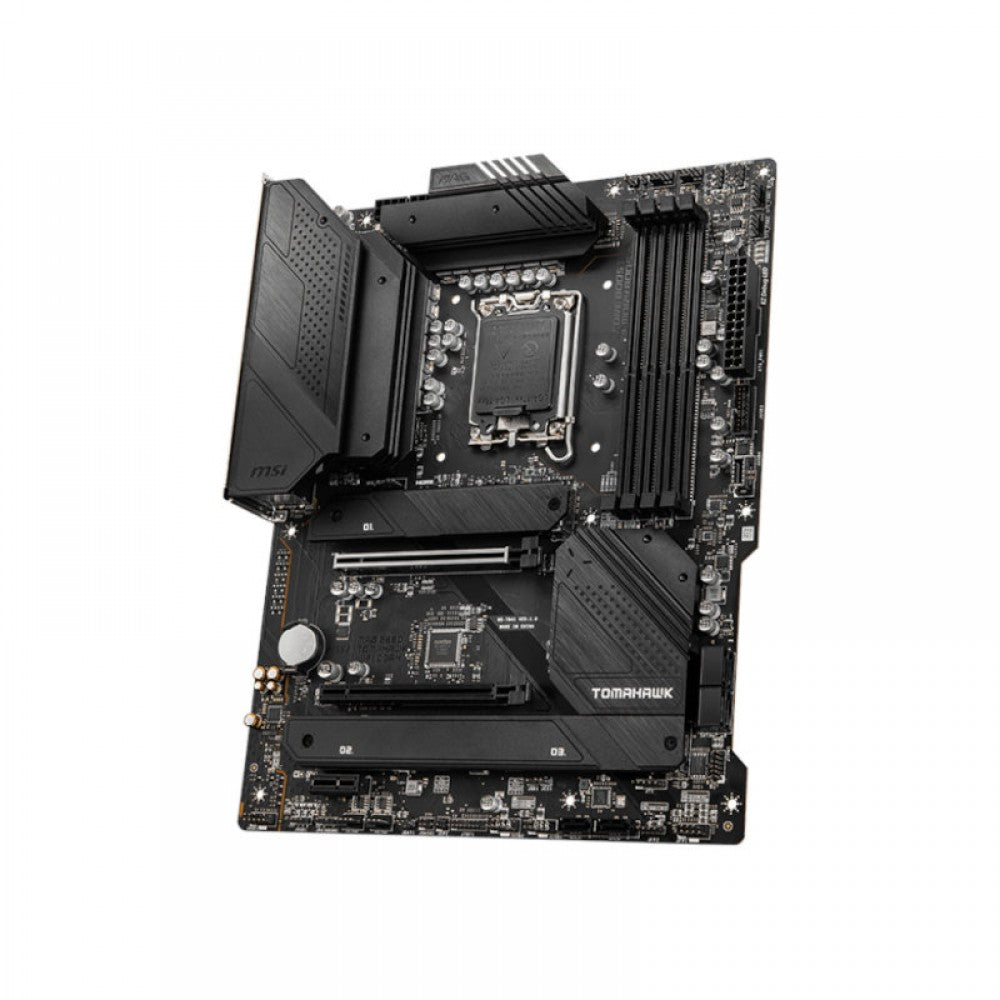

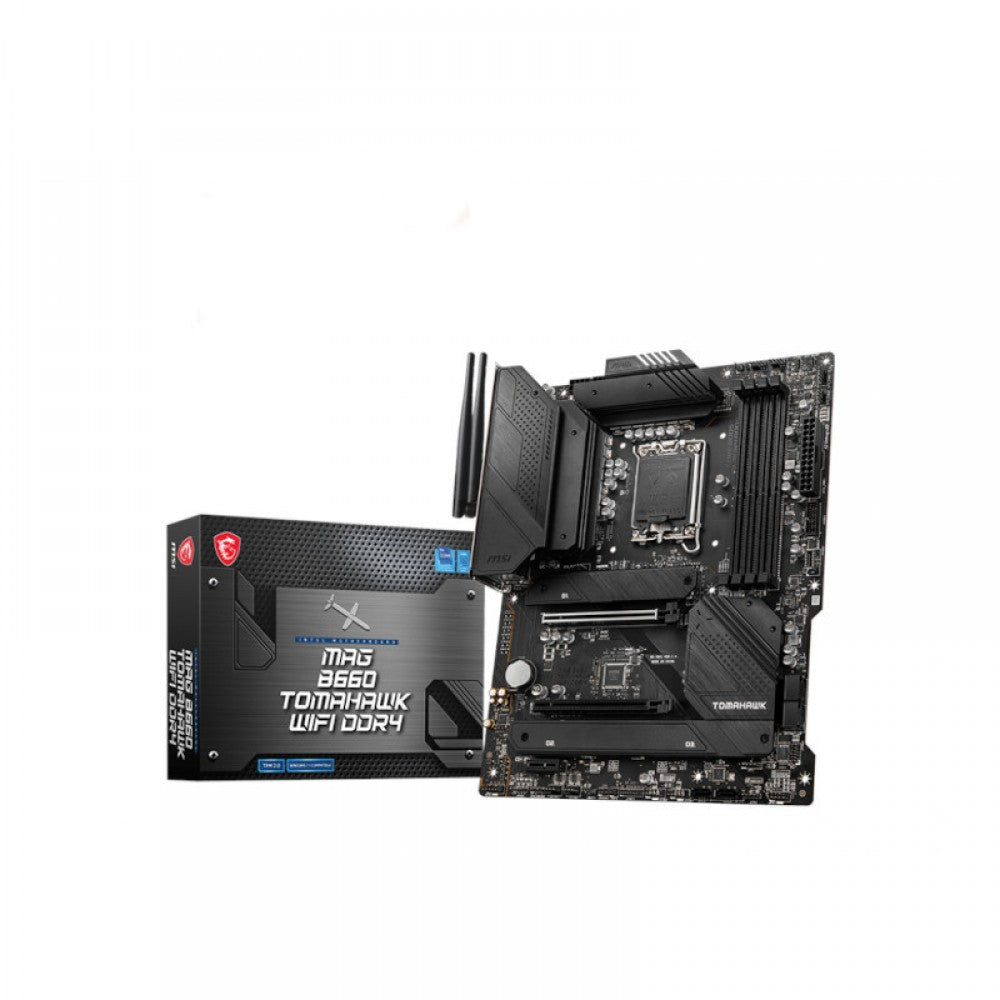

MSI MAG B660 Tomahawk Wifi DDR4 Intel Motherboard

Rs. 21,200.00 Rs. 19,939.00

Availability : Out Of Stock

Brand : MSI

SKU : msi-b660-tomahawk-wifi

Tags : CATP_MSI, CATQ_Motherboard, MOB10_None, MOB11_7, MOB12_1, MOB13_Gen4, MOB14_Gen4, MOB15_Black, MOB16_1, MOB17_6, MOB18_8, MOB19_1, MOB1_B660, MOB20_2, MOB21_2, MOB22_1, MOB23_75, MOB24_Intel Motherboard, MOB2_ATX, MOB3_LGA1700, MOB4_128, MOB5_5333, MOB6_4, MOB7_DDR4, MOB8_3, MOB9_1, MSI

Safe Payment

Pay with the world’s most payment methods.

Confidence

Protection covers your purchase

Worldwide Delivery

Ship to over 200 countries & regions.

Hotline

+91-99250 02827

Description

Feature of MSI MAG B660 Tomahawk Wifi DDR4 Intel Motherboard

Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
Supports DDR4 Memory, up to 4800+(OC) MHz
Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
2.5G LAN and Intel Wi-Fi Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
Lightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDs
Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
Multi-GPU: With Steel armor PCIe slots. Supports AMD Crossfire™

Lightning Gen4 Solution

The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.

WIFI 6

The latest wireless solution in MSI MAG B660 Tomahawk WiFi DDR4 supports MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.

M.2 Shield FROZR

M.2 thermal accessory. Keeps M.2 SSDs safe while preventing throttling, making them run faster.

Memory Boost

Advanced technology to deliver pure data signals for the best performance, stability and compatibility.

Core Boost

MSI MAG B660 Tomahawk WiFi DDR4 with premium layout and fully digital power design to support more cores and provide better performance.

Extended Heatsink Design

MSI MAG B660 Tomahawk WiFi DDR4 extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.

2.5G Network Solution

MSI MAG B660 Tomahawk WiFi DDR4 featuring premium 2.5G LAN with LAN manager to deliver better network experience.

Lightning USB 20G

Built-in USB 3.2 Gen 2×2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen

Specifications of MSI MAG B660 Tomahawk Wifi DDR4 Intel Motherboard

Processor	Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors Processor socket LGA1700 Please go to msi.com to get the newest support status as new processors are released.
Chipset	Intel® B660 Chipset
Memory	4x DDR4 memory slots, support up to 128GB Supports 1R 2133 / 2666 / 3200 MHz (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 4800+ MHz 1DPC 2R Max speed up to 4000+ MHz 2DPC 1R Max speed up to 4000+ MHz 2DPC 2R Max speed up to 3600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) Please refer to www.msi.com for more information on compatible memory.
Expansion Slot	2x PCIe x16 slots PCI_E1 (From CPU) Support up to PCIe 4.0 PCI_E2 (From B660 chipset) Support up to PCIe 3.0 x4 1x PCIe 3.0 x1 slot (From B660 chipset)
MULTI-GPU	Supports AMD® CrossFire™ Technology
Onboard Graphics	1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz Available only on processors featuring integrated graphics.Graphics specifications may vary depending on the CPU installed.
Audio	Realtek® ALC1220P Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Storage	6x SATA 6Gb/s ports SATA5~8 (From B660 chipset) SATAA~B (From ASM1061) 3x M.2 slots (Key M) M2_1 slot (From CPU) Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 & M2_3 slots (From B660 chipset) M2_2 supports up to PCIe 4.0 x4 M2_3 supports up to PCIe 4.0 x2 1 Supports SATA up to 6Gb/s Supports 2242/ 2260/ 2280 storage devices Intel® Optane™ Memory Supports Intel® Smart Response Technology for Intel Core™ processors SATA7 will be unavailable when installing M.2 SATA SSD in the M2_3 slot.
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices SATAA & SATAB do not support RAID function.
LAN	1x Realtek® RTL8125B-CG 2.5Gbps LAN controller
WIRELESS LAN & BLUETOOTH®	Intel® Wi-Fi 6 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.2
USB	Intel® B660 Chipset 1x USB3.2 Gen 2x2 20Gbps port (Type-C port on the back panel) 5x USB 3.2 Gen 2 10Gbps ports (4 Type-A ports on the back panel, 1 Type-C available through the internal connector) 2x USB 3.2 Gen 1 5Gbps Type-A ports available through the internal connector 8x USB 2.0 ports (4 Type-A ports on the back panel, 4 Type-A ports available through the internal connectors)
Internal Connectors	1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 6x SATA 6Gb/s connectors 3x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 5x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TPM module connector 1x TBT connector (supports RTD3) 1x Tuning Controller connector
LED Feature	1x EZ LED Control switch 2x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors 4x EZ Debug LED

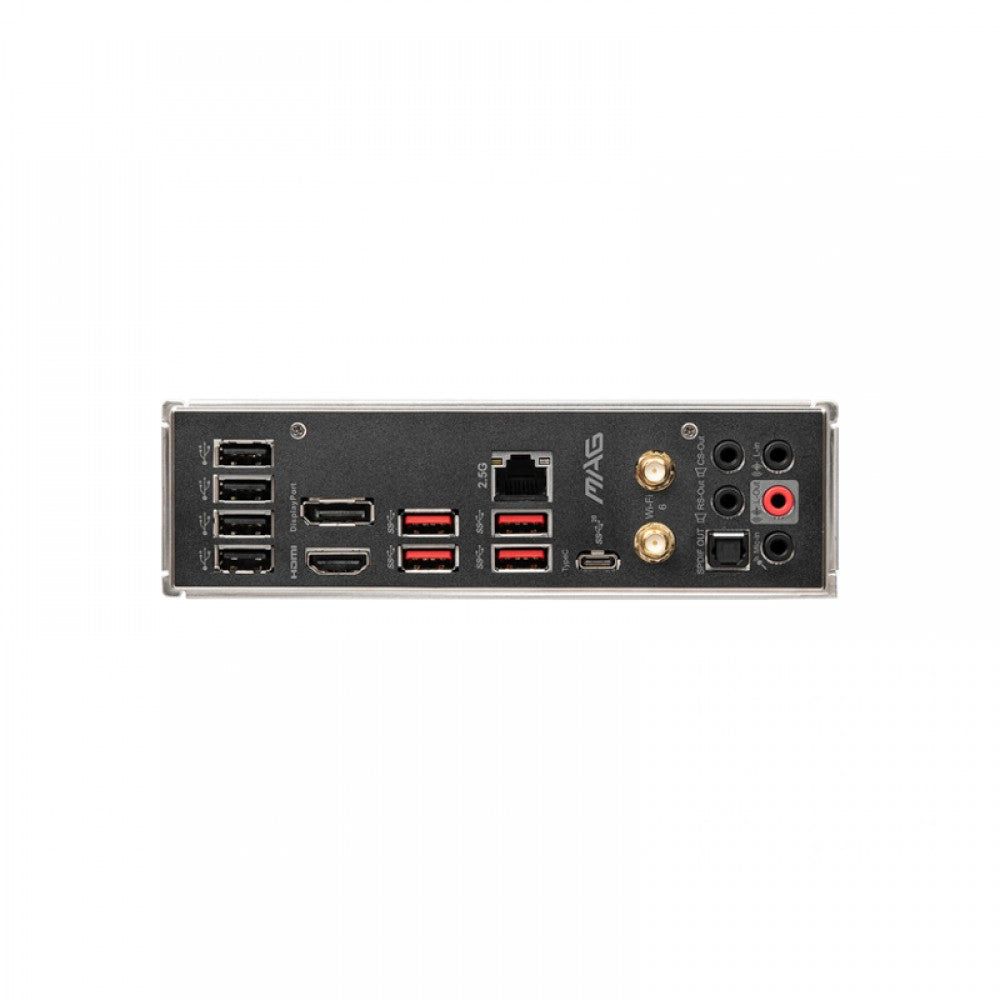

Back Panel Ports	USB 2.0 Port DisplayPort 1.4 2.5G LAN Por Wi-Fi / Bluetooth Antenna HD Audio Connectors HDMI 2.1 Port USB 3.2 Gen 2 10Gbps Type-A USB 3.2 Gen 2x2 20Gbps Type-C Optical S/PDIF OUT
Operating System	Support for Windows® 11 64-bit, Windows® 10 64-bit
Dimensions	ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Warranty	3 Years
Note*	Price, feature and specifications are subject to change without notice.
