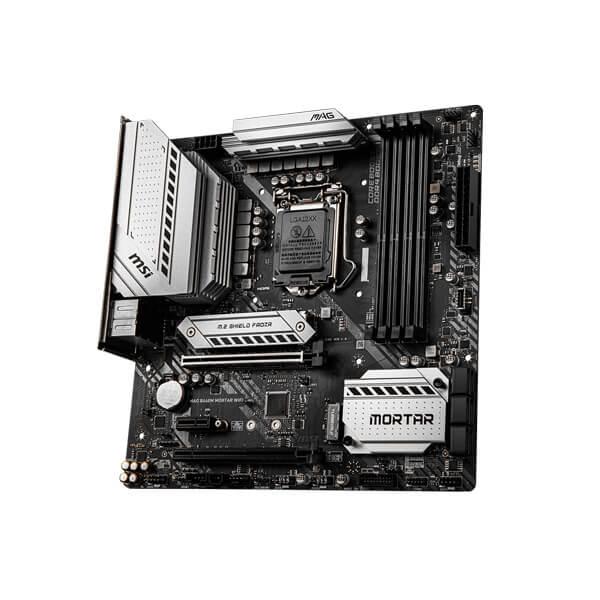

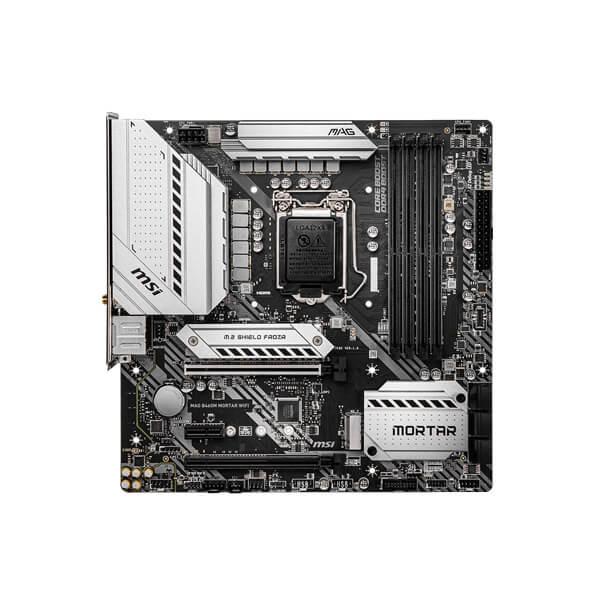

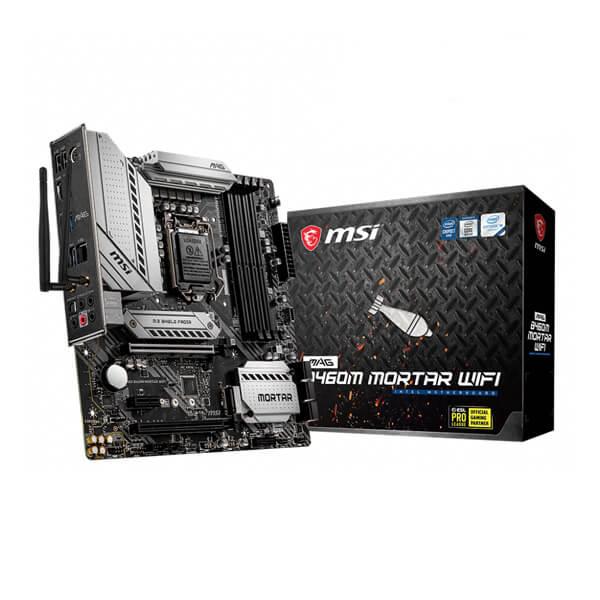

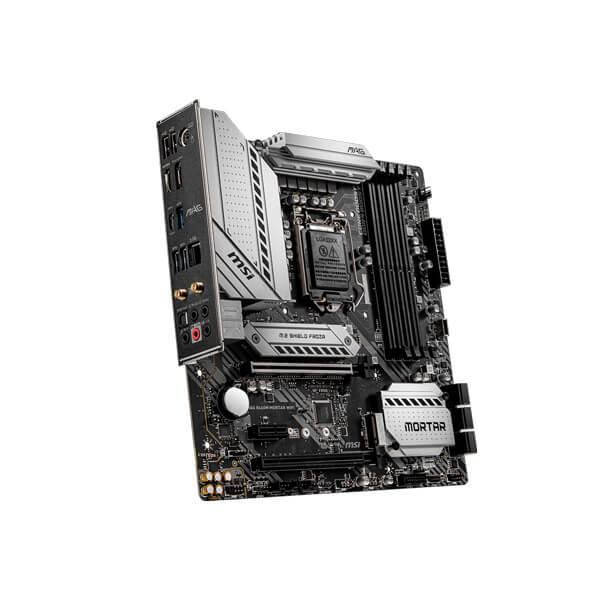

MSI MAG B460M Mortar Wifi DDR4 Intel Motherboard

Most searched : Processors MotherBoard Graphic Card CPU Cooler Mouse RAM SSD Gaming

Call Us On:

+91-99250 02827

Shop more for free shipping

MSI MAG B460M Mortar Wifi DDR4 Intel Motherboard

360˚

- 27%

Motherboard

MSI MAG B460M Mortar Wifi DDR4 Intel Motherboard

Rs. 17,250.00 Rs. 12,500.00

Availability : Out Of Stock

Brand : MSI

SKU : MSI-MAG-B460M-MORTAR-WIFI

Tags : CATP_MSI, CATQ_Motherboard, MOB10_None, MOB11_3, MOB12_1, MOB13_Gen3, MOB14_Gen3, MOB15_Black, MOB16_1, MOB17_6, MOB18_5, MOB19_1, MOB1_B460, MOB20_1, MOB21_1, MOB22_1, MOB23_55, MOB24_Intel Motherboard, MOB2_MATX, MOB3_LGA1200, MOB4_128, MOB5_2933, MOB6_4, MOB7_DDR4, MOB8_2, MOB9_1, MSI

Safe Payment

Pay with the world’s most payment methods.

Confidence

Protection covers your purchase

Worldwide Delivery

Ship to over 200 countries & regions.

Hotline

+91-99250 02827

Description

Feature of MSI MAG B460M Mortar WiFi DDR4

Supports 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
Supports DDR4 Memory, up to 2933 MHz(Max)
Enhanced Power Design: 12+1+1 Duet Rail Power System, Core Boost, DDR4 Boost
Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
2.5G LAN with LAN Manager and Intel Wi-Fi 6 AX Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
Pre-installed I/O Shielding: Better EMI protection and more convenience for installation
Intel Turbo USB 3.2 Gen 1: Powered by Intel USB 3.2 Gen 1 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
Audio Boost: Reward your ears with studio grade sound quality

Conquer the Battlefield

The MSI MAG B460M Mortar Wifi DDR4 series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry level gamers.

THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE

With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end Intel CPU to run in full speed with MSI motherboards.

FAST AND FUTURE-READY STORAGE

MSI MAG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK

2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.

Specifications of MSI MAG B460M Mortar WiFi DDR4

CPU	Supports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors for LGA1200 socket
Chipset	Intel® B460 Chipset
Memory	4x DDR4 memory slots, support up to 128GB Intel® Core™ i7/i9Support DDR4-2933 Memory (Max.)Intel® Core™ i5 (Below)Supports DDR4-2666 Memory (Max.)Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP)
Expansion Slot	1x PCIe 3.0 x16 slot (from CPU) 1x PCIe 3.0 x16 slot (from PCH， supports x4 mode) 1x PCIe 3.0 x1 slot (from PCH)
Onboard Graphics	1x HDMI port, supports a maximum resolution of 4096x2160 @ 30Hz 1x DisplayPort port supports a maximum resolution of 4096 x 2304 @ 60Hz
Storage	Intel® B460 Chipset 6x SATA 6Gb/s ports 2x M.2 slots (Key M)M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices M2_2 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices Intel® Optane™ Memory Ready Supports Intel® Smart Response Technology for Intel Core™ processors
RAID	Intel® B460 Chipset Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB	Intel® B460 Chipset 2x USB 3.2 Gen 1 5Gbps Type-C ports (1 port on the back panel, 1 port through the internal USB connector) 5x USB 3.2 Gen 1 5Gbps Type-A ports (3 ports on the back panel, 2 ports through the internal USB connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
Audio	Realtek® ALC1200 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
LAN	1x Realtek® RTL8125B 2.5G LAN Controller
WiFi & Bluetooth	Intel® AX200 Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps WiFi 6 Pre-Certified Supports Bluetooth® 5.1 , FIPS, FISMA The Wireless module is pre-install in the M2 (Key-E) slot
Internal connectors	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB 3.2 Gen 1 5Gbps ports) 1x USB 3.2 Gen 1 5Gbps Type-C connector 2x USB 2.0 connectors (support additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water pump connector 2x 4-pin system fan connectors 1x front panel audio connector 2x system panel connectors 1x TPM module connector 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x 4-pin RGB LED connector 1x 3-pin RAINBOW LED connector 1x TBT connector 1x RTD3 connector

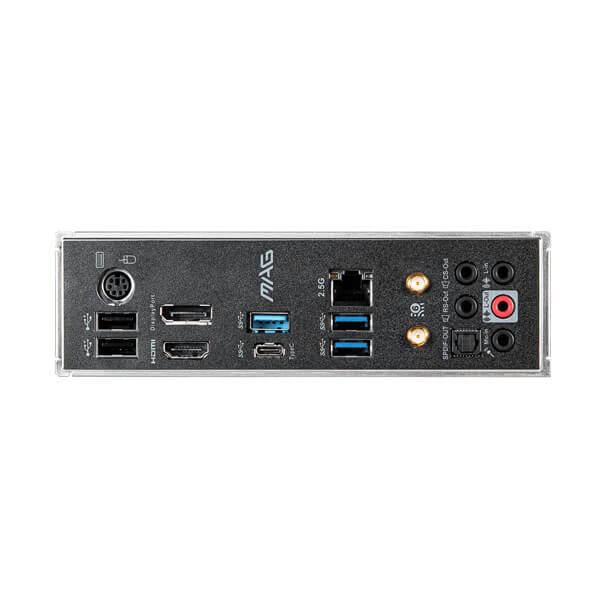

Back panel ports	PS/2 Combo Port DisplayPort USB 3.2 Gen 1 5Gbps(Type-A) 2.5G LAN Port WiFi Antenna connectors HD Audio Connectors USB 2.0 Ports HDMI Port USB 3.2 Gen 1 5Gbps(Type-C) USB 3.2 Gen 1 5Gbps(Type-A) Optical S/PDIF OUT
I/O Controller	NUVOTON NCT6687 Controller Chip
Hardware Monitor	CPU/System temperature detection CPU/System fan speed detection CPU/System fan speed control
Form Factor	mATX Form Factor 9.6 in. x 9.6 in. (24.3 cm x 24.3 cm)
BIOS Features	1x 128 Mb flash UEFI AMI BIOS ACPI 6.2, SM BIOS 3.2 ∙Multi-language
Warranty	3 Years
Note	***Features, Price and Specifications are subject to change without notice.
