Features of Hyte Thicc FP12 120mm Cabinet Fan ( Triple Pack )

Cooling unlocks potential
Fans should be seen and not heard
THICC: Technology Harnessing Innovative Chonk for Cooling
Powerful onboard sequential bit processor handles an array of cooling, lighting, and sensor channels across the node network
Fits in any 2.5” mounting location with ease
Helps organize I/O routing and promotes clean cable management
Utilizes HYTE’s revolutionary new digital hardware interface, giving it the capability to support up to 18 devices on a single port or up to 54 devices across 3 channels with Nexus Link AmpScale.

32mm THICC

120x120x32mm design excels as both a case and radiator fan with the best performance-to-noise ratio on the market

Fiberglass Reinforced Liquid Crystal Polymer

LCP supercharges fan blades with exceptional rigidity, durability, and aerodynamics

Dynamically Adjustable 0 - 3,000 RPM Fan Speed

Delivers a monstrous 105.8 CFM airflow and 8.14 mm-H2O static pressure

Zero RPM Fan Mode

Completely stops the blades from spinning for silent operation under light workloads

Nexus Link Secondary Node

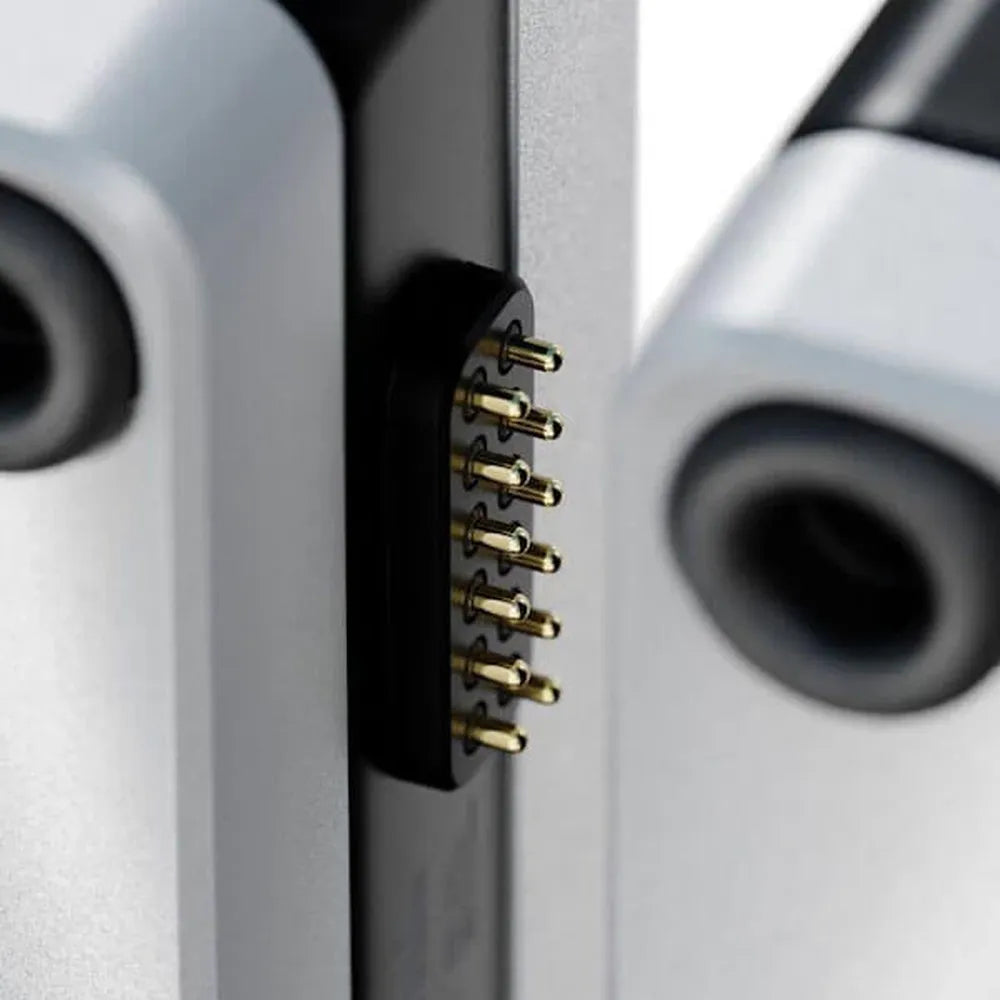

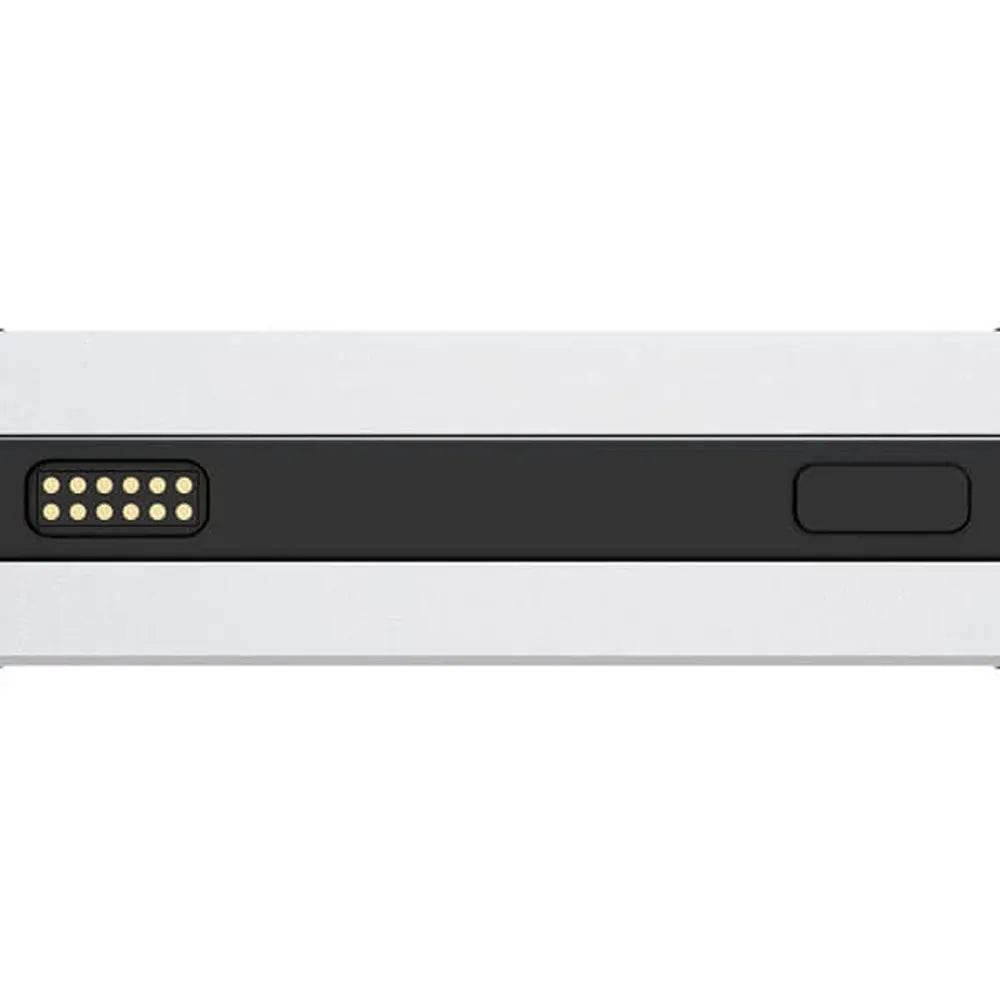

Connects sequentially via Nexus Link Type-M, along with legacy 4-pin PWM support for wide compatibility.

Technical Details

Brand : Hyte
Model : FP12Fan Dimensions : 120 x 120 x 32 mm
Fan Speed : 0 – 3,000 RPM
Current
0.1A/12V @1000 RPM, 0.2A/12V @2000 RPM, 0.8A/12V @3000 RPM
Air Flow : 105.8 CFM
Static Pressure : 8.14 mm-H2O
Noise Level
<10.0* - 47.3 dBA - *Measuring below 10 dBA was not possible in our test chamber due to the noise floor
Fan Blade Material
Fiberglass Reinforced Liquid Crystal Polymer (LCP)
Fan Connector : Nexus Link Type-M
Additional Sensors : Thermal + Positioning

Included Accessories

12x Case Fan Screws, 12x Radiator Fan Screws, 2x Nexus Link Type-M to Type-M Cables (300 mm), 1x Nexus Link Type-C to Type-M Cable (600 mm), 1x Nexus Link Type-M to Type-C Cable (600 mm), 1x Nexus Link Type-C to 4-Pin PWM Cable
Software Support : HYTE Nexus

 Specification of Hyte Thicc FP12 120mm Cabinet Fan ( Triple Pack )
