Description

Feature of GIGABYTE Z690 AERO G DDR4 Intel Motherboard

Intel^® Z690 Creator Motherboard with unique VisionLINK TB I/O design, Next Gen memory DDR5, Thunderbolt™4, Intel^® WIFI6E 802.11ax, AQUANTIA^® 10GbE LAN and Intel^® 2.5GbE LAN, Dual PCIe 5.0 x16 slots, 4 x NVMe PCIe 4.0 x4 M.2 Connectors, USB 3.2 Gen2x2 Type-C^®

Supports 12th Gen Intel® Core™ series processors
Dual Channel Non-ECC Unbuffered DDR5, 4 DIMMs
Dual PCIe 5.0 x16 slots can be ready for PCle 5.0 GPU or NVMe storage
Go further without more cables by VisionLINK TB I/O design
The limitless connectivity by Intel® Thunderbolt™ 4
Make your network more scalable with AQUANTIA® 10GbE LAN and Intel® 2.5GbE LAN
Intel® WIFI 6E 802.11ax 2T2R & BT5 with new antenna for better signal
No Hassle Connection with front USB 3.2 Gen 2x2 Type-C®
4 x Ultra-Fast NVMe PCIe 4.0 x4 M.2 connectors with enlarged thermal guards
Advanced thermal solution design for the better thermal dissipation
Smart Fan 6 features hybrid fan headers and numerous temperature sensors for fan mode configuration
Q-Flash Plus Updates BIOS without Installing the CPU, Memory and Graphics Card

Creativity Starts Here

Gigabyte Z690 Aero G motherboards are a fresh approach to creators that evolve with optimized features for content creation. To deliver reliable computing performance, impressive connectivity, expandable graphics, and ultra-fast storage for creators to deal with heavy design workloads like 3D rendering and feature-length video production.

Go Further Without More Cables

Gigabyte Z690 Aero G DDR4 Have VisionLINK is an extension of your idea and creation. Transmitting data, video output, and power charging all through one USB Type-C® cable will simplify the user experience than ever. With seamless multitasking between your PC and devices, it lets you work like a pro.

Wait No More

Make Your Network More Scalable
Onboard Marvell® AQtion 10 GbE Ethernet has driven high throughput performance and low latency to ensure faster transfer of large files used in data-intensive applications.
Intel® 2.5 GbE network connectivity supports speeds up to 2.5 times faster than Gigabit Ethernet. It gives an immediate boost to overall network performance and data transfer speeds.

Faster Instant Reaction Speed

You can never have enough memory bandwidth, and DDR5 helps meet this insatiable need for speed. Whether you are editing hundreds of audio samples, handling 4K footage, or multitasking workloads, it boosts system performance and offers you a smooth experience.

Fast Speed. More Space.

This Gigabyte Z690 Aero G model is equipped with four PCIe 4.0 M.2 sockets and it is capable to deliver superior bandwidth. Upgrade your storage configuration now to accelerate your workflow. PCIe 4.0 M.2 SSD gives you 7X faster data transferring speeds compared to 2.5” SATA solid-state drives.

Thermal Technology

Gigabyte Z690 Aero G DDR4 have An effective cooling solution can prevent the risk of design work being interrupted by an unexpected system crash. GIGABYTE’s advanced thermal solutions provide a perfect balance of aesthetics and performance. A large heat sink design and Direct-Touch Heatpipe II ensure stability during creative sessions.

DTS:X® Ultra

Immersive sounds to go.
DTS:X Ultra is capable of delivering consumers a truly premium entertainment experience by completely surrounding the listener and expanding the sound stage to create a more immersive environment. Supports channel-based, scene based, and object-based audio. Also, it takes movies, music, and interactive gaming experiences to an exciting new level.

Specifications of GIGABYTE Z690 AERO G DDR4 Intel Motherboard

CPU	LGA1700 socket: Support for 12th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors L3 cache varies with CPU
Chipset	Intel® Z690 Express Chipset
Memory	Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics	Integrated Graphics Processor-Intel® HD Graphics support:1 x USB Type-C® port, supporting USB Type-C® and DisplayPort video outputs and a maximum resolution of 4096x2304@60 Hz * Support for drawing tablets and 20V@3A of power delivery. * Support for DisplayPort 1.2 version and HDCP 2.3 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3. (Graphics specifications may vary depending on CPU or graphics card support.)
Audio	Realtek® ALC4080 CODEC High Definition Audio 2-channel analog output Support for S/PDIF Out 7.1-channel digital signals * Actual output of digital signals may vary depending on the playback content and software used, and an external DAC is required.
LAN	Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module	Intel® Wi-Fi 6 AX201WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5.2 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate * Actual data rate may vary depending on environment and equipment.
Expansion Slots	1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 5.0 standard.) 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2) (The PCIEX4 slots conform to PCI Express 3.0 standard.)
Multi-Graphics Technology	Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Storage Interface	CPU:1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset:2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 * Refer to "2-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors. Intel® Optane™ Memory Ready * System acceleration with Intel® Optane™ Memory can only be enabled on the M.2 connectors supported by the Chipset.
USB	Chipset:2 x USB Type-C® ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header) 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 3.2 Gen 1 Hub:4 x USB 3.2 Gen 1 ports on the back panel Chipset+USB 2.0 Hub:4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 4 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x noise detection header 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 2 x temperature sensor headers 1 x Clear CMOS jumper

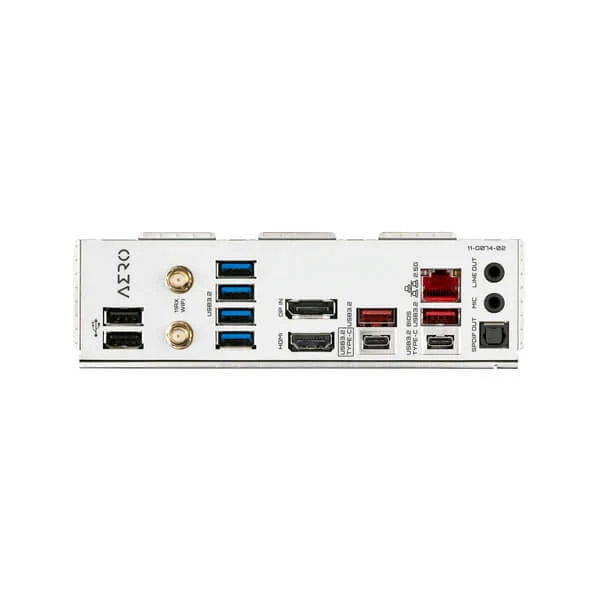

Back Panel Connectors	2 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 4 x USB 3.2 Gen 1 ports 1 x DisplayPort In port 1 x HDMI port 2 x USB 3.2 Gen 2 Type-A ports (red) 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support 1 x USB Type-C® port, with USB 3.2 Gen 1 support 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. Noise detection
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
Bundled Software	Norton® Internet Security (OEM version) cFosSpeed
Operating System	Support for Windows 10 64-bit
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
Warranty	3 Years
Note	***Features, Price and Specifications are subject to change without notice
