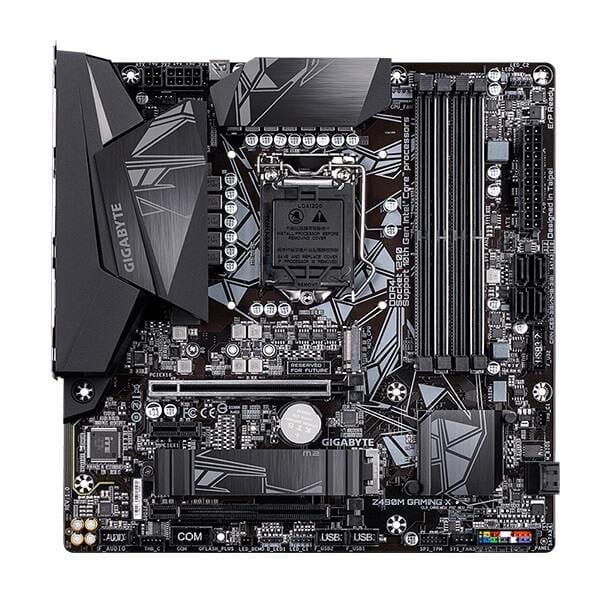

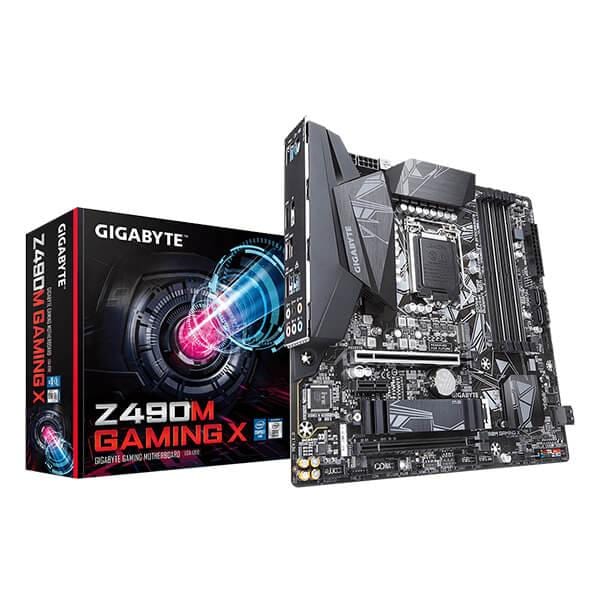

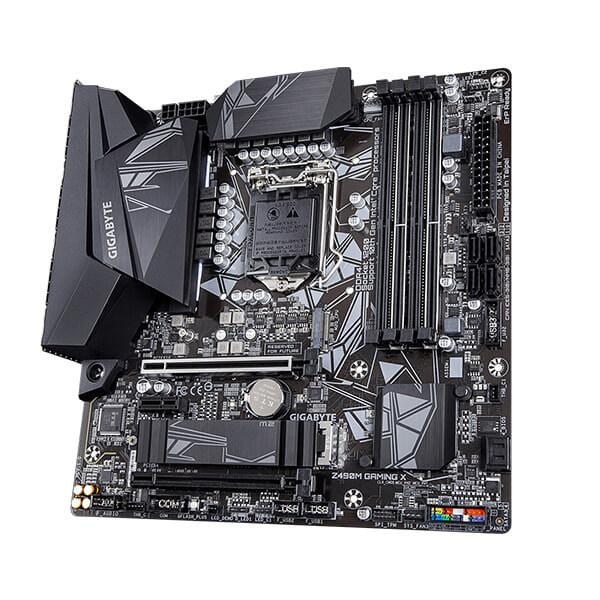

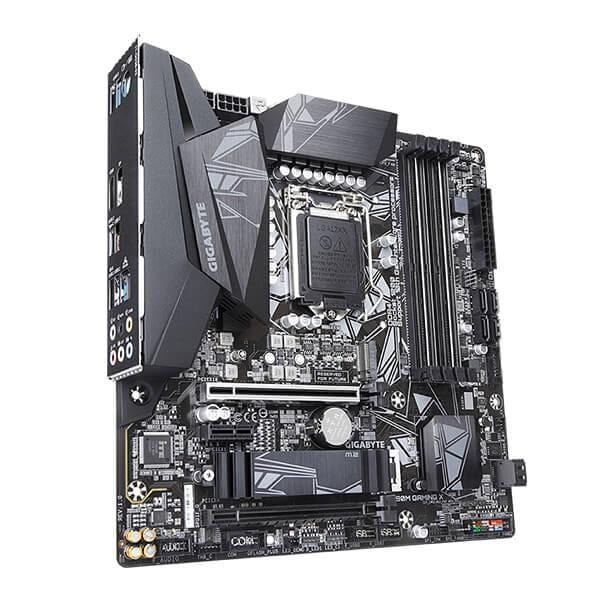

GIGABYTE Z490M Gaming X DDR4 Intel Motherboard

Most searched : Processors MotherBoard Graphic Card CPU Cooler Mouse RAM SSD Gaming

Call Us On:

+91-99250 02827

Shop more for free shipping

GIGABYTE Z490M Gaming X DDR4 Intel Motherboard

360˚

- 5%

Motherboard

GIGABYTE Z490M Gaming X DDR4 Intel Motherboard

Rs. 16,990.00 Rs. 16,074.00

Availability : Out Of Stock

Brand : Gigabyte

SKU : GIGABYTE-Z490M-GAMING-X

Tags : CATP_GIGABYTE, CATQ_Motherboard, Gigabyte, MOB10_None, MOB11_4, MOB12_1, MOB13_Gen3, MOB14_Gen3, MOB15_Black, MOB16_0, MOB17_6, MOB18_5, MOB19_0, MOB1_Z490, MOB20_2, MOB21_2, MOB22_1, MOB23_55, MOB24_Intel Motherboard, MOB2_MATX, MOB3_LGA1200, MOB4_128, MOB5_5000, MOB6_4, MOB7_DDR4, MOB8_1, MOB9_0

Safe Payment

Pay with the world’s most payment methods.

Confidence

Protection covers your purchase

Worldwide Delivery

Ship to over 200 countries & regions.

Hotline

+91-99250 02827

Description

Feature of Gigabyte Z490M Gaming X DDR4

Supports 10th Gen Intel® Core™ Series Processors
Direct 11 1 Phases Digital VRM Solution with Low RDS(on) MOSFET
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
Enlarged VRM Heatsink with 5W/mK Thermal Conductive Pad
Ultra-Fast PCIe Gen3 X4 M.2 with Thermal Guard
Multi-Way Graphics Support with Dual Armor and Ultra Durable™ Design
Smart Fan 5 Features Multiple Temperature Sensors,Hybrid Fan Headers with FAN STOP
Is Intel® Optane™ Memory Ready
Intel® GbE LAN with cFosSpeed Internet Accelerator Software
Intel® USB 3.2 Gen2 Type-A and USB 3.2 Gen2 Type-C™ Support
ALC1200 Multi-Channel Audio with High Quality Audio Capacitors and Audio Noise Guard
RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
Pre-installed IO Shield for Easy and Quick Installation
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

Direct 11+1 Phases Digital VRM Solution with Low RDS(on) MOSFET

Solution with Low RDS(on) MOSFET

Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading.

Support for DDR4 XMP Up to 4400MHz and Beyond*

GIGABYTE is offering a tested and proven platform that ensures proper compatibility with profiles up to 4400MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their GIGABYTE motherboard.

Shielded Memory Routing

All memory routing is under the PCB inner layer shielded by a large ground layer to protect from external interference.

2-Way CrossFire™ Multi-Graphics

Multi-graphics configuration offers better graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.

PCIe 4.0* Hardware Design

For most of prosumers and gamers, high bandwidth storage and high performance graphics card are critical for their applications. To support most cutting edge devices, this motherboard uses the groundbreaking PCIe 4.0 grade hardware design.

Intel^® GbE LAN with cFosSpeed Internet Accelerator Networking

Intel^® GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

The Industry's Leading LAN Static-Electricity & Surge Protection

GIGABYTE Z490M Gaming X motherboards use ICs with up to 3 times the ESD resistance levels compared to traditional ICs. This helps to better protect the motherboard and its components against potential damage caused by static electricity. GIGABYTE motherboards also feature special anti-surge ICs that protect your motherboard, and your PC from any surge in power delivery that may occur, helping to ensure that your PC is equipped to deal with any potentially irregular and inconsistent power delivery.

M.2 Thermal Guard

GIGABYTE Ultra-Efficient M.2 Thermal Guard

With durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.

Specifications of Gigabyte Z490M Gaming X DDR4

CPU	Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package L3 cache varies with CPU
Chipset	Intel® Z490 Express Chipset
Memory	4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for DDR4 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules Supports for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Supports for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics	Integrated Graphics Processor-Intel® HD Graphics support: 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3. Support for up to 3 displays at the same time Maximum shared memory of 512 MB
Audio	Realtek® ALC1200 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
LAN	Intel® GbE LAN chip (1000 Mbit/100 Mbit)
Expansion Slots	1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot, running at x4 (PCIEX4) I x PCI Express x1 slot (All of the PCI Express slots conform to PCI Express 3.0 standard.)
Multi-Graphics Technology	Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Storage Interface	1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_SB) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors. Intel® Optane™ Memory Ready
USB	Chipset: 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector I x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 6 x SATA 6Gb/s connectors 1 x M.2 Socket 3 connector I x front panel header 1 x front panel audio header I x S/PDIF Out header I x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header I x Clear CMOS jumper 1 x Q-Flash Plus button

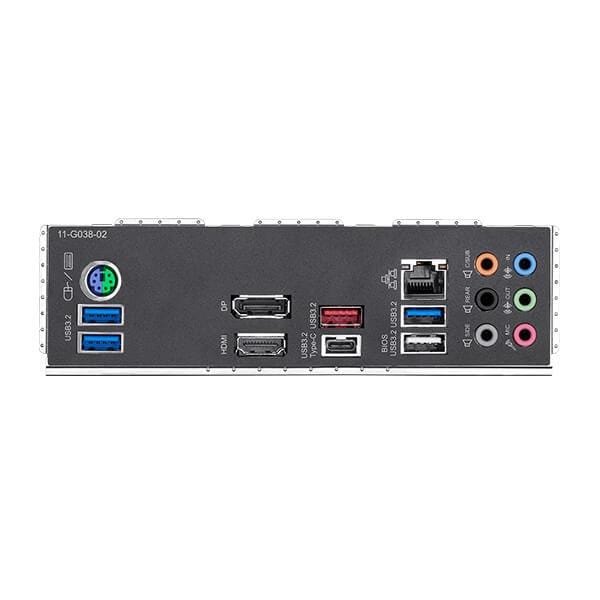

Back Panel Connectors	1 x PS/2 keyboard/mouse port 4 x USB 3.2 Gen 1 ports 1 x DisplayPort 1 x HDMI port I x USB 3.2 Gen 2 Type-A port (red) 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 1 x RJ-45 port 6 x audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Supports for Q-Flash Plus Support for Q-Flash Support for Xpress Install
Bundled Software	Norton® Internet Security (OEM version) cFosSpeed
Operating System	Support for Windows 10 64-bit
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm
Warranty	3 Years
Note	***Features, Price and Specifications are subject to change without notice.
