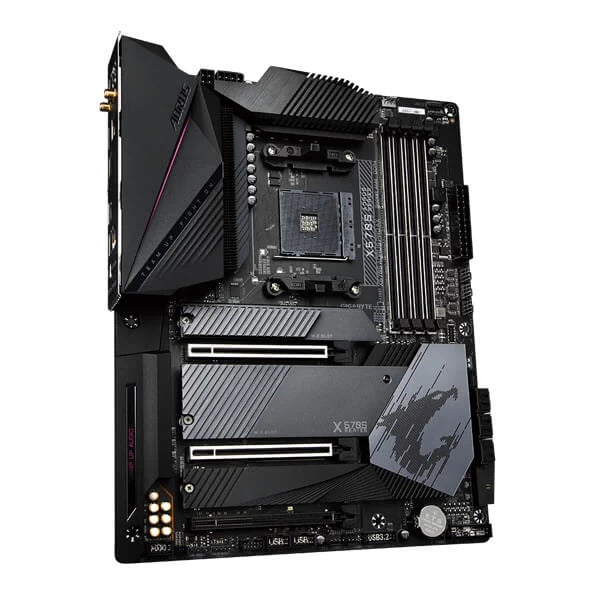

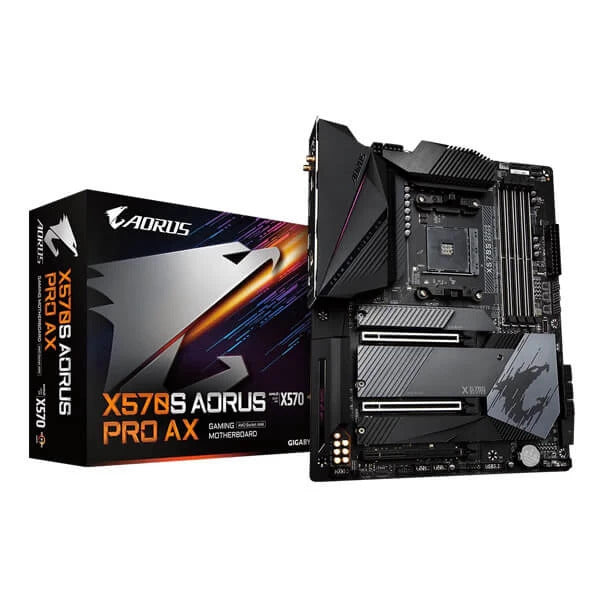

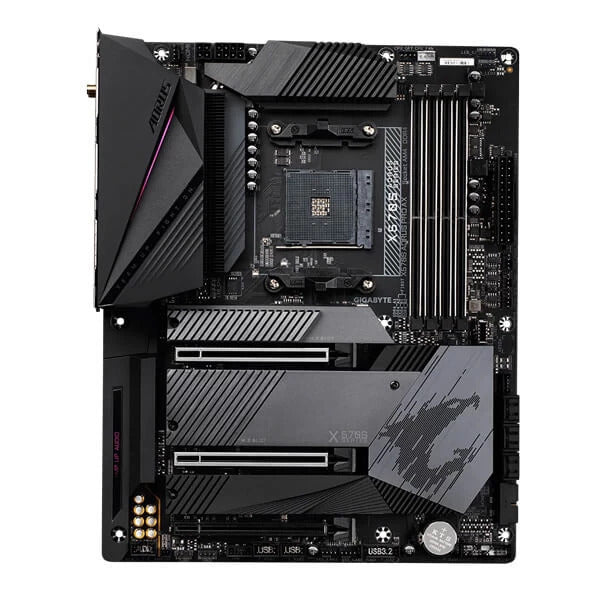

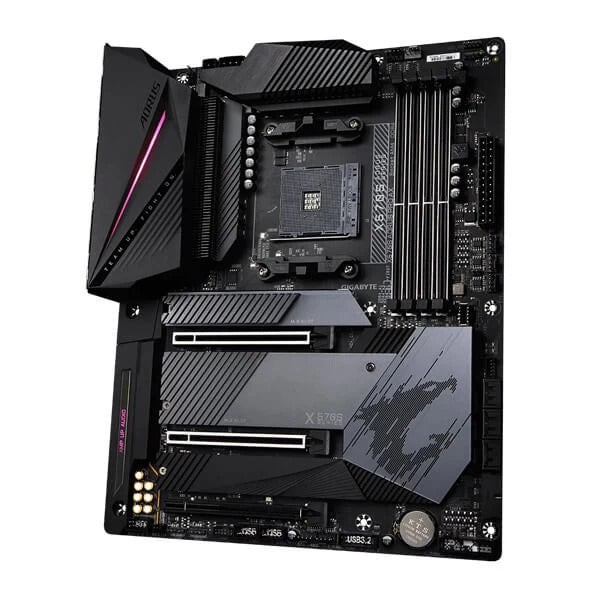

GIGABYTE X570SI Aorus Pro AX DDR4 AMD Motherboard

Most searched : Processors MotherBoard Graphic Card CPU Cooler Mouse RAM SSD Gaming

Call Us On:

+91-99250 02827

Shop more for free shipping

GIGABYTE X570SI Aorus Pro AX DDR4 AMD Motherboard

360˚

- 16%

Motherboard

GIGABYTE X570SI Aorus Pro AX DDR4 AMD Motherboard

Rs. 23,000.00 Rs. 19,227.00

Availability : Out Of Stock

Brand : Gigabyte

SKU : gigabyte-x570si-aorus-pro-ax

Tags : CATP_GIGABYTE, CATQ_Motherboard, Gigabyte, MOB10_None, MOB11_4, MOB12_2, MOB13_Gen4, MOB14_Gen4, MOB15_Black, MOB16_1, MOB17_4, MOB18_5, MOB19_1, MOB1_X570, MOB20_1, MOB21_1, MOB22_1, MOB23_45, MOB24_AMD Motherboard, MOB2_ITX, MOB3_AM4, MOB4_64, MOB5_5300, MOB6_2, MOB7_DDR4, MOB8_2, MOB9_1

Safe Payment

Pay with the world’s most payment methods.

Confidence

Protection covers your purchase

Worldwide Delivery

Ship to over 200 countries & regions.

Hotline

+91-99250 02827

Description

Feature of Gigabyte X570SI Aorus Pro AX DDR4

Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G Series/ Ryzen™ 3000 Series/ Ryzen™ 3000 G Series/ Ryzen™ 2000 Series/ Ryzen™ 2000 G Series Processors
Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs
Twin 8+2 Phases Digital VRM Solution with 90A Smart Power Stage
Groove Designed and Multi-layered Heatsinks for Chipset and M.2 Thermal Guard III with Heatpipe
Intel^® WiFi 6 802.11ax & BT 5.2
Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guard
Blazing Fast Intel^® 2.5GbE LAN with cFosSpeed
Rear and Front USB3.2 Type-C^® for Fast and Versatile Connections
AMP-UP Audio with ALC1220-VB and Nichicon Audio Capacitors
Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

UNPARALLELED PERFORMANCE

To unleash the full potential of the latest AMD Ryzen™ 5000 series processors, the motherboard requires the best CPU power, memory and IO design. With the best quality components and GIGABYTE R&D design capability, X570SI AORUS PRO AX is a true beast among motherboards.

ADVANCED THERMAL SOLUTION

GIGABYTE X570SI Aorus Pro AX DDR4 uses an unprecedented and innovative thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full loading application and gaming.

NEXT GENERATION CONNECTIVITY

A high-end product needs to be future-proof so your system stays up-to-date with the latest technology. X570SI AORUS PRO AX provides all next generation network, storage, and WIFI connectivity to keep you up to speed.

DEFINITIVE AESTHETICS

X570SI AORUS PRO AX features RGB FUSION 2.0 to offer lighting effected options and customized settings with outstanding aesthetics, and able to let enthusiasts building a stylish and unique gaming PC.

ULTRA DURABLE

GIGABYTE is reputable for its product durability and high quality manufacturing process. Needless to say, we use the best components we can find for the GIGABYTE Motherboard and reinforce every slot to make each of them solid and durable.

Specifications of Gigabyte X570SI Aorus Pro AX DDR4

CPU	AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ AMD Ryzen™ 4000 G-Series/ AMD Ryzen™ 3000 Series/ AMD Ryzen™ 3000 G-Series/ AMD Ryzen™ 2000 Series/ AMD Ryzen™ 2000 G-Series Processors
CPU	(Please refer “CPU Support List” for more information.)
Chipset	AMD X570
Memory	AMD Ryzen™ 5000 G-Series / Ryzen™ 5000 Series / Ryzen™ 3000 Series processors: Support for DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.)/ 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
	AMD Ryzen™ 4000 G-Series processors:
	Support for DDR4 5300(O.C.)/ 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.)/ 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
	AMD Ryzen™ 3000 G-Series Processors/AMD Ryzen™ 2000 Series Processors/ AMD Ryzen™ 2000 G-Series Processors:
	Support for DDR4 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules
	2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
	Dual channel memory architecture
	Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
	Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	Support for Extreme Memory Profile (XMP) memory modules
	(Please refer “Memory Support List” for more information.)
Onboard Graphics Integrated Graphics Processor:	1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
	* Support for DisplayPort 1.4 version.
	2 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
	* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
	Support for up to 3 displays at the same time
	Maximum shared memory of 16 GB

	* For AMD Ryzen™ 5000 G-Series/4000 G-Series/3000 G-Series/2000 G-Series Processors only.
Audio	Realtek® ALC1220-VB Audio CODEC
	* The back panel line out jack supports DSD audio.
	Support for DTS:X® Ultra
	High Definition Audio
	2/4/5.1/7.1-channel
	* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
LAN	Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module Intel® Wi-Fi 6 AX200 (For PCB rev. 1.0)	WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band
	BLUETOOTH 5.2
	Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
	AMD Wi-Fi 6E RZ608 (MT7921K) (For PCB rev. 1.1)

	WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
	BLUETOOTH 5.2
	Support for 11ax 80MHz wireless standard and up to 1.2 Gbps data rate
	(Actual data rate may vary depending on environment and equipment.)
Expansion Slots	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

	AMD Ryzen™ 5000 Series/3000 Series Processors
	support PCIe 4.0 x16 mode
	AMD Ryzen™ 5000 G-Series/4000 G-Series/2000 Series Processors
	support PCIe 3.0 x16 mode
	AMD Ryzen™ 3000 G-Series/2000 G-Series Processors
	support PCIe 3.0 x8 mode
	1 x M.2 Socket 1 connector, integrated in the CPU, for the wireless communication module (M2_WIFI)
Storage Interface	1 x M.2 connector (M2A_SOCKET), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:

	AMD Ryzen™ 5000 Series/3000 Series Processors
	support SATA and PCIe 4.0 x4/x2 SSDs
	AMD Ryzen™ 5000 G-Series/4000 G-Series/3000 G-Series/2000 Series/ 2000 G-Series Processors
	support SATA and PCIe 3.0 x4/x2 SSDs
	1 x M.2 connector (M2B_SOCKET), integrated in the Chipset, supporting Socket 3, M key, type 2280 SSDs:

	Supporting SATA and PCIe 4.0(Note)/3.0 x4/x2 SSDs
	4 x SATA 6Gb/s connectors, integrated in the Chipset:

	Support for RAID 0, RAID 1, and RAID 10
	* Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.
	(Note) For AMD Ryzen™ 5000 Series/3000 Series Processors only.
USB CPU:	4 x USB 3.2 Gen 1 ports on the back panel
Chipset	1 x USB Type-C® port, with USB 3.2 Gen 2 support on the back panel
	1 x USB Type-C® port, with USB 3.2 Gen 1 support available through the internal USB header
	1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
	2 x USB 3.2 Gen 1 ports are available through the internal USB header
	2 x USB 2.0/1.1 ports are available through the internal USB header
Internal I/O Connectors	1 x 24-pin ATX main power connector
	1 x 8-pin ATX 12V power connector
	1 x CPU fan header
	2 x system fan headers
	1 x addressable LED strip header
	1 x RGB LED strip header
	4 x SATA 6Gb/s connectors
	2 x M.2 Socket 3 connectors
	1 x front panel header
	1 x front panel audio header
	1 x speaker header
	1 x USB Type-C® header, with USB 3.2 Gen 1 support
	1 x USB 3.2 Gen 1 header
	1 x USB 2.0/1.1 header
	1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
	1 x Clear CMOS jumper
	＊All fan headers are subject to support AIO_Pump, Pump, and high-performance fan with the capability of delivering up to 2A/12V @ 24W.

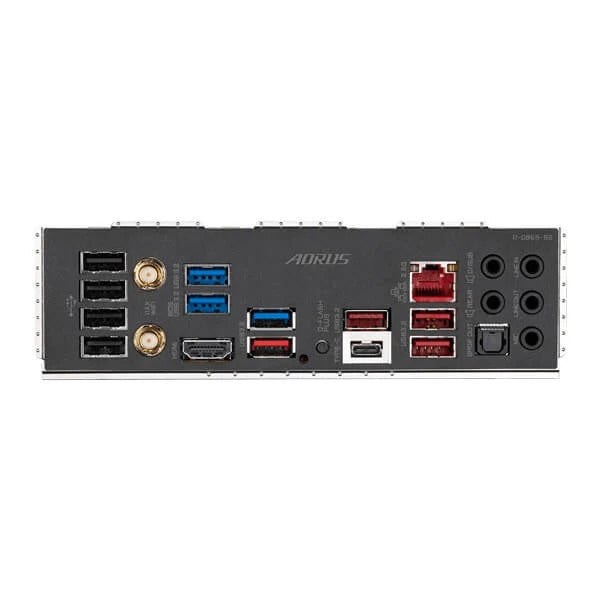

Back Panel Connectors	1 x DisplayPort
	2 x HDMI ports
	1 x USB 3.2 Gen 2 Type-A port (red)
	4 x USB 3.2 Gen 1 ports
	1 x USB Type-C® port, with USB 3.2 Gen 2 support
	1 x Q-Flash Plus button
	1 x RJ-45 port
	2 x SMA antenna connectors (2T2R)
	3 x audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection
	Temperature detection
	Fan speed detection
	Water cooling flow rate detection
	Fan fail warning
	Fan speed control
	* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS	1 x 256 Mbit flash
	Use of licensed AMI UEFI BIOS
	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for APP Center
	* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
	@BIOS
	EasyTune
	Fast Boot
	Game Boost
	ON/OFF Charge
	RGB Fusion
	Smart Backup
	System Information Viewer
	Support for Q-Flash Plus
	Support for Q-Flash
	Support for Xpress Install
Bundled Software	Norton® Internet Security (OEM version)
Bundled Software	cFosSpeed
Operating System	Support for Windows 10 64-bit
Form Factor	Mini-ITX Form Factor; 17.0cm x 17.0cm
Remark	Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors’ website or 3rd party website.
Remark	Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
