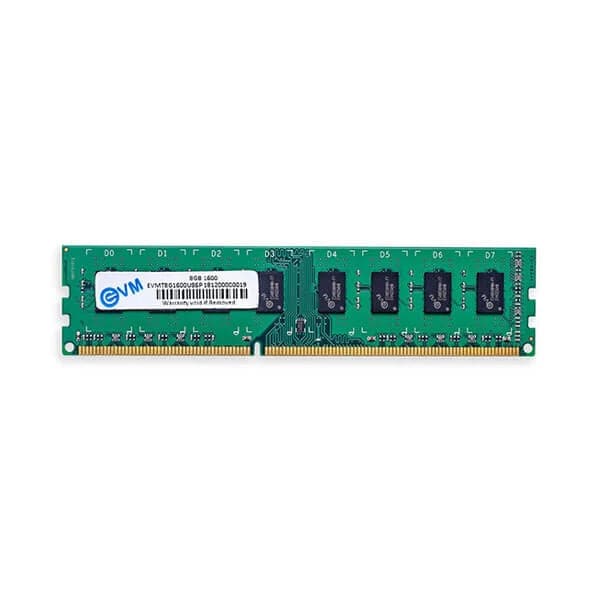

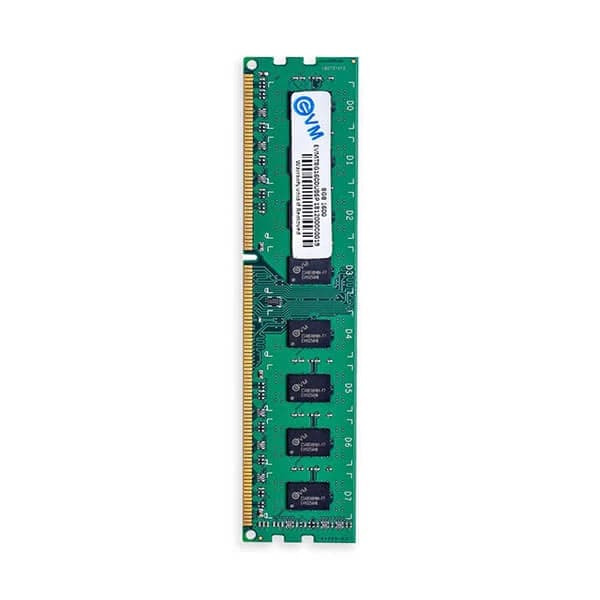

EVM 8GB ( 8GBx1 ) 1600MHz DDR3 Desktop RAM

Rs. 1,115.10
Rs. 1,115.10
EVM 8GB ( 8GBx1 ) 1600MHz DDR3 Desktop RAM
EVM 8GB ( 8GBx1 ) 1600MHz DDR3 Desktop RAM

Rs. 1,115.10

You may also like
  • Description
  • Product Reviews
  • Privacy policy
  • Tab heading
  • Tab heading

Features of EVM 8GB (8GBx1) DDR3 1600MHz Desktop RAM


  • Available Capacities: DDR3 8GB 1600MHz UDIMM
  • VDD = VDDQ = 1.5V ±0.075V
  • 1.35V center-terminated push/pull I/O
  • Differential bidirectional data strobe
  • 8n-bit prefetch architecture
  • Differential clock inputs (CK, CK#)
  • 8 internal banks
  • Nominal and dynamic on-die termination (ODT) for data, strobe, and
    mask signals
  • Programmable CAS READ latency (CL)
  • Posted CAS additive latency (AL)
  • Programmable CAS WRITE latency (CWL) based on tCK
  • Fixed burst length (BL) of 8 and burst chop (BC) of 4 (via the mode
    register set [MRS])
  • CAS Latency(Nanosecond): 13.75
  • Programmable CAS latency 9, 10 ,11 supported
  • Programmable additive latency 0, CL-1, and CL-2 supported
  • Programmable CAS Write latency (CWL) = 9, 10, 11
  • Selectable BC4 or BL8 on-the-fly (OTF)
  • Self refresh mode
  • Average Refresh Cycle (Tcase of 0 °C to 95 °C)
    - 64ms, 8192 cycle refresh at 0°C to 85°C
    - 32ms, 8192 cycle refresh at 85°C to 95°C
  • Self refresh temperature (SRT)
  • Write leveling
  • Multipurpose register
  • Output driver calibration
  • JEDEC standard 78ball FBGA(x4/x8)
  • RoHS compliant



Specifications of EVM 8GB (8GBx1) DDR3 1600MHz Desktop RAM

Capacity 8GB
DRAM Type DDR3
Form Factor
DDR3 LongDimm
Part Number
EVMT8G1600U86P
Memory Architecture 512Mbx8bit
Frequency(Speed)
1600 MHZ Low voltage
CAS Latency 11.0/9.0/7.0
Chip Density
256Mx8 8Chips/ 256Mx8
16Chips/ 256Mx16 4Chips/
256Mx16 8Chips /
512Mx8 8Chips /
512Mx8 16Chips
Bandwidth Pc3 12800 L
RAM Compatible with Desktop
Buffered RAM Unbuffered
Memory Layout (Modules x size)
UDIMM 133.35x30mm
Operating Temperature 0 C to 85 C
Storage Temperature -55 C to +100 C
Memory Voltage
1.35V/1.5Voltage
Pins 240 PIN
Module Configuration 2Rx8
Row Cycle Time(Nanosecond) 48.75
Refresh Row Cycle Time(Nanosecond) 260ns(min.)
Warranty 10 Years
Note
*** Features, Price, Specifications are subject to change without notice.
