Features of DEEPCOOL AN400 Single Tower 92mm CPU Air Cooler ( Black )

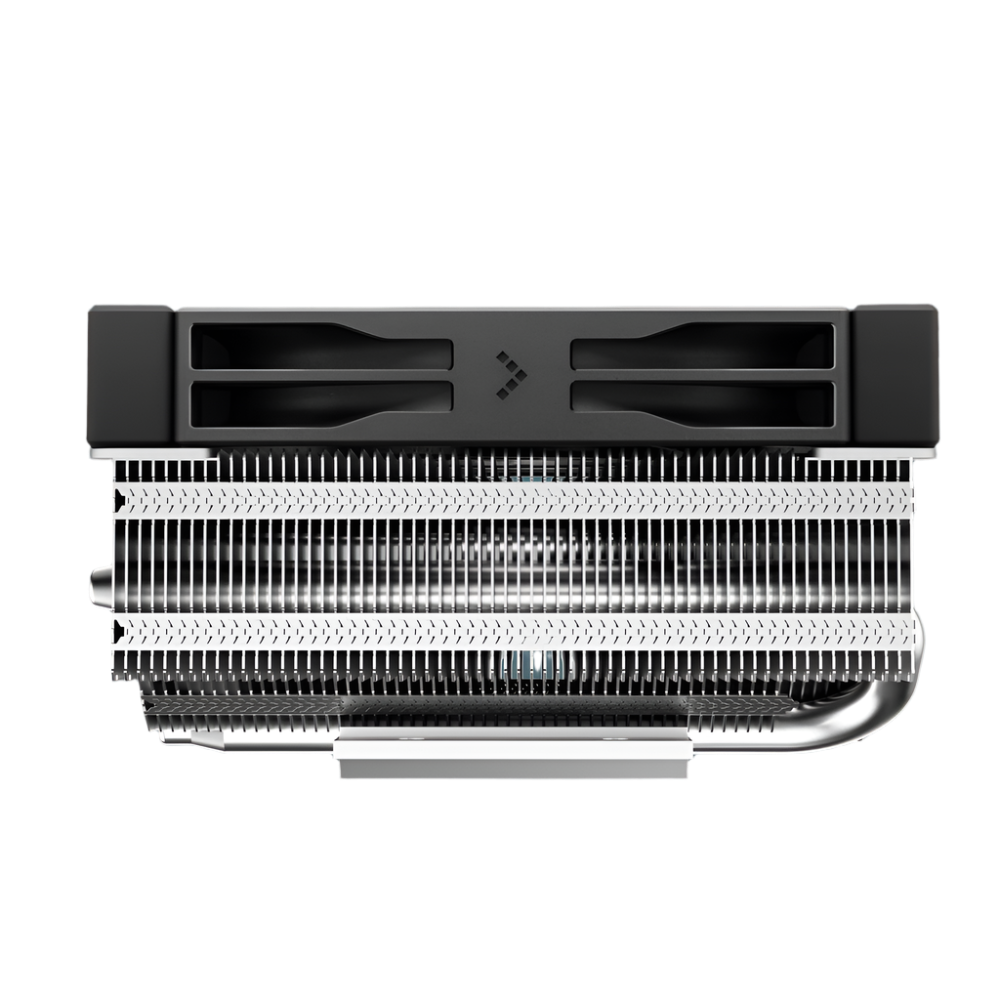

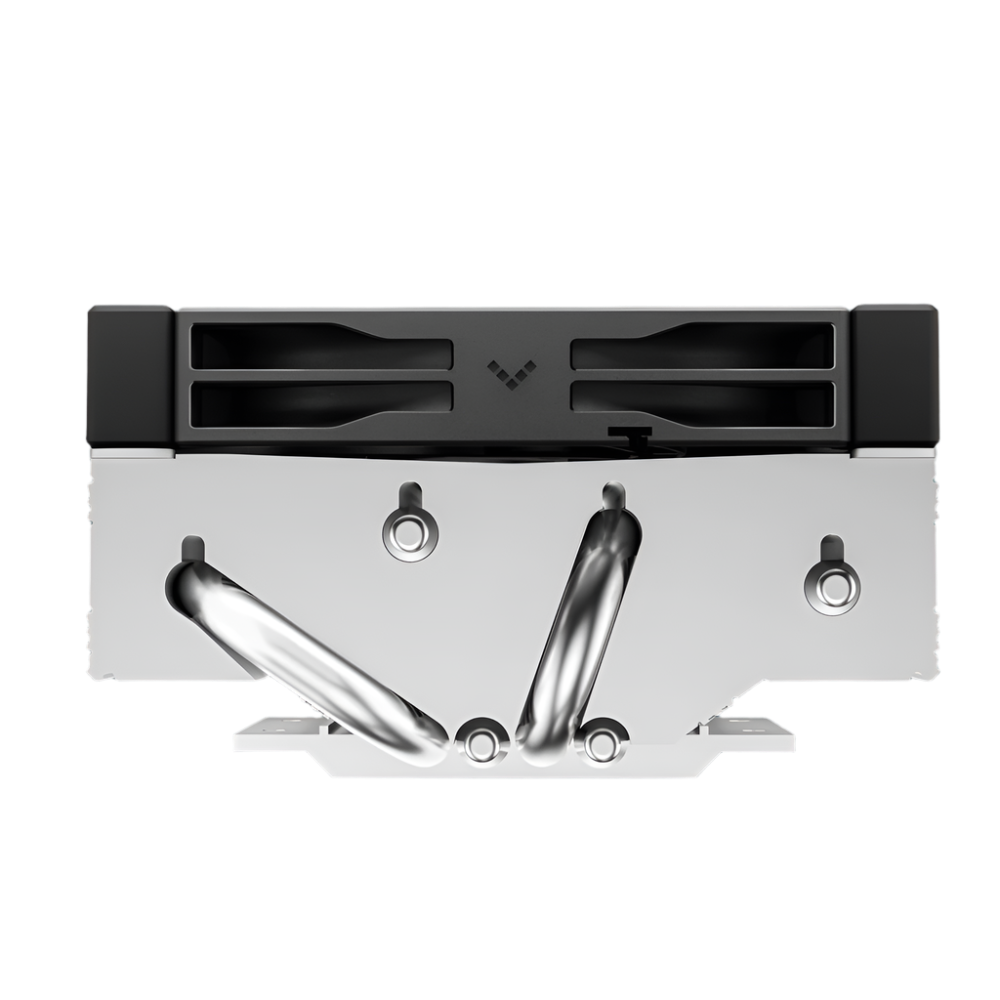

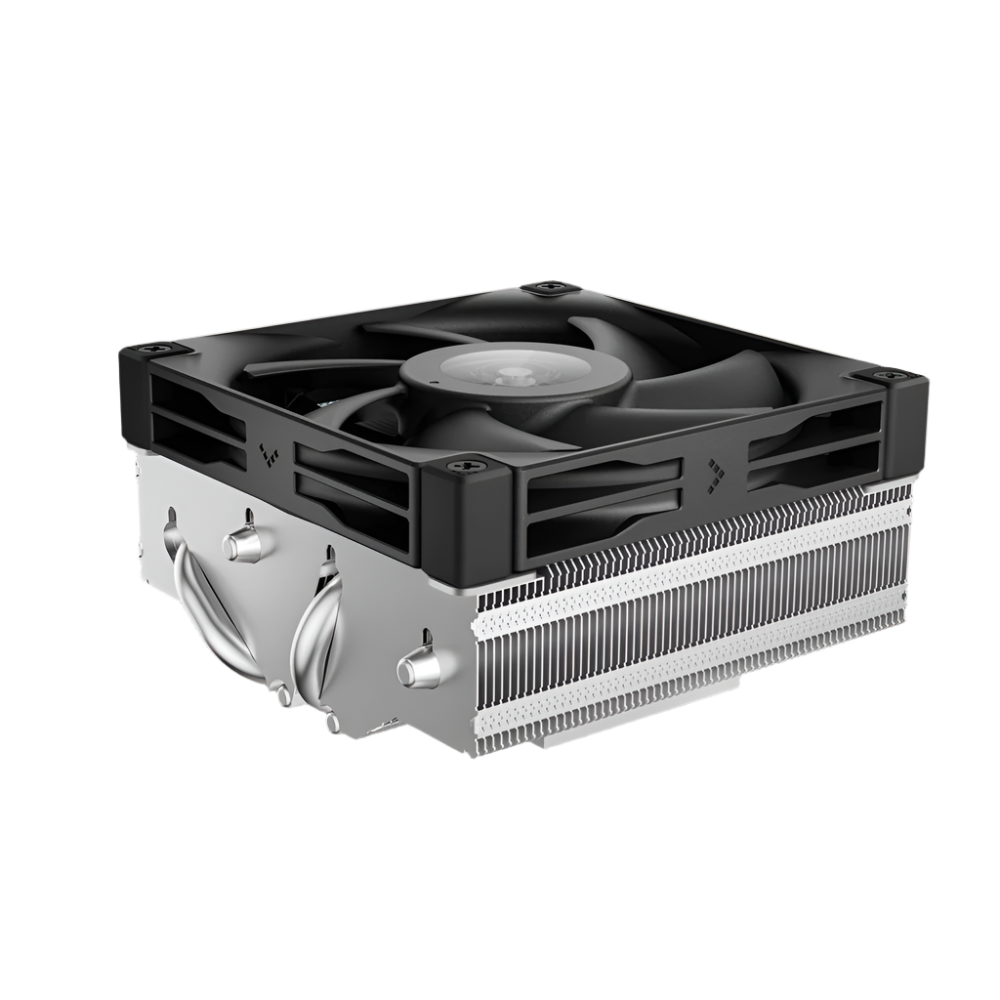

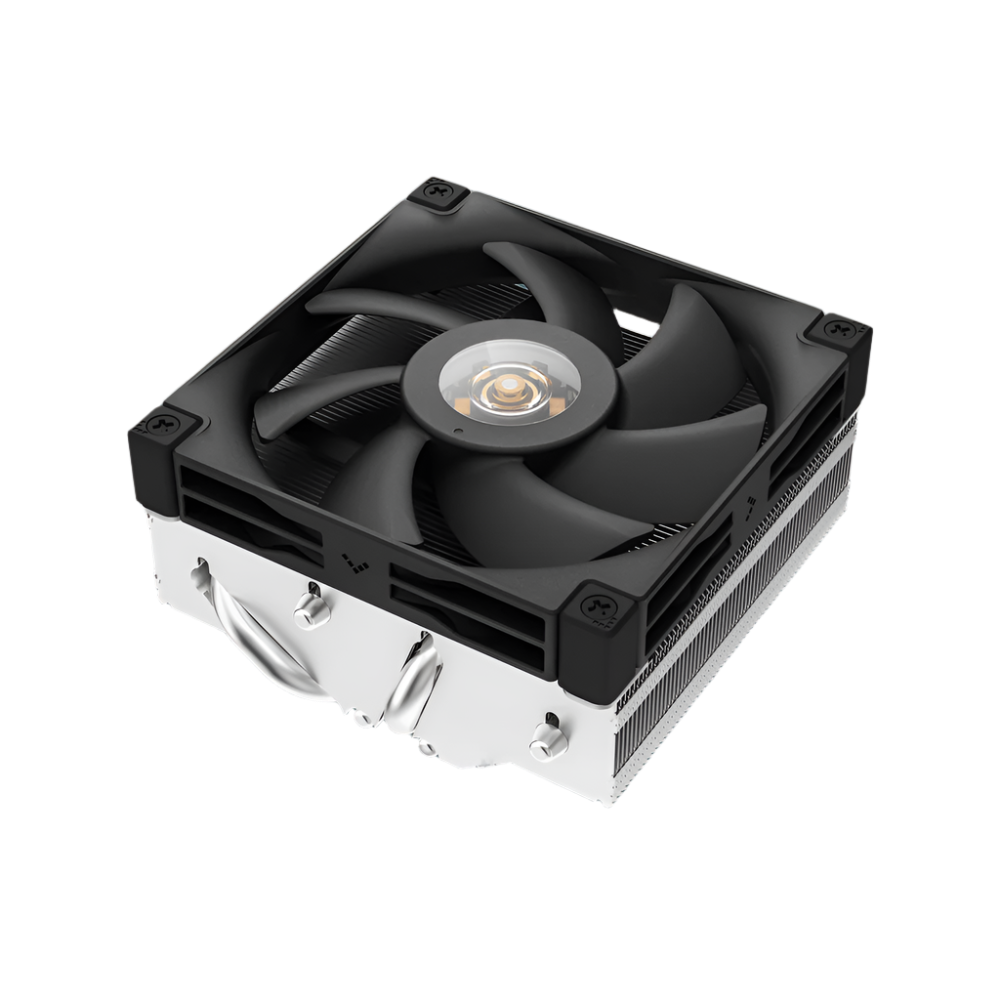

The DEEPCOOL AN400 Single Tower 95mm CPU Air Cooler ( Black ) is a 4-heatpipe low-profile air cooler that provides 150W of TDP in a compact heatsink. With unobstructed clearance for RAM modules, and a top-down air flow, the AN400 is a great option for everything down to small ITX builds.
Passive Airflow
The top-down design has the added benefit of providing passive airflow to the surrounding VRMs around the CPU.
Simplified Support

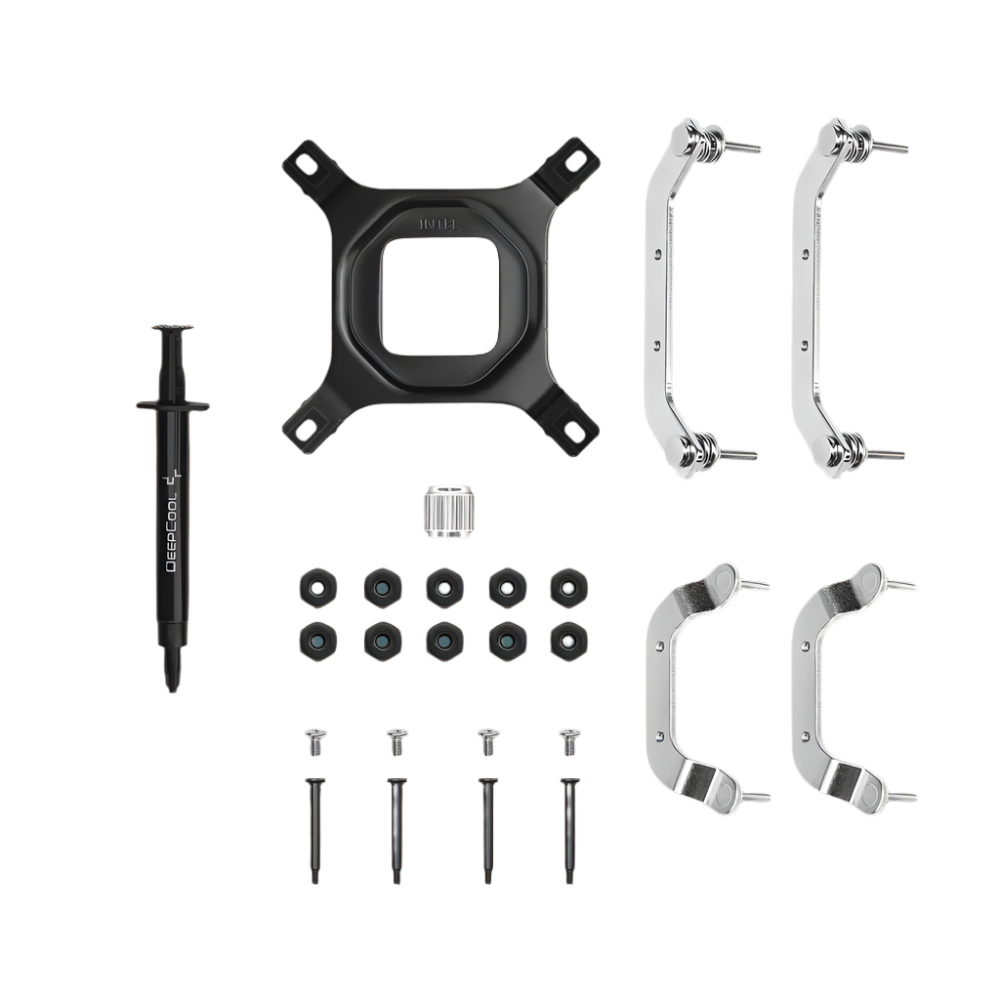

The all-metal back plate is easy to install and evenly distributes pressure from the rear of the motherboard, while providing reinforcement behind the CPU socket.
Small But Capable

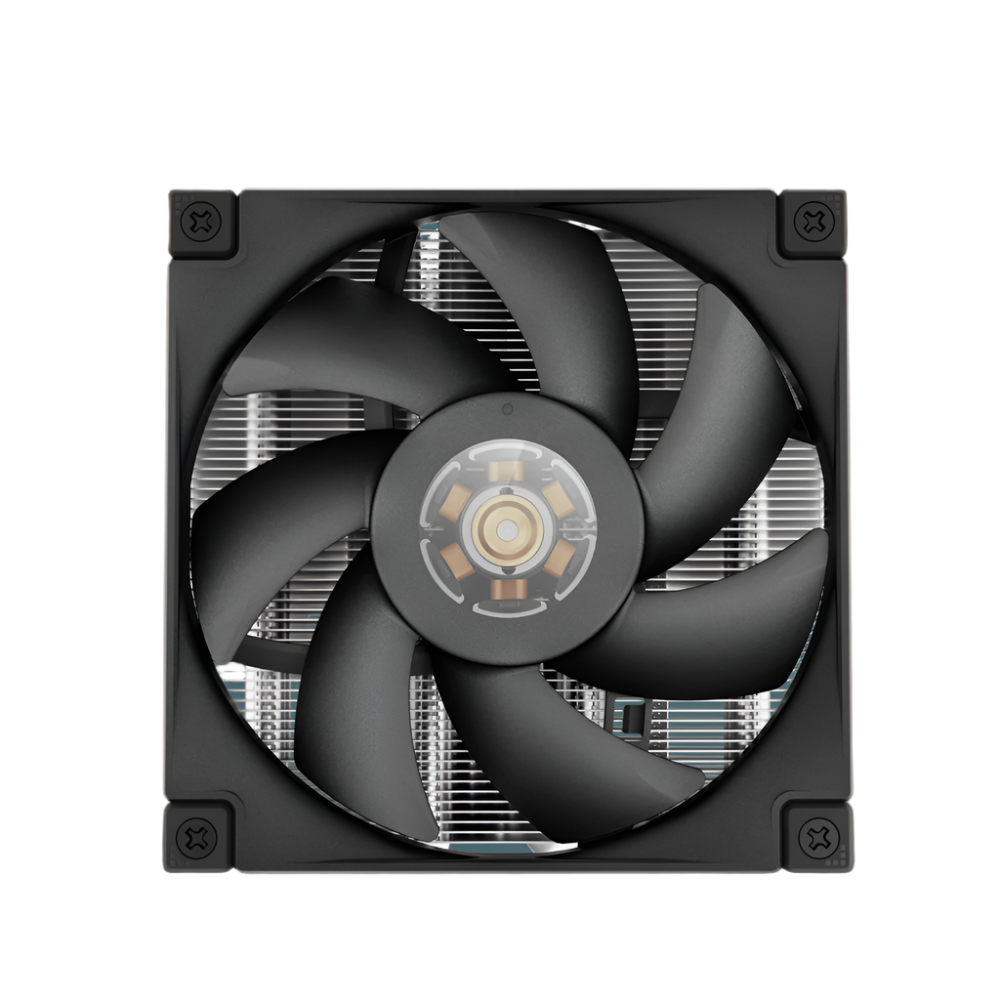

Equipped with a slim 92mm PWM-enabled FDB fan and a visible 3-phase 6-slot 4-pole motor, the AN400 can spin up to a staggering 2950 RPM while staying below 23.2 dB(A).
Compact And Feature Rich

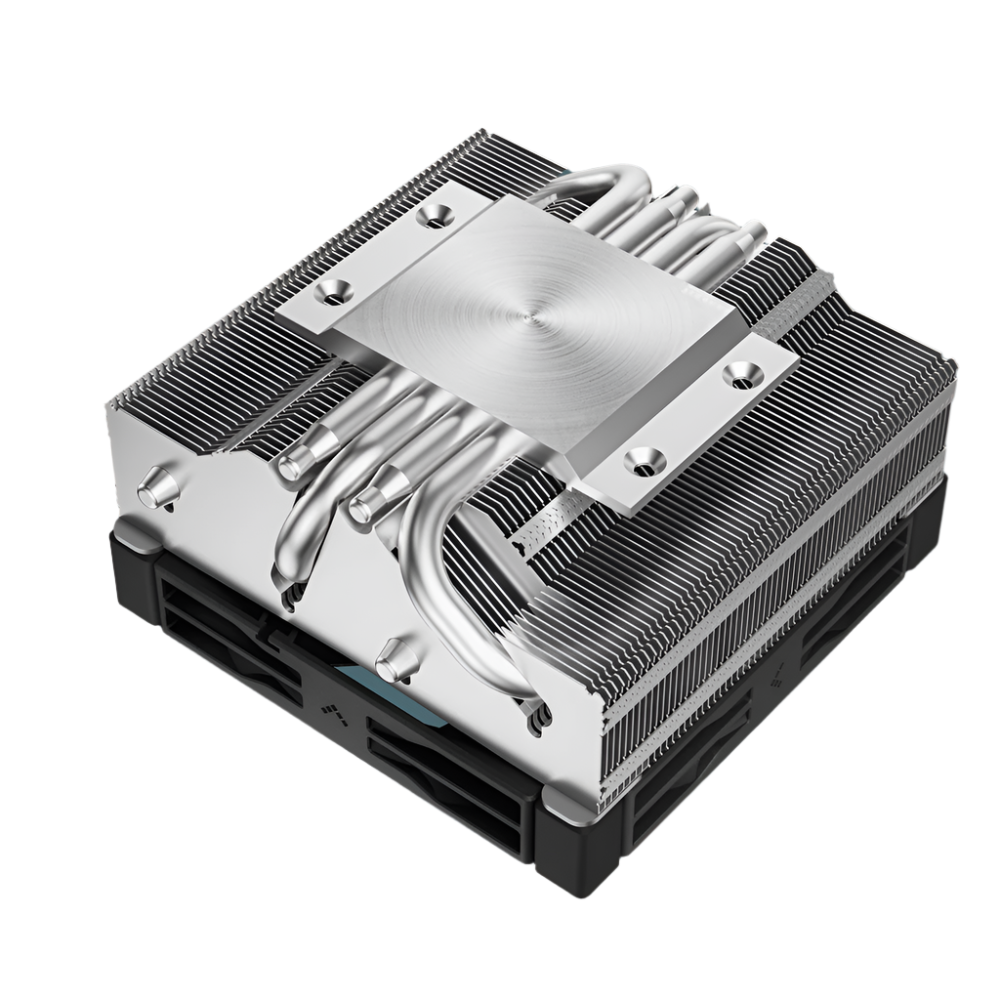

With 62 nickel-plated aluminum fins, 4 optimized heatpipes, and a raised copper cold plate, the AN400 packs a lot of cooling potential in a small 53mm tall CPU cooler.
Specifications of DEEPCOOL AN400 Single Tower 92mm CPU Air Cooler ( Black )
| Model | R-AN400-SRWNMN-G |
| Application For | Intel: LGA1700/1200/1151/1150/1155 AMD: AM5/AM4 |
| Product Dimensions | 92×92×52.5 mm(L×W×H) |
| Heatsink Dimensions | 94×57×38 mm(L×W×H) |
| Net Weight | 431.4 g |
| Heatpipe | Ø6 mm×4 pcs |
| Fan Dimensions | 92×92×15 mm(L×W×H) |
| Fan Speed | 500~2950 RPM±10% |
| Fan Airflow | 31.18 CFM |
| Fan Air Pressure | 4.8 mmAq |
| Fan Noise | ≤23.2 dB(A) |
| Fan Connector | 4-pin PWM |
| Bearing Type | Fluid Dynamic Bearing |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.45 A |
| Fan Power Consumption | 5.4 W |
| LED Type | White LED |
| Warranty | 3 Years |
| Note* | Price, features and specifications are subject to change without notice. |
