- 16%
Motherboard

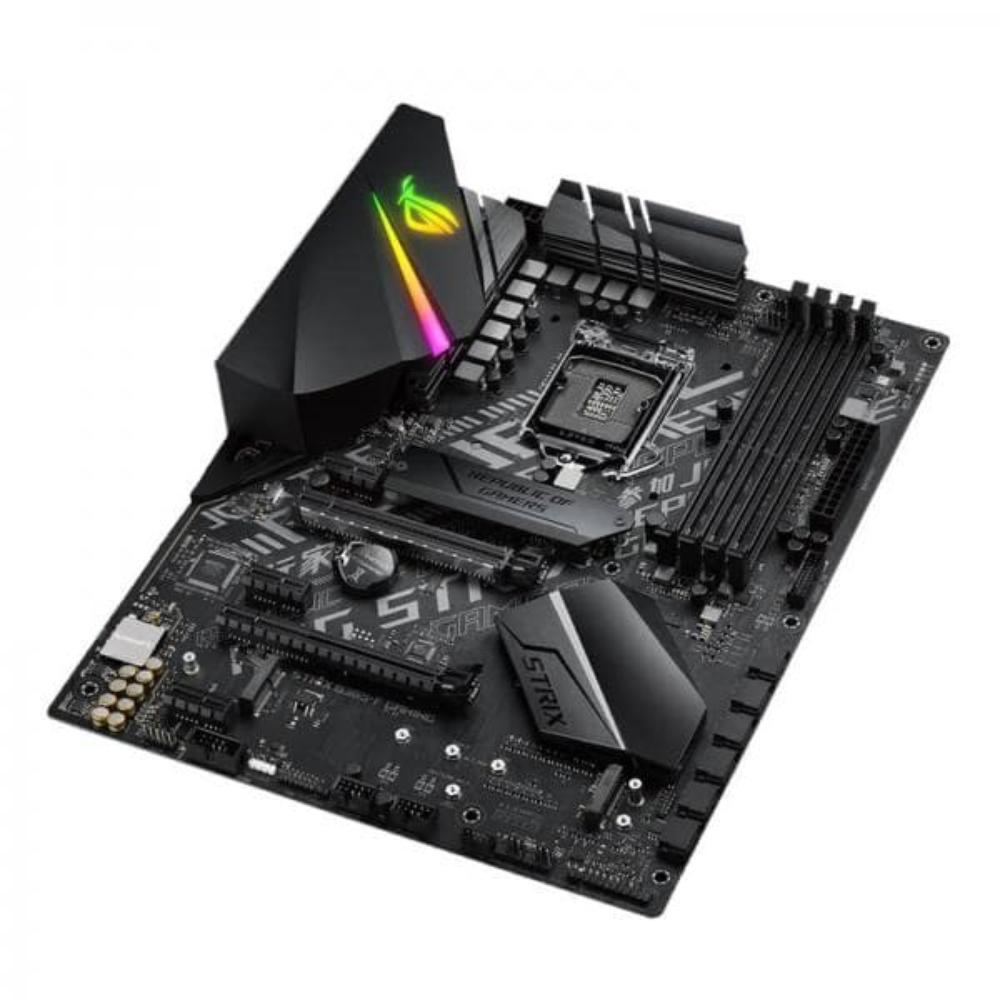

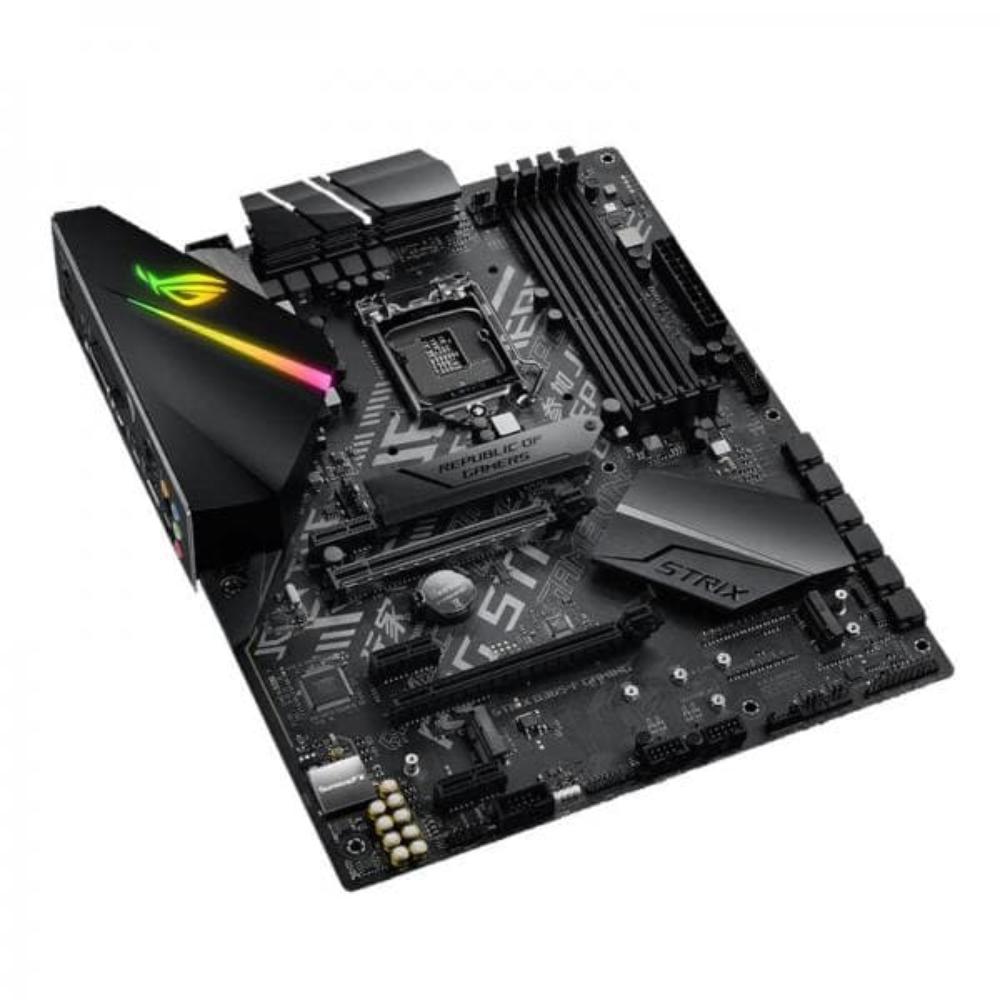

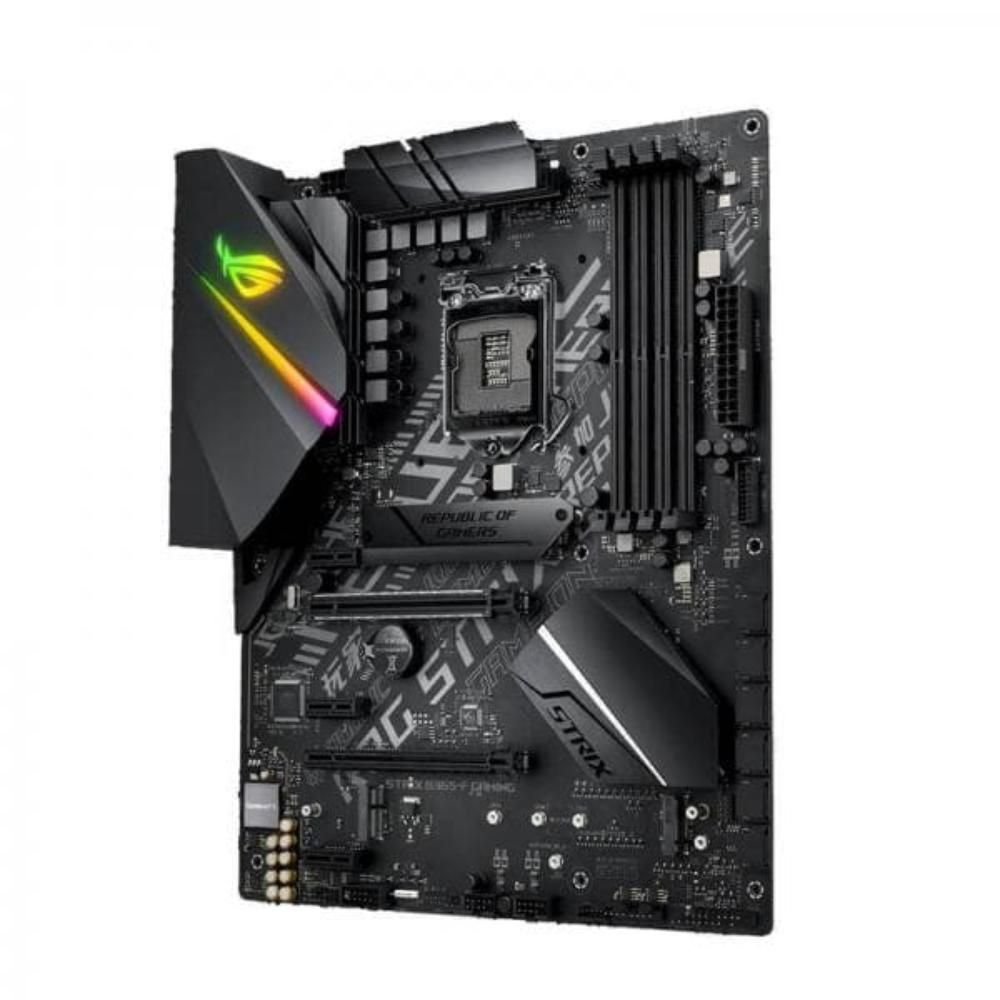

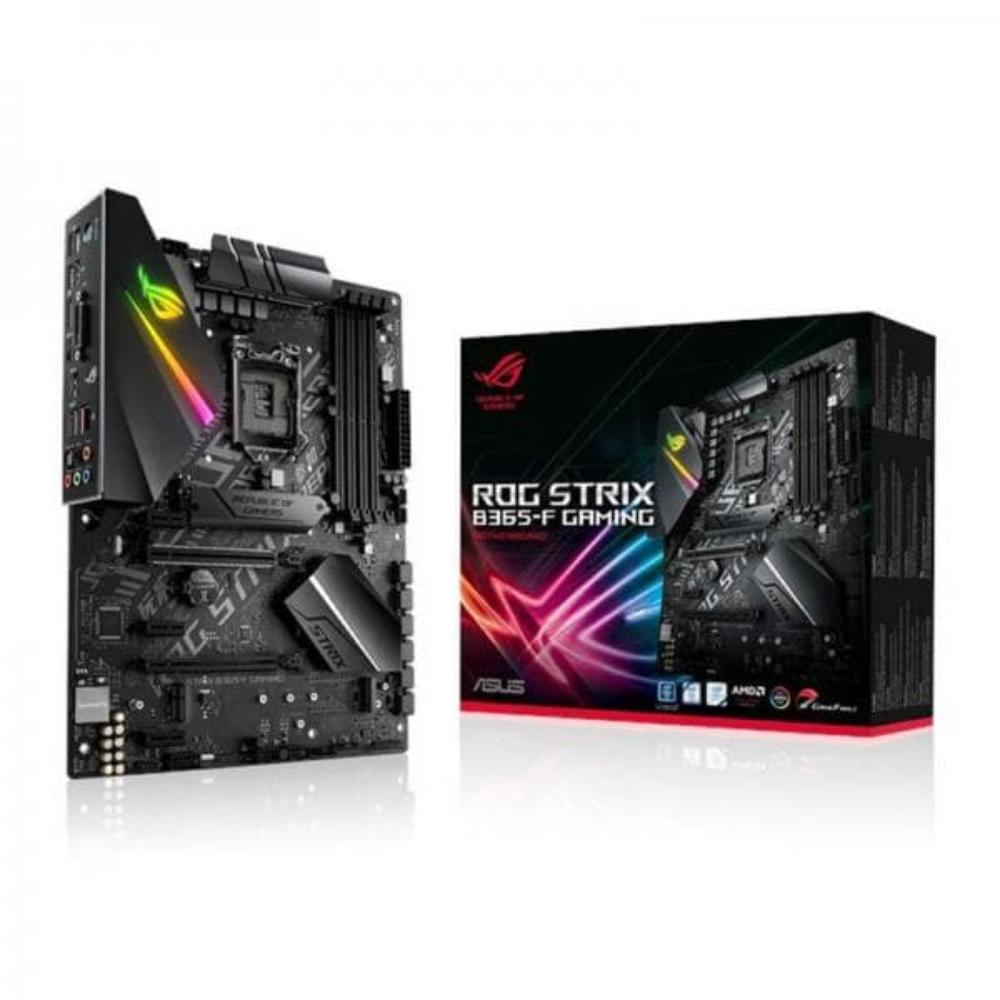

ASUS ROG Strix B365-F Gaming DDR4 Intel Motherboard
Rs. 16,500.00
Rs. 13,820.00
In Stock
Brand : ASUS
Asus-ROG-Strix-B365-F
Safe Payment
Pay with the world’s most payment methods.
Confidence
Protection covers your purchase
Worldwide Delivery
Ship to over 200 countries & regions.
Hotline
+91-99250 02827
Feature of ASUS ROG Strix B365-F Gaming DDR4
- LGA1151 socket: Ready for 9th/8th Gen Intel® Core™ desktop processors.
- Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear, including RGB strips.
- Easy DIY: Pre-mounted I/O shield, ASUS SafeSlot and premium components for maximum endurance.
- On-board M.2 heatsink: Cools M.2 drive to deliver consistent storage performance and enhanced reliability.
- Advanced cooling: Automated system-wide tuning and cooling profiles that are tailor-made for your rig.
- Gaming audio: SupremeFX S1220A teamed with Sonic Studio III creates immersive aural landscapes.
- Gaming connectivity: Dual M.2, USB 3.1 Gen 2 Type-A connectors, DisplayPort, HDMI and DVI.
- Gaming networking: Intel Gigabit Ethernet, LANGuard and GameFirst for smoother, safer and lag-free online play.
Designed exclusively for 9th and 8th generation Intel Core processors, Pentium Gold and Celeron processors to maximize connectivity and speed with dual M.2 and Intel Optane Memory compatibility
Fan Xpert 4 with GPU temperature sensing allows for dynamic fan calibration and optimized system cooling while gaming
Unmatched personalization with ASUS exclusive Aura Sync RGB lighting and a 3D-printing friendly mount
Pre-mounted I/O shield ensures streamlined installation and represents ROG’s attention to detail and quality
ROG Strix B365-F Gaming
Built for a customized gaming experience, The ROG STRIX B365-F GAMING features fan expert 4 for dynamic system cooling, Aura Sync RGB lighting, and 3D printing mounts. Dual M. 2 and front-panel USB 3. 1 deliver maximum connectivity and speed.
Dual PCIe 3.0 M.2
ASUS ROG Strix B365-F Gaming DDR4 is equipped with two M.2 slots for maximum storage flexibility. The first slot has an integrated M.2 heatsink and the second slot is situated away from the heat-generating graphics card to maximize airflow cooling.
Power Design
Digit+ power control together with an efficient thermal solution ensures ROG Strix B365-F Gaming has the muscle to control Intel's latest CPUs. High-permeability alloy-core chokes significantly reduce power loss to further improve efficiency and performance.
Networking
STRIX B365-F Gaming features the very latest Intel Ethernet. Intel's LAN has the advantage of reducing CPU overhead and offering exceptionally high TCP and UDP throughput for faster, smoother data transfer

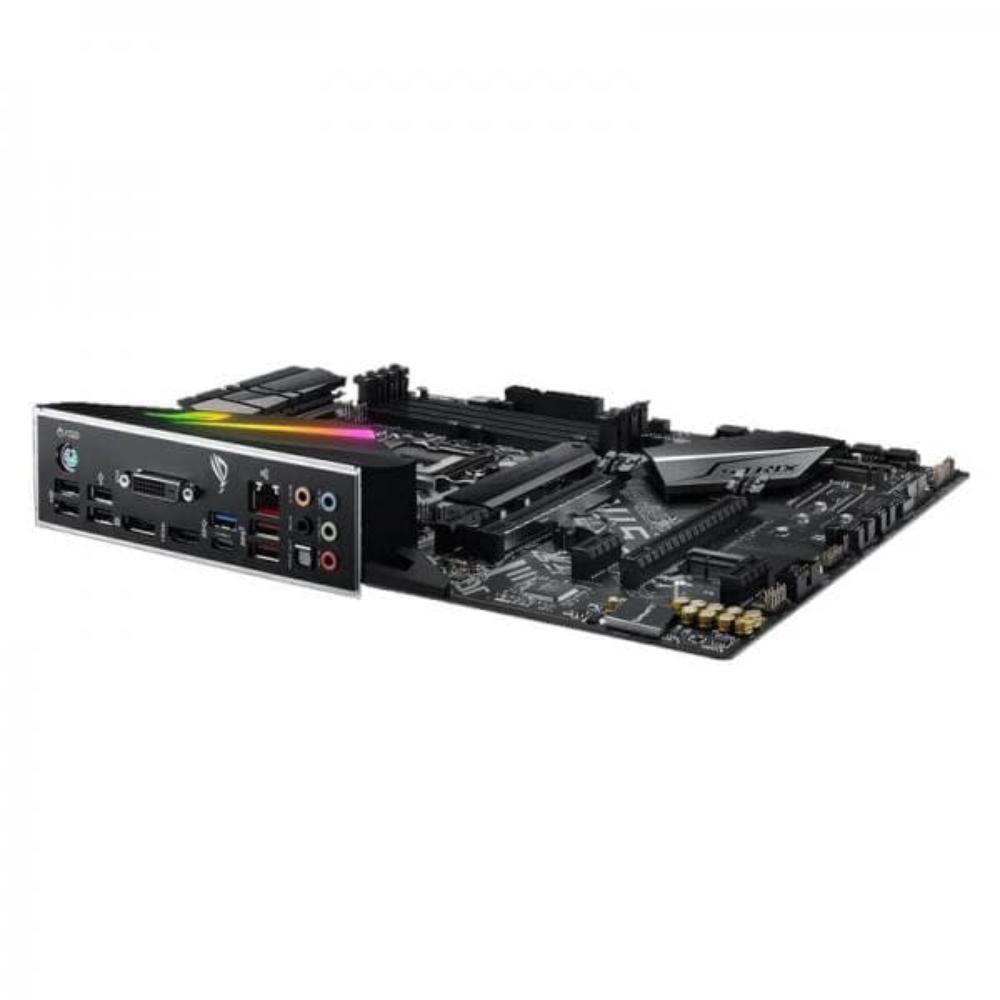

Pre-Mounted I/O Shield
ROG's patented I/O shield is finished in sleek matte black and comes pre-mounted to make it easy to install the motherboard. The shield assures protection to your STRIX motherboard in any environment.
SupremeFX
Utilizing the S1220A codec, SupremeFX is the integrated-audio solution that's engineered to provide a flat frequency response for a neutral, detailed sound signature. The addition of two op-amps ensures the superior audio quality
Aura Sync
ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB header. It can all be synced with Aura-capable ASUS hardware.
Specifications of ASUS ROG Strix B365-F Gaming DDR4
| CPU | Intel® Socket 1151 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® ProcessorsSupports Intel® 14 nm CPU* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. |
| Chipset | Intel® B365 |
| Memory | 4 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered MemoryDual Channel Memory ArchitectureSupports Intel® Extreme Memory Profile (XMP) |
| Graphic | Integrated Graphics Processor- Intel® HD Graphics supportMulti-VGA output support : HDMI/DVI/DisplayPort ports- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz- Supports DVI with max. resolution 1920 x 1200 @ 60 Hz- Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz *1 |
| Multi-GPU Support | Supports AMD 2-Way CrossFireX Technology |
| Expansion Slots | 1 x PCIe 3.0/2.0 x16 (x16 mode)1 x PCIe 3.0/2.0 x16 (x4 mode) *23 x PCIe 3.0/2.0 x1 *3 |
| Storage | Intel® B365 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*41 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)6 x SATA 6Gb/s port(s)Intel® Rapid Storage Technology supportsIntel® Optane™ Memory Ready |
| LAN | Intel® I219V, 1 x Gigabit LAN Controller(s)Anti-surge LANGuardROG GameFirst Technology |
| Audio | ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A- Dual Headphone Amplifiers- Impedance sense for front and rear headphone outputs- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input- SupremeFX Shielding Technology- Supports up to 32-Bit/192kHz playback *6Audio Feature :- Optical S/PDIF out port(s) at back panel- Sonic Radar III- Sonic Studio III Sonic Studio Link |
| USB Ports | Intel® B365 Chipset :2 x USB 3.1 Gen 2 port(s) (2 at back panel, red)Intel® B365 Chipset :4 x USB 3.1 Gen 1 port(s) (2 at back panel, , 1 x Type-A 1 x Type-C)Intel® B365 Chipset :8 x USB 2.0 port(s) (4 at back panel, , 4 at mid-board) |
| ROG Exclusive Features | ROG CPU-ZPre-mounted I/O ShieldOverwolfROG Aura- Aura Lighting Control- Aura RGB Strip HeadersROG Exclusive Software- RAMCache III- GameFirst V |
| Special Features | Fan Xpert4- Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling controlGamer's Guardian:- ESD Guards on LAN, Audio, KBMS and USB3.1/3.0/2.0 ports- DRAM Overcurrent Protection- Stainless Steel Back I/O- Highly Durable Components- SafeSlotAURA :- Aura Lighting Control- Aura RGB Strip Headers- Aura Lighting Effects Synchronization with compatible ASUS ROG devicesASUS Exclusive Features :- AI Suite 3- Armoury CrateASUS EZ DIY :- ASUS CrashFree BIOS 3- ASUS EZ Flash 3ASUS Q-Design :- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)- ASUS Q-Slot- ASUS Q-DIMMGaming Aesthetics :- 3D printing friendly- AURA-RGB LightingDigi VRM |
| Back I/O Ports | 1 x PS/2 keyboard/mouse combo port(s)1 x DVI-D1 x DisplayPort1 x HDMI1 x LAN (RJ45) port(s)2 x USB 3.1 Gen 2 (red)Type-A,2 x USB 3.1 Gen 1 (black) Type-A USB Type-CTM4 x USB 2.01 x Optical S/PDIF out5 x Audio jack(s) |
| Internal I/O Ports | 1 x AAFP connector1 x Aura RGB Strip Header(s)1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)1 x M.2 with E key for Wi-Fi module6 x SATA 6Gb/s connector(s)1 x M.2_FAN connector1 x CPU Fan connector(s)1 x CPU OPT Fan connector(s)2 x Chassis Fan connector(s)1 x AIO_PUMP connector1 x 24-pin EATX Power connector(s)1 x 8-pin ATX 12V Power connector(s)1 x System panel(s)1 x 5-pin EXT_FAN(Extension Fan) connector1 x Thermal sensor connector(s)1 x Clear CMOS jumper(s)1 x 14-1 pin TPM connector1 x COM port header |
| BIOS | 1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, SM BIOS 3.1,ACPI 6.1 |
| Manageability | WOL,PXE |
| Operating System | Windows® 10 64-bit |
| Form Factor | ATX Form Factor12 inch x 9.6 inch (30.5 cm x 24.4 cm) |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications of Asus Strix B365-F Gaming are subject to change without notice. |
