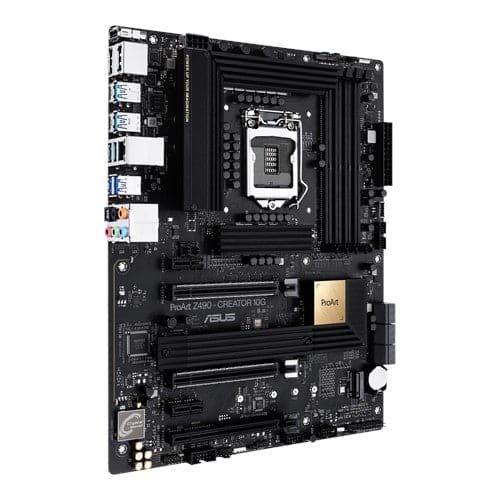

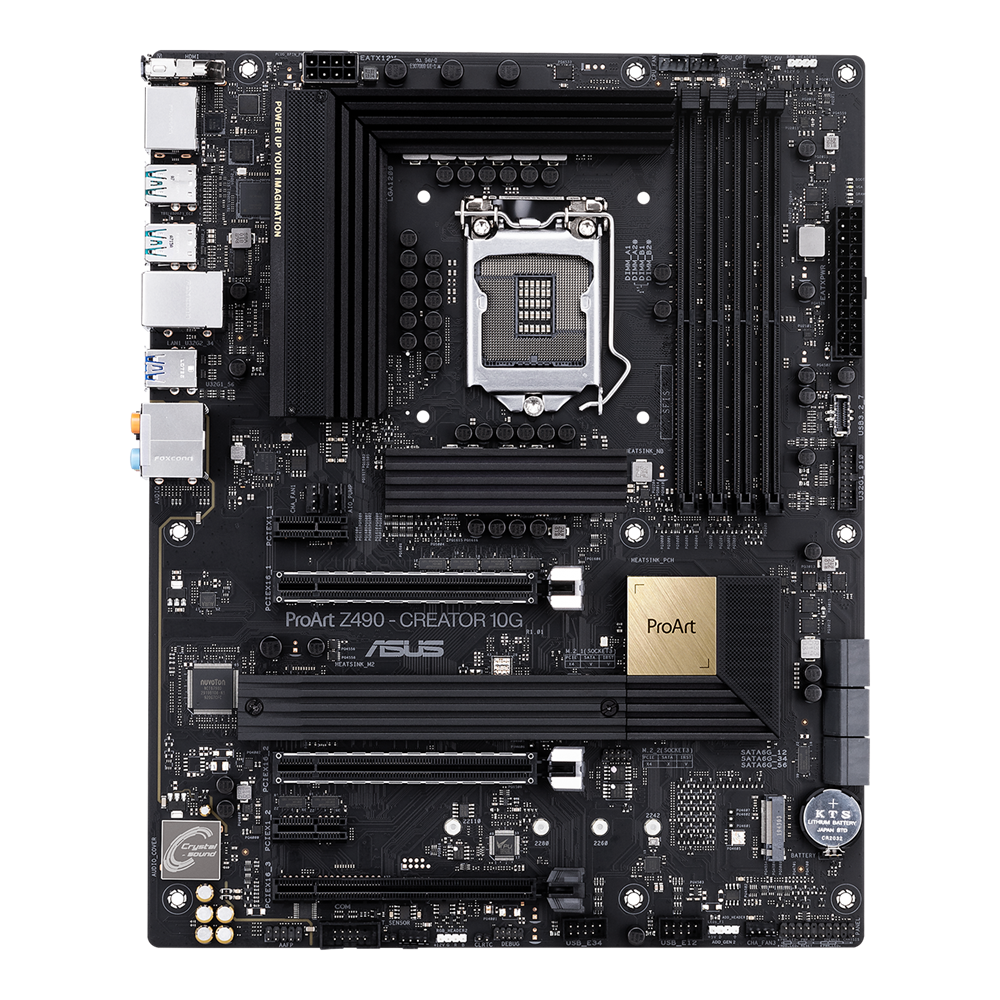

Feature of ASUS ProArt Z490 Creator 10G DDR4

• Intel® LGA 1200 socket: ASUS PROART Z490-CREATOR Motherboard is Ready for 10th Gen Intel® Core™ processors
  Ultrafast connectivity: Two Thunderbolt™ 3 Type-C ports, two M.2, HYPER 10G LAN card and onboard 2.5G Intel® LAN provide power and speed
• Intelligent optimization: AI Overclocking, AI Cooling and Creation First automatically optimize CPU frequencies, fan speeds and network traffic for enhanced system performance and work efficiency
• Powerful performance: 12+2 DrMOS power stages, ASUS PROART Z490-CREATOR has multi-GPU support and improved memory frequency and stability empower creativity.
• Trusted stability: Tested for 24/7 dependability, validated for solid compatibility and equipped with Safe Slot for durability.
• ProArt Creator Hub: Centralized software for one-stop monitoring and management of ASUS PROART Z490-CREATOR ProArt series products enables efficient content creation workflows.

Dual Thunderbolt™ 3 Type-C Ports

On ASUS PROART Z490-CREATOR Each Thunderbolt 3 port supports DisplayPort 1.4 output and can daisy-chain to up to six devices, with 15 watts of power to fast-charge devices. ASUS PROART Z490-CREATOR features two Thunderbolt 3 ports, offering a total of up to 40 Gbps of aggregate interface bandwidth, which allows numerous devices to be connected to the motherboard at once with ultrafast data transfer speeds.

HYPER 10G LAN Card

A HYPER 10G LAN card enables speeds that are up to 10 times faster than standard Gigabit Ethernet — so it’s ideal for content creators who frequently work with large files. Upload 4K video or transfer other large files quickly and with ease.
1. RJ45 connector
2. PCIE 3.0 x4 Interface : Fast transport speed

Onboard 2.5G Intel® Ethernet

ASUS ProArt Z490 Creator 10G DDR4 Onboard 2.5G Ethernet gives your wired connection a boost, with up to a 2.5X improvement over standard Ethernet connections for faster file transfers, high-res video streaming and smoother lag-free gaming.

Dual M.2 slots

One M.2 slot supports SATA and PCIe® 3.0 x4 modes, and the other supports PCIe 3.0 x4 for NVMe, offering up to 32 Gbps data-transfer speeds and flexible M.2 interfaces.

AI Overclocking

ASUS AI Overclocking automatically tunes your system with onboard intelligence that monitors system vitals — such as temperatures, fan speeds and power draw — to estimate cooling and overclocking headroom and deliver optimal performance for content-creation workflows.

Predictive Edge

The algorithm of ASUS PROART Z490-CREATOR analyzes your CPU and cooling system and, based on what it finds, predicts optimal settings. The software then uses these settings to automatically guide the clocking process, balancing frequency and voltage.

Real-time Adjustments

The software of ASUS PROART Z490-CREATOR monitors workload, system temperature, fan speed and power draw every minute, and makes real-time adjustments to ensure ongoing optimal performance.

AI Cooling

With one click, AI Cooling function will automatically manage and control motherboard-connected fans to ensure optimal settings based on current system load and temperature.

CPU Temperature Detection

AI Cooling detects CPU temperatures and uses a proprietary algorithm to calculate the lowest fan speed required to effectively cool the system and keep fan noise down.

Automated Optimization

Under stable system loads, the software then automatically lowers fan* speed to the optimal setting, decreasing fan noise without compromising performance.

Ongoing Monitoring

AI Cooling continues to monitor the system and adjust fan speed based on current load.

CreationFirst

CreationFirst network-optimization software allows you to prioritize applications in order to allocate more bandwidth to speed up essential apps and tasks.

Specifications of ASUS ProArt Z490 Creator 10G DDR4
