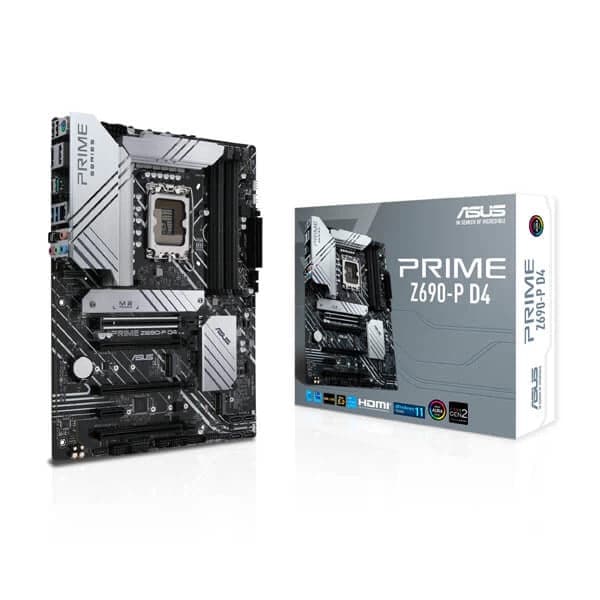

Feature of ASUS Prime Z690-P DDR4 Intel Motherboard

1. Intel^® LGA 1700 socket: Ready for 12th gen Intel^® processors

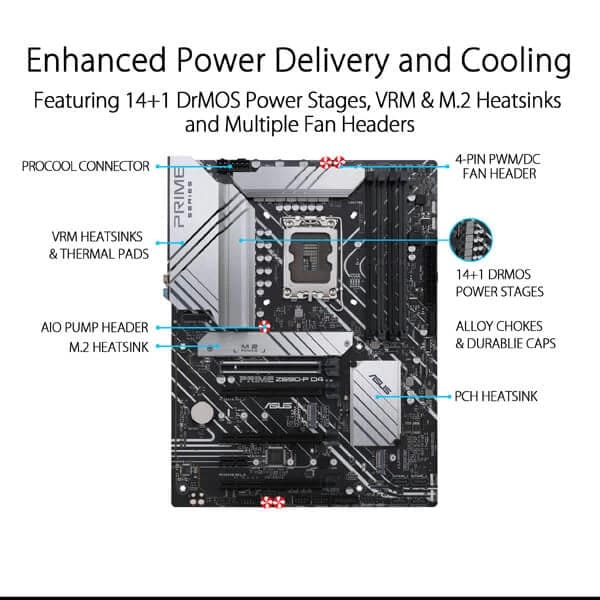

2. Enhanced power solution: 14+1 DrMOS, 8+4 pin ProCool connector, alloy chokes and durable capacitors for stable power delivery
3. Comprehensive cooling: Large VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 4
4. ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking

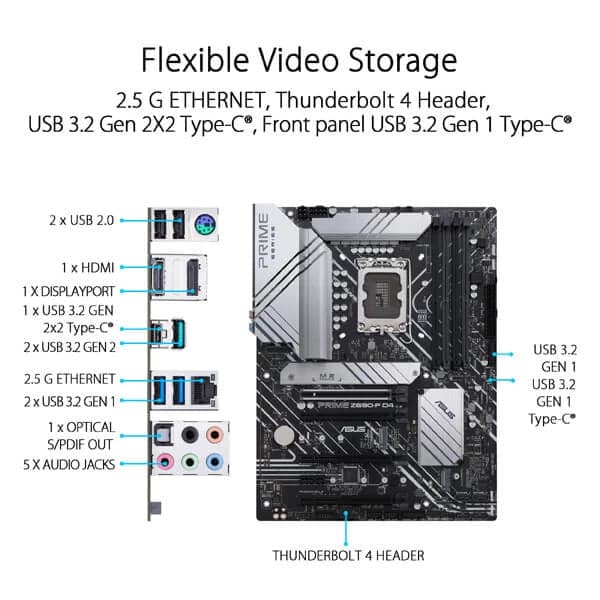

5. Next-gen connectivity: DDR4, PCIe^® 5.0, 2.5 Gb Ethernet, USB 3.2 Gen 2x2 Type-C^®, front panel USB 3.2 Gen 1 Type-C^®, Thunderbolt™ 4 header support


Harness the power of 12th Gen Intel processors with the PRIME Z690-P D4 LGA1700 ATX Motherboard from ASUS. Designed for both business professionals and gamers alike, this motherboard offers robust functionality whether you are looking to leverage raw power or build a simplified machine for everyday tasks.

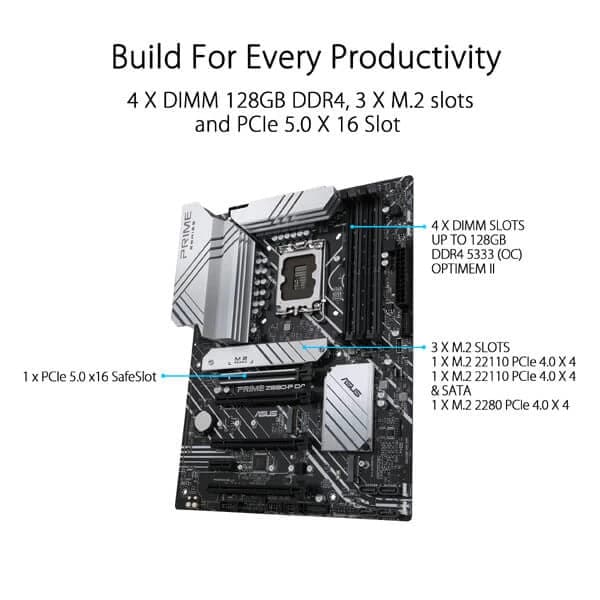

An Intel Z690 chipset rests as the heart of this motherboard, giving you access to an LGA 1700 socket, four dual-channel DDR4 RAM slots, four SATA III ports, and three M.2 interfaces. Install a wide range of graphics and utility cards with a multitude of expansion slots including one PCIe 5.0 x16, one PCIe 4.0 x16, two PCIe 3.0 x16, and one PCIe 3.0 x1 slot. An array of USB ports and headers allow you to connect resource-demanding peripherals such as external drives and more with USB 3.2 Gen 1 and Gen 2 Type-A Ports.

PERFORMANCE

ASUS Prime Z690-P DDR4 series is built to handle the additional cores and increased bandwidth of 12th Generation Intel® processors. ASUS Z690 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer Option

The USB 3.2 Gen 2×2 Type-C port provides greater power for devices like audio interfaces and mass storage devices. A Realtek 2.5 Gigabit Ethernet port delivers an enhanced data signal, allowing you to easily access cloud storage or stream your favorite media. The PRIME Z690-P DA supports Windows 10 (64-Bit) as well as Windows 11 (64-Bit) right out of the box.

FLEXIBILITY

Comprehensive controls form the foundation of the ASUS Prime series. The Prime Z690 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

All-Around Energy Efficiency

The Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.
Flexible Air- and Liquid-Cooling Controls
ASUS Fan Xpert 4 software provides comprehensive control over fans and all-in-one (AiO) cooler. Whether cooling with air or water, an Auto-Tuning mode intelligently configures all parameters with a single click. There’s also an Extreme Quiet mode that reduces all fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans and AiO cooler can also be controlled via the UEFI BIOS.

Precise Digital Power Control

The Digi + voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.

COOLING

Prime Z690 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

Specifications of ASUS Prime Z690-P DDR4 Intel Motherboard
