Features of ASROCK Radeon RX 7900 GRE Challenger OC 16GB AMD Graphics Card
- ASROCK Radeon RX 7900 GRE Challenger OC GPU
- 16GB GDDR6 on 256-Bit Memory Bus
- 80 AMD RDNA 3 Compute Units (with RT+AI Accelerators)
- 64MB AMD Infinity Cache technology
- Microsoft DirectX 12 Ultimate
- PCI Express 4.0 Support
- 2 x 8-pin Power Connectors
- 3 x DisplayPort 2.1, 1 x HDMI™ 2.1
- Dual Fan Design
- Stylish Metal Backplate
- Striped Ring Fan
- Ultra-fit Heatpipe
- LED Indicator
- 0dB Silent Cooling
- Super Alloy Graphics Card
- Boost Clock: Up to 2293 MHz / 18 Gbps
- Game Clock: 1927 MHz / 18 Gbps
Dual Fan Design
Two fans that provide strong cooling performance and make your gaming rig stay cool. It’s optimized for delivering excellent gaming experience with stylish and streamlined design.

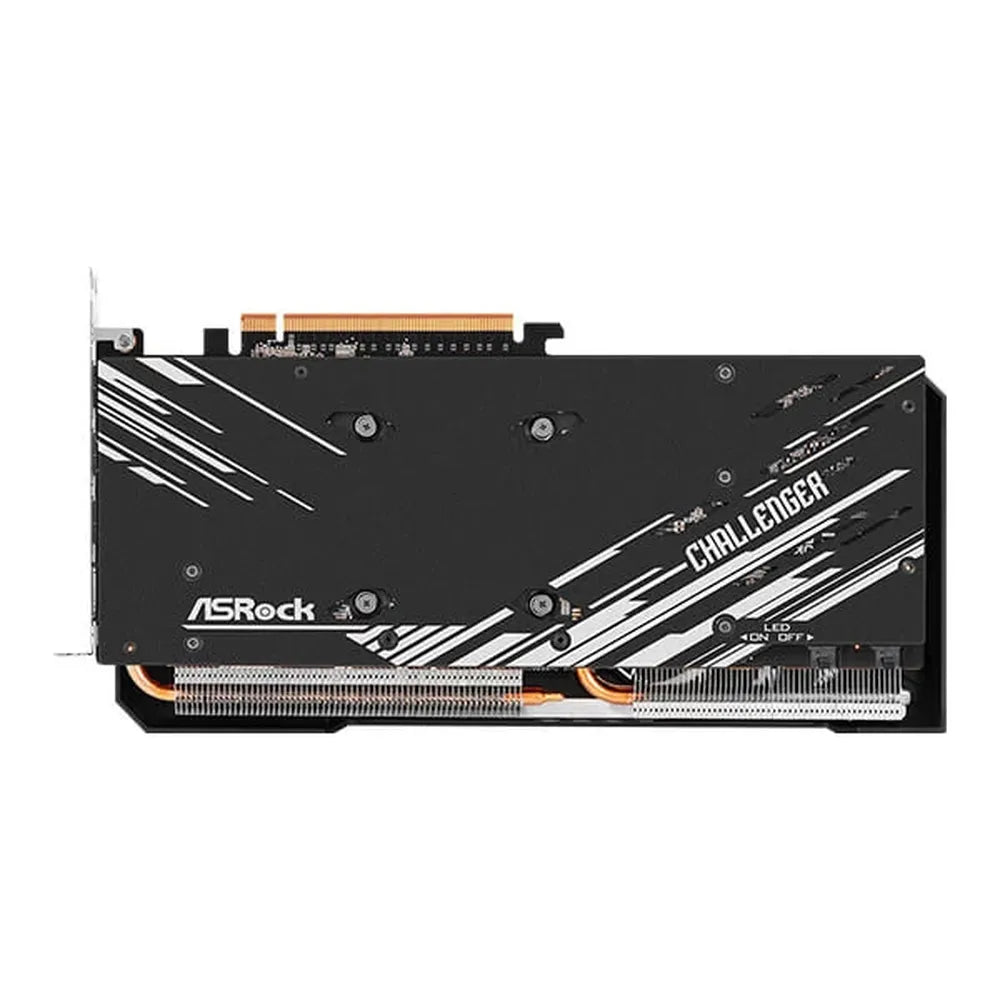

Stylish Metal Backplate - Solid, Fancy, Cool.
Designed to avoid PCB bending. The fancy outlook makes the graphics card more legendary in visual. It also helps to enhance cooling with the premium thermal pads equipped backside.
Striped Axial Fan - Designed For Enhanced Airflow.
ASRock’s custom Striped Axial Fan delivers enhanced airflow to optimize cooling from not only the stripe structure on each fan blade but also the polishing surface on the bottom side.
LED Indicators - More Decoration. More Beauty.
LED indicator embellished the graphics card to make it more beautiful.
0dB Silent Cooling - Spin For Cooling, Stop For Silence.
The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.
Ultra-fit Heatpipe - Consolidated to Maximize the Contact.
The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.
High-density Metal Welding - Improve Heat Dissipation.
Effectively isolate all coverage of the gap between pipe and stacked fins, hence improve heat dissipation effectively.
Nano Thermal Paste - Perfect Thermal Teamwork.
Eliminate the gaps in the contact area to maximize heat transfer and thermal efficiency.
Premium Thermal Pad - Better Heat Transfer.
The premium thermal pad helps to transfer the heat of the components to the heatsink, improving heat dissipation.
Precise Screw Torque - Optimized Mounting Pressure.
ASRock adopts precise screw torque when assembling its graphics cards to optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.
Dr. MOS
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Intelligently delivering higher current and driving up to 50A continuous current for each phase, thus providing improved thermal result and superior performance.
Premium 90A Power Choke
Compared to traditional chokes, ASRock’s premium 90A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the graphics card.
2oz Copper PCB
Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.
Matte Black PCB
A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end graphics card.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the graphics card against electrical shorts caused by humidity.
ASRock Tweak 2.0 - Pro and Easy-to-Use Tuning Utility.
Provides the smart fan speed control and instant performance tweaking.
8K Resolution Support
Not only can it handles 4K graphics but also supports the next generation 8K video output for the ultimate visual experience.
PCI® Express 4.0 Support
This graphics card features PCI® Express 4.0 support, with a throughput of 16 GT/s and enables two times the bandwidth compared to PCI® Express 3.0. Get ready for the next generation of PC gaming.
Specifications ASROCK Radeon RX 7900 16GB Graphic Card
| Graphics Engine | - AMD Radeon™ RX 7900 GRE |
| Bus Standard | - PCI® Express 4.0 x16 |
| DirectX | - 12 Ultimate |
| OpenGL | -4.6 |
| Memory | - GDDR6 16GB |
| Engine Clock | - Boost Clock up to: 2293 MHz |
| Stream Processors | -5120 |
| Compute Units | -80 |
| Memory Clock | - 18Gbps |
| Memory Interface | - 256-bit |
| Resolution | - Digital Max Resolution: 7680x4320 |
| Interface | - 1 x HDMI™ 2.1 (up to FRL 12Gbps) |
| - 3 x DisplayPort™ 2.1 with DSC (up to UHBR3 13.5Gbps)* | |
| HDCP | - Yes |
| Multi-view | -4 |
| Recommended PSU | - 750W |
| Power Connector | - 2 x 8-pin |
| Accessories | - 1 x Quick Installation Guide |
| Dimensions | - 269 x 130 x 51 mm, 2.55-slot |
| Net Weight | - 985g |
