Feature of Gigabyte X399 Aorus Pro DDR4

Overwhelming Power.Indisputable Supremacy. Unrestrained Potential.

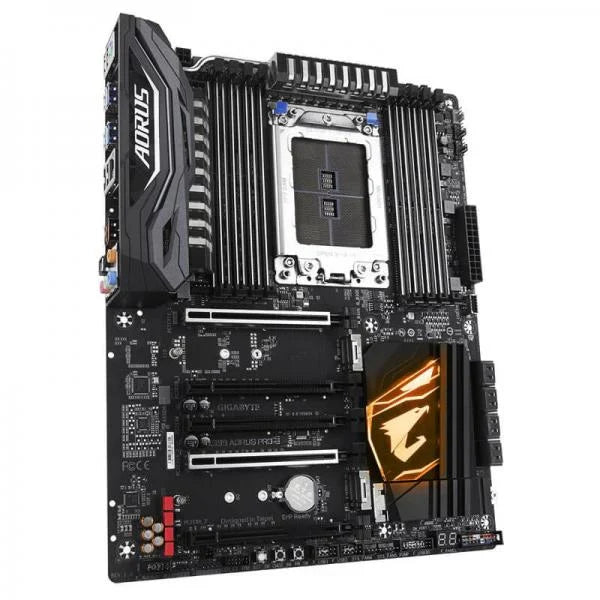

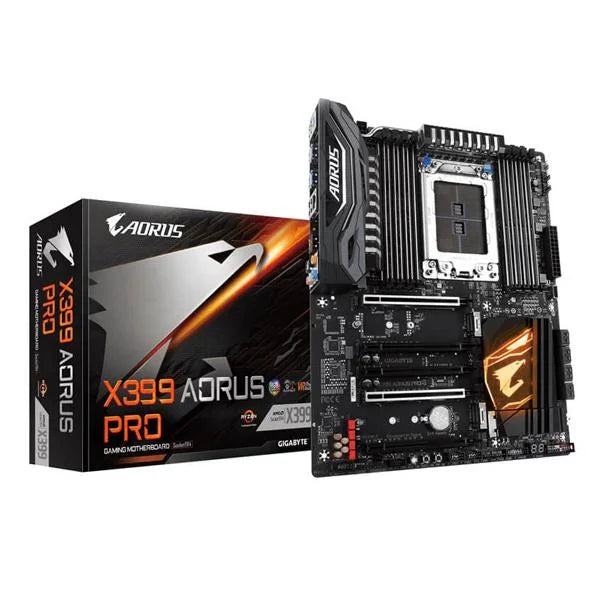

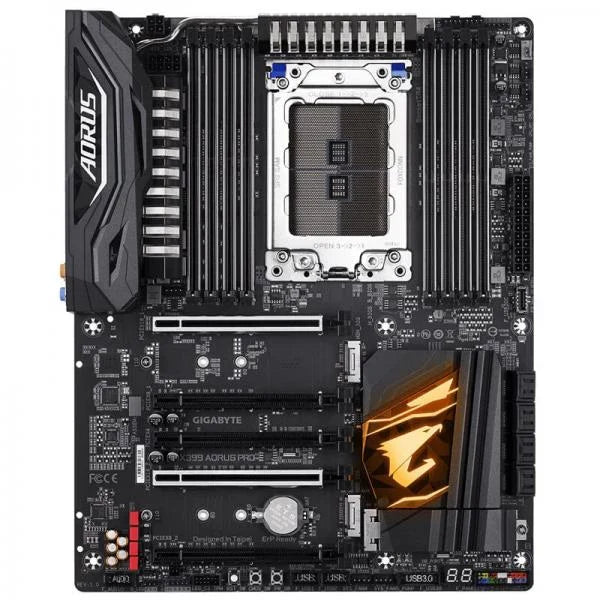

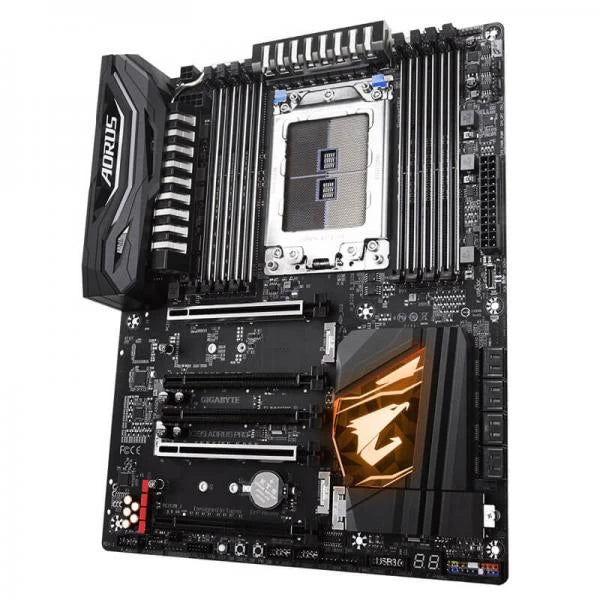

The GIGABYTE X399 Aorus Pro DDR4 enthusiast motherboard with AMD Ryzen™ Threadripper™ Processor. Do everything, do it all at the same time, and do it without sacrificing responsiveness. Render. Stream. Compile. Encode. Work or Play. Real-World Productivity or Virtual Reality Entertainment. The AORUS X399 enthusiast motherboard has the power to overwhelm your most daunting workloads.

Supports 2nd Gen Ryzen™ Threadripper™ CPUs

With up to 32 cores, the 2nd Generation of AMD Ryzen™ Threadripper™ processor can command 64 threads, the most multi-processing power that has ever been unleashed on a consumer desktop. Overwhelm your workloads with 64MB of L3 cache, without sacrificing.

Quad-Channel DDR4 for devastating memory bandwidth, 64 lanes of incredible PCIe Gen3 connectivity, and native USB 3.1 Gen2 10Gb/s support on a chipset. With every processor multiplier-unlocked to be configured as you see fit, AORUS X399 motherboard is perfectly designed to support the 2nd Generation Ryzen™ Threadripper™ 250W processor to offer you the latest advancements in motherboard technology.

Free NVMe RAID Support

NVMe RAID for AMD Ryzen™ Threadripper™ platform is now supported for free. By combining multiple NVMe SSDs together into a RAID 0, 1, or 10 array, it is possible to greatly enhance disk performance or data integrity. With a single GPU in the system, up to 8 NVMe SSDs array can be supported by AORUS X399 motherboards.

AORUS PERFORMANCE
Server-Class Digital Power Design

AORUS X399 series motherboards use an all digital CPU power design from International Rectifier® which includes both 4th Generation digital PWM Controllers and industry-leading 3rd Generation PowIRstage® controllers. These 100% digital controllers offer incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from their new AMD Ryzen™ Threadripper CPUs.

IR Digital PWM & IR PowIRstage® ICs

This new generation of IR® digital power controllers and PowIRstage® ICs feature Isense technology, which provide more precise current sensing accuracy. This helps evenly distribute the thermal loading between the PowIRstage® ICs, preventing the overheating of each individual PowIRstage®, resulting in longer lifespan and better reliability.

Server Level Chokes

AORUS X399 series motherboards feature Server Level Chokes.
• Server level reliability
• High current capacity
• New design reduces heat created by power loss and provides efficient power delivery to CPU VRM area.

4-Way Graphics with Premium 48 PCIe Lanes Bandwidth

AORUS X399 motherboards feature a unique PCI Express design that utilizes 100% of all 48 lanes from the CPU when in a 4-Way or 3-Way graphics configuration providing the full bandwidth available and provide the best graphics bandwidth possible to the user.

Triple PCIe Gen3 x4 M.2 Direct from CPU

AORUS X399 Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.

AORUS M.2 Thermal Guard

M.2 Thermal Guards prevent throttling and bottlenecks on M.2 SSDs especially on high-end NVMe PCIe M.2 SSDs. Reduces and dissipates heat from M.2 SSDs to maintain high SSD performance.

AORUS CONNECTIVITY
Intel® GbE LAN with cFosSpeed Internet Accelerator Networking

Intel® GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

USB Type-C™ Front Panel Connector

Equipped with next generation connectivity onboard GIGABYTE X399 Motherboards already support the chassis of the future. The onboard USB Type-C header for USB 3.1 Gen1 makes access convenient when connecting a USB 3.1 drive or charging your new mobile device.

Fast USB 3.1 Gen 2 Solution

The latest USB 3.1 Gen 2 offers staggering 10Gb/s transfer speeds. 2x faster than USB 3.1 Gen 1 along with backwards compatibility with existing USB devices.

USB with Precision Digital Fuse

Utilizing a digital fuse, motherboards are able to avert against over-current damage by reacting faster, with greater precision, and avoid unexpected voltage from external devices.

ALC 1220 120dB SNR HD Audio with Smart Headphone Amp
ALC 1220 120dB SNR HD Audio

The ALC1220 is a high-performance multi-channel High Definition Audio Codec with up to 120dB SNR for crystal clear audio and features such as Smart Headphone Amp, 114dB SNR recording for precise voice chats and hardware decoding of DSD128, ensuring users get the best possible audio quality from their PC.

Smart Headphone AMP

Automatically detects impedance of your head-worn audio device, whether earbuds or high-end headphones to provide optimal audio dynamics—preventing issues such as low volume and distortion.

AORUS STYLE
RGB Fusion 2.0 with Digital LEDs

With AORUS X399 Motherboards, RGB Fusion 2.0 is even better with Digital LEDs.* RGB Fusion 2.0 offers users the option to control onboard and external LED light strips for their PC. Already feature filled with colors and patterns, RGB Fusion 2.0 on X399 Series AORUS Motherboards are now upgraded with Digital LED support. With onboard options and external digital LED strips*, where each LED is digitally addressable, users can experience even more patterns, styles, and illuminations.

AORUS Gaming Motherboards will support either 5v or 12v digital LED strips. RGB Fusion 2.0 with Digital LEDs comes with 9 new patterns and various speed settings with more to come.

Multi-Zone Light Show Design

Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard.

RGB Fusion 2.0 Software

With an integrated intuitive user interface, the RGB Fusion 2.0 provides you a better solution for customizing the lighting effects across all supported devices. From motherboards, graphics cards to the peripheral products, you can personalize your gaming rig with your own style and show off your build by sharing the profiles. In addition, the new gaming mode makes the lighting effects interactive with selected games to bring you the most immersive gaming experience.

Swappable Overlay for Accent LED

AORUS brings even more color and life to your system with an Accent LED PCH Overlay. This overlay complements the RGB Fusion 2.0 technology in AORUS Motherboards adding more flare and style to your gaming machine. With the swappable overlay users can utilize different patterns and designs to make their system their own.

AORUS COOLING
Smart Fan 5

With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

Hybrid Fan Pin Headers

Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate and water-temperature through the Hybrid Fan Pin Headers or external thermistor sensors—giving you absolute mastery over your PC.
• All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.

New Smart Fan 5 Software

Choose from different modes, Quiet to Full Speed, to match your system usage scenario.
For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds.

Interoperable Sensors and Fans

Each fan can be customized to operate at different speeds according to any defined temperature source input (except the CPU fan).

Fan Curve

Customize fan curves based on specific temperatures with the intuitive graphical UI.

AORUS ULTRA DURABLE
Gold Plated Solid Power Connectors
Make Good Connection and Significantly Lower the Wires Capacity

AORUS X399 motherboards feature gold plated ATX 24pin & ATX 12V 8pin+4pin power connectors for offering stable and affordable power supply while CPU overloading. Gold provides superior conductivity and signal transmission than standard implementations, also providing far better reliability and stability over time by resistance to metal corrosion caused by frequent use overtime.

Ultra Durable™ Memory Armor

AORUS' exclusive one piece stainless steel shielding design prevents against PCB distortion and twist, plate bending, in addition to preventing any possible ESD interference
