Features of POWERCOLOR Radeon RX 7900 XTX HellHound 24GB AMD

1. 1. Metal Reinforced Backplate
2. 2. Dual BIOS
3. 3. High Quality 14-Layer PCB Design
4. 4. DrMOS with IMON Digital Monitoring
5. 5. Optimum Heatpipe Arrangement
6. 6. Brand New Amethyst LED Color
7. 7. Ring-fan Blade Design

New Atmosphere of Hellhound

Hellhound has long been guarding the gaming underworld and is committed to deliver the most reliable gaming experience. Remain simple and sleek; it is never humble in showing its strength when the gamers calls for. The Hellhound of this generation features a second LED color – amethyst purple—to provide a different atmosphere in your PC build.

Engineered for Performance and Reliability

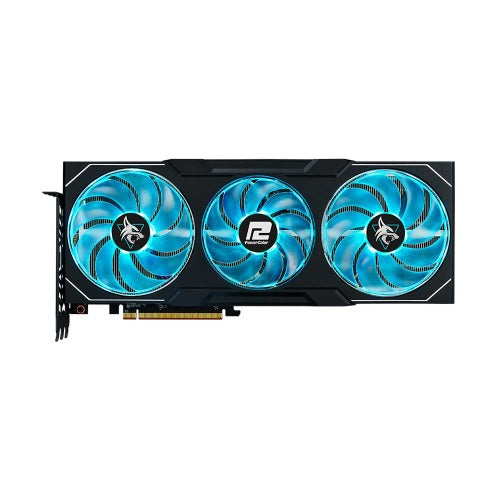

POWERCOLOR Radeon RX 7900 XTX HellHound 24GB AMD Graphic Card adopts a triple ringed-fan solution (100 x 90 x 100mm), a set of 8 x 6φ heatpipes running through the heatsink, and a copper plate directly touching the GPU while covering VRAM to achieve better cooling efficiency. In addition, the product is built with 12+3+2+2+1 phase VRM design and DrMOS that comes with IMON real-time digital monitoring, aiming at providing reliable performance output during gaming.

High Quality Japanese Dual Ball Bearings

Dual ball bearings reduce rotational friction, providing excellent heat dissipation and effectively doubling the expected lifetime of the fans.

Intelligent Fan Controller

Utilizing temperature detection from a smart chip, fans will start running when the GPU reaches 60℃ and shut down below 50℃. Efficient cooling, fan-noise reduction, and extended product lifetime are all benefits of a more accurate temperature monitoring.

Unprecedented Ring-fan Blade Design

The newest 9-blade design of our fans generate better airflow and air pressure under the same noise level, improving cooling performance to reduce GPU temperatures by more than 3℃ compared to previous generations.

GPU Direct-Contact Copper Plate

We have increased the copper plate area to provide direct contact with the GPU while covering VRAM to increase the heat transfer threshold to the max.

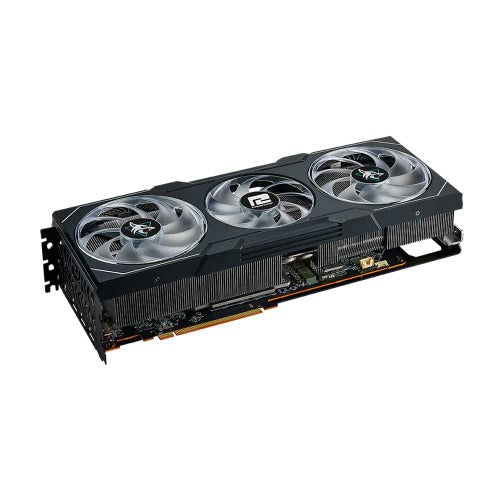

Vertical Fin Heatsink

A large heatsink with vertical fins spaced closely is mounted on PCB and offers better heat-spread area and radiation, allowing airflow to disperse heat efficiently.

Turbulence Reducing Fan Rotation

The middle fan spins in the reverse way so as to reduce the air turbulence between neighboring fans when drawing in cool air. The mechanism therefore maximizes the air flow and pressure when less turbulence occurs to offset, further to lower the noise level without sacrificing the cooling efficiency.

Optimum Heatpipe Arrangement

A set of 8 x 6φ nickel-plated copper heatpipes align closely above the PCB to more quickly and effectively transfer heat from the GPU and VRAM to the cooling array.

Car-Grade Power Module DrMOS with iMON Real Time Digital Monitoring

Hellhound adopts a 12+3+2 phase VRM design with DrMOS to power the GPU as well as an additional 2+1 phase specifically designated for the VRAM. New IMON technology monitors and reports the electric current and power consumption on each individual phase. By balancing the workload, the Hellhound ensures unparalleled stability and thermal protection during overclocking.
In addition, high quality car-grade polymer capacitors features long-lasting durability and high conductivity lowers power loss during transmission.

High Quality PCB Design

A premium 14-layer high TG PCB Board -including a 2 oz power layer- is utilized in the Hellhound RX 7900 XTX; a PCB such designed decreases signal loss during transmission: important especially for higher-end GPUs with increased demands for higher currents and stability.

Anti-Sag Bracket

A robust metal bracket is installed on the side of the PCB and is supported all the way to the I/O plate, making the card stand firmly in place inside the chassis.

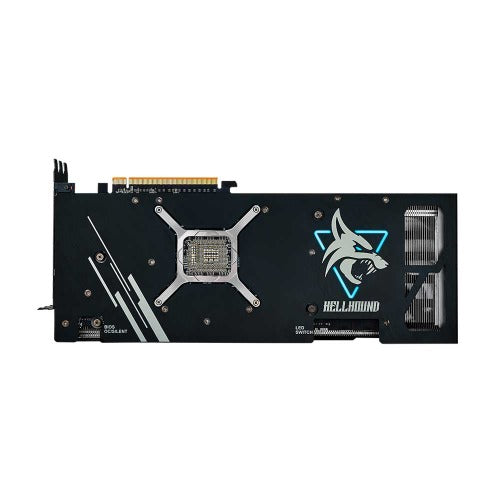

Metal Reinforced Backplate

The metal backplate strengthens and protects the internal components from PCB bend, and a cut-out design on the back plate allows exhaust heat to properly flow through for heat-dissipation efficiency.

Brand New Amethyst LED Color

Hellhound of this generation comes with a brand new amethyst purple LED lighting while retaining the previous ice blue. Gamers are able to choose the color they want by flipping the switch on side of the card.
Ice blue shows coolness and elegance while amethyst represents mystery and charm.

Dual BIOS Mode

Hellhound RX 7900 XTX features Dual BIOS built-in and a switch for easy swapping.
-OC BIOS: A boosted mode that increases fan RPM to keep your card operating at a lower temperature to drive higher performance.
-Silent BIOS: Focused on lower noise and fan longevity, a milder fan speed, trading fan speed and noise for moderate, but still controlled, temperatures while maintaining performance.

THE MOST ADVANCED GRAPHICS FOR GAMERS

Experience unprecedented performance, visuals, and efficiency at 4K and beyond with AMD Radeon™ RX 7000 Series graphics cards, the world’s first gaming GPUs powered by AMD RDNA™ 3 chipset technology. Immerse yourself in breathtaking visuals with the pinpoint color accuracy of AMD Radiance Display™ Engine and boost frame rates with AMD FidelityFX™ Super Resolution and Radeon™ Super Resolution upscaling technologies. To unlock even more performance, combine AMD Radeon™ RX 7000 Series graphics and compatible AMD Ryzen™ processors to activate AMD smart technologies.

BREAKTHROUGH PERFORMANCE

AMD Radeon™ RX 7000 Series graphics cards set a new standard for ultra-enthusiast class gaming performance. Featuring advanced AMD RDNA™ 3 compute units, blazing fast clock speeds, and chiplet technology to enable fluid, high-refresh rate gaming experiences. Breakthrough new levels of performance with up to 24GB of GDDR6 memory and 2nd generation AMD Infinity Cache™ to deliver an incredible experience at 4K and beyond.

BREATHTAKING VISUALS

Discover new levels of fidelity and ultra-fast gameplay with High-Performance Rendering, a combination of compute-based AMD FideltyFX™ features and upscaling technologies, to deliver world-class visuals with remarkable performance. Further immerse yourself with the AMD Radiance Display™ Engine and DisplayPort™ 2.1 to experience up to 68 billion colors at up to 8K 165Hz.

BETTER TOGETHER

Combine AMD Radeon™ RX 7000 Series graphics cards and AMD Ryzen™ processors to activate AMD smart technologies. You can unleash outstanding performance to give you an edge in the game. Advance your AMD Radeon™ RX 7000 Series GPU with the AMD Software: Adrenalin Edition™ application, featuring bulletproof drivers, for the best PC gaming experiences.

UPSIZE PERFORMANCE. MAXIMIZE FIDELITY

AMD FidelityFX™ Super Resolution technology takes upscaling technology to the next level. Providing incredible image quality while boosting framerates in supported games. AMD Radeon™ Super Resolution (RSR) leverages FSR technology on the driver level, giving you upscaled performance benefits across thousands of games.

Specifications of POWERCOLOR Radeon RX 7900 XTX HellHound 24GB AMD
