MSI Pro H410M-B DDR4 Intel Motherboard

Most searched : Processors MotherBoard Graphic Card CPU Cooler Mouse RAM SSD Gaming

Call Us On:

+91-99250 02827

Shop more for free shipping

360˚

Motherboard

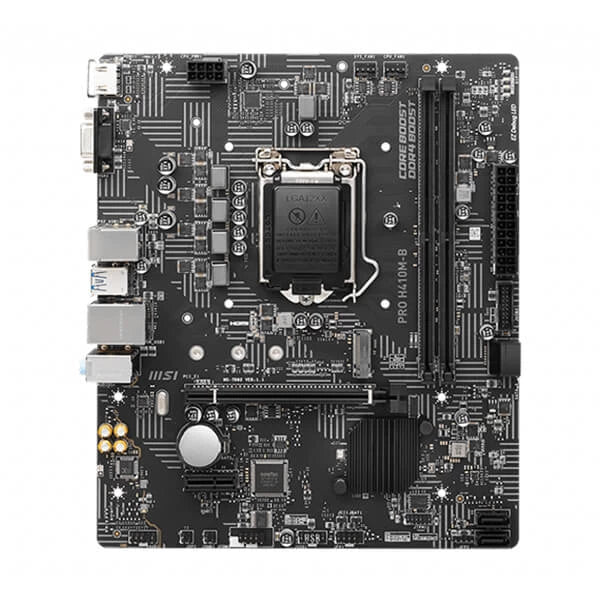

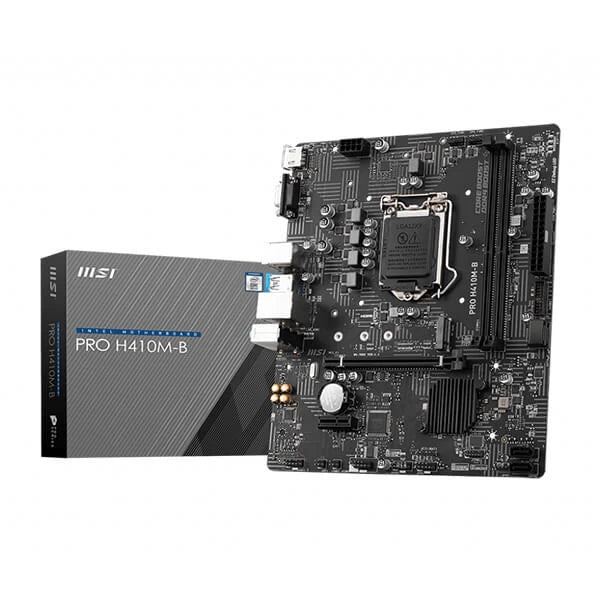

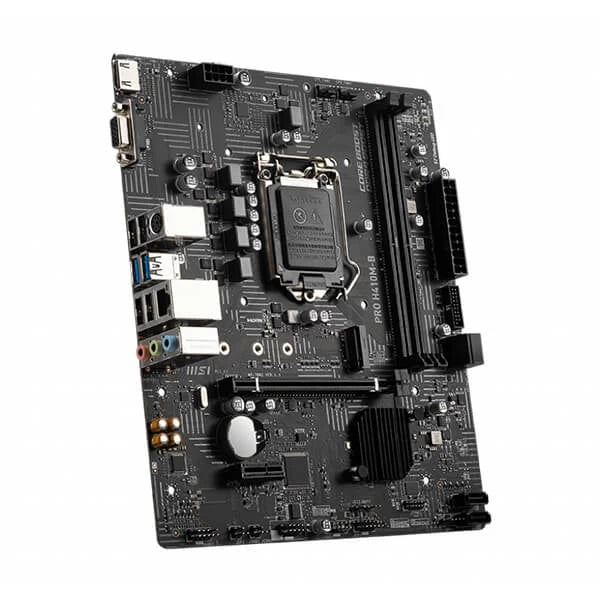

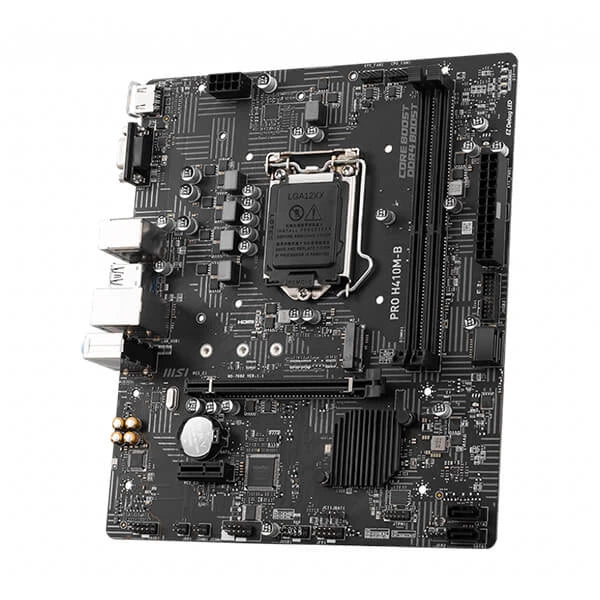

MSI Pro H410M-B DDR4 Intel Motherboard

Rs. 5,599.00

Availability : Out Of Stock

Brand : MSI

SKU : MSI-Pro-H410MB

Tags : CATP_MSI, CATQ_Motherboard, MOB10_None, MOB11_2, MOB12_1, MOB13_Gen3, MOB14_Gen3, MOB15_Black, MOB16_0, MOB17_4, MOB18_6, MOB19_0, MOB1_H410, MOB20_0, MOB21_0, MOB22_1, MOB23_55, MOB24_Intel Motherboard, MOB2_MATX, MOB3_LGA1200, MOB4_64, MOB5_2933, MOB6_2, MOB7_DDR4, MOB8_1, MOB9_0, MSI

Safe Payment

Pay with the world’s most payment methods.

Confidence

Protection covers your purchase

Worldwide Delivery

Ship to over 200 countries & regions.

Hotline

+91-99250 02827

Description

Feature of MSI PRO H410M-B DDR4

Supports 10^th Gen Intel^® Core™, Pentium^® Gold and Celeron^® processors for LGA 1200 socket
Supports DDR4 Memory, up to 2933(Max) MHz
Core Boost: With premium layout and digital power design to support more cores and provide better performance.
DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.
Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
Audio Boost: Reward your ears with studio grade sound quality

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.

FULLY CONTROLLABLE IN BIOS AND SOFTWARE

MSI Pro H410M-B DDR4 motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.

OPTIMIZE NETWORK FOR LOWER LATENCY!

MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications, giving you the best online experience with low latency.

MSI LAN MANAGER

- Allows you to change applications' traffic priority -
- Allows you to customize bandwidth for each application

EXTREME STABILITY & COMPATIBILITY TESTING

MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules and configurations.

CORE BOOST

Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.

Specifications of MSI PRO H410M-B DDR4

Processor	Supports 10th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors1 Processor socket LGA1200
Chipset	Intel® H510 Chipset
Memory	2x DDR4 memory slots, support up to 64GB1 Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR) Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP)
Expansion Slot	1x PCIe 3.0 x16 slot (From CPU) 1x PCIe 3.0 x1 slot (From PCH)
Onboard Graphics	1x VGA port, supports a maximum resolution of 2048x1536 60Hz, 1920x1200 60Hz 1x HDMI 1.4 port, supports a maximum resolution of 4K 30Hz 1 2 Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Storage	4x SATA 6Gb/s ports (From H510 Chipset) 1x M.2 slot (Key M, from H510 chipset) Supports up to PCIe 3.0 x4 Supports SATA 6Gb/s1 Supports 2242/ 2260/ 2280 storage devices SATA4 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
USB	Intel® H510 Chipset 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector) 6x USB 2.0 ports (4 Type-A ports on the back panel, 2 ports available through the internal USB 2.0 connector)
Audio	Realtek® ALC897/ ALC892 Codec 7.1-Channel High Definition Audio
LAN	1x Realtek® RTL8111 Gigabit LAN controller
Internal connectors	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x USB 2.0 connector (support additional 2 USB ports) 1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Serial port connector 1x TPM module connector 1x Chassis Intrusion connector 1x Clear CMOS jumper

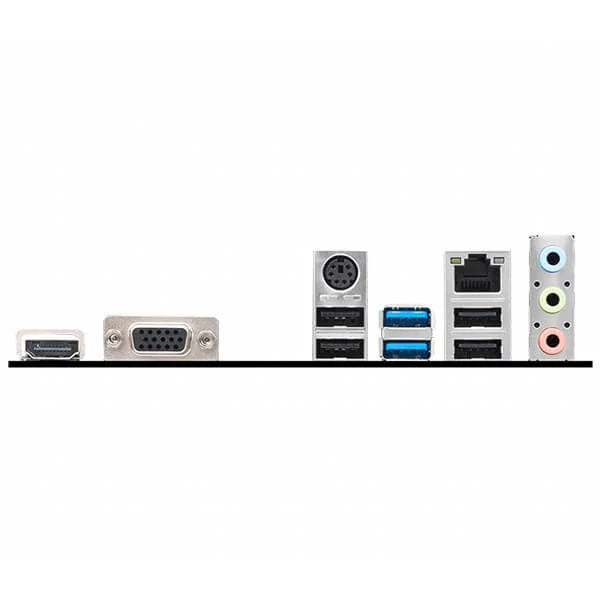

Back panel ports	HDMI VGA Mouse / Keyboard USB 3.2 Gen 1 5Gbps Type-A LAN port Audio connector USB 2.0 USB 2.0
Dimensions	M-ATX Form Factor 9.3 in. x 7.95 in. (23.6 cm x 20.2 cm)
Mounting	6 mounting holes
Operating System	Support for Windows® 10 64-bit
Warranty	3 Years
Note	*** Features, Price, Specifications are subject to change without notice.
