MSI MPG Z490 Gaming Plus DDR4 Intel Motherboard

Most searched : Processors MotherBoard Graphic Card CPU Cooler Mouse RAM SSD Gaming

Call Us On:

+91-99250 02827

Shop more for free shipping

MSI MPG Z490 Gaming Plus DDR4 Intel Motherboard

360˚

- 21%

Motherboard

MSI MPG Z490 Gaming Plus DDR4 Intel Motherboard

Rs. 22,950.00 Rs. 18,099.00

Availability : Out Of Stock

Brand : MSI

SKU : MSI-MPG-Z490-GAMING-PLUS

Tags : CATP_MSI, CATQ_Motherboard, MOB10_None, MOB11_8, MOB12_1, MOB13_Gen3, MOB14_Gen4, MOB15_Black, MOB16_1, MOB17_6, MOB18_5, MOB19_0, MOB1_Z490, MOB20_1, MOB21_2, MOB22_1, MOB23_75, MOB24_Intel Motherboard, MOB2_ATX, MOB3_LGA1200, MOB4_128, MOB5_5000, MOB6_4, MOB7_DDR4, MOB8_2, MOB9_1, MSI

Safe Payment

Pay with the world’s most payment methods.

Confidence

Protection covers your purchase

Worldwide Delivery

Ship to over 200 countries & regions.

Hotline

+91-99250 02827

Description

Feature of MSI MPG Z490 Gaming Plus

MSI MPG Z490 GAMING PLUS is powered by Intel USB 3.2 Gen2 controller. Now provides more stability and faster USB helps to have uninterrupted connection, all thanks to Turbo USB. Tired of bad sound quality? MSI MPG Z490 GAMING PLUS comes with an audio boost. The studio-grade sound quality helps in gaming and multimedia.

Supports 10th Gen Intel^® Core™ / Pentium^® Celeron^® processors for LGA 1200 socket
Supports DDR4 Memory, up to 4800(OC) MHz
Enhanced Power Design: 12+1+1 Duet Rail Power System, 8+4 pin CPU power connectors, Core Boost, DDR4 Boost
Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
2.5G LAN with LAN Manager: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
Pre-installed I/O Shielding: Better EMI protection and more convenience for installation
Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen 2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
Audio Boost: Reward your ears with studio grade sound quality

2.5G LAN

Onboard 2.5G LAN with LAN manager, delivering the best online gaming experience.

Extended Heatsink Design

MSI MPG Z490 Gaming Plus extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.

Twin Turbo M.2

With 2 x M.2 slots. Running at PCI-E Gen4 x4 maximizes performance for NVMe based SSDs.

Core Boost

With premium layout and fully digital power design to support more cores and provide better performance.

DDR4 Boost

Advanced technology to deliver pure data signals for the best gaming performance and stability.

8+4 Pin power supply

By providing 8+4 pin connectors to ensure adequate power supply to unleash ultimate multi-core CPU performance.

M.2 SHIELD FROZR

Onboard M.2 thermal solution to keep M.2 SSDs safe while preventing throttling, making them run cooler & faster.

Pre-installed I/O Shielding

Better EMI protection and more convenience for installation

Specifications of MSI MPG Z490 Gaming Plus

Processor	Supports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors for LGA1200 socket 1 2 Please go to intel.com for compatibility information. Onboard graphics output are disabled when using the SKU processors.
Chipset	Intel® Z490 Chipset
Memory	4 x DDR4 memory slots, support up to 128GB 1Supports 1R 2133/2666/2933 MHz 11DPC 1R Max speed up to 4800+ MHz 1DPC 2R Max speed up to 4266+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHzSupports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) Please refer www.msi.com for more information on compatible memory.
Expansion Slot	1x PCIe 3.0 x16 slot (from CPU) 1x PCIe 3.0 x16 slot (from PCH， supports x4 mode) 3x PCIe x1 slots (from PCH)
Onboard Graphics	1x HDMI port, supports a maximum resolution of 4096x2160 @ 30Hz 1x DisplayPort port supports a maximum resolution of 4096 x 2304 @ 60Hz
Multi-GPU	Supports 2-Way AMD® CrossFire™ Technology
Storage	Intel® Z490 Chipset 6x SATA 6Gb/s ports 1 2x M.2 slots (Key M)M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices 1 M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices 2 Intel® Optane™ Memory Ready 3 Supports Intel® Smart Response Technology for Intel Core™ processorsSATA2 will be unavailable when installing M.2 SATA SSD in the M2_1 slot. SATA5 & SATA6 will be unavailable when installing M.2 SATA/PCIe SSD in the M2_2 slot. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
RAID	Intel® Z490 Chipset Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 PCIe storage devices
USB	Intel® Z490 Chipset 2x USB 3.2 Gen 2 10Gbps ports (1 Type-A port and 1 Type-C port on the back panel) 7x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 4 ports through the internal USB connectors, 1 Type-C internal connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
Audio	Realtek® ALC1200-VD1 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
LAN	1x Realtek® RTL8125B-CG 2.5G LAN Controller
Internal connectors	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 6x SATA 6Gb/s connectors 1x USB 3.2 Gen 1 5Gbps Type-C port 2x USB 3.2 Gen 1 5Gbps connectors (support additional 4 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (support additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water pump connector 6x 4-pin system fan connectors 1x front panel audio connector 2x system panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 1x serial port connector 1x TPM module connector 1x TBT connector 1 Thunderbolt card need support RTD3

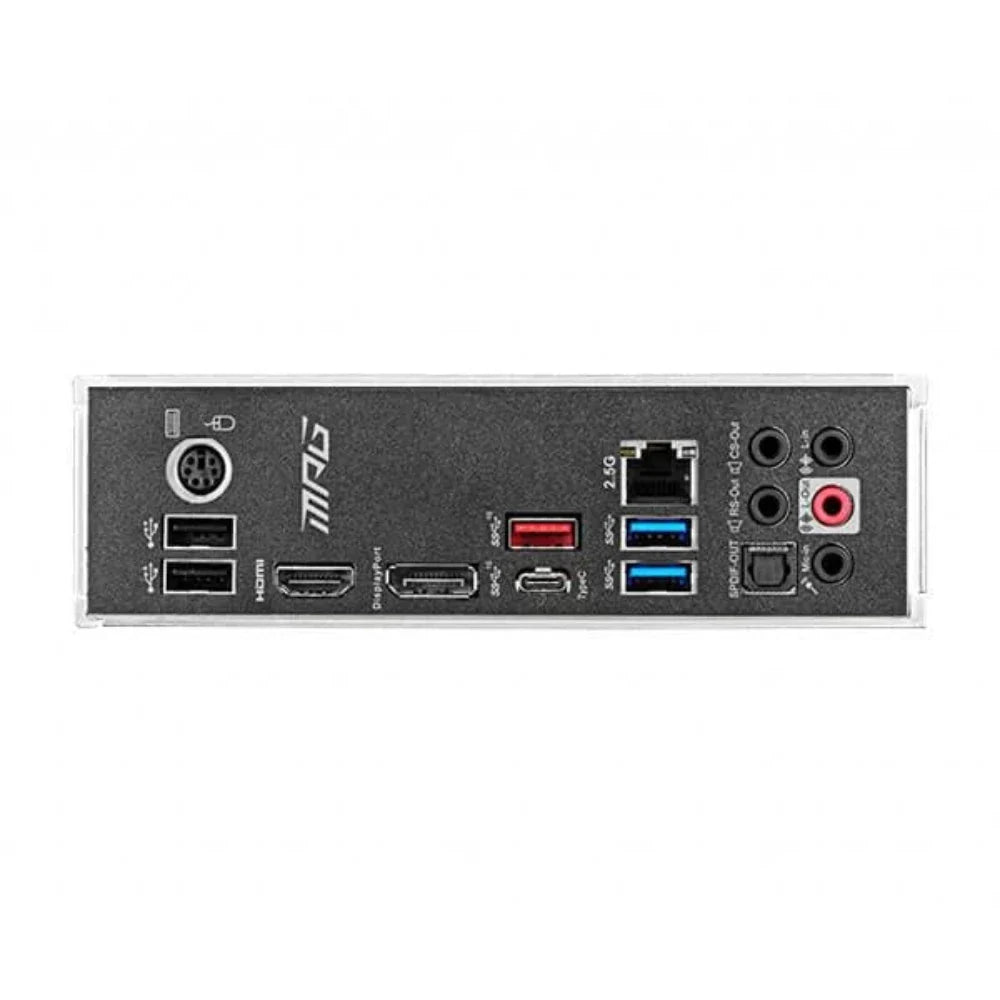

Back panel ports	PS/2 Combo Port USB 3.2 Gen 2 10Gbps (Type-A) LAN Port HD Audio Connectors USB 2.0 Ports HDMI Port DisplayPort USB 3.2 Gen 2 10Gbps (Type-C) USB 3.2 Gen 1 5Gbps (Type-A) Optical S/PDIF OUT
Dimensions	ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Mounting	9 mounting holes
Operating System	Support for Windows® 10 64-bit
Warranty	3 Years
Note	***Features, Price and Specifications are subject to change without notice.
