MSI MPG Z390M Gaming Edge AC Wifi DDR4 Intel Motherboard

360˚

- 23%

Motherboard

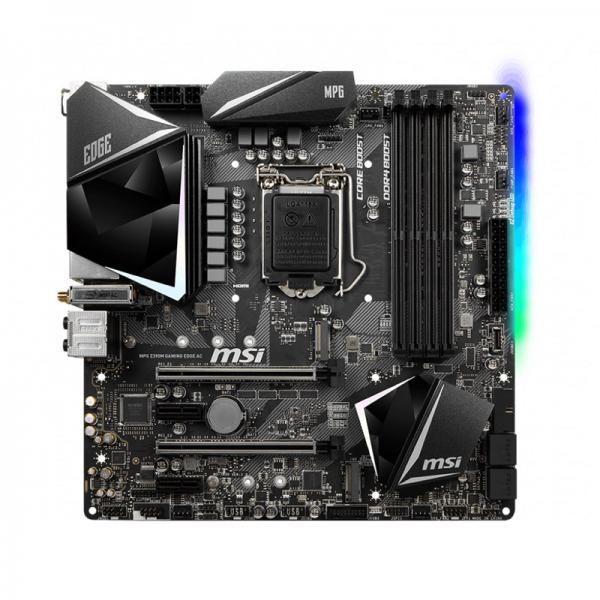

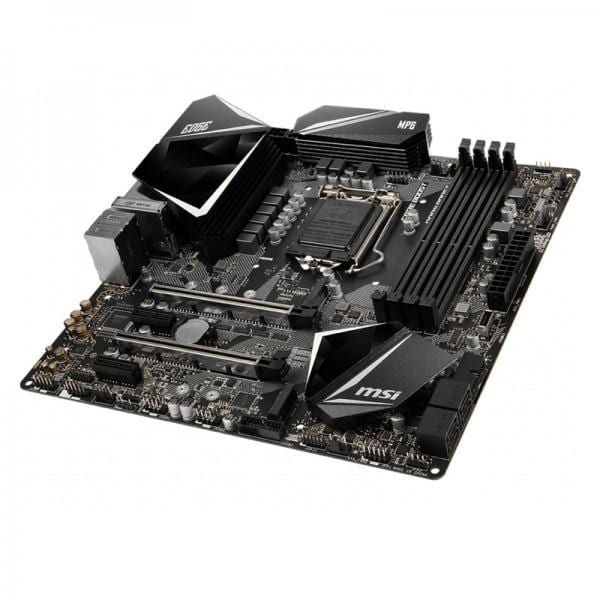

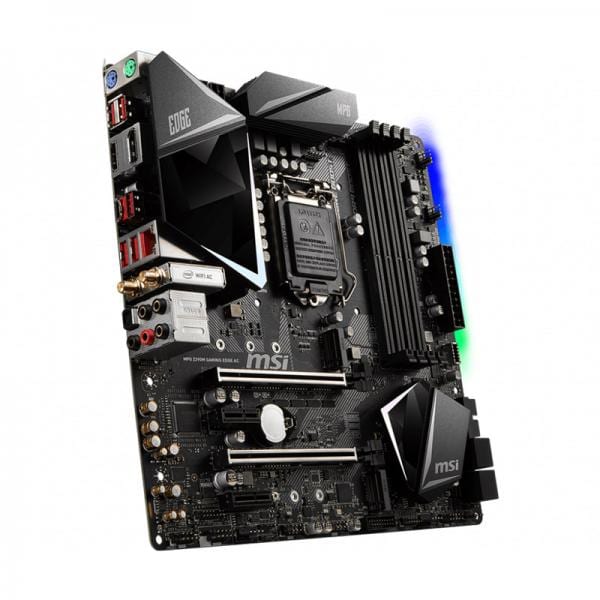

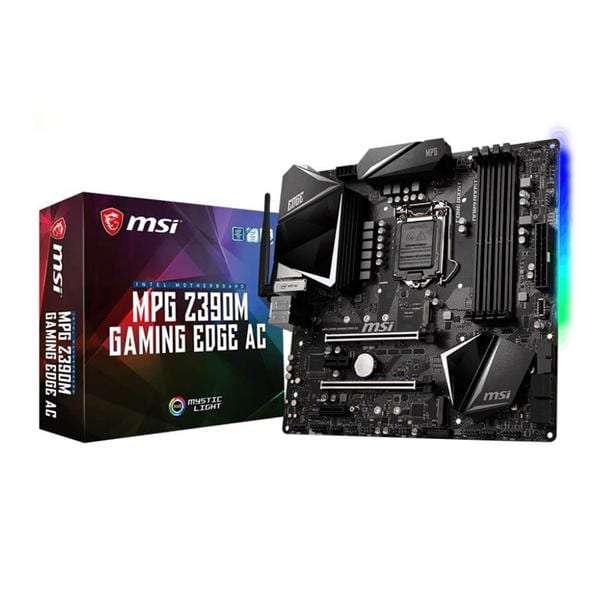

MSI MPG Z390M Gaming Edge AC Wifi DDR4 Intel Motherboard

Rs. 24,150.00 Rs. 18,447.00

Availability : Out Of Stock

Brand : MSI

SKU : MSI-MPG-Z390M-GAMING-EDGE-AC-WIFI

Tags : CATP_MSI, CATQ_Motherboard, MOB10_ARGB, MOB11_5, MOB12_1, MOB13_Gen3, MOB14_Gen3, MOB15_Black, MOB16_1, MOB17_4, MOB18_5, MOB19_1, MOB1_Z390, MOB20_2, MOB21_2, MOB22_1, MOB23_55, MOB24_Intel Motherboard, MOB2_MATX, MOB3_LGA1151, MOB4_128, MOB5_4500, MOB6_4, MOB7_DDR4, MOB8_2, MOB9_0, MSI

Safe Payment

Pay with the world’s most payment methods.

Confidence

Protection covers your purchase

Worldwide Delivery

Ship to over 200 countries & regions.

Hotline

+91-99250 02827

Description

Feature of MSI MPG Z390M Gaming Edge AC WiFi DDR4

Full of sharp and salient lines reflecting gorgeous colors design, perfect balance between appearance and performance with Extended Heatsink Design, Core boost, Twin Turbo M.2, Front USB 3.1 Gen2 connector and Mystic Light

Supports 9^th / 8^th Gen Intel^® Core™ / Pentium^® Gold / Celeron^® processors for LGA 1151 socket
Supports DDR4 Memory, up to 4500(OC) MHz
Lightning Fast Game experience: 2x TURBO M.2, Intel Optane Memory Ready. Turbo USB 3.1 GEN2
Set Core Power Free: Extended Heatsink Design, Core Boost, 8 4 pin CPU power connector, Game Boost, DDR4 Boost
MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip.
AUDIO BOOST 4 with NAHIMIC 3: Reward your ears with studio grade sound quality for the most immersive gaming experience
Dragon Center: A brand new software which integrates all MSI tools like GAME MODE, VOICE BOOST, LIVE UPDATE with user friendly user interface.

Cooling

The MPG Z390 has one water pump connector and four fan headers with DC and PWM control, which enable you to adjust your fans' speeds as needed within BIOS or a third-party software. Moreover, it has an extended heatsink design to help dissipate heat and ensure stable performance.

User Friendly

XL Clip - Enlarged PCIe clips make it easier for users to swap out PCIe hardware
EZ Debug LED - Onboard LEDs for key components indicate the source of a problem

CPU

For stability and performance, this motherboard features Core Boost, a combination of layout design and optimization which allows for faster and undistorted current delivery to the CPU. It also supports one-second overclocking with the optional MSI Game Boost software. Additional enhancements and features include load-line calibration, overvoltage protection, digital power design, and double power connectors.

DDR4

The DDR4 RAM slots on this motherboard feature optimized traces and a fully isolated memory circuit for stable performance. It also supports a variety of RAM from different manufacturers, so be sure to check if yours is compatible. Moreover, you can easily toggle on XMP (Intel Extreme Memory Profile) with just a single click within BIOS.

Storage

Install PCIe Gen 3 x4 SSDs or even Intel Optane memory on this motherboard for fast storage solutions. With a compatible drive, you'll be able to transfer data at speeds of up to 32 Gb/s. Moreover, you can enable XBoost within MSI's optional software for enhanced SSD speeds. For larger capacity storage, this motherboard has six SATA III ports and supports RAID 0, 1, 5, and 10 with M.2 Genie. Please note that you should upgrade the drivers and BIOS to the latest version before using Intel Optane memory.

Internet Connectivity

Intel I219-V provides you with fast, optimized gaming-quality Gigabit LAN connectivity. Moreover, this motherboard also has 802.11ac Wi-Fi for wireless internet connectivity as well as Bluetooth 5.0 for pairing additional peripherals.

Audio

The MPG Z390 is built with MSI Audio Boost as well as multiple hardware and software features designed to provide you with a better listening experience.

Dedicated, EMI-shielded Hi-Fi audio processor
Isolated audio design with LED border ensures a better audio signal
Separated audio layers for clean left and right channels
De-pop protection prevents loud popping sounds when you plug or unplug or devices
Nahimic 3 surround sound for immersion
High-quality audio capacitors for a warmer sound
Connectors for 7.1-channel surround sound

MSI Mystic Light

Control and sync your compatible RGB products with MSI Mystic Light. This motherboard has two 4-pin RGB LED and two 3-pin RAINBOW LED connectors for connecting additional lighting products. With over 16.8 million colors to choose from and a variety of lighting patterns, MSI Mystic Light can be easily configured to fit your build's aesthetics.

Specifications of MSI MPG Z390M Gaming Edge AC WiFi DDR4

PROCESSOR	Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket
CHIPSET	Intel® Z390 Chipset
MEMORY	4 x DDR4 memory slots, support up to 128GBDDR4 4500(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) /2800(OC)/ 2666/ 2400/ 2133 MHz Dual-Channel mode non-ECC, un-buffered memory Intel® Extreme Memory Profile (XMP)
SLOTS	2 x PCIe 3.0 x16 slots Support x16/ x0, x8/ x8 modes 2 x PCIe 3.0 x1 slots
ONBOARD GRAPHICS	1 x HDMI™ port, supports a maximum resolution of 4096x2160@24Hz 1 x DisplayPort, supports a maximum resolution of 4096x2304@60Hz *No Display support when using the Processor model with suffix “F”
MULTI-GPU	Supports 2-Way NVIDIA® SLI™ Technology Supports 2-Way AMD® CrossFire™ Technology
STORAGE	Intel® Z390 Chipset 4 x SATA 6Gb/s ports 2 x M.2 slot (Key M)M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices Intel® Optane™ Memory Ready1Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
RAID	Intel® Z390 Chipset Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 for M.2 PCIe storage devices
USB	Intel® Z390 Chipset 3 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-A and 1 Type-C ports on the back panel, 1 Type-C internal connector) 4 x USB 2.0 (High-speed USB) ports available through the internal USB 2.0 connectors 8 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 ports on the back panel, 4 ports available through the internal USB 3.1 connectors)
AUDIO	Realtek® ALC1220P-VB2 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
LAN	1 x Intel® I219-V Gigabit LAN controller
WIFI & BLUETOOTH	Intel® Wireless-AC 9560 Supports 802.11 a/b/g/n/ac, MU-MIMO Rx, 2.4GHz/ 5GHz (160MHz) up to 1.73Gbps Supports Bluetooth® 2.1, 2.1 EDR, 3.0,4.0, 5
INTERNAL CONNECTORS	24-pin ATX main power connector 8-pin ATX 12V power connector 4-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 2 x M.2 slots 1 x USB 3.1 Gen2 Type-C port 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports) 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1 x 4-pin CPU fan connector 1 x 4-pin Water Pump connector 3 x 4-pin system fan connectors 1 x Front panel audio connector 2 x System panel connectors Serial Port connector x 1 Chassis Intrusion connector x 1 Clear CMOS jumper x 1 TPM module connector x 1 2 x 4-pin RGB LED connectors 2 x 3-pin RAINBOW LED connectors

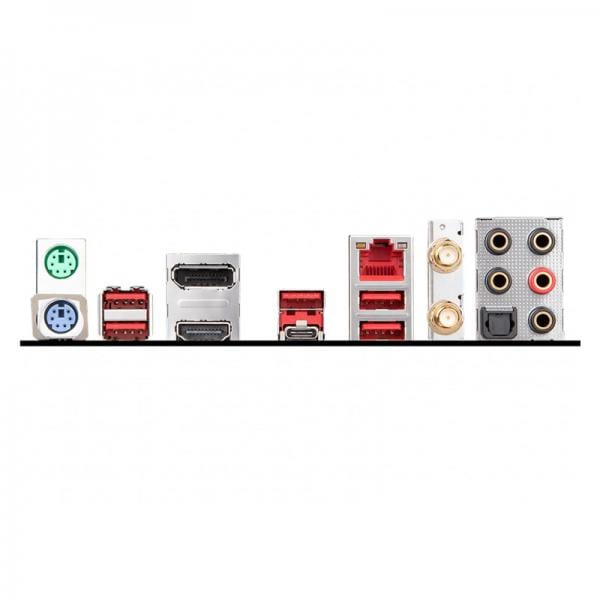

BACK PANEL PORTS	Mouse DisplayPort LAN HD Audio Connectors Keyboard USB 3.1 Gen1 HDMI USB 3.1 Gen2 Type-A C USB 3.1 Gen1 Wireless / Bluetooth Optical S/PDIF out
DIMENSIONS	9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) Micro-ATX Form Factor
MOUNTING	8 mounting holes
OPERATING SYSTEM	Support for Windows® 10 64-bit
Warranty	3 Years
Note	***Features, Price and Specifications are subject to change without notice.
