MSI MPG B560I Gaming Edge Wifi DDR4 Intel Motherboard

Most searched : Processors MotherBoard Graphic Card CPU Cooler Mouse RAM SSD Gaming

Call Us On:

+91-99250 02827

Shop more for free shipping

MSI MPG B560I Gaming Edge Wifi DDR4 Intel Motherboard

360˚

- 34%

Motherboard

MSI MPG B560I Gaming Edge Wifi DDR4 Intel Motherboard

Rs. 23,700.00 Rs. 15,525.00

Availability : Out Of Stock

Brand : MSI

SKU : msi-b560i-gaming-edge-wifi

Tags : CATP_MSI, CATQ_Motherboard, MOB10_ARGB, MOB11_3, MOB12_1, MOB13_Gen4, MOB14_Gen4, MOB15_Black, MOB16_1, MOB17_4, MOB18_5, MOB19_1, MOB1_B560, MOB20_1, MOB21_1, MOB22_1, MOB23_45, MOB24_Intel Motherboard, MOB2_ITX, MOB3_LGA1200, MOB4_64, MOB5_5200, MOB6_2, MOB7_DDR4, MOB8_2, MOB9_1, MSI

Safe Payment

Pay with the world’s most payment methods.

Confidence

Protection covers your purchase

Worldwide Delivery

Ship to over 200 countries & regions.

Hotline

+91-99250 02827

Description

Features of MSI MPG B560I Gaming Edge Wifi DDR4 Intel Motherboard

Supports 11th and 10th Gen Intel^® Core™ / Pentium^® Celeron^® processors for LGA 1200 socket
Supports DDR4 Memory, up to 5200(OC) MHz
Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2
Enhanced Power Design: 6+2+1 direct power design, 8-pin CPU power connectors, Core Boost, DDR4 Boost
Premium Thermal Solution: Extended Heatsink Design, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
2.5G LAN with LAN Manager and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
High Quality PCB: 8-layer PCB made by 2oz thickened copper material
AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
Pre-installed I/O Shield: Better EMI protection and more convenience for installation

Specifications of MSI MPG B560I Gaming Edge Wifi DDR4 Intel Motherboard

PROCESSOR	Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel ® Core™ Processors, Pentium® Gold and Celeron® Processors Processor socket LGA1200
CHIPSET	Intel® B560 Chipset
MEMORY	2x DDR4 memory slots, support up to 64GB Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU Max frequency:1DPC 1R Max speed up to 5200 MHz 1DPC 2R Max speed up to 4700+ MHzSupports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) Please refer to www.msi.com for more information on compatible memory
EXPANSION SLOTS	1x PCIe x16 slotSupport up to PCIe 4.0 for 11th Gen Intel® CPU Support up to PCIe 3.0 for 10th Gen Intel® CPU
ONBOARD GRAPHICS	1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 5120x3200 60Hz
STORAGE	4x SATA 6Gb/s ports 2x M.2 slots 2x M.2 slots M2 1 slotSupports up to PCIe 4.0 x4 for 11th Gen Intel® CPU Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel® CPU Supports 2280 storage devicesM2 2 slot Supports PCIe 3.0 x4 only Supports 2280 storage devices Intel® Optane™ Memory ReadySupports Intel® Smart Response Technology for Intel® Core ™ processors
USB	Intel® B560 Chipset 2x USB 3.2 Gen 2 10Gbps ports 3x USB 3.2 Gen 1 5Gbps ports 6x USB 2.0 ports
AUDIO	Realtek® ALC897 Codec 7.1-Channel High Definition Audio
LAN	1x Realtek® RTL8125B 2.5Gbps LAN controller
WIRELESS LAN & BLUETOOTH	Intel® Wi-Fi 6E AX210 The Wireless module is pre-installed in the M.2 slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.2, FIPS, FISMA
INTERNAL CONNECTORS	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x M.2 slots 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector 1x USB 2.0 connector 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x TPM module connector 1x Clear CMOS jumper
LED FEATURE	4x EZ Debug LED 1x 4-pin RGB LED connector 1x 3-pin RAINBOW LED connector

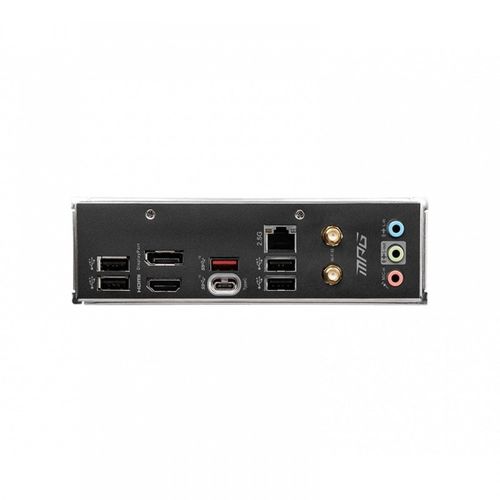

BACK PANEL PORTS	DisplayPort USB 3.2 Gen 2 10Gbps Type-A 2.5G LAN Wi-Fi/Bluetooth USB 2.0 HDMI USB 3.2 Gen 2 10Gbps Type-C USB 2.0 Audio Connectors
DIMENSIONS	Mini-ITX Form Factor 6.7 in. x 6.7 in.
MOUNTING	4 mounting holes
OPERATING SYSTEM	Support for Windows® 10 64-bit
Warranty	3 Years
Note	*** Features, Price, Specifications are subject to change without notice.
