MSI MEG Z890 Ace Wifi7 DDR5 Intel Motherboard

360˚

- 44%

Motherboard

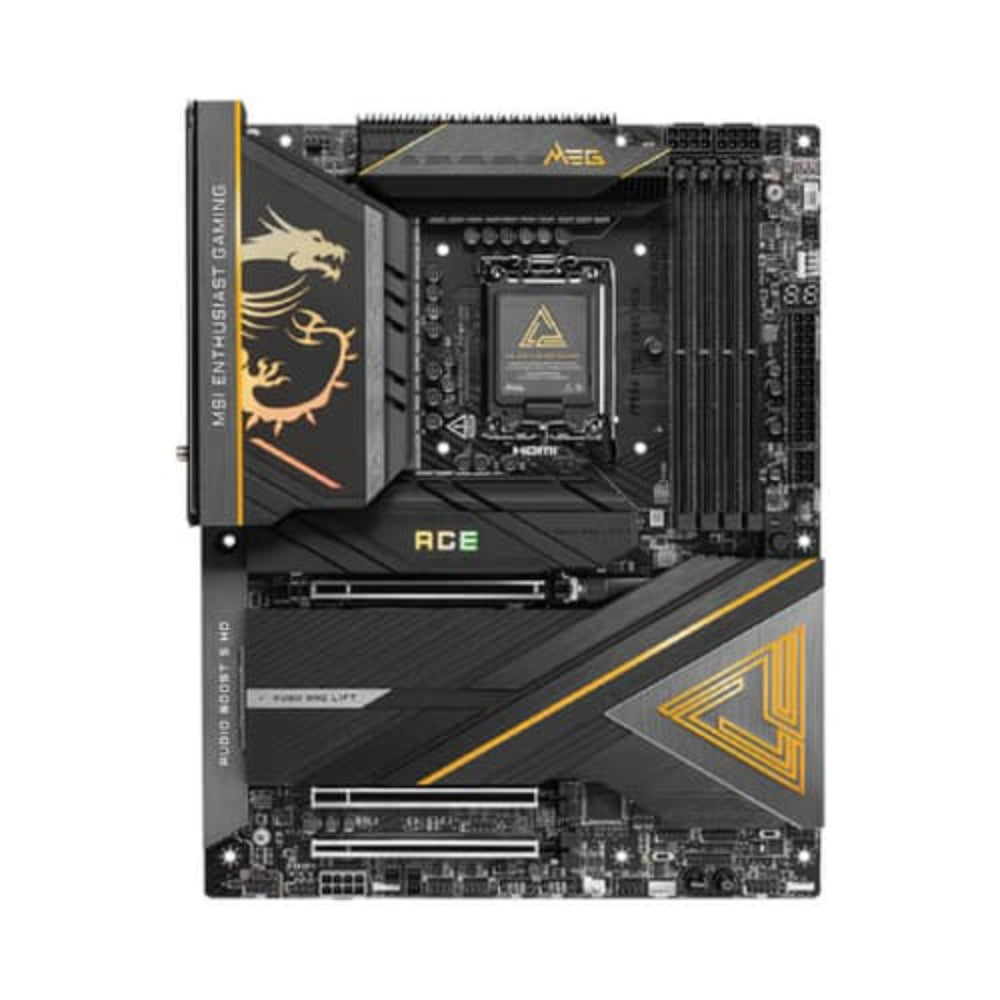

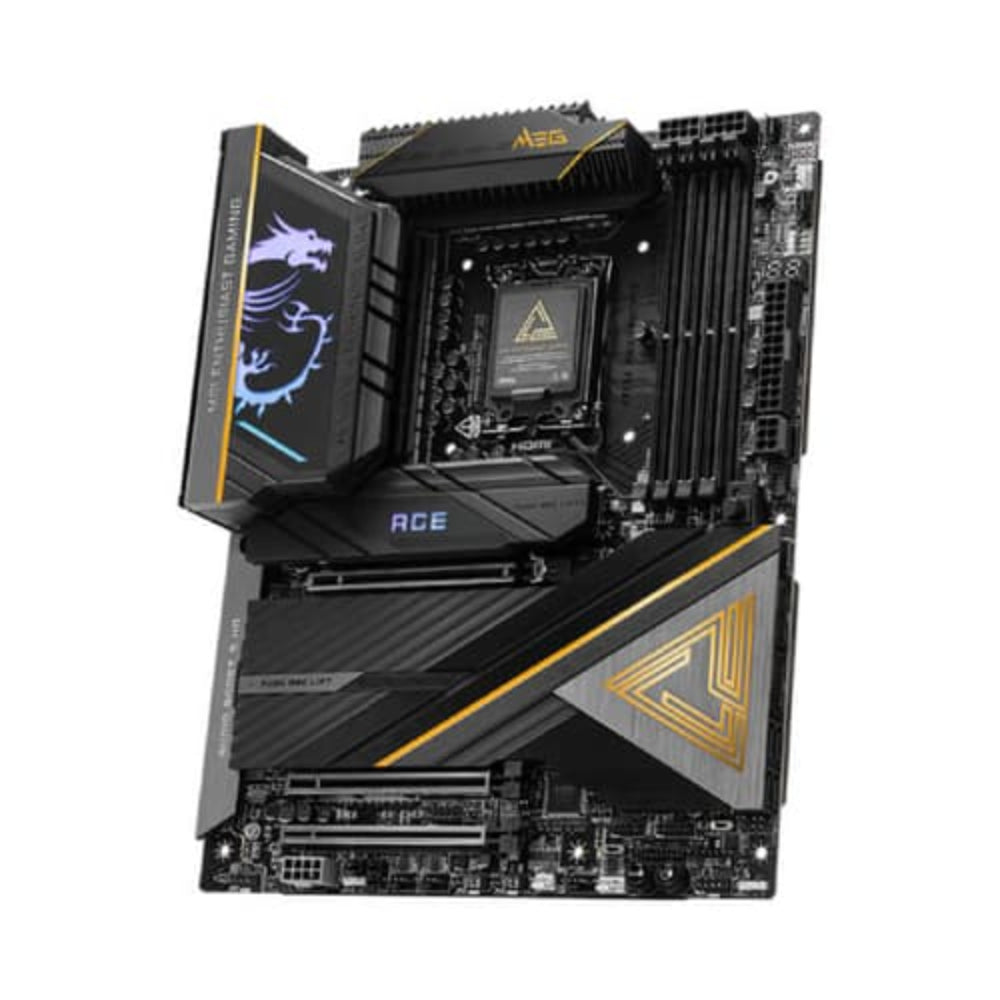

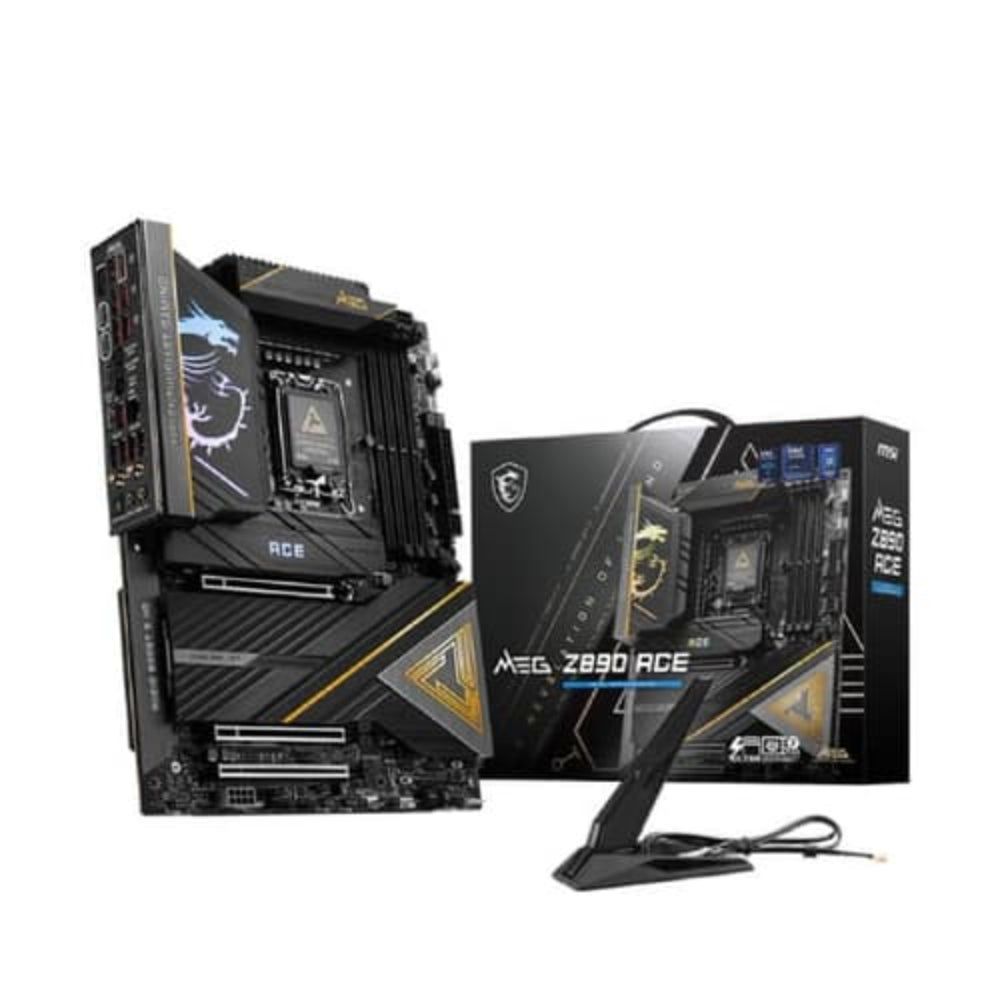

MSI MEG Z890 Ace Wifi7 DDR5 Intel Motherboard

Rs. 130,999.00 Rs. 72,495.00

Availability : Out Of Stock

Brand : MSI

SKU : msi-meg-z890-ace-wifi7-ddr5

Tags : CATP_MSI, CATQ_Motherboard, MOB10_ARGB, MOB11_8, MOB12_1, MOB13_Gen5, MOB14_Gen5, MOB15_Black, MOB16_1, MOB17_4, MOB18_11, MOB19_1, MOB1_Z890, MOB20_1, MOB21_3, MOB22_1, MOB23_75, MOB24_Intel Motherboard, MOB3_LGA1851, MOB4_256, MOB5_9200, MOB6_4, MOB7_DDR5, MOB8_5, MOB9_0, MSI

Safe Payment

Pay with the world’s most payment methods.

Confidence

Protection covers your purchase

Worldwide Delivery

Ship to over 200 countries & regions.

Hotline

+91-99250 02827

Description

Features of MSI MEG Z890 Ace Wifi7 DDR5 Motherboard

Support Intel Core Ultra Processors (Series 2) for LGA 1851 socket

Supports DDR5 Memory, Dual Channel DDR5 9200+ MT/s (OC)

Ultra Performance:

24+2+1+1 Duet Rail Power System, 110A SPS, OC Engine, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material.

Frozr Guard:

Wavy fin design, Direct Touch Cross Heat-pipe, MOSFET Baseplate, 9W/mK thermal pads, Double-Sided M.2 Shield Frozr and Frozr AI software ensure the utmost performance with low temperature.

EZ DIY:

EZ PCIe Release, EZ Magnetic M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna.

Ultra Connect:

Dual Thunderbolt 4 ports, 10G LAN, and Full-speed Intel Killer Wi-Fi 7 Solution - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission.

Lightning Fast Game Experience:

PCIe 5.0 slots, Onboard 5x M.2 Connectors with Lightning Gen 5 Solution, Front USB 20G with 60W USB Power Delivery.

Audio Boost 5 HD:

Ultimate audio solution with latest premium ALC4082 audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience.

Specification of MSI MEG Z890 Ace Wifi7 DDR5 Motherboard

Model	MEG Z890 ACE
Chipset	INTEL Z890
CPU	Supports Intel Core Ultra Processors (Series 2) LGA 1851
Memory	4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: 1DPC 1R Max speed up to 9200+ MT/s 1DPC 2R Max speed up to 7200+ MT/s 2DPC 1R Max speed up to 4800+ MT/s 2DPC 2R Max speed up to 4800+ MT/s Supports Intel POR Speed and JEDEC Speed Supports Memory Overclocking and Intel XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM * The DIMM slots on this motherboard only have single-sided latches. ** Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information
Onboard Graphics	1x HDMI Support HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz* 2x Type-C DisplayPort Thunderbolt 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz* * Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot	3x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) • PCI_E1 support manual BIOS adjustment to X8+X8/X8+X4+X4 • PCI_E2 support manual BIOS adjustment to X4+X4 * PCI_E1 slot will run at x8 speed when PCI_E2 slot installing device. ** PCI_E1 slot will run at x8 speed and PCI_E2 slot will run at x4 speed when installing PCIe Gen 5 M.2 device in the M2_4 slot.
Audio	Realtek ALC4082 Codec + ESS9219Q Combo DAC/HPA 7.1-Channel USB High-Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel
Storage	5x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 Source (From CPU+Chipset) supports up to PCIe 5.0 x4 + PCIe 4.0 x4 , supports 22110/2280 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices 4x SATA 6G * M2_4 default from chipset, can support PCIe 5.0 x4 (From CPU) by manual BIOS adjustment. ** Please refer to the manual for M.2 SSD heatsink restrictions.
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Onboard Thunderbolt	2x Thunderbolt4 ports (Rear) Support up to 40Gbps transfer rate with Thunderbolt devices Support up to 20Gbps transfer rate with USB4 devices Support up to 10Gbps transfer rate with USB 3.2 devices Support up to 5V/3A,15W power charging Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices Support up to 8K display
USB	4x USB 2.0 (Front) 4x USB 5Gbps Type A (Front) 11x USB 10Gbps Type A (Rear) 2x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) * To achieve USB PD 60W fast charging for JUSBC1, the PD_PWR1 connector needs to be connected to the power supply unit.
LAN	1x Marvell AQC113CS 10Gbps LAN
Internal IO	1x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x Front Type-C Quick Charge Connector(PD_PWR1) 1x CPU Fan 2x Combo Fan (Pump_Sys Fan) 5x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Water Flow connector 1x Slow Mode Booting Jumper(JSLOW) 1x Front Audio (JAUD) 2x Thermal Sensor connectors(T_SEN) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) V-check point 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports
WIRELESS LAN & BLUETOOTH	Intel Killer BE1750x Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4*, MLO, 4KQAM 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
LED FEATURE	4x EZ Debug LED 1x EZ Digit Debug LED 1x EZ LED Control switch

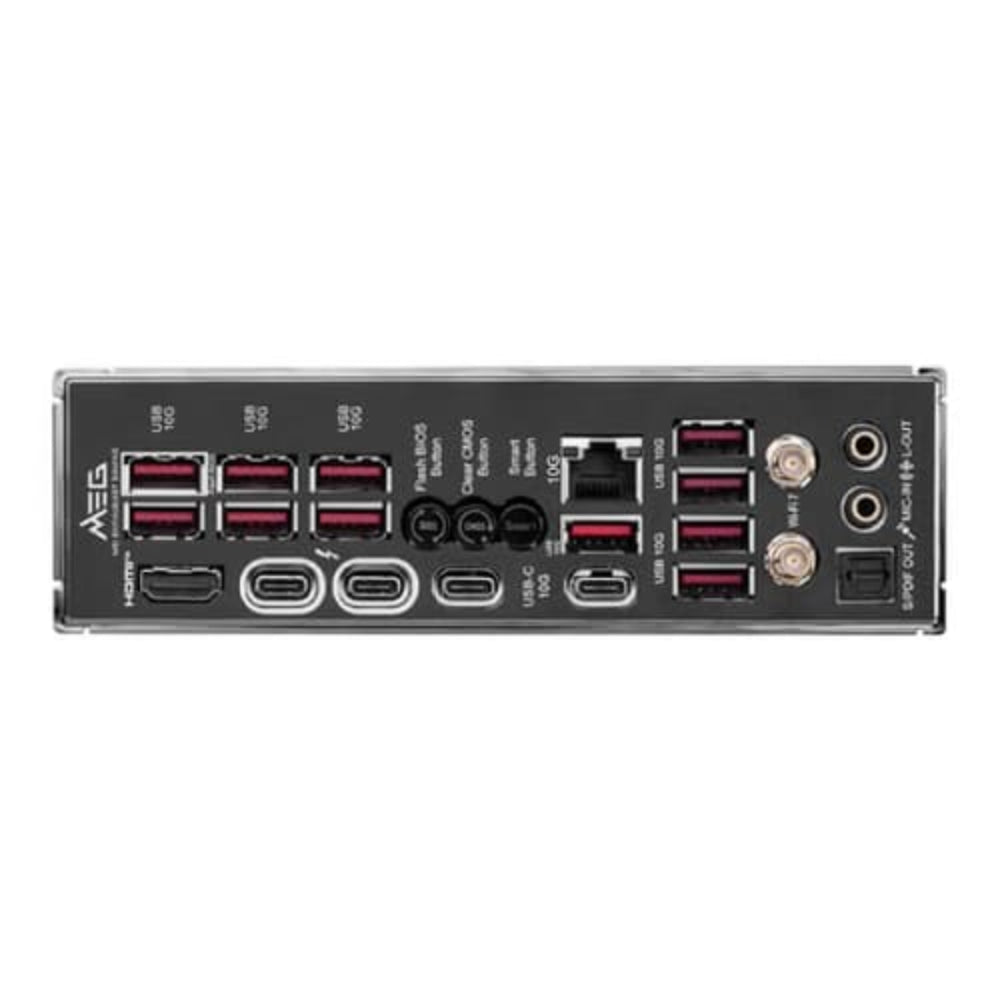

BACK PANEL PORTS	USB 10Gbps (Type-A) Flash BIOS Button Clear CMOS Button Smart Button 10G LAN Wi-Fi / Bluetooth HD Audio Connectors HDMI 2.1 Port Thunderbolt 4 40Gbps (Type-C) USB 10Gbps (Type-C) USB 10Gbps (Type-A) Optical S/PDIF-Out
OPERATING SYSTEM	Support for Windows 11 64-bit
BOX CONTENT	Quicl installation Guide Europeon Union Regulatory Notice Shout-Out Flyer 4x Sata Cables EZ M.2 Clips ll EZ M.2 Clips ll Remover USB Driver Cable Sticker EZ Wi-Fi Antenna 1to3 EZ Conn-Cable (V2) EZ Front Panel Cable M.2 Screw and Standoff Set 1 to 2 RGB Extension cable ARGB Extension Cable 2xThermistor Cables
PCB Info	ATX 243.84mmx304.8mm
Warranty	3 Years
Note	* Images are for Representation purposes only * Features, Price, Specifications are subject to change without notice.
