MSI MEG Z390 Ace Wifi DDR4 Intel Motherboard

360˚

- 33%

Motherboard

MSI MEG Z390 Ace Wifi DDR4 Intel Motherboard

Rs. 38,999.00 Rs. 25,999.00

Availability : Out Of Stock

Brand : MSI

SKU : MSI-MEGZ390ACE-(WI-FI)-MOTHERBOARD

Tags : CATP_MSI, CATQ_Motherboard, MOB10_RGB, MOB11_7, MOB12_0, MOB13_Gen3, MOB14_Gen3, MOB15_Black, MOB16_0, MOB17_6, MOB18_9, MOB19_1, MOB1_Z390, MOB20_2, MOB21_0, MOB22_3, MOB23_75, MOB24_Intel Motherboard, MOB2_ATX, MOB3_LGA1151, MOB4_128, MOB5_4500, MOB6_4, MOB7_DDR4, MOB8_3, MOB9_0, MSI

Safe Payment

Pay with the world’s most payment methods.

Confidence

Protection covers your purchase

Worldwide Delivery

Ship to over 200 countries & regions.

Hotline

+91-99250 02827

Description

Features of MSI MEG Z390 Ace WiFi Motherboard

Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket
Supports DDR4 Memory, up to 4500(OC) MHz
Mystic Light Infinity: 16.8 million colors / 29 effects controlled in one click. Mystic Light Extension supports both RGB and RAINBOW LED-strip
Pre-installed I/O Shielding: Better EMI protection and more convenience for installation
Lightning Fast Game Experience: 3x Turbo M.2 with Shield Frozr, Dual Front USB 3.1 Gen2 Type-C
Audio Boost HD: Isolated audio with a high quality audio processor with ESS DAC & Nahimic for the most immersive gaming experience
M.2 Shield Frozr: Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster
Game Boost: One second automated overclocking by controlling up-to-11 gears, your PC gets another adrenalin shot

Specifications of MSI MEG Z390 Ace Wifi DDR4 Intel Motherboard

CPU	Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket

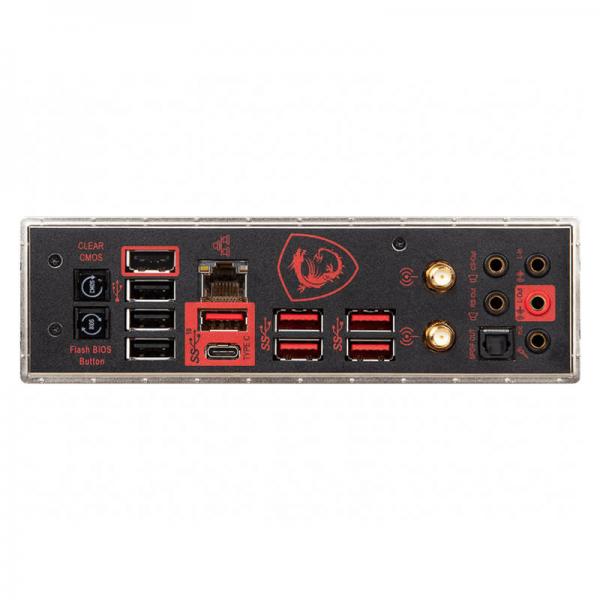

Back Panel I/O Ports	Clear CMOS Button USB 2.0 Ports Killer™ E2500 Gigabit LAN Wi-Fi /Bluetooth Antenna Connectors HD Audio Connectors BIOS FLASHBACK Button USB 3.1 Gen2 Ports Type A C USB 3.1 Gen2 Ports USB 3.1 Gen2 Ports Optical S/PDIF-Out
Chipset	Intel® Z390 Chipset
Internal I/O Connectors	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 6 x SATA 6Gb/s connectors 3 x M.2 slots 2 x USB 3.1 Gen2 Type-C ports 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports) 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1 x 4-pin CPU fan connector 1 x 4-pin Water Pump connector 5 x 4-pin system fan connectors 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 2 x 4-pin RGB LED connectors 1 x 3-pin RAINBOW LED connector 1 x 3-pin CORSAIR LED connector
Memory	4 x DDR4 memory slots, support up to 64GB Supports DDR4 4500(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) /2800(OC)/ 2666/ 2400/ 2133 MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP)
Slots	3 x PCIe 3.0 x16 slots Support x16/ x0/ x0, x8/ x8/ x0, x8/ x4/ x4 modes 3 x PCIe 3.0 x1 slots
Multi-GPU Support	Supports 2-Way NVIDIA® SLI™ Technology Supports 3-Way AMD® CrossFire™ Technology
Storage	Intel® Z390 Chipset 6 x SATA 6Gb/s ports1 3 x M.2 slot (Key M)1 M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices M2_3 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices Intel® Optane™ Memory Ready2 M.2 slots and SATA ports share the bandwidth.Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
RAID	Intel® Z390 Chipset Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID5 for M.2 PCIe storage devices
USB	Intel® Z390 Chipset 6 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (4 Type-A ports on the back panel, 2 Type-C internal connectors) 8 x USB 2.0 (High-speed USB) ports (4 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors) ASMedia® ASM1042 Chipset 4 x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB connectors ASMedia® ASM3142 Chipset 2 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1x Type-A, 1x Type-C) on the back panel
LAN	1 x KillerTM E2500 Gigabit LAN controller
Audio	Realtek® ALC1220 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Operating System	Support for Windows® 10 64-bit
Bluetooth	Supports 802.11 a/b/g/n/ac, MU-MIMO Rx, 2.4GHz/ 5GHz (160MHz) up to 1.73Gbps Supports Bluetooth® 2.1, 2.1 EDR, 3.0, 4.0, 5
Mounting	9 mounting holes
DIMENSION**	12 in. x 9.6 in. (30.5 cm x 24.4 cm) ATX Form Factor
Warranty**	3 years
**Note	Price, feature and specifications are subject to change without notice.
