MSI MEG X570 Ace Max DDR4 AMD Motherboard

360˚

- 22%

Motherboard

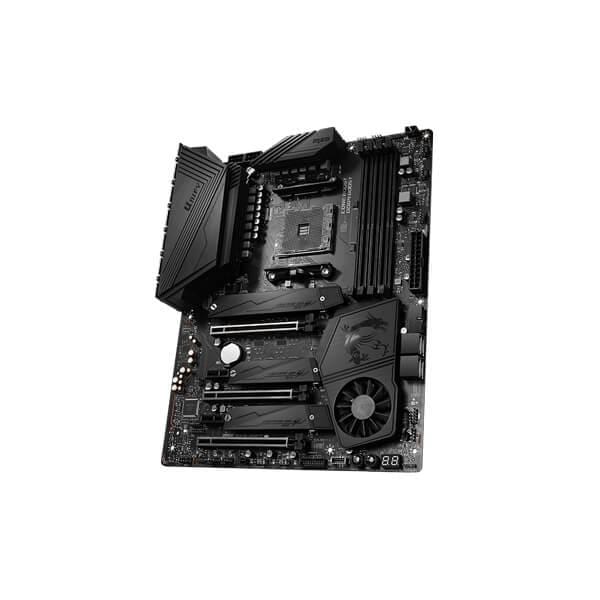

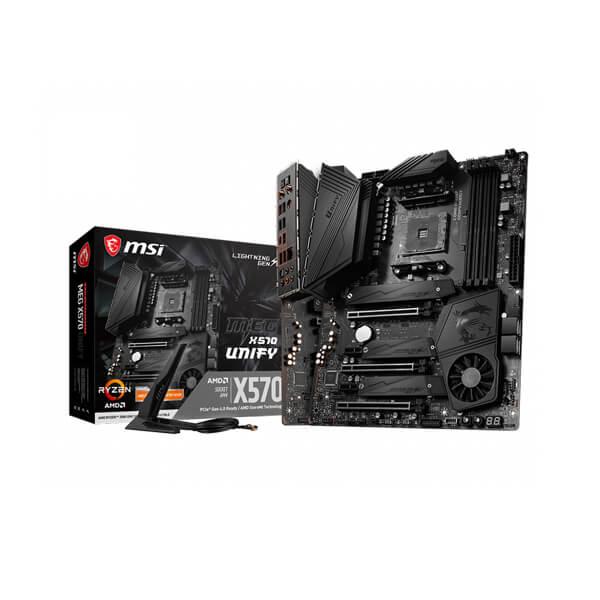

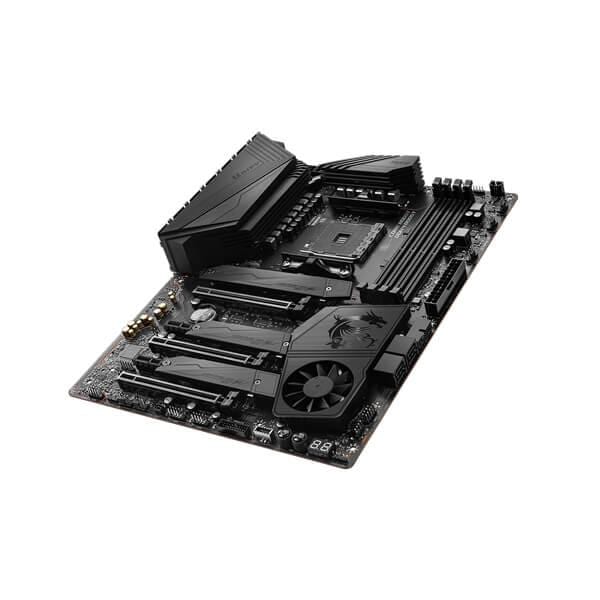

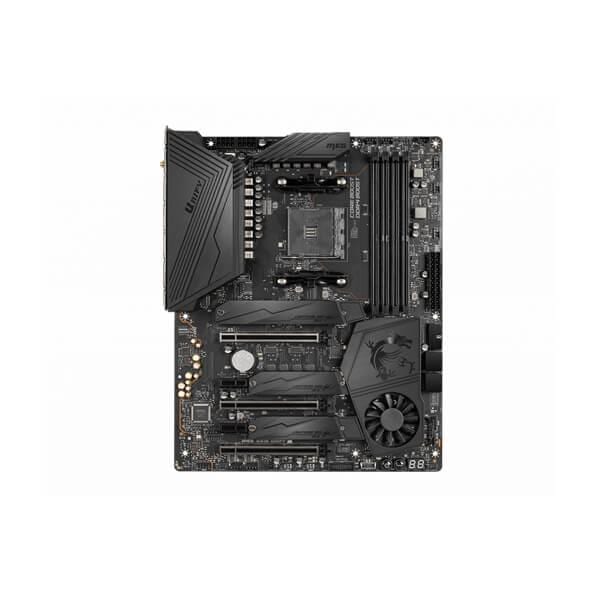

MSI MEG X570 Ace Max DDR4 AMD Motherboard

Rs. 38,850.00 Rs. 30,090.00

Availability : Out Of Stock

Brand : MSI

SKU : MSI-MEG-X570-UNIFY-WIFI

Tags : CATP_MSI, CATQ_Motherboard, MOB10_RGB, MOB11_6, MOB12_0, MOB13_Gen4, MOB14_Gen4, MOB15_Black, MOB16_1, MOB17_4, MOB18_7, MOB19_1, MOB1_X570, MOB20_1, MOB21_2, MOB22_1, MOB23_75, MOB24_AMD Motherboard, MOB2_ATX, MOB3_AM4, MOB4_128, MOB5_5000, MOB6_4, MOB7_DDR4, MOB8_3, MOB9_0, MSI

Safe Payment

Pay with the world’s most payment methods.

Confidence

Protection covers your purchase

Worldwide Delivery

Ship to over 200 countries & regions.

Hotline

+91-99250 02827

Description

Feature of MSI MEG X570 Ace Max DDR4

Supports 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Desktop Processors for AM4 socket
Supports DDR4 Memory, up to 4600 (OC) MHz
Aluminum Cover with Extended Heatsink: All-metal extended heatsink cover enlarge the surface of heat dissipation, ensures even high-end processors to run in full speed.
Lightning Fast Game Experience: PCIe 4.0, Triple Lightning Gen4 x4 M.2 with M.2 Shield Frozr, StoreMI, AMD Turbo USB 3.2 Gen2.
2.5G Gaming LAN with Latest Wi-Fi 6 Solution: Onboard 2.5G LAN with gaming LAN manager, combining latest Wi-Fi 6 solution which supports MU-MIMO and BSS color technology, delivering the best online gaming experience.
Frozr Heatsink Design: Designed with the patented fan and double ball bearings to provide the best performance for enthusiast gamers and prosumers.
Audio Boost HD: Isolated audio with dedicated processor combining ESS audio DAC with amplifier, deliver the breathtaking, game-changing sound to create the most exciting gameplay.
Pre-installed I/O Shielding: Better EMI protection and more convenience for installation

Specifications of MSI MEG X570 Ace Max DDR4

Processor	Supports 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Desktop Processors for Socket AM4
Chipset	AMD X570 Chipset
Memory	4x DDR4 memory slots, support up to 128GB3rd Gen AMD Ryzen™ Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400 /4533 /4600 Mhz by A-XMP OC MODE 2nd Gen AMD Ryzen™ Processors, 1st and 2nd Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667 /2800 / 2933 /3000 /3066 /3200 /3466 /3600 Mhz by A-XMP OC MODEDual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory
Slots	2x PCIe 4.0/ 3.0 x16 slots (PCI_E1, PCI_E3)3rd Gen AMD Ryzen™ support PCIe 4.0 x16/x0, x8/x8 modes 2nd Gen AMD Ryzen™ support PCIe 3.0 x16/x0, x8/x8 modes Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics support PCIe 3.0 x8 mode1x PCIe 4.0/ 3.0 x16 slot (PCI_E5, supports x4 mode) 2x PCIe 4.0/ 3.0 x1 slots
Multi-GPU	Supports 3-Way NVIDIA® SLI™ Technology Supports 3-Way AMDA® CrossFire™ Technology
Storage	4x SATA 6Gb/s ports 2x M.2 slots (M2_2/ M2_3, Key M)Support PCIe 4.0/ 3.0 x4 and SATA 6Gb/s Support 2242/ 2260 /2280 storage devices1x M.2 slot (M2_1, Key M)Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen™) Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) Supports 2242/ 2260 /2280/ 22110 storage devices
RAID	Supports RAID 0, RAID 1 and RAID 10
USB	3x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) ports (2 Type-A ports on the back panel, 1 Type-C internal connector) 4x USB 3.2 Gen1 (SuperSpeed USB) ports through the internal USB 3.2 Gen1 connectors 6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) 2x USB 3.2 Gen2 (3rd Gen AMD Ryzen™) or USB 3.2 Gen1 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) ports (1x Type-A & 1x Type-C) on the back panel 2x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel
Audio	1x Realtek® ALC1220 Codec7.1-Channel High Definition Audio 1x Realtek® ALC4050H CodecSupports S/PDIF output
LAN	1x Realtek® RTL8125 2.5 Gbps LAN controller
WiFi & Bluetooth	Intel® Wi-Fi 6 AX200 Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps Supports Bluetooth 5 The Wireless module is pre-install in the M2_4 (Key-E) slot
Internal connectors	1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 8x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen2 Type-C port 2x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin Water Pump Fan connector 4x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x 4-pin 5050 RGB LED connector 2x 3-pin ARGB LED connectors 1x 3-pin CORSAIR LED connector 1x Slow mode booting jumper 1x Power button 1x Reset button
Back panel ports	1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 4x SATA 6Gb/s connectors 2x USB 2.0 connectors (support additional 4 USB 2.0 ports) 2x USB 3.2 Gen 1 connectors (support additional 4 USB 3.2 Gen 1 ports) 1x USB 3.2 Gen 2 Type-C Port 1x 4-pin CPU fan connector 5x 4-pin system fan connectors 1x 4-pin water-pump connector 1x Front panel audio connector
Dimensions	12 in. x 9.6 in. (30.5 cm x 24.4 cm) ATX Form Factor
Operating System	Support for Windows® 10 64-bit
Mounting	9 mounting holes
Warranty	3 Years
Note	***Features, Price and Specifications are subject to change without notice.
