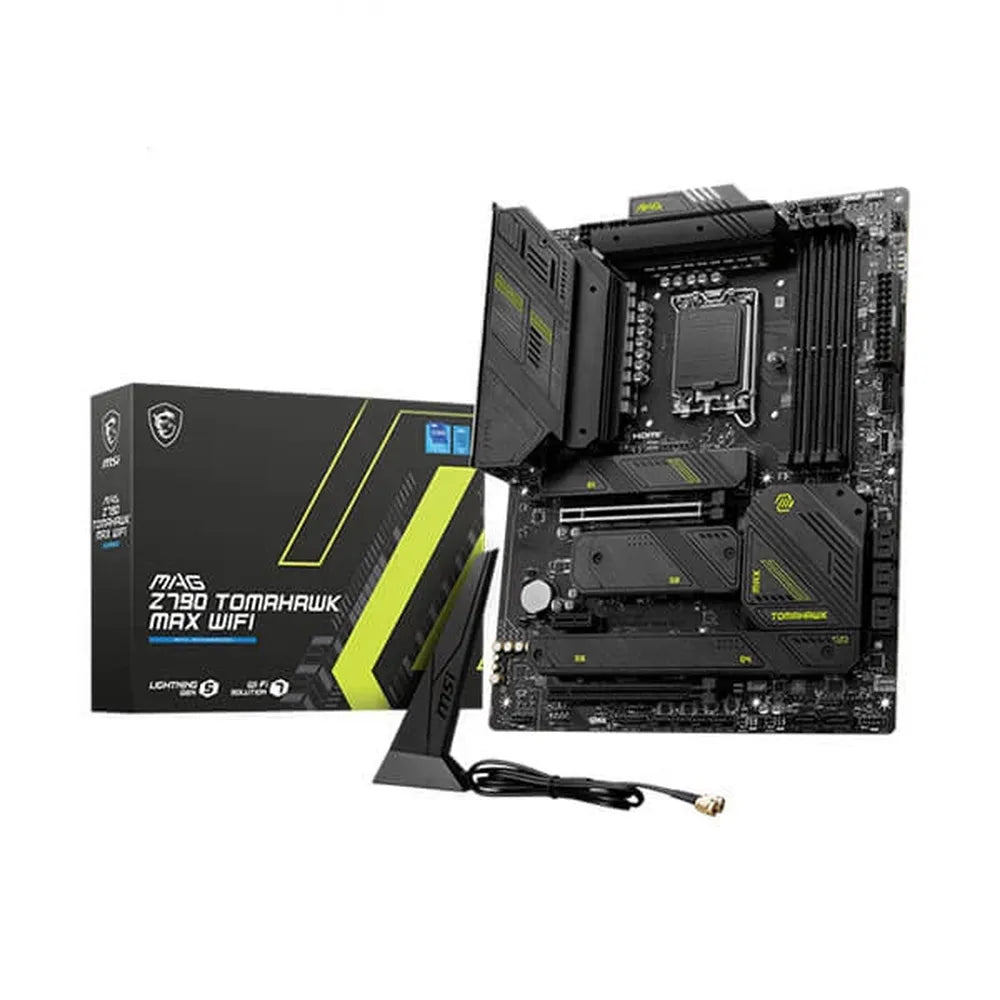

MSI MAG Z790 TOMAHAWK Max Wifi DDR5 Intel Motherboard
Rs. 64,999.00
Rs. 32,235.00
Out Of Stock
Brand : MSI
msi-mag-z790-tomahawk-max-wifi-ddr5-motherboard
Safe Payment
Pay with the world’s most payment methods.
Confidence
Protection covers your purchase
Worldwide Delivery
Ship to over 200 countries & regions.
Hotline
+91-99250 02827
Features Of MSI MAG Z790 TOMAHAWK Max Wifi DDR5 Intel Motherboard

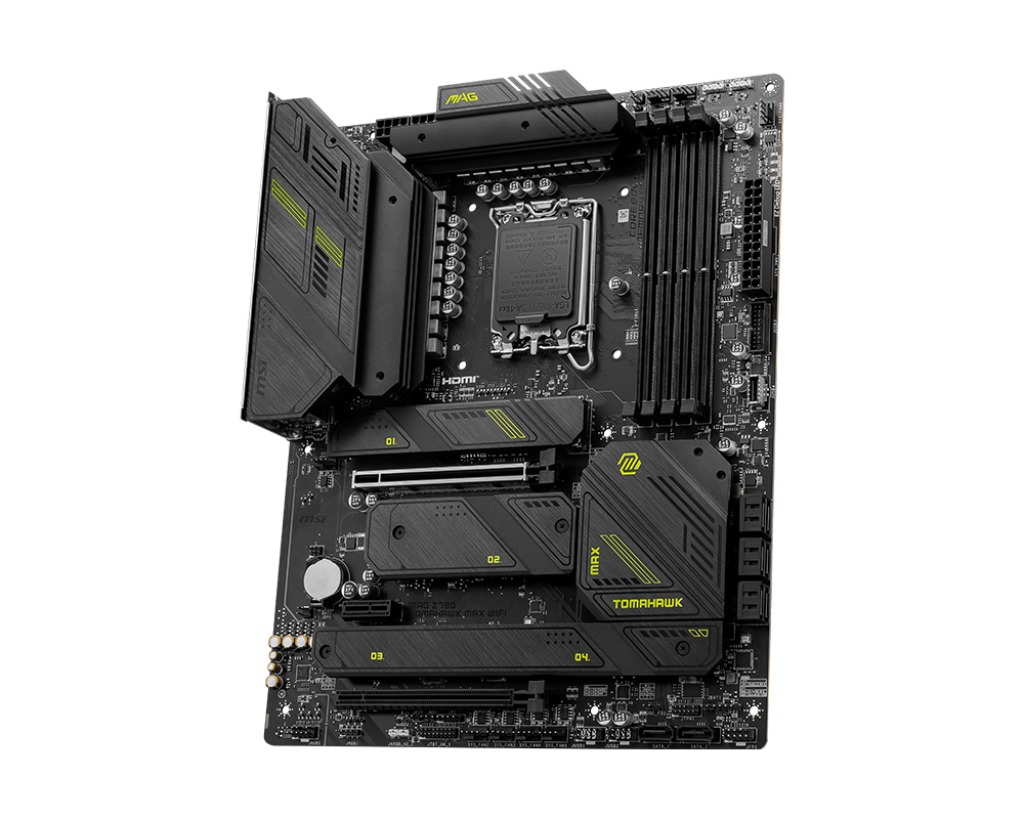

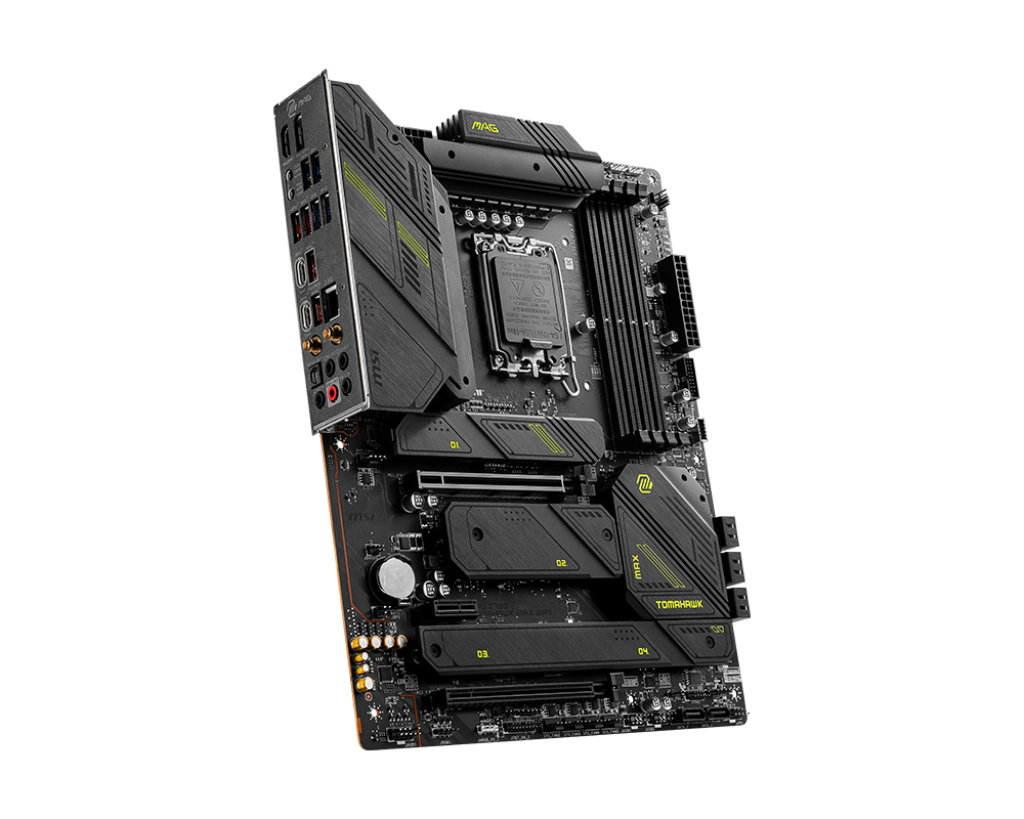

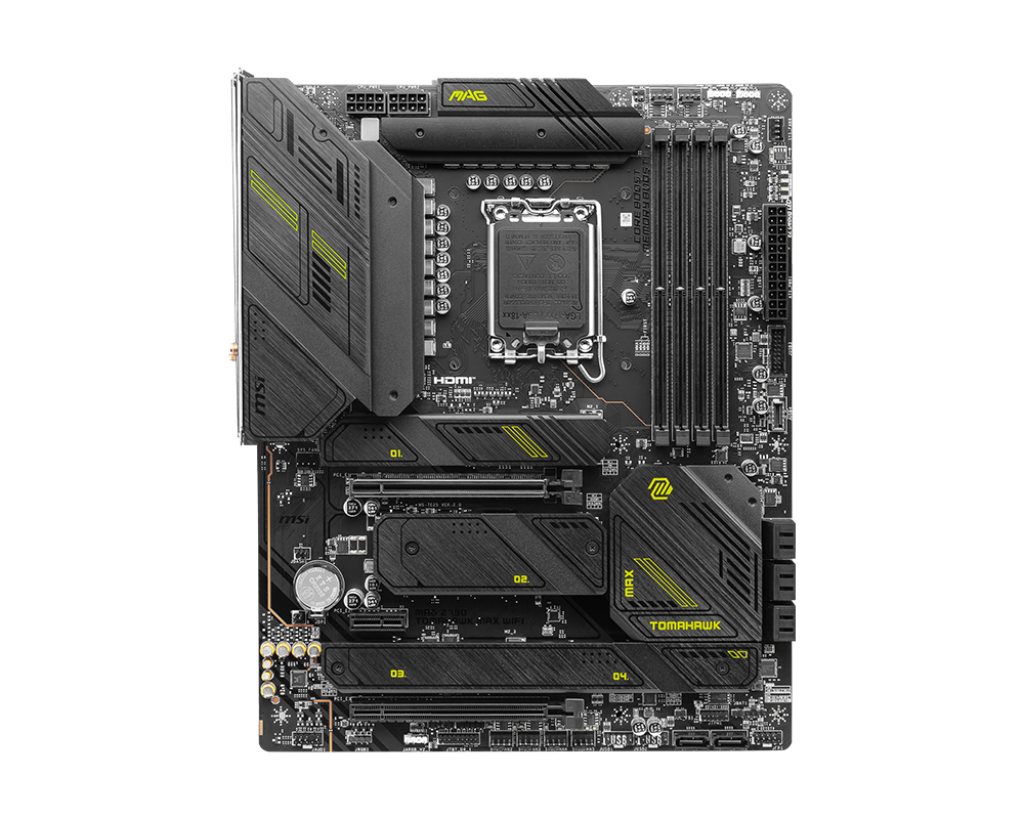

MAG Z790 Tomahawk Max Wifi
The MAG Z790 TOMAHAWK MAX WIFI is meticulously crafted with gamers in mind, offering a robust and dependable platform for their PC endeavors. With cutting-edge features such as Wi-Fi 7 support, lightning-fast 2.5G LAN, DDR5 memory compatibility, PCIe 5.0 connectivity, and the innovative M.2 Shield Frozr, this motherboard is primed for Intel®'s upcoming next-gen and 13th Gen Core processors.
16 PHASES MIRRORED POWER ARRANGEMENT WITH 90A SPS
Maximize and maintain peak performance with an elite VRM architecture comprising 16 Phases Mirrored Power Arrangement featuring 90A SPS. The MAG Z790 MAX Series seamlessly integrates dual power connectors and Power Stage technology, ensuring readiness for the demands of high-end processors.
OPTIMIZED PCB SOLUTION
The PCB layout has been fine-tuned to enhance bandwidth and accelerate transfer rates, thereby improving the reliability of circuit transmission.
EZ M.2 CLIP
Struggling with screwing in tight spaces? MSI's innovative EZ M.2 clip makes installing an M.2 SSD a breeze, ensuring a quick and effortless process.
FAST AND FUTURE-READY STORAGE
MSI MAG series motherboards are fully compatible with the latest storage standards, enabling users to connect ultra-fast storage devices effortlessly. Enjoy quicker game launches, faster level loading times, and gain a competitive edge over adversaries.
DOUBLE BANDWIDTH WITH LIGHTNING USB 3.2 GEN 2x2 20G
Experience unprecedented speed with USB 3.2 devices on MAG Z790 series motherboards. With a plethora of connectivity options, including the Rear USB Type-C port, enjoy blazing-fast USB speeds of up to 20Gb/s like never before.
LATEST DDR5 MEMORY WITH SMT SLOT
Unlock a new era of DDR performance with the latest DDR5 memory on the MAG Z790 TOMAHAWK MAX WIFI motherboard. Enhanced further by a dedicated SMT welding process and MSI Memory Boost technology, it stands poised to deliver world-class memory performance.
- Supports Intel® Core™ Next-gen / 13th Gen / 12th Gen, Pentium® Gold and Celeron® processors for LGA 1700 socket
- MSI MAG Z790 TOMAHAWK Max Wifi DDR5 Memory, up to 7800 (OC) MHz
- Enhanced Power Design: 16 1 1 Mirrored Power Arrangement, dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 M.2, USB 3.2 Gen 2×2
- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
- AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
- High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
Specifications Of MSI MAG Z790 TOMAHAWK Max Wifi DDR5 Intel Motherboard
| CHIPSET | INTEL Z790 |
| CPU SUPPORT | Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors |
| LGA 1700 | |
| MEMORY | 4x DDR5 UDIMM, Maximum Memory Capacity 192GB |
|
Memory Support 7800 (OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
|
|
| Max. overclocking frequency: | |
| • 1DPC 1R Max speed up to 7800 MHz | |
| • 1DPC 2R Max speed up to 6600 MHz | |
| • 2DPC 1R Max speed up to 6400 MHz | |
| • 2DPC 2R Max speed up to 5600 MHz | |
| Supports Intel® XMP3.0 OC | |
| Supports Dual-Controller Dual-Channel mode | |
| Supports non-ECC, un-buffered memory | |
| ONBOARD GRAPHICS | 1x HDMI™ |
| Support HDMI™ 2.1, maximum resolution of 4K 60Hz* | |
| 1x DisplayPort | |
| Support DP 1.4, maximum resolution of 8K 60Hz* | |
| *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. | |
| EXPANSION SLOT | 2x PCI-E x16 slot |
| 1x PCI-E x1 slot | |
| PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) | |
| PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) | |
| PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) | |
| STORAGE | 4x M.2 |
| M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280/2260 devices | |
| M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices | |
| M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices | |
| M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices | |
| 8x SATA 6G | |
| * SATA_1 will be unavailable when installing M.2 SATA SSD in the M2_3 slot. | |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices | |
| * SATA_A1_A2 do not support RAID function. | |
| USB | 4x USB 2.0 (Front) |
| 4x USB 3.2 Gen1 Type A (Rear) | |
| 2x USB 3.2 Gen1 Type A (Front) | |
| 4x USB 3.2 Gen2 Type A (Rear) | |
| 1x USB 3.2 Gen2 Type C (Rear) | |
| 1x USB 3.2 Gen2 Type C (Front) | |
| 1x USB 3.2 Gen2x2 Type C (Rear) | |
| LAN | Intel® 2.5Gbps LAN |
| WIRELESS / BLUETOOTH | Wi-Fi 7 |
| The Wireless module is pre-installed in the M.2 (Key-E) slot | |
| Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps | |
| Supports 802.11 a/ b/ g/ n/ ac/ ax/ be | |
| Supports Bluetooth® 5.4**, MLO, 4KQAM | |
| * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3. | |
|
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan.
|
|
| AUDIO | Realtek® ALC4080 Codec |
| 7.1-Channel USB High Performance Audio | |
| Supports up to 32-Bit/384 kHz playback on front panel | |
| INTERNAL I/O | 1x Power Connector(ATX_PWR) |
| 2x Power Connector(CPU_PWR) | |
| 1x CPU Fan | |
| 1x Pump Fan | |
| 6x System Fan | |
| 2x Front Panel (JFP) | |
| 1x Chassis Intrusion (JCI) | |
| 1x Front Audio (JAUD) | |
| 1x Tuning Controller connector(JDASH) | |
| 3x Addressable V2 RGB LED connector (JARGB_V2) | |
| 1x RGB LED connector(JRGB) | |
| 1x TPM pin header(Support TPM 2.0) | |
| 4x USB 2.0 ports | |
| 2x USB 3.2 Gen1 Type A ports | |
| 1x USB 3.2 Gen2 Type C ports | |
| 1x USB4 card connector (JTBT_U4_1, supports RTD3) | |
| LED FEATURE | 4x EZ Debug LED |
|
BACK PANEL PORTS
|
|
| Display Port | |
| USB 3.2 Gen 1 5 Gbps (Type-A) | |
| USB 3.2 Gen 2 10Gbps (Type-A) | |
| 2.5G LAN | |
| Wi-Fi / Bluetooth | |
| Audio Connectors | |
| HDMI™ | |
| Clear CMOS | |
| Flash BIOS | |
| USB 3.2 Gen 2 10Gbps (Type-A) | |
| USB 3.2 Gen 2 10Gbps (Type-C) | |
| USB 3.2 Gen 2×2 20Gbps (Type-C) | |
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB DIMENSION (W × L) | ATX |
| 243.84mmx304.8mm |
