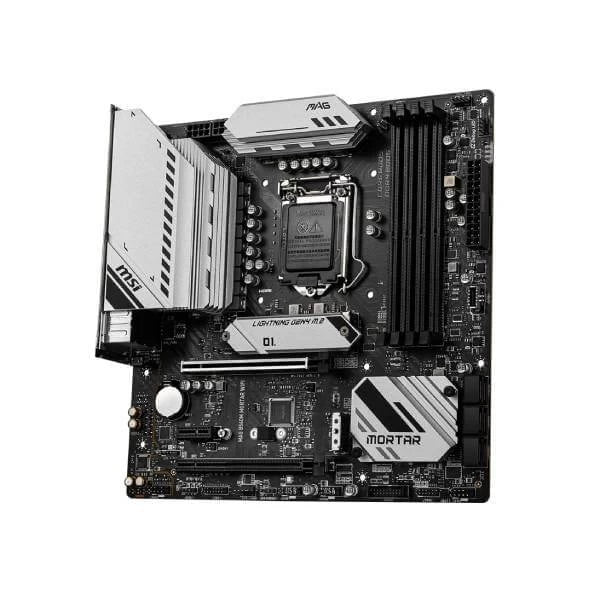

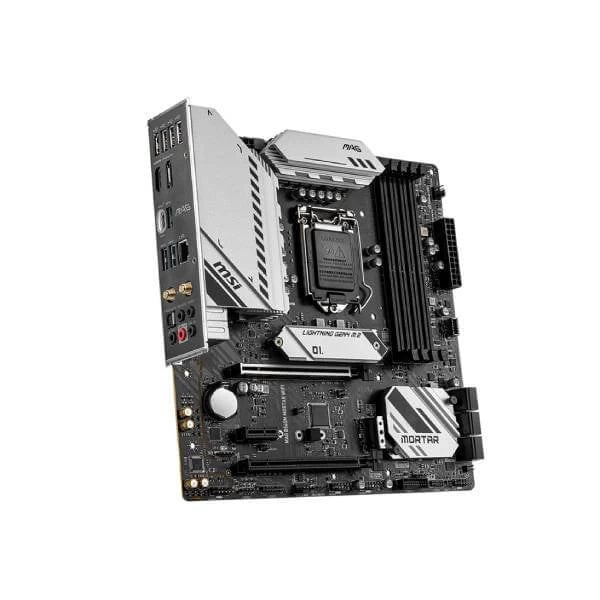

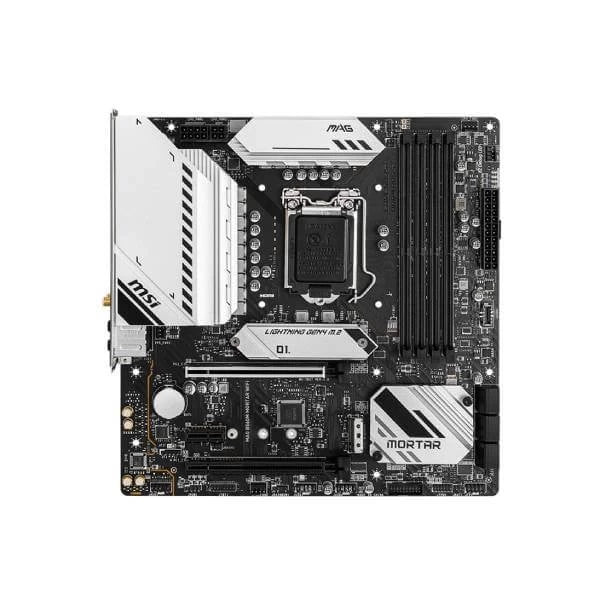

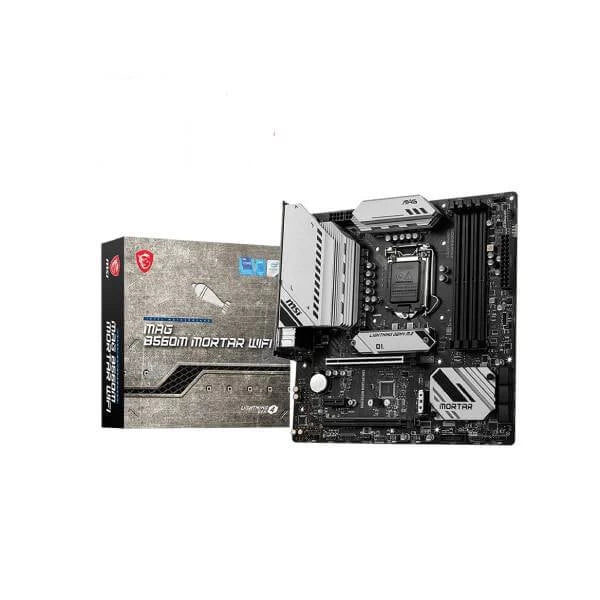

Feature of MSI MAG B560M Mortar WiFi DDR4

MSI MAG B560M Mortar WIFI is very reliable as it has gone through over 7000+ validation hours of industrial-level tests. Supports two-way AMD Crossfire with steel armor PCI-E slots. This helps to set up a multi GPU build. No need to worry about lag anymore as the MSI MAG B560M Mortar WIFI comes with onboard 2.5G LAN plus Gigabit LAN. Also, the latest Wi-Fi 6 solution helps to do lag-free gaming. Helps for smooth professional and multimedia use.MSI MAG B560M Mortar WIFI gives the most immersive audio experience as it comes with studio sound quality.MSI MAG B560M Mortar WIFI offers the fastest USB speeds with stability as it comes with Lightning USB 20G by ASMedia USB 3.2 Gen2x2 controller.

1. Supports 10th Gen Intel® Core™, 11th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket
2. Supports DDR4 Memory, up to 5066(OC) MHz
3. Lightning M.2: Running at PCIe Gen4 x4 maximizes performance for NVMe based SSDs
4. Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
5. 2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
6. Lightning USB 20G: Powered by USB 3.2 Gen2x2 controller, offering never before seen USB speeds up to 20Gb/s with USB Type-C
7. Audio Boost: Reward your ears with studio grade sound quality
8. Multi-GPU: With Steel armor PCIe slots. Supports AMD Crossfire Technology™

Core Boost

MSI MAG B560M Mortar WiFi DDR4 Motherboard comes With premium layout and fully digital power design to support more cores and provide better performance.

Digital PWM

Highest quality component digital power IC makes sure your system runs smoothly under the most extreme conditions with MSI MAG B560M Mortar WiFi DDR4 Motherboard.

PCIe Steel Armor

Protecting VGA cards against bending and EMI for better performance, stability and strength with MSI MAG B560M Mortar WiFi DDR4 Motherboard.

6 layer PCB with 2oz Thickened Copper

6 layer PCB with 2oz thickened copper provides higher performance and long-lasting system stability without any compromise in MSI MAG B560M Mortar WiFi DDR4 Motherboard.

PREMIUM HARDWARE DESIGN

With years of experience, MSI is no stranger to building high-performance motherboards. Our R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high quality components, and developed products for reliability even under extreme conditions.

THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE

MSI MAG B560M Mortar WiFi DDR4 Motherboard comes With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end Intel CPU to run in full speed with MSI motherboards.

M.2 SHIELD FROZR

World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.

FULLY CONTROLLABLE IN BIOS AND SOFTWARE

MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.

FROZR AI COOLING

Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.

OPTIMIZED FOR WATER COOLING

Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.

ENHANCED PERFORMANCE

High performance MSI motherboards are loaded with advanced features and the latest technology to overwhelm any challenge at hand no matter whether you’re a gamer, prosumer, or PC enthusiast.

LIGHTNING GEN 4 M.2

Utilizing 11th Gen Intel processors, MSI B560 motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed.

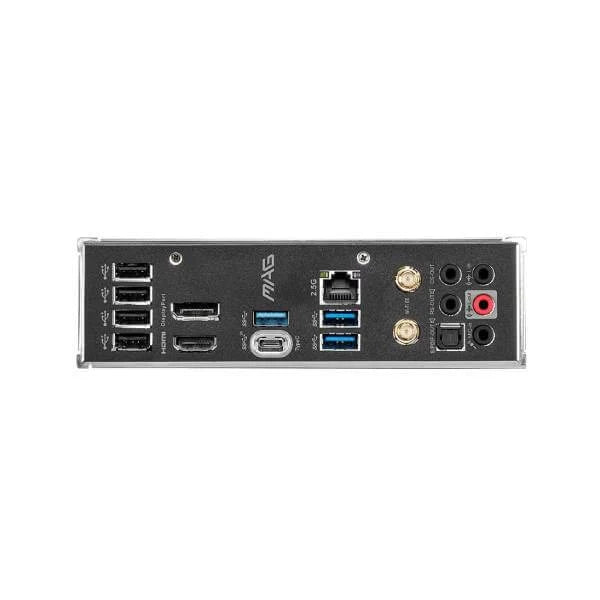

CONNECTIVITY

MSI motherboards are built with a variety of connectors to satisfy gamers. Enhanced audio, advanced LAN networking capabilities, USB and Mystic Light turn any gaming experience into an immerse one.

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK

MSI MAG B560M Mortar WiFi DDR4 Motherboard comes with 2.5Gbps LAN which provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.

SURFACING WITH THE REAL MU-MIMO TECHNOLOGY

The latest Wi-Fi 6E solution supports 6GHz spectrum, Bluetooth 5.2, two-way MU-MIMO and BSS color technology, provide up to 4X network capacity and efficiency in the high signal density environment, delivering speeds up to 2400Mbps.

Specifications of MSI MAG B560M Mortar WiFi DDR4
