MSI MAG B560 Torpedo DDR4 Intel Motherboard

360˚

- 31%

Motherboard

MSI MAG B560 Torpedo DDR4 Intel Motherboard

Rs. 24,990.00 Rs. 17,091.00

Availability : Out Of Stock

Brand : MSI

SKU : msi-b560-torpedo

Tags : CATP_MSI, CATQ_Motherboard, MOB10_ARGB, MOB11_7, MOB12_1, MOB13_Gen4, MOB14_Gen4, MOB15_Black, MOB16_1, MOB17_6, MOB18_8, MOB19_0, MOB1_B560, MOB20_2, MOB21_2, MOB22_1, MOB23_75, MOB24_Intel Motherboard, MOB2_ATX, MOB3_LGA1200, MOB4_128, MOB5_5066, MOB6_4, MOB7_DDR4, MOB8_3, MOB9_1, MSI

Safe Payment

Pay with the world’s most payment methods.

Confidence

Protection covers your purchase

Worldwide Delivery

Ship to over 200 countries & regions.

Hotline

+91-99250 02827

Description

Feature of MSI MAG B560 Torpedo DDR4 Intel Motherboard

Supports 10th Gen Intel^® Core™, 11th Gen Intel^® Core™, Pentium^® Gold and Celeron^® processors for LGA 1200 socket
Supports DDR4 Memory, up to 5066(OC) MHz
Lightning M.2: Running at PCIe Gen4 x4 maximizes performance for NVMe based SSDs
Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr is built for high performance system and non-stop works
Latest Network Solution: Onboard 2.5G LAN plus Gigabit LAN with LAN Manager deliver the best online experience without lag
Lightning USB 20G: Powered by USB 3.2 Gen2x2 controller, offering never before seen USB speeds up to 20Gb/s with USB Type-C
Audio Boost: Reward your ears with studio grade sound quality
Multi-GPU: With Steel armor PCIe slots. Supports 2-Way AMD Crossfire™

THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE

With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end Intel CPU to run in full speed with MSI motherboards.

FAST AND FUTURE-READY STORAGE

MSI MAG B560 Torpedo DDR4 motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK

MAG B560 TORPEDO features high-bandwidth and low-latency 2.5G plus Gigabit LAN for power users. Onboard 2.5Gbps connectivity provides incredible data transfer speed faster than ever before. MSI LAN Manager automatically classifies and prioritizes the latency-sensitive for your applications, giving you the best online experience with low latency.”

Specifications of MSI MAG B560 Torpedo DDR4 Intel Motherboard

PROCESSOR	Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold, and Celeron® Processors Processor socket LGA1200
CHIPSET	Intel® B560 Chipset
MEMORY	4x DDR4 memory slots, support up to 128GBSupports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR) Max overclocking frequency:1DPC 1R Max speed up to 5066 MHz 1DPC 2R Max speed up to 4600+ MHz 2DPC 1R Max speed up to 4266+ MHz 2DPC 2R Max speed up to 4000+ MHzSupports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP)
EXPANSION SLOTS	2x PCIe x16 slotsPCI_E1 (from CPU)Support up to PCIe 4.0 for 11th Gen Intel® CPU Support up to PCIe 3.0 for 10th Gen Intel® CPUPCI_E2 (from B560 chipset)Support up to PCIe 3.0 x41x PCIe 3.0 x1 slot (from B560 chipset)
ONBOARD GRAPHICS	1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
MULTI-GPU	Supports 2-Way AMD® CrossFire™ Technology
STORAGE	6x SATA 6Gb/s ports (from B560 chipset) 3x M.2 slots (Key M)M2_1 slot (from CPU)Available only on 11th Gen Intel® CPU Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devicesM2_2 slot (from B560 chipset)Supports up to PCIe 3.0 x4 Supports SATA up to 6Gb/s Supports 2242/ 2260/ 2280 storage devicesM2_3 slot (from B560 chipset)Supports up to PCIe 3.0 x4 Supports 2242/ 2260/ 2280 storage devices Intel® Optane™ Memory Ready Supports Intel® Smart Response Technology for Intel Core™ processor
USB	Intel® B560 Chipset 1x USB3.2 Gen 2x2 20Gbps port (Type-C port on the back panel) 1x USB 3.2 Gen 2 10Gbps port (1 Type-C available through the internal connector) 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 Type-A ports available through the internal connector) 4x USB 2.0 ports on the back panelG Hub-GL850G 4x USB 2.0 ports available through the internal connectors
AUDIO	Realtek® ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
LAN	1x Realtek® RTL8125B 2.5Gbps LAN controller 1x Intel® I219V 1Gbps LAN controller
INTERNAL CONNECTORS	x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 6x SATA 6Gb/s connectors 3x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 5x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TPM module connector 1x TBT connector (supports RTD3) 1x Tuning Controller connect
LED FEATURE	1x EZ LED Control switch 2x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors 4x EZ Debug LED

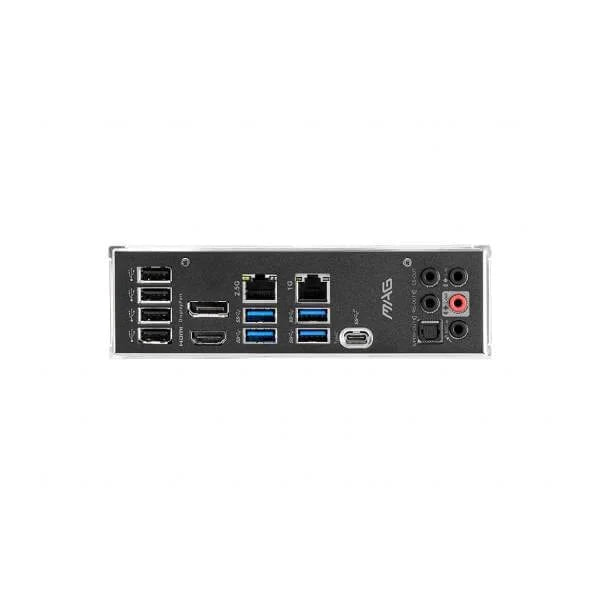

BACK PANEL PORTS	USB 2.0 DisplayPort 2.5G LAN Port Gigabit LAN Port HD Audio Connectors HDMI USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 2x2 20Gbps Type-C Optical S/PDIF OUT
DIMENSIONS	ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm
MOUNTING	9 mounting holes
OPERATING SYSTEM	Support for Windows® 10 64-bit
Warranty	3 Years
Note	*** Features, Prices, Specifications are subject to change without notice.
