MSI H310M Pro-M2 Plus DDR4 Intel Motherboard

360˚

- -4%

Motherboard

MSI H310M Pro-M2 Plus DDR4 Intel Motherboard

Rs. 5,495.00

Availability : Out Of Stock

Brand : MSI

SKU : MSI-H310M-PRO-M2-PLUS

Tags : CATP_MSI, CATQ_Motherboard, MOB10_None, MOB11_2, MOB12_1, MOB13_Gen3, MOB14_Gen2, MOB15_Black, MOB16_0, MOB17_4, MOB18_6, MOB19_0, MOB1_H310, MOB20_0, MOB21_0, MOB22_1, MOB23_55, MOB24_Intel Motherboard, MOB2_MATX, MOB3_LGA1151, MOB4_32, MOB5_2666, MOB6_2, MOB7_DDR4, MOB8_1, MOB9_0, MSI

Safe Payment

Pay with the world’s most payment methods.

Confidence

Protection covers your purchase

Worldwide Delivery

Ship to over 200 countries & regions.

Hotline

+91-99250 02827

Description

Feature of MSI H310M Pro-M2 Plus DDR4 Intel Motherboard

Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket
Supports DDR4 Memory, up to 2666MHz
DDR4 Boost: Advanced technology to deliver pure data signals for the best gaming performance and stability.
Audio Boost: Reward your ears with studio grade sound quality.
M.2 and NVMe support, up to 20 Gb/s using PCI-Express Gen2 x4.
EZ Debug LED: Easiest way to troubleshoot.
PCI-E Steel Slot: Protecting VGA cards against bending for better performance, stability and strength.
X-Boost: Software that auto-detects and allows you to boost the performance of any storage, Optane or USB device.
Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.

Cooling

The H310M PRO has two fan headers with both DC and PWM control, which enables you to adjust your fans' speeds as needed within BIOS or a third-party software.

Display

With DVI-D, VGA, and HDMI ports this motherboard can be connected to a variety of displays utilizing your processor's integrated graphics.

Storage

Install a PCIe Gen 2 x4 or SATA M.2 drive on this motherboard for fast storage solutions. With a compatible drive, you'll be able to transfer data at speeds of up to 20 Gb/s. Moreover, you can enable XBoost within MSI's optional software for enhanced SSD speeds. For larger capacity storage, this motherboard has four SATA III ports.

The H310M PRO is built with MSI Audio Boost as well as multiple hardware and software features designed to provide you with a better listening experience.

Isolated audio design with LED border ensures a better audio signal
Separated audio layers for clean left and right channels
De-pop protection prevents loud popping sounds when you plug or unplug or devices
Dedicated, EMI-shielded high-definition audio processor
High-quality audio capacitors for a warmer sound
Connectors for 7.1-channel surround sound

Memory

MSI H310M Pro-M2 Plus DDR4 RAM slots on this motherboard feature optimized traces and a fully isolated memory circuit for stable performance. It also supports a variety of RAM from different manufacturers, so be sure to check if yours is compatible. Moreover, you can easily toggle on XMP (Intel Extreme Memory Profile) for faster performance with just a single click within BIOS.

Tuning

Core Boost technology combines MSI's layout and optimized power design for faster and undistorted current delivery to the CPU. This motherboard is also equipped with over-voltage protection and an EZ Debug LED, which you can use to identify sources of problems

Specifications of MSI H310M Pro-M2 Plus DDR4 Intel Motherboard

Processor	Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket
Chipset	Intel® H310 Chipset This chipset is ME11 firmware based and doesn't feature SDA3.0
Memory	2 x DDR4 memory slots, support up to 32GB Supports DDR4 2666/ 2400/ 2133 MHz Dual channel memory architecture Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP)
Slots	1 x PCIe 3.0 x16 slot 2 x PCIe 2.0 x1 slots
Onboard Graphics	1x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz1 1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz1 1x HDMI™ port 1.4, supports a maximum resolution of 4096x2160@30Hz1 *No Display support when using the Processor model with suffix “F” Supports up to 2 displays simultaneously
Storage	Intel® H310 Chipset 4 x SATA 6Gb/s ports1 1 x M.2 slot (Key M) Support up to PCIe 2.0 x4 and SATA 6Gb/s Supports 2242/ 2260 /2280 storage devices SATA1 port will be unavailable when an M.2 SATA SSD is installed in the M2_1 slot.
USB	Intel® H310 Chipset 4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connectors) 6 x USB 2.0 (High-speed USB) ports (4 Type-A ports on the back panel, 2 ports available through the internal USB connectors)
Audio	Realtek® ALC887 Codec 7.1-Channel High Definition Audio
LAN	1 x Intel I219-V Gigabit LAN controller
Internal connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports) 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports) 1 x 4-pin CPU fan connector 1 x 4-pin system fan connector 1 x Front panel audio connector 1 x Serial port connector 2 x Front panel connectors 1 x TPM module connector 1 x Chassis Intrusion connector 1 x Clear CMOS jumper

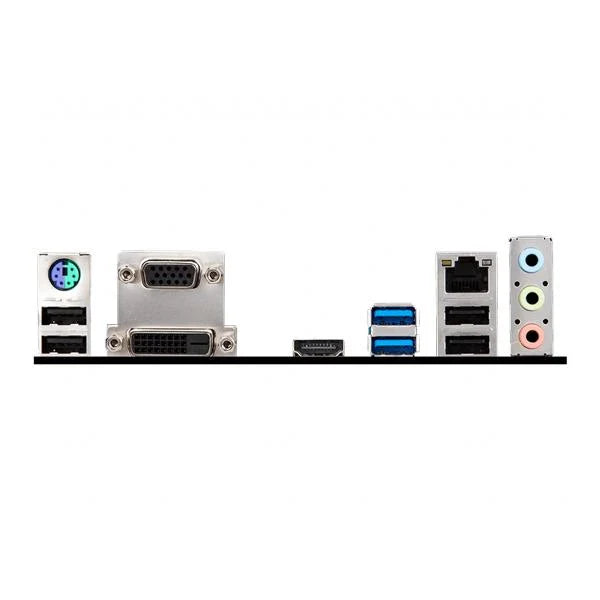

Back panel ports	PS/2 Combo VGA HDMI USB 3.1 Gen1 LAN HD Audio Connectors DVI-D USB 2.0
Dimensions	9.1 in. x 7.3 in. (23.0 cm x 18.5 cm) m-ATX Form Factor
Mounting	6 mounting holes
Operating System	Support for Windows® 10 64-bit
Warranty	3 Years
Note	***Features, Price and Specifications are subject to change without notice
