Description

Features of MSI B560M Pro Wifi DDR4 Intel Motherboard

A HUGE STEP OF DDR PERFORMANCE
CORE BOOST
OPTIMIZE NETWORK FOR LOWER LATENCY!
SURFACING WITH THE REAL MU-MIMO TECHNOLOGY
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
FULLY CONTROLLABLE IN BIOS AND SOFTWARE
FROZR AI COOLING
M.2 SHIELD FROZR

Specifications of MSI B560M Pro Wifi DDR4 Intel Motherboard

CPU	Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors1 Processor socket LGA1200
Chipset	Intel® B560 chipset
Memory	2x DDR4 memory slots, support up to 64GB1 Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5200 MHz 1DPC 2R Max speed up to 4700+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP)
Expansion Slot	1x PCIe x16 slot (From CPU) Support up to PCIe 4.0 for 11th Gen Intel® CPU Support up to PCIe 3.0 for 10th Gen Intel® CPU 2x PCIe 3.0 x1 slots (From B560 chpiset)
Onboard Graphics	1x VGA port, supports a maximum resolution of 2048x1280 @60Hz, 1920x1200 @60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
Audio	Realtek® ALC897 Codec 7.1-Channel High Definition Audio
LAN	1x Realtek® 8125B 2.5Gbps LAN controller
Storage	6x SATA 6Gb/s ports (From B560 chipset) 1x M.2 slot (Key M)1 Supports up to PCIe 4.0 x4 for 11th Gen Intel® CPU (From CPU) Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel® CPU (From B560 chipset)1 Supports 2242/ 2260/ 2280 storage devices Supports Intel® Smart Response Technology for Intel Core™ processors
Wireless LAN & Bluetooth®	Intel® Wi-Fi 6 AX201 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax WiFi 6 pre certified Supports Bluetooth® 5.1, FIPS, FISMA
USB	Intel® B560 Chipset 6x USB 2.0 ports (2 Type-A port on the back panel, 4 ports available through internal USB 2.0 connectors) 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 Type-A ports available through the internal connector)
Form Factor	mATX Form Factor 9.3 in. x 8 in. (23.6 cm x 20.3 cm)
BIOS Features	1x 256 Mb flash UEFI AMI BIOS ACPI 6.2, SMBIOS 3.0 Multi-language
Internal connectors	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 1x M.2 slot (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TPM module connector 1x Serial port connector 1x Tuning Controller Connector
LED Feature	4x EZ Debug LED 1x 4-pin RGB LED connector 1x 3-pin RAINBOW LED connector

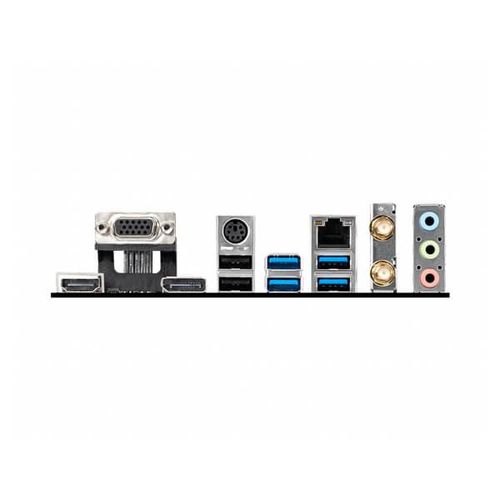

Back panel Connectors	VGA Keyboard / Mouse LAN port WiFi / Bluetooth Audio connector HDMI DisplayPort USB 2.0 USB 3.2 Gen 1 5Gbps Type-A
Warranty	3 Years
Note	***Features, Price and Specifications are subject to change without notice.
